Rear Window Wiper And Washer ((V) Toha999999)

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Rear Window Wiper And Washer ((V) TOHA999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR019197 NUT - FLANGED $1.85 IN STOCK
Photo Part No Description Price (each) Stock
RYG500900 SCREW $4.21 To Order
Photo Part No Description Price (each) Stock
LR027974 SCREW - SELF-TAPPING $1.29 To Order
Photo Part No Description Price (each) Stock
LR044884 MOTOR - WIPER $290.08 To Order
Photo Part No Description Price (each) Stock
LR043987 BLADE - WIPER $27.90 To Order
LR070886 BLADE - WIPER $27.90 To Order
Photo Part No Description Price (each) Stock
LR045255 JET - REAR WINDOW WASHER $21.00 To Order
LR078293 JET $37.57 To Order
Photo Part No Description Price (each) Stock
LR070660 JET - LICENSE PLATE WASHER $6.29 To Order
Photo Part No Description Price (each) Stock
LR072306 HOSE - WINDSHIELD WASHER $83.29 To Order
LR083858 HOSE - WINDSHIELD WASHER $80.05 To Order
Photo Part No Description Price (each) Stock
LR072307 HOSE - WINDSHIELD WASHER $83.29 To Order
Photo Part No Description Price (each) Stock
LR072308 HOSE - WINDSHIELD WASHER $78.06 To Order
Photo Part No Description Price (each) Stock
LR043986 ARM - WIPER $75.33 To Order
LR070885 ARM - WIPER $75.20 To Order
Photo Part No Description Price (each) Stock
LR043988 COVER - WIPER MOTOR $39.98 To Order
Photo Part No Description Price (each) Stock
LR070661 BRACKET - WASHER HOSE $96.11 To Order
View All

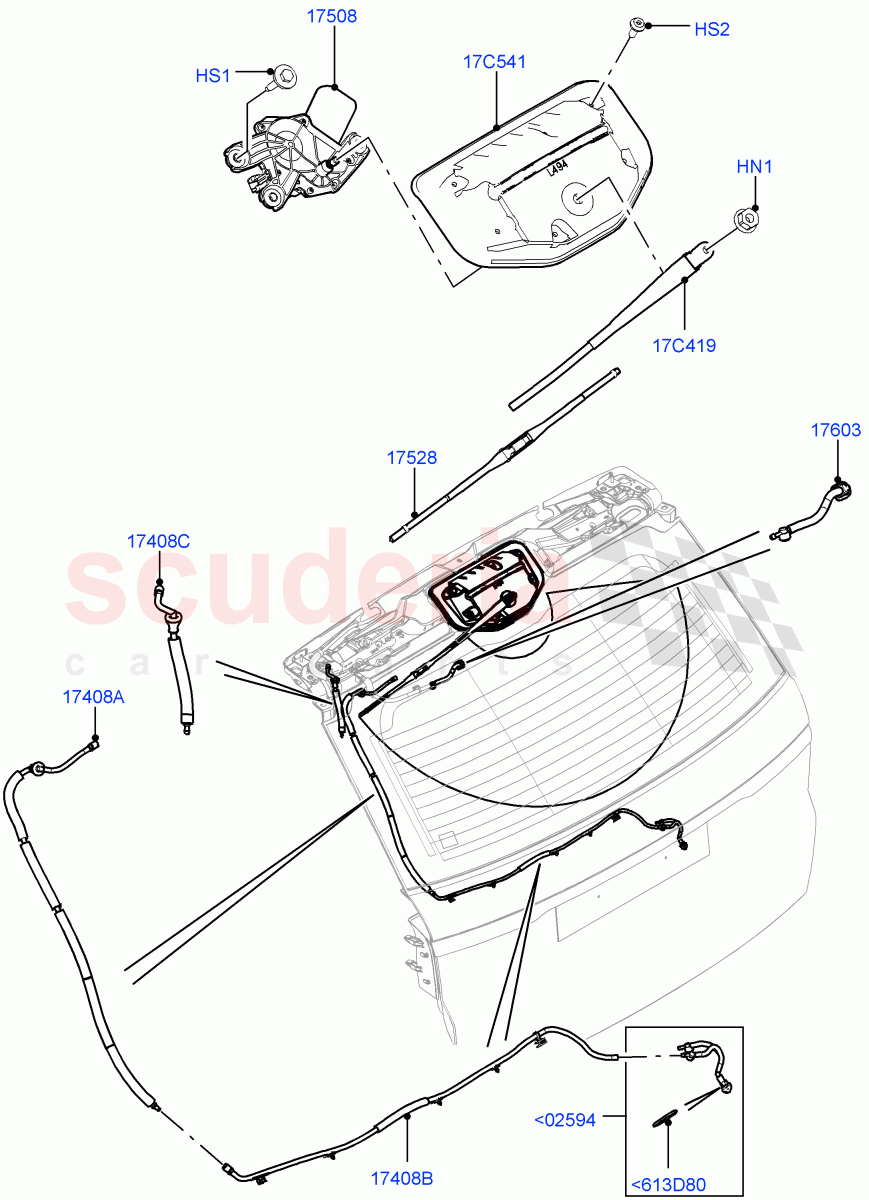

Rear Window Wiper And Washer ((V) TOHA999999) of Land Rover Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<613D80 LR070661
BRACKET - WASHER HOSE
From: GA000001 		$96.11 1
<02594 LR070660
JET - LICENSE PLATE WASHER
Rear View Camera-Fixed / From: GA000001 		$6.29 1
HN1 LR019197
NUT - FLANGED
Domed Type, M8, Wiper Arm
IN STOCK 		$1.85 1
HS1 RYG500900
SCREW
Attaches Wiper Motor, Bolt And Washer, Hexagonal Head, M6X30, To Body 		$4.21 3
HS2 LR027974
SCREW - SELF-TAPPING
Cover, M6X16 		$1.29 6
17C419 LR043986
ARM - WIPER
To: FA999999 		$75.33 1
17C419 LR070885
ARM - WIPER
From: GA000001 		$75.20 1
17C541 LR043988
COVER - WIPER MOTOR
Wiper Motor 		$39.98 1
17408A LR072306
HOSE - WINDSHIELD WASHER
Rear View Camera-Fixed / From: GA000001 / To: GA570486 		$83.29 1
17408A LR083858
HOSE - WINDSHIELD WASHER
Surround Camera System / From: GA570487 		$80.05 1
17408B LR072307
HOSE - WINDSHIELD WASHER
Rear View Camera-Fixed / From: GA000001 		$83.29 1
17408C LR072308
HOSE - WINDSHIELD WASHER
Less Camera System / From: GA000001 		$78.06 1
17508 LR044884
MOTOR - WIPER 		$290.08 1
17528 LR043987
BLADE - WIPER
To: FA999999 		$27.90 1
17528 LR070886
BLADE - WIPER
From: GA000001 		$27.90 1
17603 LR045255
JET - REAR WINDOW WASHER
To: FA542109 		$21.00 1
17603 LR078293
JET
From: FA542110 		$37.57 1
