Insulators - Front (Passenger Compartment)

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Insulators - Front (Passenger Compartment)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR033697 CLIP - PUSH ON STEEL $1.44 To Order
Photo Part No Description Price (each) Stock
RZM500090 PIN - FIXING $10.18 To Order
Photo Part No Description Price (each) Stock
LR003016 SCREW AND WASHER $2.04 To Order
Photo Part No Description Price (each) Stock
LR100154 LAMP - INTERIOR $32.65 To Order
LR098311 LAMP - INTERIOR $42.57 To Order
LR034050 LAMP - INTERIOR $41.96 To Order
Photo Part No Description Price (each) Stock
LR037856 INSULATOR - FLOOR $12.21 To Order
Photo Part No Description Price (each) Stock
LR043798 INSULATOR - BULKHEAD $243.58 To Order
LR043800 INSULATOR - BULKHEAD $245.29 To Order
LR066359 INSULATOR - DASH PANEL $253.22 To Order
...and 11 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR040771 INSULATOR - "A" PILLAR $8.84 To Order
LR040772 INSULATOR - "A" PILLAR $8.69 To Order
LR148852 INSULATOR - "A" PILLAR $13.47 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR040337 INSULATOR - SOUND $13.79 To Order
Photo Part No Description Price (each) Stock
LR049489 INSULATOR - DASH PANEL $127.30 To Order
LR049488 INSULATOR - DASH PANEL $135.00 To Order
Photo Part No Description Price (each) Stock
LR042766 INSULATOR - STEERING COLUMN $134.05 To Order
Photo Part No Description Price (each) Stock
LR037806 INSULATOR - "A" PILLAR $6.72 To Order
LR037808 INSULATOR - "A" PILLAR $6.54 To Order
Photo Part No Description Price (each) Stock
LR040777 INSULATOR - TRIM PANEL $63.95 To Order
LR040778 INSULATOR - TRIM PANEL $62.07 To Order
Photo Part No Description Price (each) Stock
LR041322 INSULATOR - FLOOR $19.57 To Order
Photo Part No Description Price (each) Stock
LR044575 INSULATOR - FOAM PAD $18.03 To Order
LR073083 INSULATOR - FOAM PAD $11.56 To Order
LR076687 INSULATOR - FOAM PAD $26.95 To Order
Photo Part No Description Price (each) Stock
LR044573 INSULATOR - FOAM PAD $16.41 To Order
LR044573 INSULATOR - FOAM PAD $16.41 To Order
LR044573 INSULATOR - FOAM PAD $16.41 To Order
Photo Part No Description Price (each) Stock
LR037812 INSULATOR - INSTRUMENT PANEL $149.49 To Order
LR037817 INSULATOR - INSTRUMENT PANEL $149.49 To Order
LR089254 INSULATOR - INSTRUMENT PANEL $149.49 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR037813 INSULATOR - INSTRUMENT PANEL $149.49 To Order
LR037816 INSULATOR - INSTRUMENT PANEL $149.49 To Order
LR098175 INSULATOR - INSTRUMENT PANEL $124.46 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR040894 INSULATOR - INSTRUMENT PANEL $46.59 To Order
LR040894 INSULATOR - INSTRUMENT PANEL $46.59 To Order
LR040894 INSULATOR - INSTRUMENT PANEL $46.59 To Order
Photo Part No Description Price (each) Stock
LR139223 INSULATOR - AIR VENT $115.65 To Order
View All

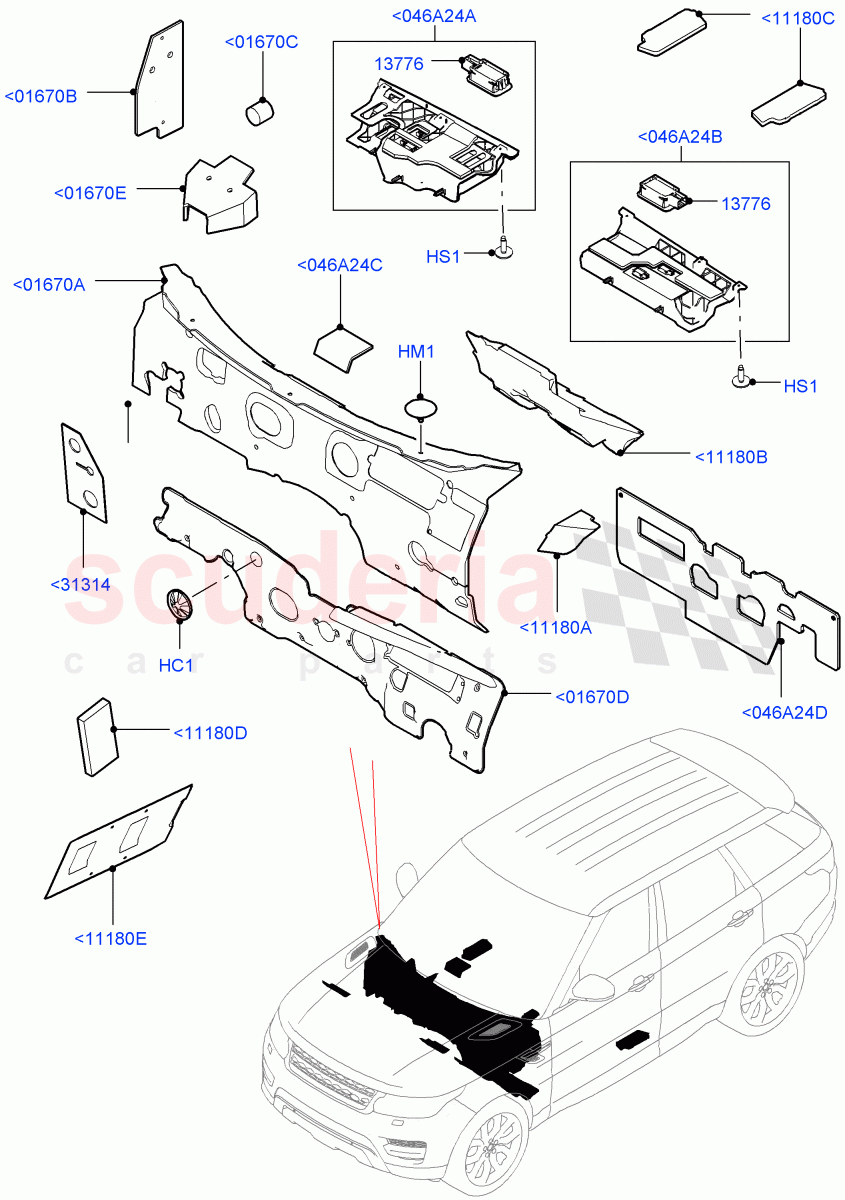

Insulators - Front (Passenger Compartment) of Land Rover Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<046A24A LR037812
INSULATOR - INSTRUMENT PANEL
RHD / RH / To: HA128228 		$149.49 1
<046A24A LR037817
INSULATOR - INSTRUMENT PANEL
LHD / LH / To: HA128228 		$149.49 1
<046A24A LR089254
INSULATOR - INSTRUMENT PANEL
RHD / RH / From: HA128229 / To: HA999999 		$149.49 1
<046A24A LR089256
INSULATOR - INSTRUMENT PANEL
LHD / LH / From: HA128229 / To: HA999999 		$149.49 1
<046A24A LR098174
INSULATOR - INSTRUMENT PANEL
RHD / RH / From: JA000001 		$135.93 1
<046A24A LR098201
INSULATOR - INSTRUMENT PANEL
LHD / LH / From: JA000001 		$135.93 1
<046A24B LR037813
INSULATOR - INSTRUMENT PANEL
LHD / RH / To: HA999999 		$149.49 1
<046A24B LR037816
INSULATOR - INSTRUMENT PANEL
RHD / LH / To: HA999999 		$149.49 1
<046A24B LR098175
INSULATOR - INSTRUMENT PANEL
LHD / RH / From: JA000001 		$124.46 1
<046A24B LR098200
INSULATOR - INSTRUMENT PANEL
RHD / LH / From: JA000001 		$135.93 1
<046A24C LR040894
INSULATOR - INSTRUMENT PANEL
Low Line Audio System - 400W / To: HA999999 		$46.59 1
<046A24C LR040894
INSULATOR - INSTRUMENT PANEL
Less Emergency Call Button, Low Line Audio System - 400W / From: JA000001 / To: JA999999 		$46.59 1
<046A24C LR040894
INSULATOR - INSTRUMENT PANEL
Less Emergency Call Button, Midline Sound System / From: KA000001 		$46.59 1
<046A24D LR139223
INSULATOR - AIR VENT
From: LA000001 / To: NA219324 		$115.65 1
<01670A LR043798
INSULATOR - BULKHEAD
LHD / To: FA999999 		$243.58 1
<01670A LR043800
INSULATOR - BULKHEAD
RHD / To: FA999999 		$245.29 1
<01670A LR066359
INSULATOR - DASH PANEL
2.0L 16V TIVCT T/C 240PS Petrol, LHD / From: GA000001 / To: MA777623 		$253.22 1
<01670A LR070890
INSULATOR - BULKHEAD
3.0L AJ20D6 Diesel High, LHD / From: GA000001 / To: MA777623 		$317.03 1
<01670A LR070725
INSULATOR - DASH PANEL
3.0L AJ20D6 Diesel High, RHD / From: JA000001 / To: LA748857 		$253.22 1
<01670A LR066359
INSULATOR - DASH PANEL
3.0L AJ20P6 Petrol High, LHD / From: JA000001 / To: MA777623 		$253.22 1
<01670A LR070891
INSULATOR - DASH PANEL
5.0L OHC SGDI SC V8 Petrol - AJ133, RHD / From: JA000001 / To: MA750458 		$354.95 1
<01670A LR146830
INSULATOR - DASH PANEL
3.0L AJ20D6 Diesel High, RHD / From: LA748858 / To: MA781980 		$312.77 1
<01670A LR146829
INSULATOR - DASH PANEL
3.0 V6 D Gen2 Mono Turbo, RHD / From: MA750459 / To: MA780120 		$241.66 1
<01670A LR070891
INSULATOR - DASH PANEL
RHD / From: GA000001 / To: HA999999 		$354.95 1
<01670A LR156696
INSULATOR - DASH PANEL
3.0L AJ20P6 Petrol High, LHD / From: MA777624 		$245.17 1
<01670A LR156695
INSULATOR - DASH PANEL
3.0 V6 D Gen2 Mono Turbo, RHD / From: MA780121 		$231.64 1
<01670A LR156694
INSULATOR - DASH PANEL
2.0L AJ200P Hi PHEV, RHD / From: MA781981 		$302.77 1
<01670A LR156693
INSULATOR - DASH PANEL
5.0L P AJ133 DOHC CDA S/C Enhanced, LHD / From: MA777624 		$373.66 1
<01670B LR040771
INSULATOR - "A" PILLAR
RHD / RH / To: MA759822 		$8.84 1
<01670B LR040772
INSULATOR - "A" PILLAR
LHD / LH / To: MA759822 		$8.69 1
<01670B LR148852
INSULATOR - "A" PILLAR
RHD / RH / From: MA759823 		$13.47 1
<01670B LR148853
INSULATOR - "A" PILLAR
LHD / LH / From: MA759823 		$13.47 1
<01670C LR040337
INSULATOR - SOUND
Includes RH And LH Sides 		$13.79 2
<01670D LR049489
INSULATOR - DASH PANEL
2.0L I4 DSL HIGH DOHC AJ200, RHD 		$127.30 1
<01670D LR049488
INSULATOR - DASH PANEL
2.0L 16V TIVCT T/C 240PS Petrol, LHD 		$135.00 1
<01670E LR042766
INSULATOR - STEERING COLUMN
Steering Column / From: JA000001 		$134.05 1
<11180A LR037806
INSULATOR - "A" PILLAR
LH, "A" Pillar 		$6.72 1
<11180A LR037808
INSULATOR - "A" PILLAR
RH, "A" Pillar 		$6.54 1
<11180B LR040777
INSULATOR - TRIM PANEL
RHD / For Passengers Side 		$63.95 1
<11180B LR040778
INSULATOR - TRIM PANEL
LHD / For Passengers Side 		$62.07 1
<11180C LR041322
INSULATOR - FLOOR
"B" Pillar 		$19.57 2
<11180D LR044575
INSULATOR - FOAM PAD
A/C Main Unit, Pad / To: FA514315 		$18.03 1
<11180D LR073083
INSULATOR - FOAM PAD
A/C Main Unit, Pad / From: FA514316 / To: FA519670 		$11.56 1
<11180D LR076687
INSULATOR - FOAM PAD
A/C Main Unit, Pad / From: FA519671 		$26.95 1
<11180E LR044573
INSULATOR - FOAM PAD
Pad, Tunnel Insulator / To: HA999999 		$16.41 1
<11180E LR044573
INSULATOR - FOAM PAD
With Diesel Fuel Capability / Pad, Tunnel Insulator / From: JA000001 / To: KA999999 		$16.41 1
<11180E LR044573
INSULATOR - FOAM PAD
4.4L DOHC DITC V8 Diesel / Pad, Tunnel Insulator / From: LA000001 		$16.41 1
<31314 LR037856
INSULATOR - FLOOR
RHD 		$12.21 1
HC1 LR033697
CLIP - PUSH ON STEEL
Bulkhead, M6 		$1.44 1
HM1 RZM500090
PIN - FIXING
6.5 X 17MM, Dash Panel 		$10.18 3
HS1 LR003016
SCREW AND WASHER
17.0MM, 4.2 		$2.04 3
13776 LR100154
LAMP - INTERIOR
Configurable Ambient Lighting / Courtesy Lamp: footwell IND#161, Located On Each Side, RH/LH / From: JA000001 		$32.65 2
13776 LR098311
LAMP - INTERIOR
Ambient Lighting-High Line Interior / Courtesy Lamp: footwell IND#161, Located On Each Side, RH/LH / From: JA000001 		$42.57 2
13776 LR034050
LAMP - INTERIOR
Courtesy Lamp: footwell IND#161, Located On Each Side, RH/LH / To: HA999999 		$41.96 2
