Exterior Rear View Mirror ((V) Fromfa000001, (V) Tofa999999)

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Exterior Rear View Mirror ((V) FROMFA000001, (V) TOFA999999)

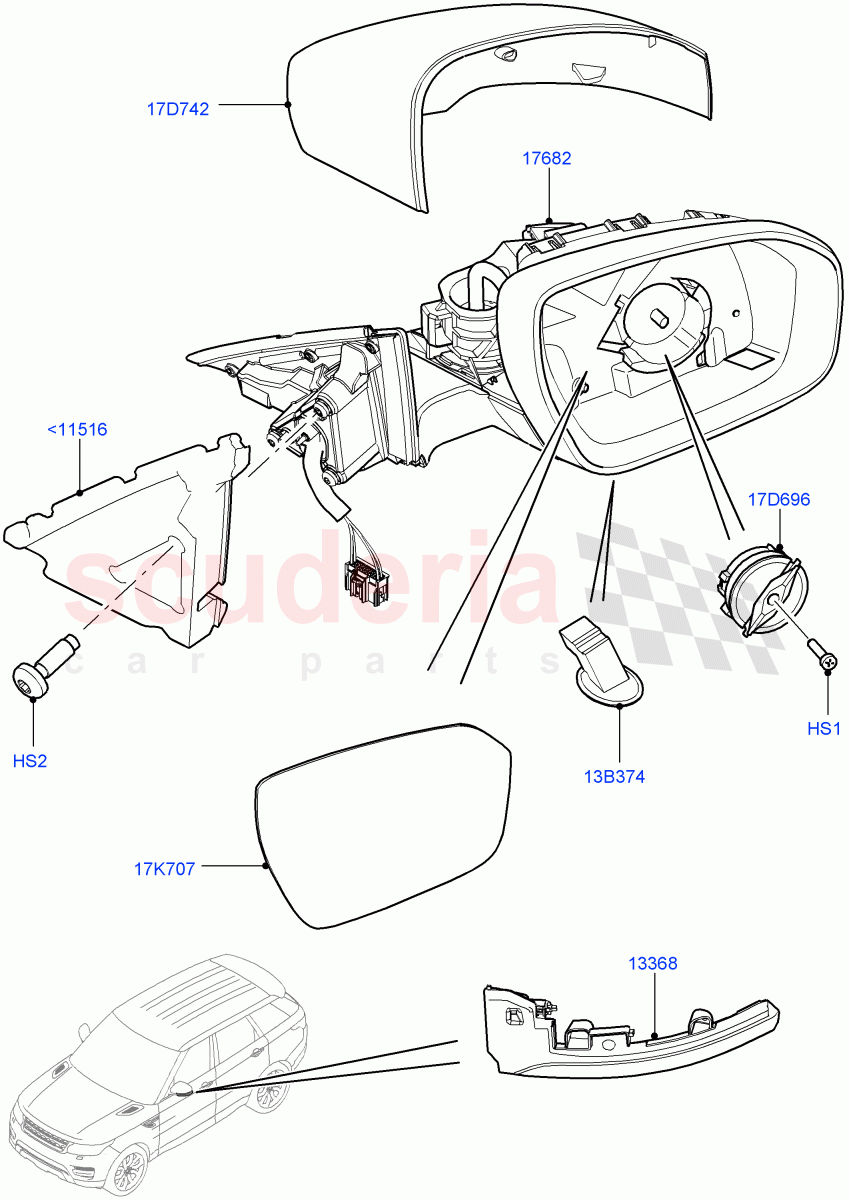

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR011865 SCREW $1.29 IN STOCK
Photo Part No Description Price (each) Stock
LR025172 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
LR027945 LAMP - SIDE FLASHER $96.49 To Order
LR027946 LAMP - SIDE FLASHER $96.49 IN STOCK
Photo Part No Description Price (each) Stock
LR065383 MIRROR - REAR VIEW - OUTER $1,020.34 To Order
LR065384 MIRROR - REAR VIEW - OUTER $1,073.01 To Order
LR065385 MIRROR - REAR VIEW - OUTER $1,073.01 To Order
...and 33 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR045163 INSULATOR - SOUND - DOOR $42.12 To Order
LR045164 INSULATOR - SOUND - DOOR $42.12 To Order
Photo Part No Description Price (each) Stock
LR065366 LAMP - EXTERIOR MIRROR $76.44 To Order
LR065365 LAMP - EXTERIOR MIRROR $76.44 To Order
Photo Part No Description Price (each) Stock
CRP500041 MOTOR - EXTERIOR REAR VIEW MIRROR $131.31 To Order
LR015051 MOTOR - EXTERIOR REAR VIEW MIRROR $136.09 To Order
CRP500031 MOTOR - EXTERIOR REAR VIEW MIRROR $89.40 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR035091 COVER - MIRROR HOUSING $122.12 IN STOCK
LR035092 COVER - MIRROR HOUSING $122.12 IN STOCK
LR060312 COVER - MIRROR HOUSING $178.66 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR035033 GLASS - REAR VIEW OUTER MIRROR $122.31 To Order
LR035034 GLASS - REAR VIEW OUTER MIRROR $122.31 To Order
LR035036 GLASS - REAR VIEW OUTER MIRROR $122.31 To Order
...and 19 more part variants. See table on right for more details.
View All
Exterior Rear View Mirror ((V) FROMFA000001, (V) TOFA999999) of Land Rover Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<11516 LR045163
INSULATOR - SOUND - DOOR
RH / From: FA000001 		$42.12 1
<11516 LR045164
INSULATOR - SOUND - DOOR
LH / From: FA000001 		$42.12 1
HS1 LR011865
SCREW
M3 X 25MM, Motor Mounting / From: FA000001
IN STOCK 		$1.29 1
HS2 LR025172
SCREW
M6 X 16MM, To Body / From: FA000001
IN STOCK 		$1.24 3
13B374 LR065366
LAMP - EXTERIOR MIRROR
LH / From: FA000001 		$76.44 1
13B374 LR065365
LAMP - EXTERIOR MIRROR
RH / From: FA000001 		$76.44 1
17D696 CRP500041
MOTOR - EXTERIOR REAR VIEW MIRROR
Power/Heated/Memory Fold Back Mir / RH, 8 Pin Connector, With Memory / From: FA000001 		$131.31 1
17D696 LR015051
MOTOR - EXTERIOR REAR VIEW MIRROR
Power/Heated/Memory Fold Back Mir / LH, 8 Pin Connector, With Memory / From: FA000001 		$136.09 1
17D696 CRP500031
MOTOR - EXTERIOR REAR VIEW MIRROR
Dual Power/Heated/Fold/App Mirrors / RH, 3 Pin Connector, Less Memory / From: FA000001 		$89.40 1
17D696 LR015050
MOTOR - EXTERIOR REAR VIEW MIRROR
Dual Power Heated Fold Back Mirror / LH, 3 Pin Connector, Less Memory / From: FA000001 		$87.75 1
17D742 LR035091
COVER - MIRROR HOUSING
With Body Coloured Exterior Mirror / RH, Primed / From: FA000001
IN STOCK 		$122.12 1
17D742 LR035092
COVER - MIRROR HOUSING
With Body Coloured Exterior Mirror / LH, Primed / From: FA000001
IN STOCK 		$122.12 1
17D742 LR060312
COVER - MIRROR HOUSING
Exterior Mirror Finish - Satin / RH, Stealth Pack / From: FA000001 		$178.66 1
17D742 LR060313
COVER - MIRROR HOUSING
Exterior Mirror Finish - Satin / LH, Stealth Pack / From: FA000001 		$178.66 1
17K707 LR035033
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Approach Lights, Less Blind Spot Information System, Less Extra Mirror Electro Chromatic, Power/Heated/Memory Fold Back Mir / LH, Convex Glass / From: FA000001 		$122.31 1
17K707 LR035034
GLASS - REAR VIEW OUTER MIRROR
1 Flat / 1 1400MM Convex - NAS, Approach Lights, LHD, Less Blind Spot Information System, Less Extra Mirror Electro Chromatic, Less Proximity Mirrors, Power/Heated/Memory Fold Back Mir / RH, Convex Glass / From: FA000001 		$122.31 1
17K707 LR035036
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Approach Lights, LHD, Less Blind Spot Information System, Less Extra Mirror Electro Chromatic, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir / LH, Flat Glass / From: FA000001 		$122.31 1
17K707 LR035039
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Approach Lights, LHD, Less Blind Spot Information System, Less Extra Mirror Electro Chromatic, Less Proximity Mirrors, Power/Heated/Memory Fold Back Mir / RH, Arabic Script, Convex Glass / From: FA000001 		$122.31 1
17K707 LR035041
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Approach Lights, LHD, Less Blind Spot Information System, Less Extra Mirror Electro Chromatic, Power/Heated/Memory Fold Back Mir / LH, Arabic Script, Convex Glass / From: FA000001 		$122.31 1
17K707 LR035043
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Approach Lights, Extra Mirror-Electro Chromatic, Less Blind Spot Information System, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir / RH, Convex Glass / From: FA000001 		$362.99 1
17K707 LR035046
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Approach Lights, Extra Mirror-Electro Chromatic, Less Blind Spot Information System, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir / LH, Convex Glass / From: FA000001 		$362.99 1
17K707 LR035047
GLASS - REAR VIEW OUTER MIRROR
1 Flat / 1 1400MM Convex - NAS, Approach Lights, Extra Mirror-Electro Chromatic, LHD, Less Blind Spot Information System, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir / RH, Convex Glass / From: FA000001 		$388.88 1
17K707 LR035052
GLASS - REAR VIEW OUTER MIRROR
1 Flat / 1 1400MM Convex - NAS, Approach Lights, Extra Mirror-Electro Chromatic, LHD, Less Blind Spot Information System, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir / LH, Flat Glass / From: FA000001 		$362.99 1
17K707 LR035055
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Approach Lights, Extra Mirror-Electro Chromatic, LHD, Less Blind Spot Information System, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir / RH, Arabic Lettering On Glass, Convex Glass / From: FA000001 		$362.99 1
17K707 LR035057
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Approach Lights, Extra Mirror-Electro Chromatic, LHD, Less Blind Spot Information System, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir / LH, Arabic Lettering On Glass, Convex Glass / From: FA000001 		$362.99 1
17K707 LR035061
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Approach Lights, Extra Mirror-Electro Chromatic, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, Proximity Mirror Camera, Reverse Traffic Detection/CTA/LCMA / RH, Convex Glass / From: FA000001 		$388.22 1
17K707 LR035066
GLASS - REAR VIEW OUTER MIRROR
1 Flat / 1 1400MM Convex - NAS, Approach Lights, Extra Mirror-Electro Chromatic, LHD, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, Proximity Mirror Camera, Reverse Traffic Detection/CTA/LCMA / RH, Convex Glass + Script / From: FA000001 		$388.22 1
17K707 LR035073
GLASS - REAR VIEW OUTER MIRROR
1 Flat/1 Convex Glass - Canada, Approach Lights, Extra Mirror-Electro Chromatic, LHD, Lane Change Merge Aid, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, Proximity Mirror Camera / LH, Flat Glass / From: FA000001 		$388.22 1
17K707 LR035076
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Approach Lights, Extra Mirror-Electro Chromatic, LHD, Lane Change Merge Aid, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, Proximity Mirror Camera / RH, Arabic Lettering On Glass, Arabic Script, Convex Glass / From: FA000001 		$388.22 1
17K707 LR035078
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Approach Lights, Extra Mirror-Electro Chromatic, LHD, Lane Change Merge Aid, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, Proximity Mirror Camera / LH, Arabic Lettering On Glass, Arabic Script, Convex Glass / From: FA000001 		$388.22 1
17K707 LR035063
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Approach Lights, Extra Mirror-Electro Chromatic, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, Proximity Mirror Camera, Reverse Traffic Detection/CTA/LCMA / LH, Convex Glass / From: FA000001 		$388.22 1
17K707 LR045152
GLASS - REAR VIEW OUTER MIRROR
1 Flat/1 Convex Glass - Canada, Less Auxillary Lights, Less Blind Spot Information System, Less Extra Mirror Electro Chromatic / RH, Convex Glass / From: FA541789
IN STOCK 		$102.28 1
17K707 LR045152
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Less Auxillary Lights, Less Blind Spot Information System, Less Extra Mirror Electro Chromatic, Less Proximity Mirrors, Less Water Wading Equipment / RH, Convex Glass / From: FA000001 / To: FA541788
IN STOCK 		$102.28 1
17K707 LR045153
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Less Auxillary Lights, Less Blind Spot Information System, Less Extra Mirror Electro Chromatic, Less Proximity Mirrors, Less Water Wading Equipment / LH, Convex Glass / From: FA000001 / To: FA541789 		$102.28 1
17K707 LR045153
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Less Auxillary Lights, Less Blind Spot Information System, Less Extra Mirror Electro Chromatic, Less Water Wading Equipment / LH, Convex Glass / From: FA541789 		$102.28 1
17K707 LR035032
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Approach Lights, Less Blind Spot Information System, Less Extra Mirror Electro Chromatic, Less Proximity Mirrors, Power/Heated/Memory Fold Back Mir / RH, Blue Glass, Convex Glass / From: FA000001 		$122.31 1
13368 LR027945
LAMP - SIDE FLASHER
RH / From: FA000001 		$96.49 1
13368 LR027946
LAMP - SIDE FLASHER
LH / From: FA000001
IN STOCK 		$96.49 1
17682 LR065383
MIRROR - REAR VIEW - OUTER
Approach Lights, LHD, Less Blind Spot Information System, Less Camera System, Less Extra Mirror Electro Chromatic, Power/Heated/Memory Fold Back Mir, Water Wading Aid - Electronic / RH / From: FA000001 		$1,020.34 1
17682 LR065384
MIRROR - REAR VIEW - OUTER
Approach Lights, Less Blind Spot Information System, Less Extra Mirror Electro Chromatic, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, RHD, Surround Camera System / RH / From: FA000001 		$1,073.01 1
17682 LR065385
MIRROR - REAR VIEW - OUTER
Approach Lights, LHD, Less Blind Spot Information System, Less Extra Mirror Electro Chromatic, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, Surround Camera System / RH / From: FA000001 		$1,073.01 1
17682 LR065386
MIRROR - REAR VIEW - OUTER
Approach Lights, Extra Mirror-Electro Chromatic, Less Blind Spot Information System, Less Camera System, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, RHD / RH / From: FA000001 		$800.53 1
17682 LR065387
MIRROR - REAR VIEW - OUTER
Approach Lights, Extra Mirror-Electro Chromatic, LHD, Less Blind Spot Information System, Less Camera System, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir / RH / From: FA000001 		$809.54 1
17682 LR065388
MIRROR - REAR VIEW - OUTER
Approach Lights, Extra Mirror-Electro Chromatic, Lane Change Merge Aid, Less Camera System, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, RHD / RH / From: FA000001 		$941.41 1
17682 LR065389
MIRROR - REAR VIEW - OUTER
Approach Lights, Extra Mirror-Electro Chromatic, LHD, Less Camera System, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, Reverse Traffic Detection/CTA/LCMA / RH / From: FA000001
IN STOCK 		$616.74 1
17682 LR065393
MIRROR - REAR VIEW - OUTER
Approach Lights, Extra Mirror-Electro Chromatic, LHD, Lane Change Merge Aid, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, Surround Camera System / RH / From: FA000001 		$1,258.15 1
17682 LR065394
MIRROR - REAR VIEW - OUTER
Approach Lights, Extra Mirror-Electro Chromatic, Lane Change Merge Aid, Power/Heated/Memory Fold Back Mir, RHD, Surround Camera System, Water Wading Aid - Electronic / RH / From: FA000001 		$1,284.07 1
17682 LR065395
MIRROR - REAR VIEW - OUTER
Approach Lights, Extra Mirror-Electro Chromatic, LHD, Lane Change Merge Aid, Power/Heated/Memory Fold Back Mir, Surround Camera System, Water Wading Aid - Electronic / RH / From: FA000001 		$1,284.07 1
17682 LR065397
MIRROR - REAR VIEW - OUTER
Approach Lights, Less Blind Spot Information System, Less Camera System, Less Extra Mirror Electro Chromatic, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, RHD / LH / From: FA000001 		$747.83 1
17682 LR065398
MIRROR - REAR VIEW - OUTER
Approach Lights, LHD, Less Blind Spot Information System, Less Camera System, Less Extra Mirror Electro Chromatic, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir / LH / From: FA000001 		$758.44 1
17682 LR065399
MIRROR - REAR VIEW - OUTER
Approach Lights, Less Blind Spot Information System, Less Camera System, Less Extra Mirror Electro Chromatic, Power/Heated/Memory Fold Back Mir, RHD, Water Wading Aid - Electronic / LH / From: FA000001 		$1,020.34 1
17682 LR065400
MIRROR - REAR VIEW - OUTER
Approach Lights, LHD, Less Blind Spot Information System, Less Camera System, Less Extra Mirror Electro Chromatic, Power/Heated/Memory Fold Back Mir, Water Wading Aid - Electronic / LH / From: FA000001 		$513.79 1
17682 LR065401
MIRROR - REAR VIEW - OUTER
Approach Lights, Less Blind Spot Information System, Less Extra Mirror Electro Chromatic, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, RHD, Surround Camera System / LH / From: FA000001 		$1,073.01 1
17682 LR065402
MIRROR - REAR VIEW - OUTER
Approach Lights, LHD, Less Blind Spot Information System, Less Extra Mirror Electro Chromatic, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, Surround Camera System / LH / From: FA000001 		$1,073.98 1
17682 LR065403
MIRROR - REAR VIEW - OUTER
Approach Lights, Extra Mirror-Electro Chromatic, Less Blind Spot Information System, Less Camera System, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, RHD / LH / From: FA000001 		$804.05 1
17682 LR065405
MIRROR - REAR VIEW - OUTER
Approach Lights, Extra Mirror-Electro Chromatic, Lane Change Merge Aid, Less Camera System, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, RHD / LH / From: FA000001 		$941.32 1
17682 LR065406
MIRROR - REAR VIEW - OUTER
Approach Lights, Extra Mirror-Electro Chromatic, LHD, Less Camera System, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, Reverse Traffic Detection/CTA/LCMA / LH / From: FA000001 		$942.88 1
17682 LR065407
MIRROR - REAR VIEW - OUTER
Approach Lights, Extra Mirror-Electro Chromatic, Less Blind Spot Information System, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, RHD, Surround Camera System / LH / From: FA000001 		$1,120.23 1
17682 LR065408
MIRROR - REAR VIEW - OUTER
Approach Lights, Extra Mirror-Electro Chromatic, LHD, Less Blind Spot Information System, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, Surround Camera System / LH / From: FA000001 		$1,067.99 1
17682 LR065409
MIRROR - REAR VIEW - OUTER
Approach Lights, Extra Mirror-Electro Chromatic, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, RHD, Reverse Traffic Detection/CTA/LCMA, Surround Camera System / LH / From: FA000001 		$1,251.91 1
17682 LR065410
MIRROR - REAR VIEW - OUTER
Approach Lights, Extra Mirror-Electro Chromatic, LHD, Lane Change Merge Aid, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, Surround Camera System / LH / From: FA000001 		$1,258.43 1
17682 LR065411
MIRROR - REAR VIEW - OUTER
Approach Lights, Extra Mirror-Electro Chromatic, Lane Change Merge Aid, Power/Heated/Memory Fold Back Mir, RHD, Surround Camera System, Water Wading Aid - Electronic / LH / From: FA000001 		$1,284.07 1
17682 LR065412
MIRROR - REAR VIEW - OUTER
Approach Lights, Extra Mirror-Electro Chromatic, LHD, Lane Change Merge Aid, Power/Heated/Memory Fold Back Mir, Surround Camera System, Water Wading Aid - Electronic / LH / From: FA000001 		$1,284.07 1
17682 LR065381
MIRROR - REAR VIEW - OUTER
Approach Lights, LHD, Less Blind Spot Information System, Less Camera System, Less Extra Mirror Electro Chromatic, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir / RH / From: FA000001 		$756.84 1
17682 LR065382
MIRROR - REAR VIEW - OUTER
Approach Lights, Less Blind Spot Information System, Less Camera System, Less Extra Mirror Electro Chromatic, Power/Heated/Memory Fold Back Mir, RHD, Water Wading Aid - Electronic / RH / From: FA000001 		$1,020.44 1
17682 LR065390
MIRROR - REAR VIEW - OUTER
Approach Lights, Extra Mirror-Electro Chromatic, Less Blind Spot Information System, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, RHD, Surround Camera System / RH / From: FA000001 		$1,103.67 1
17682 LR065391
MIRROR - REAR VIEW - OUTER
Approach Lights, Extra Mirror-Electro Chromatic, LHD, Less Blind Spot Information System, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, Surround Camera System / RH / From: FA000001 		$1,125.70 1
17682 LR065392
MIRROR - REAR VIEW - OUTER
Approach Lights, Extra Mirror-Electro Chromatic, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, RHD, Reverse Traffic Detection/CTA/LCMA, Surround Camera System / RH / From: FA000001 		$1,258.15 1
17682 LR065404
MIRROR - REAR VIEW - OUTER
Approach Lights, Extra Mirror-Electro Chromatic, LHD, Less Blind Spot Information System, Less Camera System, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir / LH / From: FA000001 		$810.54 1
17682 LR057101
MIRROR - REAR VIEW - OUTER
Dual Power Heated Exterior Mirrors, LHD, Less Auxillary Lights, Less Blind Spot Information System, Less Camera System, Less Extra Mirror Electro Chromatic, Less Water Wading Equipment / LH / From: FA000001 		$736.71 1
17682 LR065380
MIRROR - REAR VIEW - OUTER
Approach Lights, Less Blind Spot Information System, Less Camera System, Less Extra Mirror Electro Chromatic, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, RHD / RH / From: FA000001 		$756.84 1
17682 LR057074
MIRROR - REAR VIEW - OUTER
Dual Power Heated Exterior Mirrors, LHD, Less Auxillary Lights, Less Blind Spot Information System, Less Camera System, Less Extra Mirror Electro Chromatic, Less Water Wading Equipment / RH / From: FA000001 		$736.71 1
17682 LR057073
MIRROR - REAR VIEW - OUTER
Dual Power Heated Exterior Mirrors, Less Auxillary Lights, Less Blind Spot Information System, Less Extra Mirror Electro Chromatic, Less Water Wading Equipment, RHD, Rear View Camera-Fixed / RH / From: FA000001 		$646.93 1
17682 LR057098
MIRROR - REAR VIEW - OUTER
Dual Power Heated Exterior Mirrors, Less Auxillary Lights, Less Blind Spot Information System, Less Extra Mirror Electro Chromatic, Less Water Wading Equipment, RHD, Rear View Camera-Fixed / LH / From: FA000001 		$627.62 1
