Exterior Rear View Mirror ((V) Fromla000001)

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Exterior Rear View Mirror ((V) FROMLA000001)

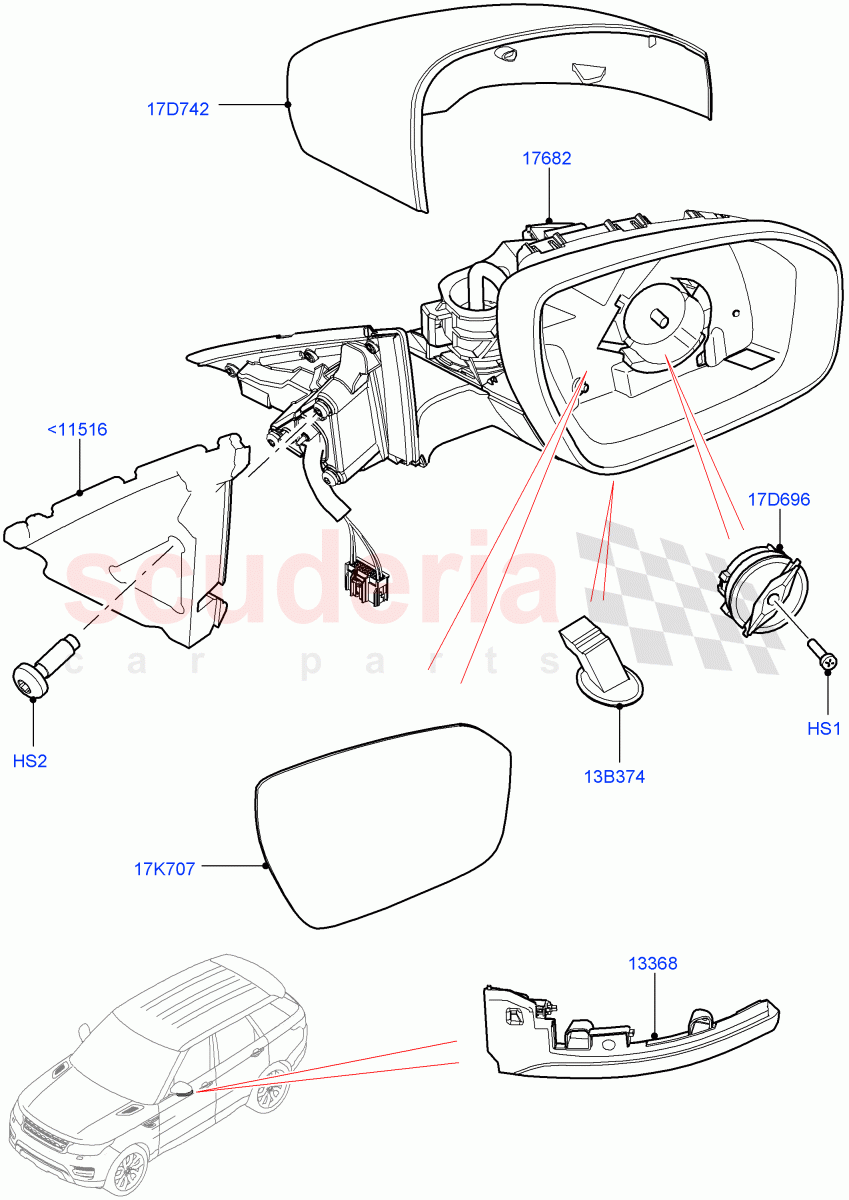

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR011865 SCREW $1.29 IN STOCK
Photo Part No Description Price (each) Stock
LR025172 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
LR027945 LAMP - SIDE FLASHER $96.49 To Order
LR027946 LAMP - SIDE FLASHER $96.49 IN STOCK
Photo Part No Description Price (each) Stock
LR057073 MIRROR - REAR VIEW - OUTER $646.93 To Order
LR057074 MIRROR - REAR VIEW - OUTER $736.71 To Order
LR057098 MIRROR - REAR VIEW - OUTER $627.62 To Order
...and 26 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR045163 INSULATOR - SOUND - DOOR $42.12 To Order
LR045164 INSULATOR - SOUND - DOOR $42.12 To Order
Photo Part No Description Price (each) Stock
LR065365 LAMP - EXTERIOR MIRROR $76.44 To Order
LR065366 LAMP - EXTERIOR MIRROR $76.44 To Order
Photo Part No Description Price (each) Stock
CRP500041 MOTOR - EXTERIOR REAR VIEW MIRROR $131.31 To Order
CRP500031 MOTOR - EXTERIOR REAR VIEW MIRROR $89.40 To Order
LR015050 MOTOR - EXTERIOR REAR VIEW MIRROR $87.75 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR035091 COVER - MIRROR HOUSING $122.12 IN STOCK
LR035092 COVER - MIRROR HOUSING $122.12 IN STOCK
LR086886 COVER - MIRROR HOUSING $661.66 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR045152 GLASS - REAR VIEW OUTER MIRROR $102.28 IN STOCK
LR045156 GLASS - REAR VIEW OUTER MIRROR $102.28 To Order
LR045154 GLASS - REAR VIEW OUTER MIRROR $102.28 To Order
...and 15 more part variants. See table on right for more details.
View All
Exterior Rear View Mirror ((V) FROMLA000001) of Land Rover Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<11516 LR045163
INSULATOR - SOUND - DOOR
RH / From: LA000001 		$42.12 1
<11516 LR045164
INSULATOR - SOUND - DOOR
LH / From: LA000001 		$42.12 1
HS1 LR011865
SCREW
M3 X 25MM, Motor Mounting / From: LA000001
IN STOCK 		$1.29 1
HS2 LR025172
SCREW
M6 X 16MM, To Body / From: LA000001
IN STOCK 		$1.24 3
13B374 LR065365
LAMP - EXTERIOR MIRROR
RH / From: LA000001 		$76.44 1
13B374 LR065366
LAMP - EXTERIOR MIRROR
LH / From: LA000001 		$76.44 1
17D696 CRP500041
MOTOR - EXTERIOR REAR VIEW MIRROR
Deal Pwr/Htd/Mem/Fldo/E'Chro/Pudd L / RH, 8 Pin Connector, With Memory / From: LA000001 		$131.31 1
17D696 CRP500031
MOTOR - EXTERIOR REAR VIEW MIRROR
Dual Power/Heated/Fold/App Mirrors / RH, 3 Pin Connector, Less Memory / From: LA000001 		$89.40 1
17D696 LR015050
MOTOR - EXTERIOR REAR VIEW MIRROR
Dual Power Heated Exterior Mirrors / LH, 3 Pin Connector, Less Memory / From: LA000001 		$87.75 1
17D696 LR025207
MOTOR - EXTERIOR REAR VIEW MIRROR
Deal Pwr/Htd/Mem/Fldo/E'Chro/Pudd L / LH, 8 Pin Connector, With Memory / From: LA000001 		$55.60 1
17D742 LR035091
COVER - MIRROR HOUSING
Ext Mirror Finish - Gloss / RH, Primed / From: LA000001
IN STOCK 		$122.12 1
17D742 LR035092
COVER - MIRROR HOUSING
With Body Coloured Exterior Mirror / LH, Primed / From: LA000001
IN STOCK 		$122.12 1
17D742 LR086886
COVER - MIRROR HOUSING
Ext Mirror Finish - Carbon / LH / From: GA000001 		$661.66 1
17D742 LR086885
COVER - MIRROR HOUSING
Ext Mirror Finish - Carbon / RH / From: GA000001 		$476.37 1
17K707 LR045152
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, LHD, Less Blind Spot Information System / RH, Convex Glass / From: LA000001
IN STOCK 		$102.28 1
17K707 LR045156
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, LHD, Less Blind Spot Information System / RH, Arabic Script, Convex Glass / From: LA000001 		$102.28 1
17K707 LR045154
GLASS - REAR VIEW OUTER MIRROR
1 Flat / 1 1400MM Convex - NAS, Less Blind Spot Information System / RH, Convex Glass + Script / From: LA000001 		$102.28 1
17K707 LR035043
GLASS - REAR VIEW OUTER MIRROR
Deal Pwr/Htd/Mem/Fldo/E'Chro/Pudd L, Less Blind Spot Information System, RHD / RH, Convex Glass / From: LA000001 		$362.99 1
17K707 LR035061
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, RHD, With Blind Spot Monitoring / RH, Convex Glass / From: LA000001 		$388.22 1
17K707 LR051350
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Blind Spot Assist, LHD / RH, Convex Glass / From: LA000001 		$258.70 1
17K707 LR051352
GLASS - REAR VIEW OUTER MIRROR
1 Flat / 1 1400MM Convex - NAS, With Blind Spot Monitoring / RH, Convex Glass + Script / From: LA000001 		$200.19 1
17K707 LR051354
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Blind Spot Assist / RH, Arabic Script / From: LA000001 		$200.19 1
17K707 LR045153
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Dual Power Heated Exterior Mirrors, Less Blind Spot Information System / LH, Convex Glass / From: LA000001 		$102.28 1
17K707 LR035046
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Deal Pwr/Htd/Mem/Fldo/E'Chro/Pudd L, LHD, Less Blind Spot Information System, Surround Camera System / LH, Convex Glass / From: LA000001 		$362.99 1
17K707 LR045155
GLASS - REAR VIEW OUTER MIRROR
1 Flat / 1 1400MM Convex - NAS, Dual Power/Heated/Fold/App Mirrors, LHD, Less Blind Spot Information System / LH, Flat Glass / From: LA000001 		$102.28 1
17K707 LR035052
GLASS - REAR VIEW OUTER MIRROR
1 Flat / 1 1400MM Convex - NAS, Deal Pwr/Htd/Mem/Fldo/E'Chro/Pudd L, LHD, Less Blind Spot Information System / LH, Flat Glass / From: LA000001 		$362.99 1
17K707 LR035057
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Deal Pwr/Htd/Mem/Fldo/E'Chro/Pudd L, Less Blind Spot Information System / LH, Convex Glass / From: LA000001 		$362.99 1
17K707 LR045157
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Dual Power Heated Exterior Mirrors, Less Blind Spot Information System / LH, Flat Glass / From: LA000001 		$102.28 1
17K707 LR051351
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Deal Pwr/Htd/Mem/Fldo/E'Chro/Pudd L, RHD, With Blind Spot Monitoring / LH, Convex Glass / From: LA000001 		$231.84 1
17K707 LR035073
GLASS - REAR VIEW OUTER MIRROR
1 Flat / 1 1400MM Convex - NAS, Blind Spot Assist, Deal Pwr/Htd/Mem/Fldo/E'Chro/Pudd L, LHD / LH, Flat Glass / From: LA000001 		$388.22 1
17K707 LR035063
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Deal Pwr/Htd/Mem/Fldo/E'Chro/Pudd L, LHD, With Blind Spot Monitoring / LH, Convex Glass / From: LA000001 		$388.22 1
17K707 LR035078
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Blind Spot Assist, Deal Pwr/Htd/Mem/Fldo/E'Chro/Pudd L, LHD / LH, Arabic Script, Convex Glass / From: LA000001 		$388.22 1
13368 LR027945
LAMP - SIDE FLASHER
RH / From: LA000001 		$96.49 1
13368 LR027946
LAMP - SIDE FLASHER
LH / From: LA000001
IN STOCK 		$96.49 1
17682 LR057073
MIRROR - REAR VIEW - OUTER
Dual Power Heated Exterior Mirrors, Less Blind Spot Information System, Less Camera System, Less Water Wading Equipment, RHD / RH / From: LA000001 		$646.93 1
17682 LR057074
MIRROR - REAR VIEW - OUTER
Dual Power Heated Exterior Mirrors, LHD, Less Blind Spot Information System, Less Camera System, Less Water Wading Equipment / RH / From: LA000001 		$736.71 1
17682 LR057098
MIRROR - REAR VIEW - OUTER
Dual Power Heated Exterior Mirrors, Less Blind Spot Information System, Less Camera System, Less Water Wading Equipment, RHD / LH / From: LA000001 		$627.62 1
17682 LR057101
MIRROR - REAR VIEW - OUTER
Dual Power Heated Exterior Mirrors, LHD, Less Blind Spot Information System, Less Camera System, Less Water Wading Equipment / LH / From: LA000001 		$736.71 1
17682 LR065380
MIRROR - REAR VIEW - OUTER
Less Blind Spot Information System, Less Camera System, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, RHD / RH / From: LA000001 		$756.84 1
17682 LR065381
MIRROR - REAR VIEW - OUTER
LHD, Less Blind Spot Information System, Less Camera System, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir / RH / From: LA000001 		$756.84 1
17682 LR065386
MIRROR - REAR VIEW - OUTER
Deal Pwr/Htd/Mem/Fldo/E'Chro/Pudd L, Less Blind Spot Information System, Less Camera System, Less Water Wading Equipment, RHD / RH / From: LA000001 		$800.53 1
17682 LR065388
MIRROR - REAR VIEW - OUTER
Blind Spot Assist, Deal Pwr/Htd/Mem/Fldo/E'Chro/Pudd L, Less Camera System, Less Water Wading Equipment, RHD / RH / From: LA000001 		$941.41 1
17682 LR065397
MIRROR - REAR VIEW - OUTER
Less Blind Spot Information System, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, RHD, Rear View Camera-Fixed / LH / From: LA000001 		$747.83 1
17682 LR065398
MIRROR - REAR VIEW - OUTER
2 1400MM Convex (SAS) Glass, LHD, Less Blind Spot Information System, Less Camera System, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir / LH / From: LA000001 		$758.44 1
17682 LR065403
MIRROR - REAR VIEW - OUTER
Deal Pwr/Htd/Mem/Fldo/E'Chro/Pudd L, Less Blind Spot Information System, Less Camera System, Less Water Wading Equipment, RHD / LH / From: LA000001 		$804.05 1
17682 LR105098
MIRROR - REAR VIEW - OUTER
Less Blind Spot Information System, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, RHD, Surround Camera System / RH / From: LA000001 		$906.64 1
17682 LR105106
MIRROR - REAR VIEW - OUTER
Deal Pwr/Htd/Mem/Fldo/E'Chro/Pudd L, LHD, Less Blind Spot Information System, Less Water Wading Equipment, Surround Camera System / RH / From: LA000001 		$906.64 1
17682 LR105096
MIRROR - REAR VIEW - OUTER
Deal Pwr/Htd/Mem/Fldo/E'Chro/Pudd L, Less Blind Spot Information System, Less Water Wading Equipment, RHD, Surround Camera System / RH / From: LA000001 		$953.10 1
17682 LR105092
MIRROR - REAR VIEW - OUTER
Deal Pwr/Htd/Mem/Fldo/E'Chro/Pudd L, Less Water Wading Equipment, RHD, Surround Camera System, With Blind Spot Monitoring / RH / From: LA000001 		$964.71 1
17682 LR105107
MIRROR - REAR VIEW - OUTER
Deal Pwr/Htd/Mem/Fldo/E'Chro/Pudd L, RHD, Surround Camera System, Water Wading Aid, With Blind Spot Monitoring / RH / From: LA000001 		$1,127.34 1
17682 LR105104
MIRROR - REAR VIEW - OUTER
LHD, Less Blind Spot Information System, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, Surround Camera System / LH / From: LA000001 		$906.64 1
17682 LR105093
MIRROR - REAR VIEW - OUTER
Deal Pwr/Htd/Mem/Fldo/E'Chro/Pudd L, LHD, Surround Camera System, Water Wading Aid, With Blind Spot Monitoring / LH / From: LA000001 		$1,127.34 1
17682 LR105095
MIRROR - REAR VIEW - OUTER
Blind Spot Assist, Deal Pwr/Htd/Mem/Fldo/E'Chro/Pudd L, LHD, Less Water Wading Equipment, Surround Camera System / LH / From: LA000001 		$1,011.18 1
17682 LR105100
MIRROR - REAR VIEW - OUTER
Deal Pwr/Htd/Mem/Fldo/E'Chro/Pudd L, LHD, Less Blind Spot Information System, Less Water Wading Equipment, Surround Camera System / LH / From: LA000001 		$953.10 1
17682 LR105105
MIRROR - REAR VIEW - OUTER
Deal Pwr/Htd/Mem/Fldo/E'Chro/Pudd L, Less Blind Spot Information System, Less Water Wading Equipment, RHD, Surround Camera System / LH / From: LA000001 		$906.64 1
17682 LR135724
MIRROR - REAR VIEW - OUTER
Blind Spot Assist, Deal Pwr/Htd/Mem/Fldo/E'Chro/Pudd L, LHD, Less Water Wading Equipment, Surround Camera System / RH / From: LA000001 		$965.28 1
17682 LR135723
MIRROR - REAR VIEW - OUTER
Deal Pwr/Htd/Mem/Fldo/E'Chro/Pudd L, LHD, Surround Camera System, Water Wading Aid, With Blind Spot Monitoring / RH / From: LA000001 		$1,068.05 1
17682 LR135719
MIRROR - REAR VIEW - OUTER
Deal Pwr/Htd/Mem/Fldo/E'Chro/Pudd L, LHD, Less Camera System, Less Water Wading Equipment, With Blind Spot Monitoring / RH / From: LA000001 		$800.88 1
17682 LR135727
MIRROR - REAR VIEW - OUTER
Blind Spot Assist, Deal Pwr/Htd/Mem/Fldo/E'Chro/Pudd L, RHD, Surround Camera System, Water Wading Aid / LH / From: LA000001 		$981.66 1
17682 LR135726
MIRROR - REAR VIEW - OUTER
Blind Spot Assist, Deal Pwr/Htd/Mem/Fldo/E'Chro/Pudd L, Less Water Wading Equipment, RHD, Surround Camera System / LH / From: LA000001 		$965.28 1
17682 LR135725
MIRROR - REAR VIEW - OUTER
Blind Spot Assist, Deal Pwr/Htd/Mem/Fldo/E'Chro/Pudd L, Less Water Wading Equipment, RHD, Rear View Camera-Fixed / LH / From: LA000001 		$800.88 1
17682 LR065406
MIRROR - REAR VIEW - OUTER
Deal Pwr/Htd/Mem/Fldo/E'Chro/Pudd L, LHD, Less Camera System, Less Water Wading Equipment, With Blind Spot Monitoring / LH / From: LA000001 		$942.88 1
17682 LR065404
MIRROR - REAR VIEW - OUTER
1 Flat / 1 1400MM Convex - NAS, Deal Pwr/Htd/Mem/Fldo/E'Chro/Pudd L, LHD, Less Blind Spot Information System, Less Camera System, Less Water Wading Equipment / From: LA000001 		$810.54 1
