Insulators - Front (Less Armoured) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Insulators - Front (Less Armoured) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
EYC500020 CLIP $0.77 To Order
Photo Part No Description Price (each) Stock
EYC500320 CLIP $0.52 To Order
Photo Part No Description Price (each) Stock
EYQ100130 RIVET - PLASTIC $0.67 IN STOCK
Photo Part No Description Price (each) Stock
RZM500130 PIN $1.15 IN STOCK
Photo Part No Description Price (each) Stock
WYH500050 NUT - LOCKING $2.68 IN STOCK
Photo Part No Description Price (each) Stock
LR019432 INSULATOR - HOOD $356.04 To Order
LR031709 INSULATOR - HOOD $347.36 To Order
Photo Part No Description Price (each) Stock
LR011857 INSULATOR - ENGINE COMPARTMENT $169.83 To Order
LR011859 INSULATOR - ENGINE COMPARTMENT $169.83 To Order
LR011860 INSULATOR - ENGINE COMPARTMENT $169.83 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR019423 INSULATOR - ENGINE COMPARTMENT $469.85 To Order
LR019424 INSULATOR - ENGINE COMPARTMENT $469.85 To Order
LR022526 INSULATOR - ENGINE COMPARTMENT $261.82 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR011703 INSULATOR - ENGINE COMPARTMENT $25.49 To Order
LR022988 INSULATOR - ENGINE COMPARTMENT $25.49 To Order
Photo Part No Description Price (each) Stock
LR023014 INSULATOR - ENGINE COMPARTMENT $23.05 To Order
LR022993 INSULATOR - ENGINE COMPARTMENT $23.05 To Order
Photo Part No Description Price (each) Stock
LR011503 INSULATOR - DASH PANEL $312.04 To Order
LR011504 INSULATOR - DASH PANEL $312.04 To Order
Photo Part No Description Price (each) Stock
LR019996 INSULATOR - TUNNEL $587.22 To Order
LR022942 INSULATOR - TUNNEL $154.04 To Order
Photo Part No Description Price (each) Stock
LR012834 INSULATOR - "C" PILLAR $11.98 To Order
LR012833 INSULATOR - "C" PILLAR $11.98 To Order
LR031457 INSULATOR - "C" PILLAR $83.77 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
ETC500520 INSULATOR - SOUND $11.82 To Order
Photo Part No Description Price (each) Stock
LR011471 FOAM PAD - ENERGY ABSORBING $152.89 To Order
Photo Part No Description Price (each) Stock
LR012816 INSULATOR - SOUND - DOOR SILL $8.10 To Order
Photo Part No Description Price (each) Stock
LR012646 INSULATOR - SOUND - DOOR SILL $8.44 To Order
Photo Part No Description Price (each) Stock
LR022713 INSULATOR - SOUND $33.21 To Order
LR022715 INSULATOR - SOUND $28.00 To Order
LR023000 INSULATOR - WHEELHOUSE $32.26 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR023013 INSULATOR - FENDER $20.83 To Order
LR022980 INSULATOR - FENDER $25.24 To Order
View All

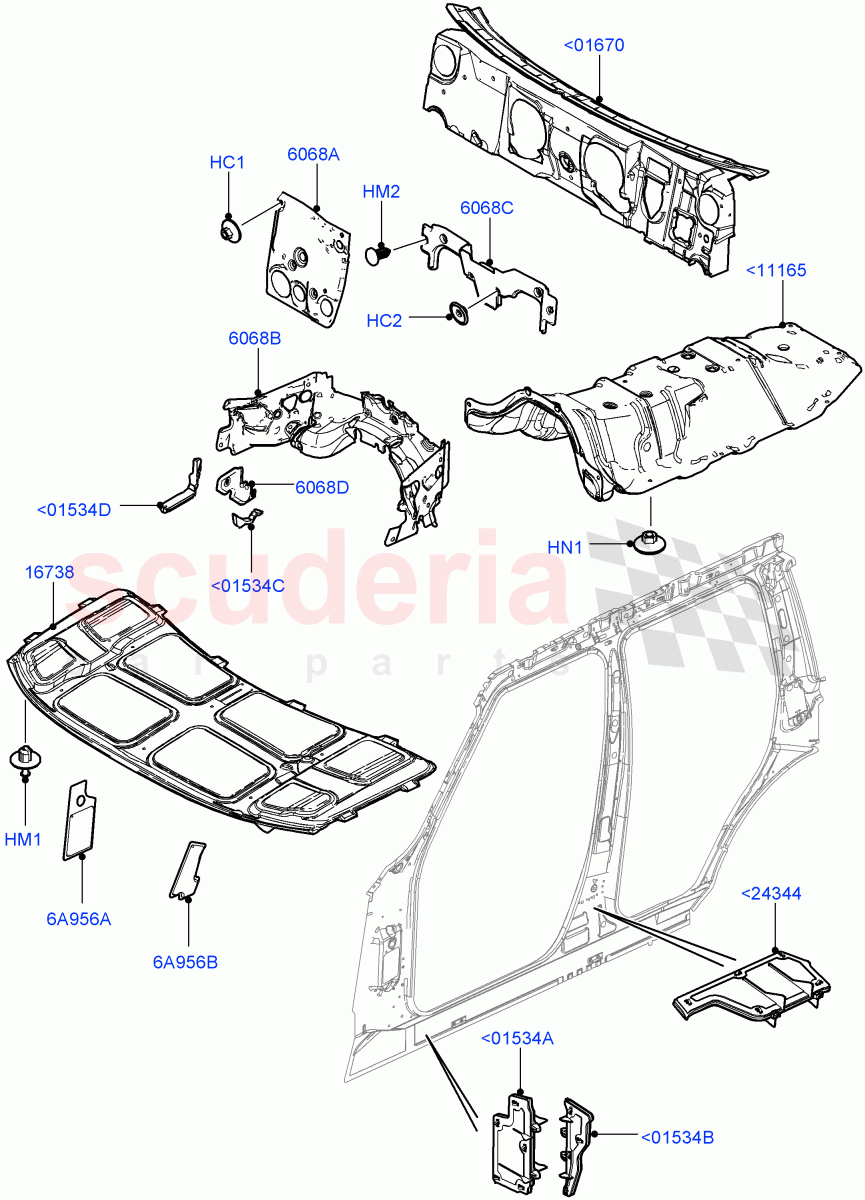

Insulators - Front (Less Armoured) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<01534A LR012816
INSULATOR - SOUND - DOOR SILL
Floor, Inner / From: AA000001 		$8.10 1
<01534B LR012646
INSULATOR - SOUND - DOOR SILL
Floor, Inner / From: AA000001 		$8.44 1
<01534C LR022713
INSULATOR - SOUND
4.4L DOHC DITC V8 Diesel, LHD / RH / From: BA000001 		$33.21 1
<01534C LR022715
INSULATOR - SOUND
4.4L DOHC DITC V8 Diesel, RHD / RH / From: BA000001 		$28.00 1
<01534C LR023000
INSULATOR - WHEELHOUSE
4.4L DOHC DITC V8 Diesel, RHD / LH / From: BA000001 		$32.26 1
<01534C LR023001
INSULATOR - WHEELHOUSE
4.4L DOHC DITC V8 Diesel, LHD / LH / From: BA000001 		$22.22 1
<01534D LR023013
INSULATOR - FENDER
4.4L DOHC DITC V8 Diesel / RH / From: BA000001 		$20.83 1
<01534D LR022980
INSULATOR - FENDER
4.4L DOHC DITC V8 Diesel / LH / From: BA000001 		$25.24 1
<01670 LR011503
INSULATOR - DASH PANEL
RHD / Bulkhead / From: AA000001 		$312.04 1
<01670 LR011504
INSULATOR - DASH PANEL
LHD / Bulkhead / From: AA000001 		$312.04 1
<11165 LR019996
INSULATOR - TUNNEL
Centre / From: AA000001 / To: BA334342 		$587.22 1
<11165 LR022942
INSULATOR - TUNNEL
From: BA334343 		$154.04 1
<24344 LR012834
INSULATOR - "C" PILLAR
LH, Inner / From: AA000001 / To: BA334499 		$11.98 1
<24344 LR012833
INSULATOR - "C" PILLAR
RH, Inner / From: AA000001 / To: BA334499 		$11.98 1
<24344 LR031457
INSULATOR - "C" PILLAR
RH, Inner / From: BA334500 		$83.77 1
<24344 LR031458
INSULATOR - "C" PILLAR
LH, Inner / From: BA334500 		$83.77 1
HC1 EYC500020
CLIP
Bulkhead / From: AA000001 		$0.77 5
HC2 EYC500320
CLIP
5.0MM / From: AA000001 		$0.52 2
HM1 EYQ100130
RIVET - PLASTIC
Hood Assy, Plastic, Rivet / From: AA000001
IN STOCK 		$0.67 6
HM2 RZM500130
PIN
M10 X 28MM / From: AA000001
IN STOCK 		$1.15 2
HN1 WYH500050
NUT - LOCKING
Insulator, M5 / From: AA000001
IN STOCK 		$2.68 9
6A956A ETC500520
INSULATOR - SOUND
3.6L V8 32V DOHC EFi Diesel Lion / RH, Engine Compartment / From: AA000001 		$11.82 1
6A956B LR011471
FOAM PAD - ENERGY ABSORBING
3.6L V8 32V DOHC EFi Diesel Lion / LH, Engine Compartment / From: AA000001 		$152.89 1
6068A LR011857
INSULATOR - ENGINE COMPARTMENT
LHD / LH / From: AA000001 		$169.83 1
6068A LR011859
INSULATOR - ENGINE COMPARTMENT
LHD / RH / From: AA000001 / To: AA999999 		$169.83 1
6068A LR011860
INSULATOR - ENGINE COMPARTMENT
RHD / RH / From: AA000001 / To: AA999999 		$169.83 1
6068A LR011858
INSULATOR - ENGINE COMPARTMENT
RHD / LH / From: AA000001 		$149.58 1
6068A LR023692
INSULATOR - ENGINE COMPARTMENT
LHD / RH / From: BA000001 / To: BA334342 		$15.38 1
6068A LR023689
INSULATOR - ENGINE COMPARTMENT
RHD / RH / From: BA000001 / To: BA334342 		$169.83 1
6068A LR011859
INSULATOR - ENGINE COMPARTMENT
LHD / RH / From: BA334343 		$169.83 1
6068A LR011860
INSULATOR - ENGINE COMPARTMENT
RHD / RH / From: BA334343 		$169.83 1
6068B LR019423
INSULATOR - ENGINE COMPARTMENT
LHD / Centre / From: AA000001 / To: BA334342 		$469.85 1
6068B LR019424
INSULATOR - ENGINE COMPARTMENT
RHD / Centre / From: AA000001 / To: AA999999 		$469.85 1
6068B LR022526
INSULATOR - ENGINE COMPARTMENT
RHD / Centre / From: BA000001 		$261.82 1
6068B LR022527
INSULATOR - ENGINE COMPARTMENT
LHD / Centre / From: BA334343 		$298.69 1
6068C LR011703
INSULATOR - ENGINE COMPARTMENT
From: AA000001 / To: AA999999 		$25.49 1
6068C LR022988
INSULATOR - ENGINE COMPARTMENT
From: BA000001 		$25.49 1
6068D LR023014
INSULATOR - ENGINE COMPARTMENT
4.4L DOHC DITC V8 Diesel / RH / From: BA000001 		$23.05 1
6068D LR022993
INSULATOR - ENGINE COMPARTMENT
4.4L DOHC DITC V8 Diesel / LH / From: BA000001 		$23.05 1
16738 LR019432
INSULATOR - HOOD
From: AA000001 / To: CA381700 		$356.04 1
16738 LR031709
INSULATOR - HOOD
From: CA381701 		$347.36 1
