Name: Rear Door Lock Controls ((V) FROMAA000001)
Rating: 5.0 (1 reviews)

Rear Door Lock Controls ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Rear Door Lock Controls ((V) FROMAA000001)

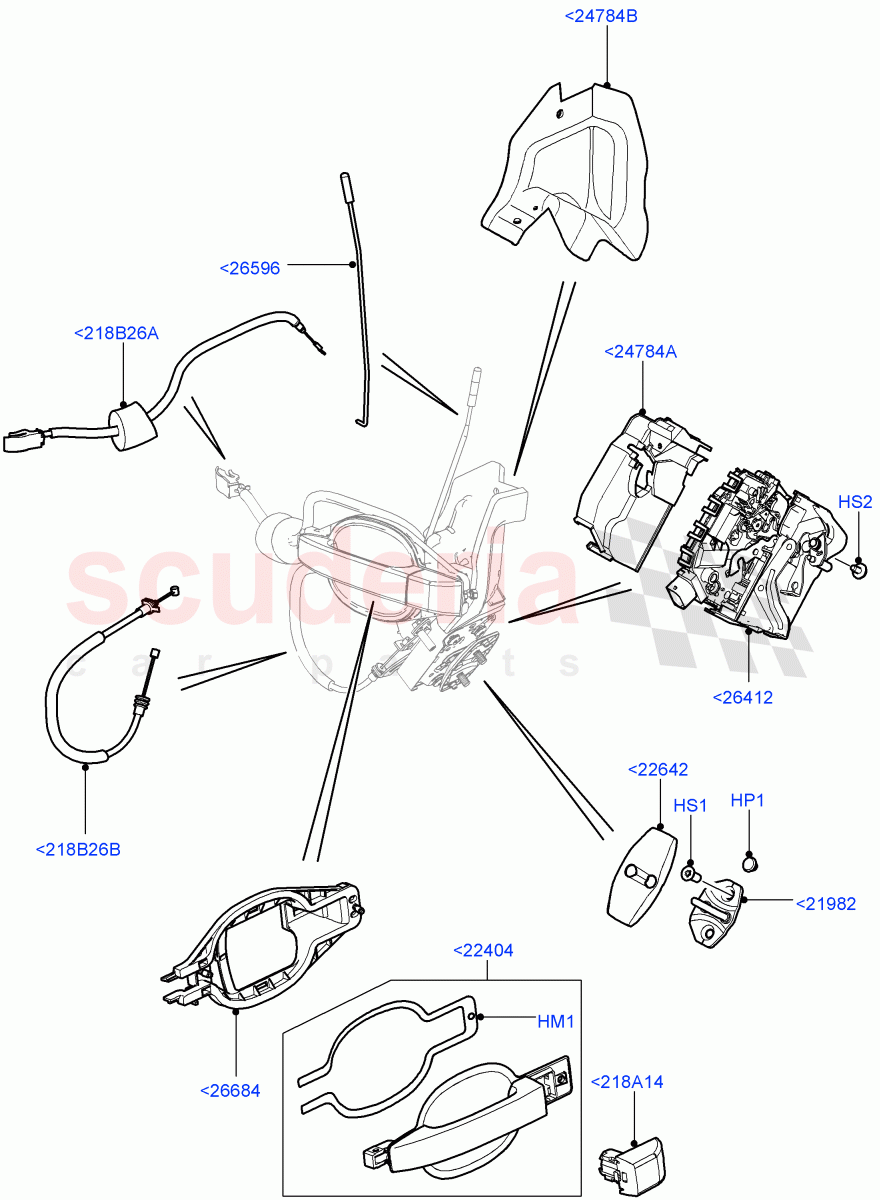

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CXE000030	GASKET	$4.63	To Order

Photo	Part No	Description	Price (each)	Stock
	BYB000020	PLUG	$4.24	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP000320	SCREW - COUNTERSUNK - SPECIAL	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP500240	SCREW	$1.57	To Order

Photo	Part No	Description	Price (each)	Stock
	FQB000100	STRIKER - DOOR LOCKING MECHANISM	$49.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011100	HANDLE - DOOR - OUTER	$187.45	To Order
	LR011877	HANDLE - DOOR - OUTER	$109.31	To Order
	LR011101	HANDLE - DOOR - OUTER	$195.38	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FQW000020	COVER - LOWER STRIKER	$6.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013380	LATCH	$354.91	To Order
	LR013381	LATCH	$354.91	To Order

Photo	Part No	Description	Price (each)	Stock
	ELZ000020PUY	ROD	$14.25	To Order
	ELZ000030PUY	ROD	$27.67	To Order

Photo	Part No	Description	Price (each)	Stock
	CXL500010	REINFORCEMENT - ASSIST HANDLE	$37.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011204	CAP - HANDLE	$70.24	To Order
	LR028096	CAP - DOOR LOCKING MECHANISM	$22.75	To Order

Photo	Part No	Description	Price (each)	Stock
	FQD500060	SHIELD	$4.67	To Order
	FQD500070	SHIELD	$4.58	To Order

Photo	Part No	Description	Price (each)	Stock
	FQD000043	SHIELD - DOOR LOCK	$16.94	To Order
	FQD000053	SHIELD - DOOR LOCK	$8.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011322	CABLE - DOOR LATCH	$25.21	To Order

Photo	Part No	Description	Price (each)	Stock
	FQZ000060	CABLE - DOOR LATCH	$24.11	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<218A14	LR011204	CAP - HANDLE	LR011204 CAP - HANDLE Oberon, RH/LH / From: AA000001 / To: BA999999	$70.24	2
<218A14	LR028096	CAP - DOOR LOCKING MECHANISM	LR028096 CAP - DOOR LOCKING MECHANISM Body Coloured Exterior Door Handle / RH, Primed / From: CA000001	$22.75	2
<218B26A	LR011322	CABLE - DOOR LATCH	LR011322 CABLE - DOOR LATCH From: AA000001	$25.21	2
<218B26B	FQZ000060	CABLE - DOOR LATCH	FQZ000060 CABLE - DOOR LATCH From: AA000001	$24.11	2
<21982	FQB000100	STRIKER - DOOR LOCKING MECHANISM	FQB000100 STRIKER - DOOR LOCKING MECHANISM From: AA000001	$49.76	2
<22404	LR011100	HANDLE - DOOR - OUTER	LR011100 HANDLE - DOOR - OUTER Bournville (822) / From: AA000001 / To: BA999999	$187.45	2
<22404	LR011877	HANDLE - DOOR - OUTER	LR011877 HANDLE - DOOR - OUTER Nara Bronze (825) / From: AA000001 / To: BA999999	$109.31	2
<22404	LR011101	HANDLE - DOOR - OUTER	LR011101 HANDLE - DOOR - OUTER Rimini Red (889) / From: AA000001 / To: BA999999	$195.38	2
<22404	LR011878	HANDLE - DOOR - OUTER	LR011878 HANDLE - DOOR - OUTER Ipanema Sand (824) / From: AA000001 / To: BA999999	$230.31	2
<22404	LR011102	HANDLE - DOOR - OUTER	LR011102 HANDLE - DOOR - OUTER Galway Green (821) / From: AA000001 / To: BA999999	$187.45	2
<22404	LR011103	HANDLE - DOOR - OUTER	LR011103 HANDLE - DOOR - OUTER Buckingham Blue (796) / From: AA000001 / To: BA999999	$230.31	2
<22404	LR011104	HANDLE - DOOR - OUTER	LR011104 HANDLE - DOOR - OUTER Stornoway Grey (907) / From: AA000001 / To: BA999999	$230.31	2
<22404	LR011105	HANDLE - DOOR - OUTER	LR011105 HANDLE - DOOR - OUTER Zermatt Silver (798) / From: AA000001 / To: BA999999	$109.31	2
<22404	LR011106	HANDLE - DOOR - OUTER	LR011106 HANDLE - DOOR - OUTER Alaska White (909) / From: AA000001 / To: BA999999	$187.45	2
<22404	LR011107	HANDLE - DOOR - OUTER	LR011107 HANDLE - DOOR - OUTER Santorini Black (820) / From: AA000001 / To: BA999999	$294.01	2
<22404	LR021918	HANDLE - DOOR - OUTER	LR021918 HANDLE - DOOR - OUTER Fuji White (867) / From: AA313069 / To: BA359903	$183.81	2
<22404	LR021919	HANDLE - DOOR - OUTER	LR021919 HANDLE - DOOR - OUTER Baltic Blue (912) / From: AA313069 / To: BA999999	$240.05	2
<22404	LR028095	HANDLE - DOOR - OUTER	LR028095 HANDLE - DOOR - OUTER Otago Stone (875) / Primed / From: BA359904 / To: BA999999	$183.81	2
<22404	LR032280	HANDLE - DOOR - OUTER	LR032280 HANDLE - DOOR - OUTER Orkney Grey (949) / From: AA000001 / To: BA999999	$122.10	2
<22404	LR032281	HANDLE - DOOR - OUTER	LR032281 HANDLE - DOOR - OUTER Sumatra Black (797) / From: AA000001 / To: BA999999	$120.69	2
<22404	LR028095	HANDLE - DOOR - OUTER	LR028095 HANDLE - DOOR - OUTER Aintree Green (866) / Primed / From: CA000001	$183.81	2
<22642	FQW000020	COVER - LOWER STRIKER	FQW000020 COVER - LOWER STRIKER Striker / From: AA000001	$6.94	1
<24784A	FQD500060	SHIELD	FQD500060 SHIELD RH, Latch Cover / From: AA000001	$4.67	1
<24784A	FQD500070	SHIELD	FQD500070 SHIELD LH, Latch Cover / From: AA000001	$4.58	1
<24784B	FQD000043	SHIELD - DOOR LOCK	FQD000043 SHIELD - DOOR LOCK RH, Latch Cover / From: AA000001	$16.94	1
<24784B	FQD000053	SHIELD - DOOR LOCK	FQD000053 SHIELD - DOOR LOCK LH, Latch Cover / From: AA000001	$8.19	1
<26412	LR013380	LATCH	LR013380 LATCH RH / From: AA000001	$354.91	1
<26412	LR013381	LATCH	LR013381 LATCH LH / From: AA000001	$354.91	1
<26596	ELZ000020PUY	ROD	ELZ000020PUY ROD RH, Black / From: AA000001	$14.25	1
<26596	ELZ000030PUY	ROD	ELZ000030PUY ROD LH, Black / From: AA000001	$27.67	1
<26684	CXL500010	REINFORCEMENT - ASSIST HANDLE	CXL500010 REINFORCEMENT - ASSIST HANDLE Handle, RH/LH / From: AA000001	$37.76	2
HM1	CXE000030	GASKET	CXE000030 GASKET Handle, Seal / From: AA000001	$4.63	2
HP1	BYB000020	PLUG	BYB000020 PLUG Drain / From: AA000001	$4.24	2
HS1	FYP000320	SCREW - COUNTERSUNK - SPECIAL	FYP000320 SCREW - COUNTERSUNK - SPECIAL M8 x 18MM, Torx / From: AA000001	$0.65	2
HS2	BYP500240	SCREW	BYP500240 SCREW M6 x 12MM, Torx / From: AA000001	$1.57	3

Rear Door Lock Controls ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Rear Door Lock Controls ((V) FROMAA000001)
