Side Panels - Inner (Less Armoured) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Side Panels - Inner (Less Armoured) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AQV760020 MOUNTING $138.87 To Order
AQV760030 MOUNTING $138.87 To Order
Photo Part No Description Price (each) Stock
AQV760010 BRACKET - REAR LAMP $15.95 To Order
Photo Part No Description Price (each) Stock
EAP4830PMA RIVET - SPECIAL $1.09 To Order
Photo Part No Description Price (each) Stock
ALU760260 BRACKET - BUMPER MOUNTING $35.76 To Order
Photo Part No Description Price (each) Stock
EYQ100130 RIVET - PLASTIC $0.64 IN STOCK
Photo Part No Description Price (each) Stock
CZK3264L NUT - LOCKING $1.64 To Order
Photo Part No Description Price (each) Stock
WYH500050 NUT - LOCKING $2.66 IN STOCK
Photo Part No Description Price (each) Stock
EYP500330 SCREW AND WASHER $6.02 To Order
Photo Part No Description Price (each) Stock
LR011883 REINFORCEMENT - "A" PILLAR $29.51 To Order
LR011884 REINFORCEMENT - "A" PILLAR $29.51 To Order
Photo Part No Description Price (each) Stock
LR038172 PANEL - REAR QUARTER $186.59 To Order
LR038171 PANEL - REAR QUARTER $181.89 To Order
Photo Part No Description Price (each) Stock
LR014182 EXTENSION - REAR FLOOR SIDE MEMBER $201.50 To Order
LR014183 EXTENSION - REAR FLOOR SIDE MEMBER $201.50 To Order
Photo Part No Description Price (each) Stock
LR013911 RETAINER - PILLAR $117.51 To Order
LR013912 RETAINER - PILLAR $117.51 To Order
Photo Part No Description Price (each) Stock
LR011456 SHIELD - SPLASH - WHEELHOUSE $188.17 To Order
LR011457 SHIELD - SPLASH - WHEELHOUSE $188.17 To Order
Photo Part No Description Price (each) Stock
AQP760020 PANEL - REAR LAMP CLOSING $76.81 To Order
AQP760030 PANEL - REAR LAMP CLOSING $76.81 To Order
Photo Part No Description Price (each) Stock
LR012114 PANEL - REAR LAMP CLOSING $2,105.87 To Order
LR012115 PANEL - REAR LAMP CLOSING $2,105.87 To Order
Photo Part No Description Price (each) Stock
CLB500010 SEAL - BODY SIDE PANEL $24.75 To Order
Photo Part No Description Price (each) Stock
ALK760020 PANEL - WHEELHOUSE - INNER $145.33 To Order
ALK760030 PANEL - WHEELHOUSE - INNER $137.07 To Order
Photo Part No Description Price (each) Stock
AMS760010 PANEL - BODY SIDE - REAR $178.32 To Order
ACC760010 PANEL - BODY SIDE - REAR $200.60 To Order
Photo Part No Description Price (each) Stock
ALU760310 BRACKET - BODY SIDE TRIM $34.01 To Order
View All

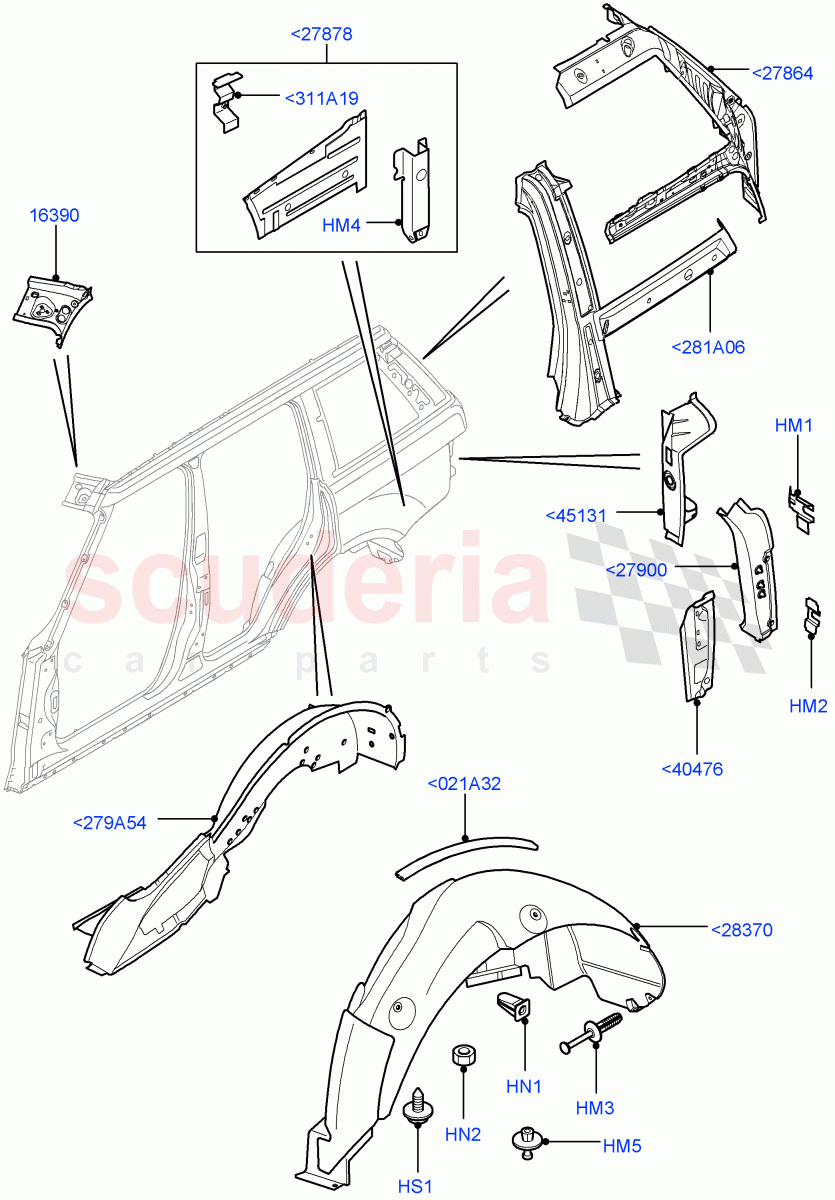

Side Panels - Inner (Less Armoured) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<021A32 CLB500010
SEAL - BODY SIDE PANEL
Liner-rear wheelarch / From: AA000001 		$24.75 2
<279A54 ALK760020
PANEL - WHEELHOUSE - INNER
RH, Rear / From: AA000001 		$145.33 1
<279A54 ALK760030
PANEL - WHEELHOUSE - INNER
LH, Rear / From: AA000001 		$137.07 1
<281A06 AMS760010
PANEL - BODY SIDE - REAR
LH / From: AA000001 		$178.32 1
<281A06 ACC760010
PANEL - BODY SIDE - REAR
RH / From: AA000001 		$200.60 1
<311A19 ALU760310
BRACKET - BODY SIDE TRIM
LH Side Only / From: AA000001 		$34.01 1
<27864 LR038172
PANEL - REAR QUARTER
LH, Rear / From: AA000001 		$186.59 1
<27864 LR038171
PANEL - REAR QUARTER
RH, Rear / From: AA000001 		$181.89 1
<27878 LR014182
EXTENSION - REAR FLOOR SIDE MEMBER
RH, Rear / From: AA000001 		$201.50 1
<27878 LR014183
EXTENSION - REAR FLOOR SIDE MEMBER
LH, Rear / From: AA000001 		$201.50 1
<27900 LR013911
RETAINER - PILLAR
RH, "E" Pillar / From: AA000001 		$117.51 1
<27900 LR013912
RETAINER - PILLAR
LH, "E" Pillar / From: AA000001 		$117.51 1
<28370 LR011456
SHIELD - SPLASH - WHEELHOUSE
RH, Rear / From: AA000001 		$188.17 1
<28370 LR011457
SHIELD - SPLASH - WHEELHOUSE
LH, Rear / From: AA000001 		$188.17 1
<40476 AQP760020
PANEL - REAR LAMP CLOSING
RH, Rear Lamp / From: AA000001 		$76.81 1
<40476 AQP760030
PANEL - REAR LAMP CLOSING
LH, Rear Lamp / From: AA000001 		$76.81 1
<45131 LR012114
PANEL - REAR LAMP CLOSING
RH / From: AA000001 		$2,105.87 1
<45131 LR012115
PANEL - REAR LAMP CLOSING
LH / From: AA000001 		$2,105.87 1
HM1 AQV760020
MOUNTING
RH, Mounting Bracket, Rear Lamp, Upper / From: AA000001 		$138.87 1
HM1 AQV760030
MOUNTING
LH, Mounting Bracket, Rear Lamp, Upper / From: AA000001 		$138.87 1
HM2 AQV760010
BRACKET - REAR LAMP
Bracket, Lower, Rear Lamp / From: AA000001 		$15.95 1
HM3 EAP4830PMA
RIVET - SPECIAL
Attaches to Rear Bumper, Rear Wheelhouse, Rivet / From: AA000001 		$1.09 2
HM4 ALU760260
BRACKET - BUMPER MOUNTING
Bumper, Mounting Bracket, Rear / From: AA000001 		$35.76 1
HM5 EYQ100130
RIVET - PLASTIC
Plastic, Rear Wheelhouse, Rivet / From: AA000001
IN STOCK 		$0.64 1
HN1 CZK3264L
NUT - LOCKING
Rear Wheelhouse / From: AA000001 		$1.64 2
HN2 WYH500050
NUT - LOCKING
M5, Rear Wheelhouse / From: AA000001
IN STOCK 		$2.66 1
HS1 EYP500330
SCREW AND WASHER
16MM, Rear Wheelhouse, Self Tapping / From: AA000001 		$6.02 2
16390 LR011883
REINFORCEMENT - "A" PILLAR
RH / From: AA000001 		$29.51 1
16390 LR011884
REINFORCEMENT - "A" PILLAR
LH / From: AA000001 		$29.51 1
