Floor Pan - Centre And Rear (Less Armoured) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Floor Pan - Centre And Rear (Less Armoured) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR012895 RETAINER - RIVET $1.05 To Order
Photo Part No Description Price (each) Stock
LR012978 MEMBER - SIDE FLOOR $612.89 To Order
LR012979 MEMBER - SIDE FLOOR $418.95 To Order
Photo Part No Description Price (each) Stock
LR012458 MEMBER - SIDE FLOOR $158.64 To Order
LR012457 MEMBER - FLOOR SIDE $244.25 To Order
Photo Part No Description Price (each) Stock
AQC760250 CROSSMEMBER $2,454.29 To Order
Photo Part No Description Price (each) Stock
LR012113 PANEL $160.53 To Order
Photo Part No Description Price (each) Stock
AGG760010 PAN - FLOOR $1,450.48 To Order
Photo Part No Description Price (each) Stock
ALK760270 WHEELHOUSE - REAR $120.96 To Order
ALK760091 WHEELHOUSE - REAR $181.43 To Order
LR019651 WHEELHOUSE - REAR $166.54 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR013311 BRACKET - BUMPER MOUNTING $25.32 To Order
Photo Part No Description Price (each) Stock
AGA760013 STIFFENER - REAR FLOOR $35.80 To Order
AGA760052 STIFFENER - REAR FLOOR $36.48 To Order
Photo Part No Description Price (each) Stock
AGZ760011 RETAINER $12.97 To Order
Photo Part No Description Price (each) Stock
AGZ760021 RETAINER $9.98 To Order
View All

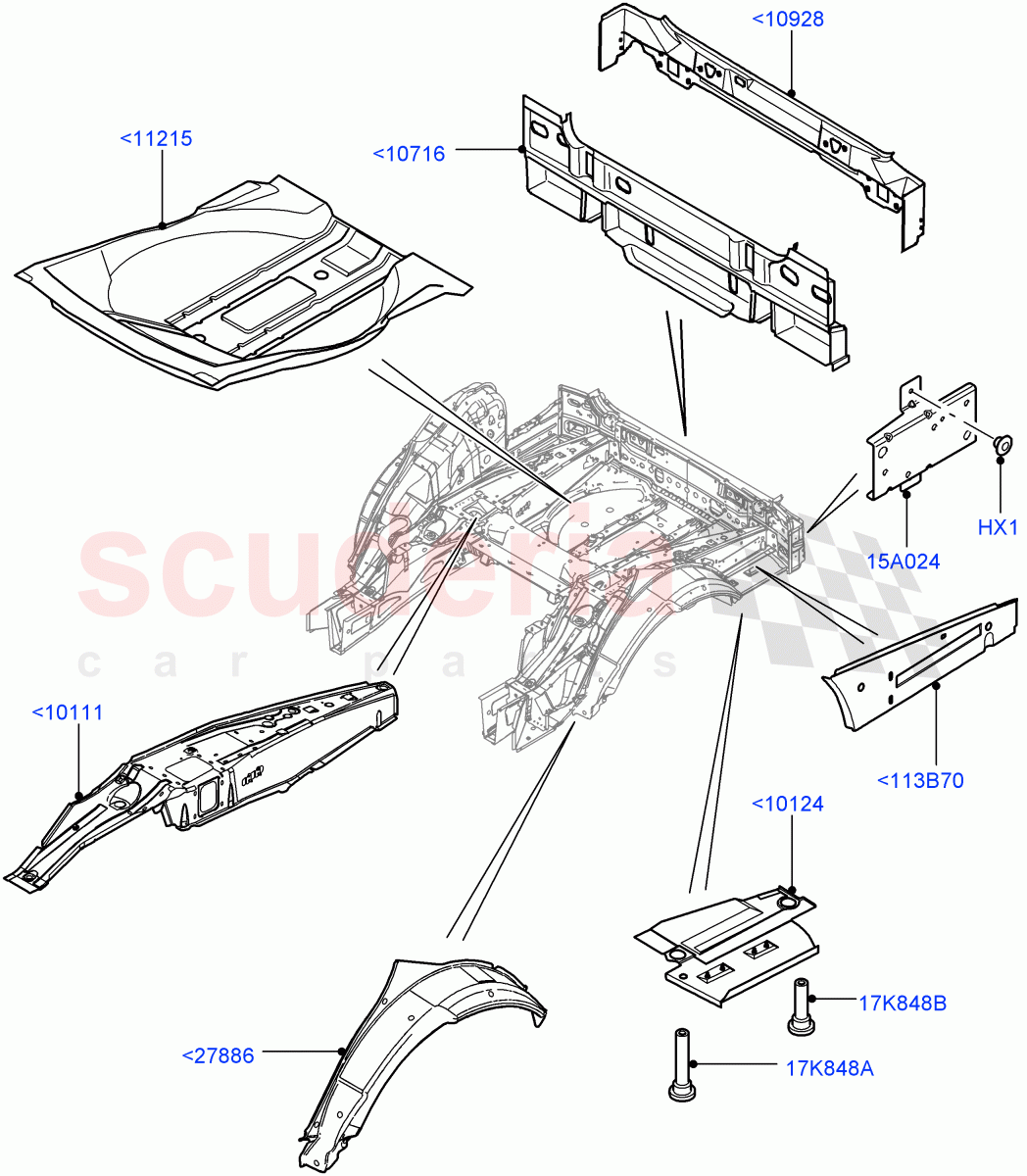

Floor Pan - Centre And Rear (Less Armoured) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<113B70 AGA760013
STIFFENER - REAR FLOOR
RH / From: AA000001 		$35.80 1
<113B70 AGA760052
STIFFENER - REAR FLOOR
LH / From: AA000001 		$36.48 1
<10111 LR012978
MEMBER - SIDE FLOOR
RH, Upper / From: AA000001 		$612.89 1
<10111 LR012979
MEMBER - SIDE FLOOR
LH, Upper / From: AA000001 		$418.95 1
<10124 LR012458
MEMBER - SIDE FLOOR
LH, Lower / From: AA000001 		$158.64 1
<10124 LR012457
MEMBER - FLOOR SIDE
RH, Lower / From: AA000001 		$244.25 1
<10716 AQC760250
CROSSMEMBER
Rear Floor / From: AA000001 		$2,454.29 1
<10928 LR012113
PANEL
Rear / From: AA000001 		$160.53 1
<11215 AGG760010
PAN - FLOOR
Luggage Compartment / From: AA000001 		$1,450.48 1
<27886 ALK760270
WHEELHOUSE - REAR
RH / From: AA000001 / To: AA314902 		$120.96 1
<27886 ALK760091
WHEELHOUSE - REAR
LH / From: AA000001 / To: AA318369 		$181.43 1
<27886 LR019651
WHEELHOUSE - REAR
LH / From: AA318370 		$166.54 1
<27886 LR020268
WHEELHOUSE - REAR
RH / From: AA314903 		$515.58 1
HX1 LR012895
RETAINER - RIVET
Less Blind Spot Information System / 		$1.05 2
15A024 LR013311
BRACKET - BUMPER MOUNTING
Less Blind Spot Information System / RH/LH / From: AA000001 		$25.32 2
17K848A AGZ760011
RETAINER
Front Bush, Rear Support, Towing / From: AA000001 		$12.97 2
17K848B AGZ760021
RETAINER
Rear Bush, Rear Support, Towing / From: AA000001 		$9.98 2
