Name: Engine Mounting (5.0L OHC SGDI NA V8 Petrol - AJ133, 5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001)
Rating: 4.1 (1 reviews)

View All

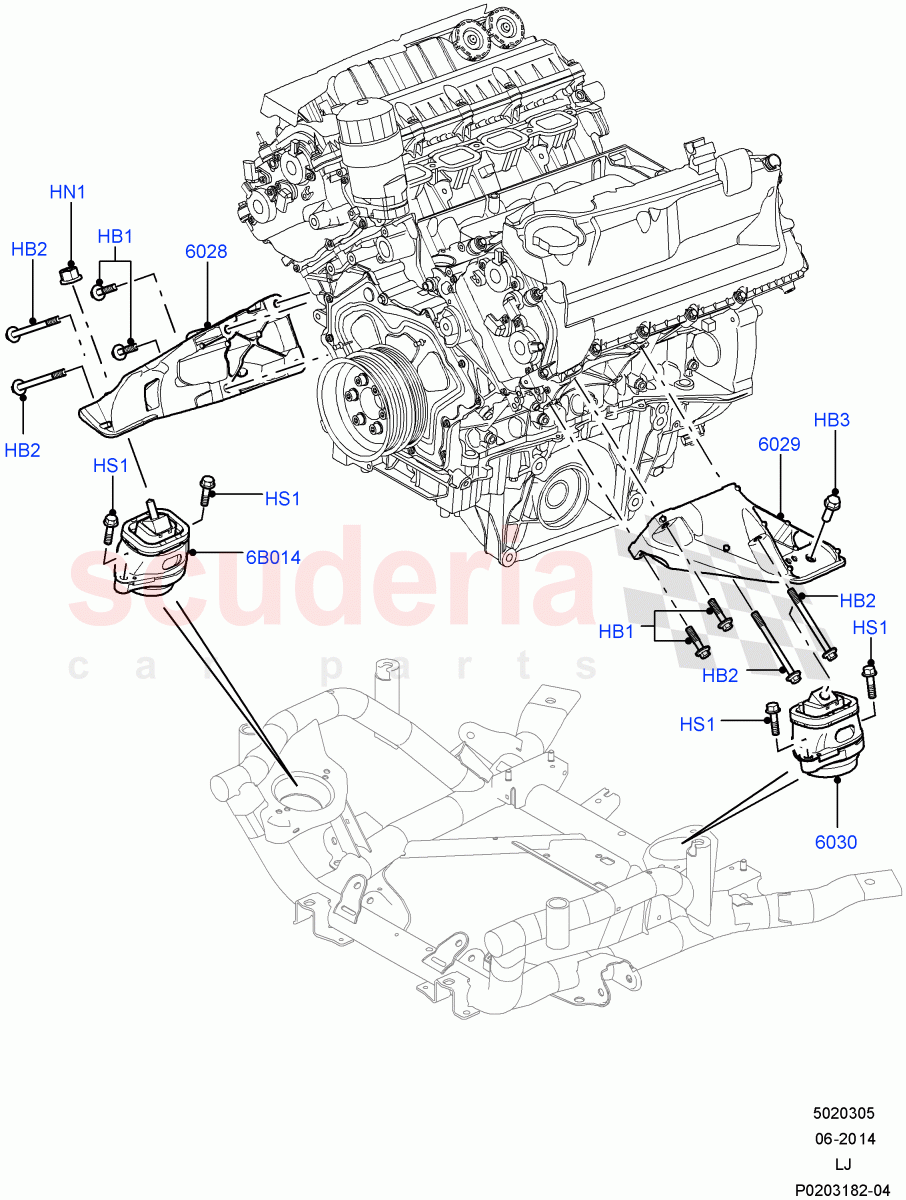

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011068	BOLT	$2.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011069	BOLT	$2.71	To Order

Photo	Part No	Description	Price (each)	Stock
	KYG500210	BOLT	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH000081	NUT - FLANGED	$1.05	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP000171	SCREW	$11.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011727	BRACKET - ENGINE FRONT SUPPORT	$105.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010743	INSULATOR	$100.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010746	BRACKET - ENGINE MOUNTING	$226.80	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR011068	BOLT	LR011068 BOLT Bolt And Washer, HEX Flange, M10 X 45 / From: AA000001	$2.76	2
HB2	LR011069	BOLT	LR011069 BOLT Bolt And Washer, HEX Flange, M10 X 122 / From: AA000001	$2.71	2
HB3	KYG500210	BOLT	KYG500210 BOLT M12 x 36MM / From: AA000001	$2.92	1
HN1	RYH000081	NUT - FLANGED	RYH000081 NUT - FLANGED M12 / From: AA000001	$1.05	1
HS1	RYP000171	SCREW	RYP000171 SCREW HEX Flange, M10 x 40MM / From: AA000001	$11.14	2
6B014	LR010746	BRACKET - ENGINE MOUNTING	LR010746 BRACKET - ENGINE MOUNTING RH / From: AA000001	$226.80	1
6028	LR011727	BRACKET - ENGINE FRONT SUPPORT	LR011727 BRACKET - ENGINE FRONT SUPPORT RH, Engine Mounting / From: AA000001	$105.79	1
6029	LR010743	INSULATOR	LR010743 INSULATOR LH, Engine Mounting / From: AA000001	$100.12	1
6030	LR010745	BRACKET - ENGINE SUPPORT	LR010745 BRACKET - ENGINE SUPPORT LH / From: AA000001 / To: AA999999	$110.30	1
6030	LR022564	BRACKET - ENGINE SUPPORT	LR022564 BRACKET - ENGINE SUPPORT LH / From: BA000001	$213.91	1

Engine Mounting (5.0L Ohc Sgdi Na V8 Petrol - Aj133, 5.0L Ohc Sgdi Sc V8 Petrol - Aj133) ((V)...

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]
