Name: Front Door Lock Controls ((V) FROMAA000001)
Rating: 4.1 (1 reviews)

Front Door Lock Controls ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Front Door Lock Controls ((V) FROMAA000001)

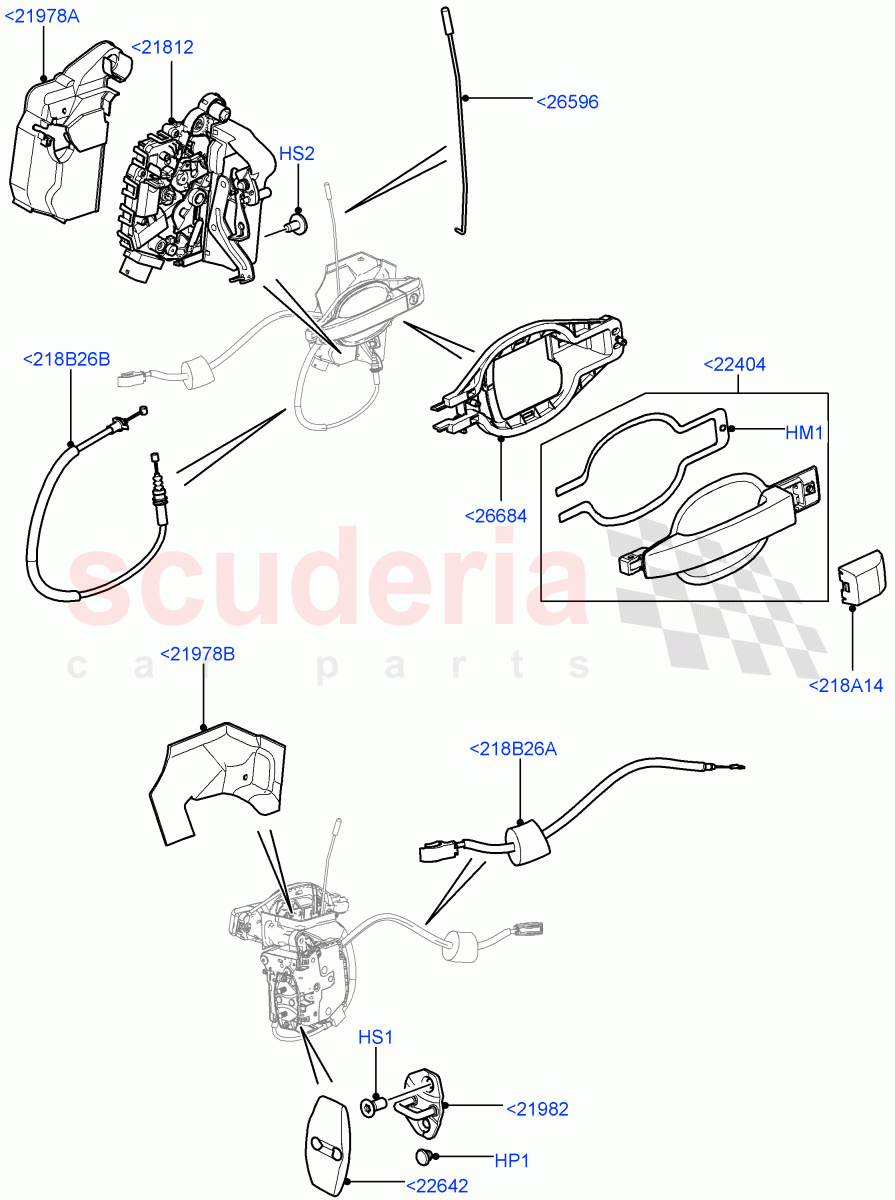

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CXE000030	GASKET	$4.64	To Order

Photo	Part No	Description	Price (each)	Stock
	BYB000020	PLUG	$4.25	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP000320	SCREW - COUNTERSUNK - SPECIAL	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP500240	SCREW	$1.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012791	LATCH - FRONT DOOR	$355.59	To Order
	LR012790	LATCH	$236.91	To Order
	LR019759	LATCH	$355.59	To Order

Photo	Part No	Description	Price (each)	Stock
	FQB000100	STRIKER - DOOR LOCKING MECHANISM	$49.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011100	HANDLE - DOOR - OUTER	$187.81	To Order
	LR011877	HANDLE - DOOR - OUTER	$109.52	To Order
	LR011101	HANDLE - DOOR - OUTER	$195.75	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FQW000020	COVER - LOWER STRIKER	$6.96	To Order

Photo	Part No	Description	Price (each)	Stock
	EJZ000011PUY	ROD - BELLCRANK AND LATCH CONTROL	$37.91	To Order

Photo	Part No	Description	Price (each)	Stock
	CXL500010	REINFORCEMENT - ASSIST HANDLE	$37.83	To Order
	CXL500020	REINFORCEMENT - ASSIST HANDLE	$38.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011203	HANDLE	$70.38	To Order
	LR011204	CAP - HANDLE	$70.38	To Order
	LR028096	CAP - DOOR LOCKING MECHANISM	$22.79	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FQD500050	SHIELD	$4.44	To Order
	FQD500040	SHIELD	$4.44	To Order

Photo	Part No	Description	Price (each)	Stock
	FQD000032	SHIELD - DOOR LOCK	$12.53	To Order
	FQD000022	SHIELD - DOOR LOCK	$16.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011173	CABLE - DOOR LATCH	$53.25	To Order

Photo	Part No	Description	Price (each)	Stock
	FQZ000041	CABLE - DOOR LATCH	$74.90	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<218A14	LR011203	HANDLE	LR011203 HANDLE LH, Black Grab Handle, Oberon, With Lock Barrel Aperture / From: AA000001 / To: BA999999	$70.38	1
<218A14	LR011204	CAP - HANDLE	LR011204 CAP - HANDLE RH, Less Lock Barrel Aperture, Oberon / From: AA000001 / To: BA999999	$70.38	1
<218A14	LR028096	CAP - DOOR LOCKING MECHANISM	LR028096 CAP - DOOR LOCKING MECHANISM Body Coloured Exterior Door Handle / RH, Primed / From: CA000001	$22.79	1
<218A14	LR028101	CAP - DOOR LOCKING MECHANISM	LR028101 CAP - DOOR LOCKING MECHANISM Body Coloured Exterior Door Handle / LH, Primed / From: CA000001	$22.79	1
<218B26A	LR011173	CABLE - DOOR LATCH	LR011173 CABLE - DOOR LATCH Door Release Control, Internal / From: AA000001	$53.25	2
<218B26B	FQZ000041	CABLE - DOOR LATCH	FQZ000041 CABLE - DOOR LATCH Door Release Control, External / From: AA000001	$74.90	2
<21812	LR012791	LATCH - FRONT DOOR	LR012791 LATCH - FRONT DOOR LH / From: AA000001	$355.59	1
<21812	LR012790	LATCH	LR012790 LATCH RH / From: AA000001 / To: AA314016	$236.91	1
<21812	LR019759	LATCH	LR019759 LATCH RH / From: AA314017	$355.59	1
<21978A	FQD500050	SHIELD	FQD500050 SHIELD LH, Latch Cover / From: AA000001	$4.44	1
<21978A	FQD500040	SHIELD	FQD500040 SHIELD RH, Latch Cover / From: AA000001	$4.44	1
<21978B	FQD000032	SHIELD - DOOR LOCK	FQD000032 SHIELD - DOOR LOCK LH, Latch Cover / From: AA000001	$12.53	1
<21978B	FQD000022	SHIELD - DOOR LOCK	FQD000022 SHIELD - DOOR LOCK RH, Latch Cover / From: AA000001	$16.71	1
<21982	FQB000100	STRIKER - DOOR LOCKING MECHANISM	FQB000100 STRIKER - DOOR LOCKING MECHANISM From: AA000001	$49.85	2
<22404	LR011100	HANDLE - DOOR - OUTER	LR011100 HANDLE - DOOR - OUTER Bournville (822) / From: AA000001 / To: BA999999	$187.81	2
<22404	LR011877	HANDLE - DOOR - OUTER	LR011877 HANDLE - DOOR - OUTER Nara Bronze (825) / From: AA000001 / To: BA999999	$109.52	2
<22404	LR011101	HANDLE - DOOR - OUTER	LR011101 HANDLE - DOOR - OUTER Rimini Red (889) / From: AA000001 / To: BA999999	$195.75	2
<22404	LR011878	HANDLE - DOOR - OUTER	LR011878 HANDLE - DOOR - OUTER Ipanema Sand (824) / From: AA000001 / To: BA999999	$230.75	2
<22404	LR011102	HANDLE - DOOR - OUTER	LR011102 HANDLE - DOOR - OUTER Galway Green (821) / From: AA000001 / To: BA999999	$187.81	2
<22404	LR011103	HANDLE - DOOR - OUTER	LR011103 HANDLE - DOOR - OUTER Buckingham Blue (796) / From: AA000001 / To: BA999999	$230.75	2
<22404	LR011104	HANDLE - DOOR - OUTER	LR011104 HANDLE - DOOR - OUTER Stornoway Grey (907) / From: AA000001 / To: BA999999	$230.75	2
<22404	LR011105	HANDLE - DOOR - OUTER	LR011105 HANDLE - DOOR - OUTER Zermatt Silver (798) / From: AA000001 / To: BA999999	$109.52	2
<22404	LR011106	HANDLE - DOOR - OUTER	LR011106 HANDLE - DOOR - OUTER Alaska White (909) / From: AA000001 / To: BA999999	$187.81	2
<22404	LR011107	HANDLE - DOOR - OUTER	LR011107 HANDLE - DOOR - OUTER Santorini Black (820) / From: AA000001 / To: BA999999	$294.57	2
<22404	LR021918	HANDLE - DOOR - OUTER	LR021918 HANDLE - DOOR - OUTER Fuji White (867) / From: AA313069 / To: BA359903	$184.17	2
<22404	LR021919	HANDLE - DOOR - OUTER	LR021919 HANDLE - DOOR - OUTER Baltic Blue (912) / From: AA313069 / To: BA999999	$240.51	2
<22404	LR028095	HANDLE - DOOR - OUTER	LR028095 HANDLE - DOOR - OUTER Rousillon (874) / Primed / From: BA359904 / To: BA999999	$184.17	2
<22404	LR032280	HANDLE - DOOR - OUTER	LR032280 HANDLE - DOOR - OUTER Orkney Grey (949) / From: AA000001 / To: BA999999	$122.33	2
<22404	LR032281	HANDLE - DOOR - OUTER	LR032281 HANDLE - DOOR - OUTER Sumatra Black (797) / From: AA000001 / To: BA999999	$120.92	2
<22404	LR028095	HANDLE - DOOR - OUTER	LR028095 HANDLE - DOOR - OUTER Galway Green (821) / Primed / From: CA000001	$184.17	2
<22642	FQW000020	COVER - LOWER STRIKER	FQW000020 COVER - LOWER STRIKER Striker / From: AA000001	$6.96	1
<26596	EJZ000011PUY	ROD - BELLCRANK AND LATCH CONTROL	EJZ000011PUY ROD - BELLCRANK AND LATCH CONTROL Link / From: AA000001	$37.91	2
<26684	CXL500010	REINFORCEMENT - ASSIST HANDLE	CXL500010 REINFORCEMENT - ASSIST HANDLE RH, Handle, Less Lock Barrel Aperture / From: AA000001	$37.83	1
<26684	CXL500020	REINFORCEMENT - ASSIST HANDLE	CXL500020 REINFORCEMENT - ASSIST HANDLE LH, Handle, With Lock Barrel Aperture / From: AA000001	$38.99	1
HM1	CXE000030	GASKET	CXE000030 GASKET Handle, Seal / From: AA000001	$4.64	2
HP1	BYB000020	PLUG	BYB000020 PLUG Drain / From: AA000001	$4.25	2
HS1	FYP000320	SCREW - COUNTERSUNK - SPECIAL	FYP000320 SCREW - COUNTERSUNK - SPECIAL M8 x 18MM, Torx / From: AA000001	$0.65	2
HS2	BYP500240	SCREW	BYP500240 SCREW M6 x 12MM, Torx / From: AA000001	$1.57	3
