Front Panels, Aprons & Side Members (Apron) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Front Panels, Aprons & Side Members (Apron) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108252 BOLT - HEX.HEAD $0.77 To Order
Photo Part No Description Price (each) Stock
FS108256 BOLT $3.57 IN STOCK
Photo Part No Description Price (each) Stock
ANR2224 HARDWARE - MISCELLANEOUS $2.68 To Order
Photo Part No Description Price (each) Stock
RZM500130 PIN $1.14 IN STOCK
Photo Part No Description Price (each) Stock
CZK3264L NUT - LOCKING $1.62 To Order
Photo Part No Description Price (each) Stock
DYP101611 SCREW $1.17 To Order
Photo Part No Description Price (each) Stock
LR106494 SCREW $2.25 IN STOCK
Photo Part No Description Price (each) Stock
LR000801 SCREW AND WASHER - SELF-TAPPING $0.52 To Order
Photo Part No Description Price (each) Stock
LR018793 APRON - FRONT FENDER $289.57 To Order
LR018794 APRON - FRONT FENDER $571.22 To Order
Photo Part No Description Price (each) Stock
LR013406 COVER - AIR CLEANER $16.20 To Order
LR013407 COVER - AIR CLEANER $16.11 To Order
Photo Part No Description Price (each) Stock
ASG760100 BAFFLE $150.11 To Order
ASG760110 BAFFLE $194.63 To Order
Photo Part No Description Price (each) Stock
LR012814 APRON - FRONT FENDER $87.43 To Order
LR012822 APRON - FRONT FENDER $87.43 To Order
Photo Part No Description Price (each) Stock
CLE500010 GUARD - FRONT SPLASH $39.03 To Order
Photo Part No Description Price (each) Stock
ASU760240 BRACKET $34.00 To Order
Photo Part No Description Price (each) Stock
CLF500811 SHIELD - SPLASH - WHEELHOUSE $132.80 To Order
CLF500800 SHIELD - SPLASH - WHEELHOUSE $151.99 To Order
Photo Part No Description Price (each) Stock
LR011478 SHIELD - SPLASH - WHEELHOUSE $47.52 To Order
LR011479 SHIELD - SPLASH - WHEELHOUSE $79.16 To Order
LR011476 SHIELD - SPLASH - WHEELHOUSE $47.52 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR011683 SHIELD - SPLASH - WHEELHOUSE $31.68 To Order
Photo Part No Description Price (each) Stock
LR011684 SHIELD - SPLASH - WHEELHOUSE $31.68 To Order
Photo Part No Description Price (each) Stock
LR018352 REINFORCEMENT - WHEEL ARCH $207.53 To Order
LR018353 REINFORCEMENT - WHEEL ARCH $127.11 To Order
LR022696 REINFORCEMENT - WHEEL ARCH $217.00 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR012817 REINFORCEMENT $193.12 To Order
LR012818 REINFORCEMENT $193.12 To Order
Photo Part No Description Price (each) Stock
ALR760010 REINFORCEMENT $16.37 To Order
View All

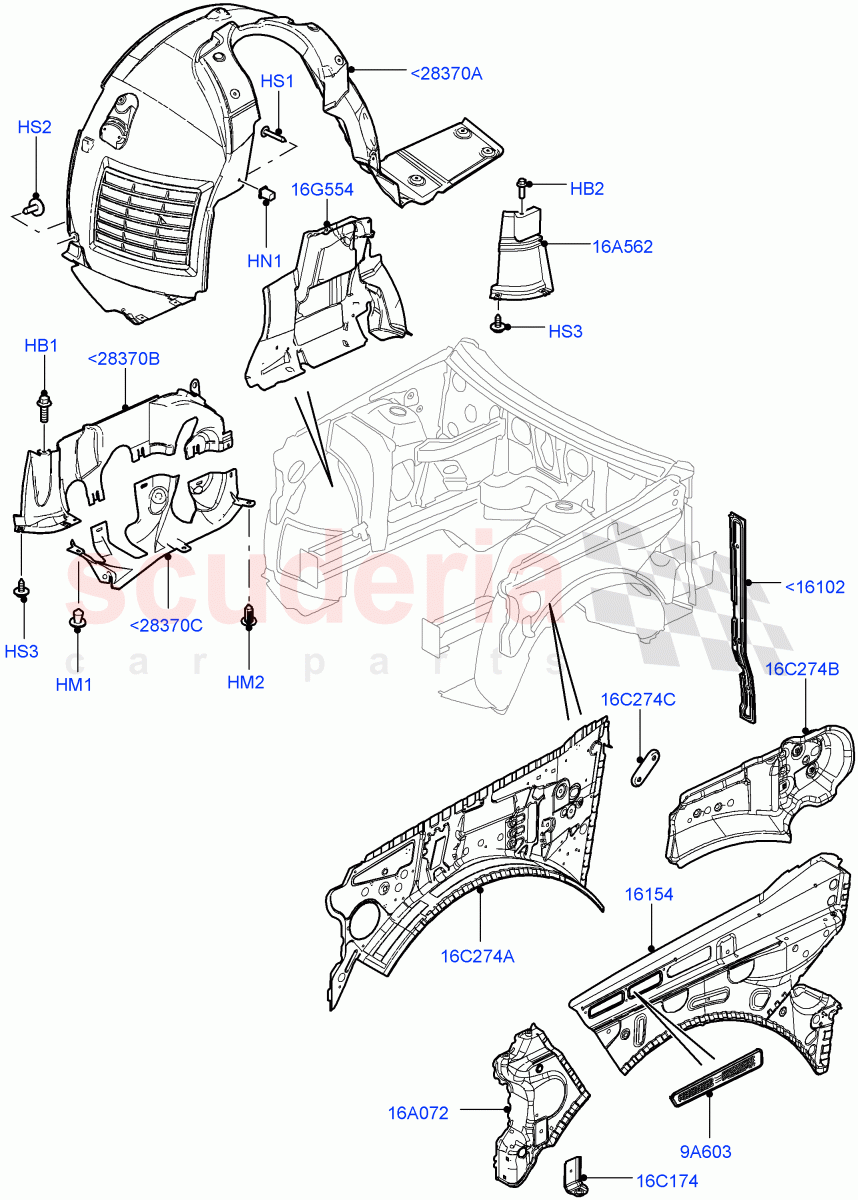

Front Panels, Aprons & Side Members (Apron) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<16102 ASG760100
BAFFLE
RH, Front Fender / From: AA000001 		$150.11 1
<16102 ASG760110
BAFFLE
LH, Front Fender / From: AA000001 		$194.63 1
<28370A LR011478
SHIELD - SPLASH - WHEELHOUSE
5.0L OHC SGDI NA V8 Petrol - AJ133 / RH, Front / From: AA000001 / To: AA308420 		$47.52 1
<28370A LR011479
SHIELD - SPLASH - WHEELHOUSE
3.6L V8 32V DOHC EFi Diesel Lion / RH, Front / From: AA000001 / To: AA308420 		$79.16 1
<28370A LR011476
SHIELD - SPLASH - WHEELHOUSE
5.0L OHC SGDI NA V8 Petrol - AJ133 / LH, Front / From: AA000001 / To: AA308420 		$47.52 1
<28370A LR011477
SHIELD - SPLASH - WHEELHOUSE
3.6L V8 32V DOHC EFi Diesel Lion / LH, Front / From: AA000001 / To: AA308420 		$79.16 1
<28370A LR019145
SHIELD - SPLASH - WHEELHOUSE
5.0L OHC SGDI SC V8 Petrol - AJ133 / RH, Front / From: AA308421 		$98.93 1
<28370A LR019146
SHIELD - SPLASH - WHEELHOUSE
3.6L V8 32V DOHC EFi Diesel Lion / RH, Front / From: AA308421 		$135.74 1
<28370A LR019147
SHIELD - SPLASH - WHEELHOUSE
5.0L OHC SGDI SC V8 Petrol - AJ133 / LH, Front / From: AA308421 		$98.93 1
<28370A LR019148
SHIELD - SPLASH - WHEELHOUSE
3.6L V8 32V DOHC EFi Diesel Lion / LH, Front / From: AA308421 		$135.74 1
<28370B LR011683
SHIELD - SPLASH - WHEELHOUSE
5.0L OHC SGDI NA V8 Petrol - AJ133 / RH Side Only, Upper / From: AA000001 		$31.68 1
<28370C LR011684
SHIELD - SPLASH - WHEELHOUSE
5.0L OHC SGDI NA V8 Petrol - AJ133 / Lower, RH Side Only / From: AA000001 		$31.68 1
HB1 FS108252
BOLT - HEX.HEAD
Hexagonal Head, M8 X 25MM, Shield, Wheelhouse / From: AA000001 		$0.77 2
HB2 FS108256
BOLT
3.6L V8 32V DOHC EFi Diesel Lion / Hexagonal Head, M8 X 25MM, Side / From: AA000001
IN STOCK 		$3.57 1
HM1 ANR2224
HARDWARE - MISCELLANEOUS
8 X 20MM, Pin, Shield, Wheelhouse / From: AA000001 		$2.68 2
HM2 RZM500130
PIN
M10 X 28MM, Shield, Wheelhouse / From: AA000001
IN STOCK 		$1.14 3
HN1 CZK3264L
NUT - LOCKING
Front Wheelhouse / From: AA000001 		$1.62 11
HS1 DYP101611
SCREW
Front Wheelhouse, M5 / From: AA000001 		$1.17 11
HS2 LR106494
SCREW
5.0L OHC SGDI NA V8 Petrol - AJ133 / Front Wheelhouse, M5 x 20MM, Self Tapping / From: AA000001
IN STOCK 		$2.25 1
HS3 LR000801
SCREW AND WASHER - SELF-TAPPING
6.3 X 25MM, Shield, Wheelhouse / From: AA000001 		$0.52 2
9A603 LR013406
COVER - AIR CLEANER
LH / From: AA000001 		$16.20 1
9A603 LR013407
COVER - AIR CLEANER
RH / From: AA000001 		$16.11 1
16A072 LR012814
APRON - FRONT FENDER
RH / From: AA000001 		$87.43 1
16A072 LR012822
APRON - FRONT FENDER
LH / From: AA000001 		$87.43 1
16A562 CLE500010
GUARD - FRONT SPLASH
3.6L V8 32V DOHC EFi Diesel Lion / RH Side Only / From: AA000001 		$39.03 1
16C174 ASU760240
BRACKET
From: AA000001 		$34.00 1
16C274A LR018352
REINFORCEMENT - WHEEL ARCH
RH, Front Inner, Wheel Arch / From: AA000001 / To: BA334342 		$207.53 1
16C274A LR018353
REINFORCEMENT - WHEEL ARCH
LH, Front Inner, Wheel Arch / From: AA000001 / To: BA334342 		$127.11 1
16C274A LR022696
REINFORCEMENT - WHEEL ARCH
RH, Front Inner, Wheel Arch / From: BA334343 		$217.00 1
16C274A LR022697
REINFORCEMENT - WHEEL ARCH
LH, Front Inner, Wheel Arch / From: BA334343 		$182.79 1
16C274B LR012817
REINFORCEMENT
RH / From: AA000001 		$193.12 1
16C274B LR012818
REINFORCEMENT
LH / From: AA000001 		$193.12 1
16C274C ALR760010
REINFORCEMENT
"A" Pillar Hinge / From: AA000001 		$16.37 1
16G554 CLF500811
SHIELD - SPLASH - WHEELHOUSE
LH, Front Inner, Wheelarch / From: AA000001 		$132.80 1
16G554 CLF500800
SHIELD - SPLASH - WHEELHOUSE
RH, Front Inner, Wheelarch / From: AA000001 		$151.99 1
16154 LR018793
APRON - FRONT FENDER
RH / From: AA000001 		$289.57 1
16154 LR018794
APRON - FRONT FENDER
LH / From: AA000001 		$571.22 1
