Heater Hoses (Front) (3.0L Dohc Gdi Sc V6 Petrol, Fuel Fired Heater With Park Heat, Fuel Heater...

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI] - Heater Hoses (Front) (3.0L DOHC GDI SC V6 PETROL, Fuel Fired Heater With Park Heat, Fuel Heater...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR011270 SCREW $1.25 IN STOCK
Photo Part No Description Price (each) Stock
KYG500380 SCREW AND WASHER - HEX HEAD $0.36 IN STOCK
Photo Part No Description Price (each) Stock
LR061621 BOLT $1.70 To Order
Photo Part No Description Price (each) Stock
LR010793 GASKET - WATER MANIFOLD $9.67 To Order
Photo Part No Description Price (each) Stock
LR034598 TUBE - HEATER WATER $72.20 To Order
Photo Part No Description Price (each) Stock
4346360 SENSOR - ENGINE COOLANT TEMPERATURE $64.27 To Order
Photo Part No Description Price (each) Stock
LR100017 HOSE - HEATER WATER $56.34 To Order
Photo Part No Description Price (each) Stock
LR133648 HOSE - HEATER WATER $48.52 To Order
LR113148 HOSE - HEATER WATER $48.44 IN STOCK
LR133648 HOSE - HEATER WATER $48.52 To Order
Photo Part No Description Price (each) Stock
LR109401 MANIFOLD - HEATER $124.22 To Order
LR122710 MANIFOLD - HEATER $142.97 To Order
Photo Part No Description Price (each) Stock
LR034624 HOSE AND BRACKET - HEATING $100.66 To Order
View All

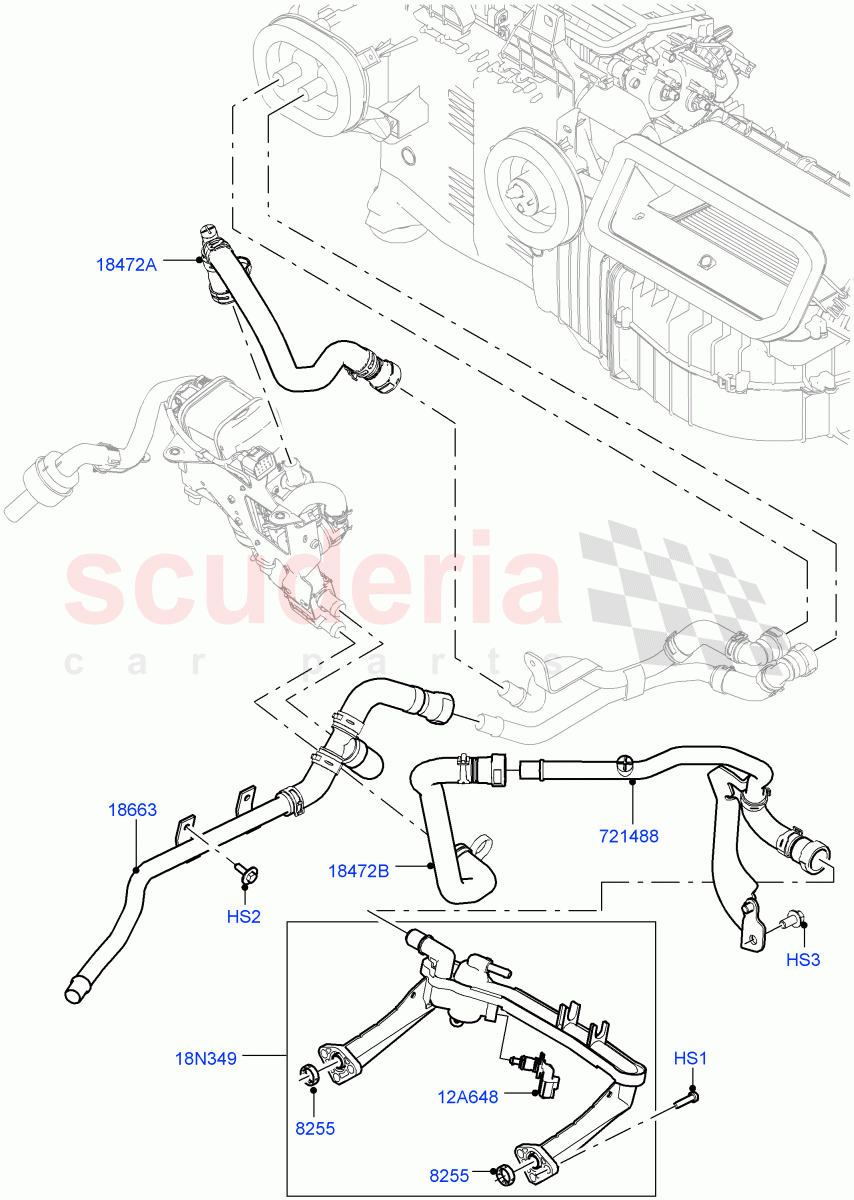

Heater Hoses (Front) (3.0L DOHC GDI SC V6 PETROL, Fuel Fired Heater With Park Heat, Fuel Heater W/Pk Heat With Remote) ((V) FROMKA000001) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR011270
SCREW
M6 x 25MM, Torx / From: KA000001
IN STOCK 		$1.25 4
HS2 KYG500380
SCREW AND WASHER - HEX HEAD
Hexagonal Head, M6 X 13.5MM / From: KA000001
IN STOCK 		$0.36 2
HS3 LR061621
BOLT
M10 x 16MM / From: KA000001 		$1.70 1
12A648 4346360
SENSOR - ENGINE COOLANT TEMPERATURE
From: KA000001 		$64.27 1
18N349 LR109401
MANIFOLD - HEATER
Heater, Tube From Engine Block To Heater Inlet Hose, With Sensor / From: KA000001 / To: KA524962 		$124.22 1
18N349 LR122710
MANIFOLD - HEATER
Heater, Tube From Engine Block To Heater Inlet Hose, With Sensor / From: KA524963 		$142.97 1
8255 LR010793
GASKET - WATER MANIFOLD
From: KA000001 		$9.67 2
18472A LR100017
HOSE - HEATER WATER
Upper / From: KA000001 		$56.34 1
18472B LR133648
HOSE - HEATER WATER
Less Head Impact Crash Criteria / (+) ROW, From Engine To Fuel Fired Heater / From: KA000001 / To: KA554777 		$48.52 1
18472B LR113148
HOSE - HEATER WATER
Electric Auxiliary Coolant Pump, With Head Impact Crash Criteria / (+)"NAS", From Engine To Fuel Fired Heater, Lower / From: KA000001
IN STOCK 		$48.44 1
18472B LR133648
HOSE - HEATER WATER
Less Head Impact Crash Criteria / (+) ROW, From Engine To Fuel Fired Heater / From: KA554778 		$48.52 1
18663 LR034598
TUBE - HEATER WATER
From: KA000001 		$72.20 1
721488 LR034624
HOSE AND BRACKET - HEATING
From Engine Block To Heater Inlet Hose / From: KA000001 		$100.66 1
