Name: Air Conditioning Condensr/Compressr (Premium Air Conditioning-Front/Rear) ((V) TOJA999999)
Rating: 5.0 (1 reviews)

View All

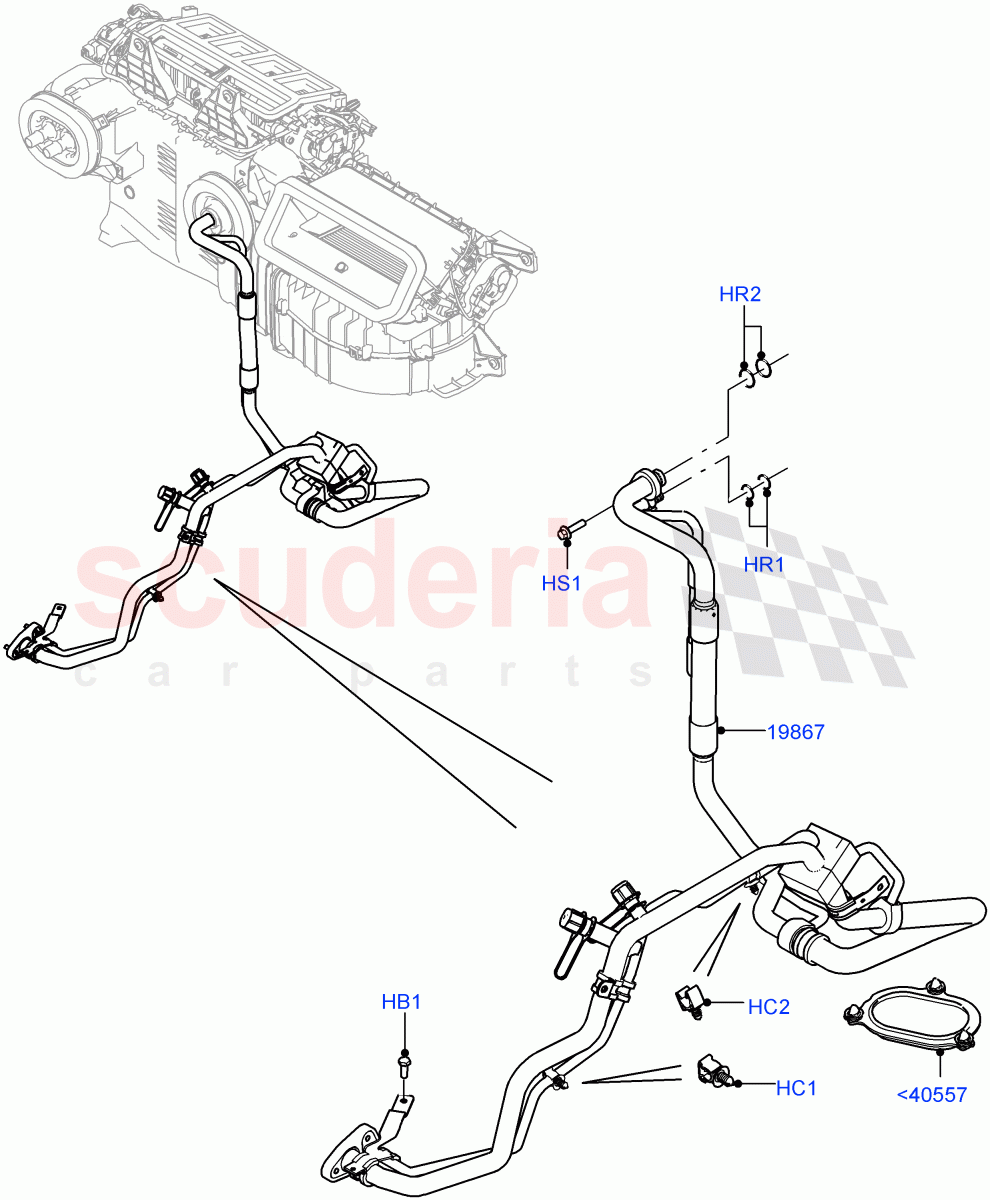

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500800	BOLT	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051520	CLIP - SINGLE	$3.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044466	O-RING	$4.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044465	O-RING	$2.91	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106256	SCREW	$0.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036417	TUBE- A/C EVAPORATOR INLET & OUTLET	$431.02	To Order
	LR036419	TUBE- A/C EVAPORATOR INLET & OUTLET	$448.65	To Order
	LR050805	TUBE- A/C EVAPORATOR INLET & OUTLET	$473.73	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR036405	SEAL - RUBBER	$21.04	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<40557	LR036405	SEAL - RUBBER	LR036405 SEAL - RUBBER	$21.04	1
HB1	RYG500800	BOLT	RYG500800 BOLT Hexagonal Head, M6 X 16MM	$0.52	4
HC1	LR011519	CLIP IN STOCK	LR011519 CLIP 9.5 X 6 X 2, Single / To: DA999999 IN STOCK	$2.05	2
HC1	LR011519	CLIP IN STOCK	LR011519 CLIP 9.5 X 6 X 2, Single / From: EA000001 IN STOCK	$2.05	1
HC2	LR051520	CLIP - SINGLE	LR051520 CLIP - SINGLE Single / From: EA000001	$3.49	1
HR1	LR044466	O-RING	LR044466 O-RING 7.65 X 1.78	$4.31	2
HR2	LR044465	O-RING	LR044465 O-RING 14 X 1.78	$2.91	2
HS1	FS106256	SCREW	FS106256 SCREW HEX Flange, M6 x 25MM	$0.42	1
19867	LR036417	TUBE- A/C EVAPORATOR INLET & OUTLET	LR036417 TUBE- A/C EVAPORATOR INLET & OUTLET Air Conditioning Refrigerant-R134A / Attaches To Evaporator / To: DA999999	$431.02	1
19867	LR036419	TUBE- A/C EVAPORATOR INLET & OUTLET	LR036419 TUBE- A/C EVAPORATOR INLET & OUTLET Air Con Refrigerant-HF01234YF / Attaches To Evaporator / To: DA999999	$448.65	1
19867	LR050805	TUBE- A/C EVAPORATOR INLET & OUTLET	LR050805 TUBE- A/C EVAPORATOR INLET & OUTLET Air Conditioning Refrigerant-R134A / Attaches To Evaporator / From: EA000001	$473.73	1
19867	LR050807	TUBE- A/C EVAPORATOR INLET & OUTLET	LR050807 TUBE- A/C EVAPORATOR INLET & OUTLET Air Con Refrigerant-HF01234YF / Attaches To Evaporator / From: EA000001	$510.06	1

Air Conditioning Condensr/Compressr (Premium Air Conditioning-Front/Rear) ((V) Toja999999)

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI]
