Name: Air Conditioning Condensr/Compressr (Rear) (Premium Air Conditioning-Front/Rear, Electric Engine Battery-PHEV) ((V) FROMKA000001)
Rating: 5.0 (1 reviews)

Air Conditioning Condensr/Compressr (Rear) (Premium Air Conditioning-Front/Rear, Electric Engine Battery-PHEV) ((V) FROMKA000001) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI] - Air Conditioning Condensr/Compressr (Rear) (Premium Air Conditioning-Front/Rear, Electric Engine...

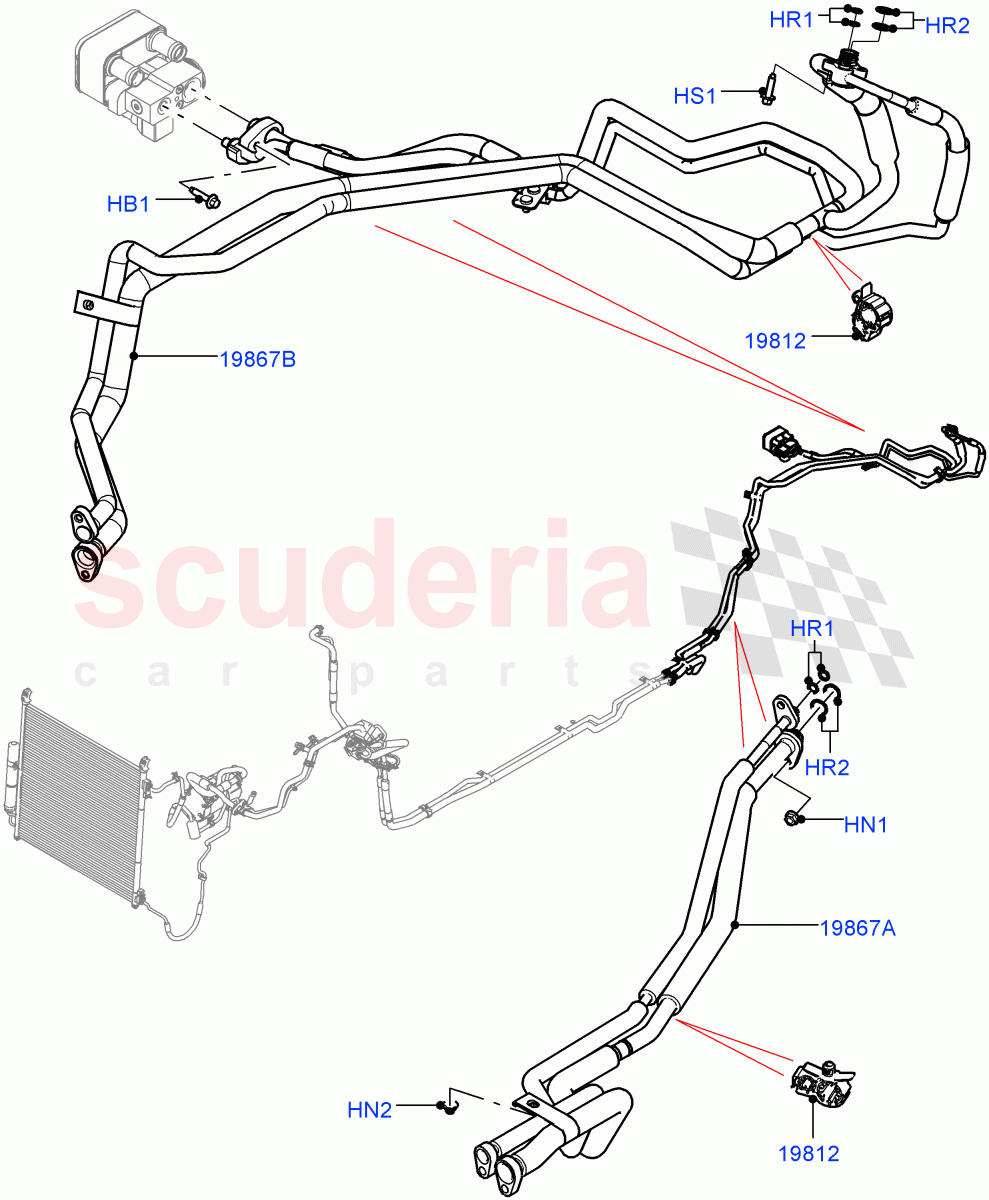

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4147433	BOLT	$1.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.48	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR038544	NUT	$2.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044466	O-RING	$4.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044465	O-RING	$2.95	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500220	SCREW	$3.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR038548	BRACKET - A/C PIPE	$19.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101275	TUBE - AUXILIARY EVAPORATOR	$159.77	To Order
	LR099642	TUBE - AUXILIARY HEATER SUPPLY	$164.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101273	TUBE - AUXILIARY EVAPORATOR	$289.99	To Order
	LR128623	TUBE - AUXILIARY HEATER SUPPLY	$311.25	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	4147433	BOLT IN STOCK	4147433 BOLT M6 X 25MM / From: KA000001 IN STOCK	$1.69	1
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 / From: KA000001 IN STOCK	$1.48	2
HN2	LR038544	NUT	LR038544 NUT 6 X 1.6MM / From: KA000001	$2.09	2
HR1	LR044466	O-RING	LR044466 O-RING 7.65 X 1.78 / From: KA000001	$4.36	4
HR2	LR044465	O-RING	LR044465 O-RING 14 X 1.78 / From: KA000001	$2.95	4
HS1	RYG500220	SCREW IN STOCK	RYG500220 SCREW Hexagonal Head, M6 X 20MM / From: KA000001 IN STOCK	$3.50	2
19812	LR038548	BRACKET - A/C PIPE	LR038548 BRACKET - A/C PIPE Air Conditioning Pipe / From: KA000001	$19.45	2
19867A	LR101275	TUBE - AUXILIARY EVAPORATOR	LR101275 TUBE - AUXILIARY EVAPORATOR Standard Wheelbase / Front, Set Of 2 Pieces, With Rear A/C / From: KA000001	$159.77	1
19867A	LR099642	TUBE - AUXILIARY HEATER SUPPLY	LR099642 TUBE - AUXILIARY HEATER SUPPLY Long Wheelbase / Front, Set Of 2 Pieces, With Rear A/C / From: KA000001	$164.24	1
19867B	LR101273	TUBE - AUXILIARY EVAPORATOR	LR101273 TUBE - AUXILIARY EVAPORATOR Connects To Rear Evaporator Core, Rear, Set Of 2 Pieces, With Rear A/C / From: KA000001 / To: KA562776	$289.99	1
19867B	LR128623	TUBE - AUXILIARY HEATER SUPPLY	LR128623 TUBE - AUXILIARY HEATER SUPPLY Connects To Rear Evaporator Core, Rear, Set Of 2 Pieces, With Rear A/C / From: KA562777	$311.25	1
