Heater Hoses (Front) (3.0 V6 Diesel, With Fuel Fired Heater) ((V) Toha999999)

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI] - Heater Hoses (Front) (3.0 V6 Diesel, With Fuel Fired Heater) ((V) TOHA999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
KYG500380 SCREW AND WASHER - HEX HEAD $0.36 IN STOCK
Photo Part No Description Price (each) Stock
LR035787 SCREW $1.77 To Order
Photo Part No Description Price (each) Stock
LR034597 TUBE - HEATER WATER $50.14 To Order
Photo Part No Description Price (each) Stock
LR036340 MANIFOLD - WATER $27.62 To Order
Photo Part No Description Price (each) Stock
LR034617 HOSE - HEATER WATER $20.15 To Order
Photo Part No Description Price (each) Stock
LR035621 HOSE - HEATER WATER $39.17 To Order
Photo Part No Description Price (each) Stock
LR035625 HOSE - HEATER WATER $19.92 To Order
View All

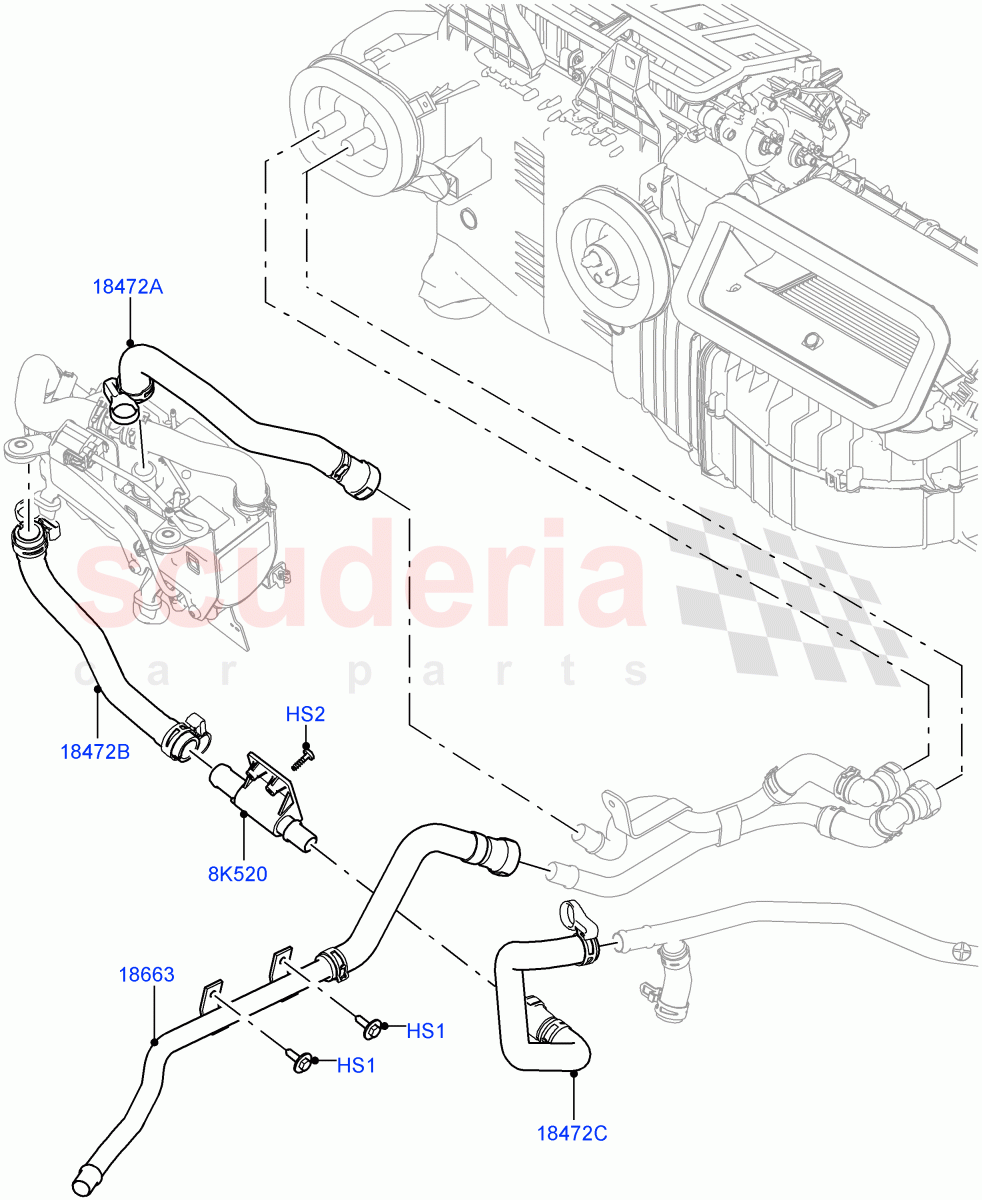

Heater Hoses (Front) (3.0 V6 Diesel, With Fuel Fired Heater) ((V) TOHA999999) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 KYG500380
SCREW AND WASHER - HEX HEAD
Hexagonal Head, M6 X 13.5MM
IN STOCK 		$0.36 2
HS2 LR035787
SCREW
M3.5 X 12, Torx 		$1.77 2
8K520 LR036340
MANIFOLD - WATER 		$27.62 1
18472A LR034617
HOSE - HEATER WATER 		$20.15 1
18472B LR035621
HOSE - HEATER WATER 		$39.17 1
18472C LR035625
HOSE - HEATER WATER
To Fuel Fired Heater 		$19.92 1
18663 LR034597
TUBE - HEATER WATER 		$50.14 1
