Name: Heater Hoses (Front) (5.0L OHC SGDI NA V8 Petrol - AJ133, With Ptc Heater, 5.0L OHC SGDI SC V8 Petrol - AJ133, With Fresh Air Heater) ((V) TOHA999999)
Rating: 4.4 (1 reviews)

Heater Hoses (Front) (5.0L OHC SGDI NA V8 Petrol - AJ133, With Ptc Heater, 5.0L OHC SGDI SC V8 Petrol - AJ133, With Fresh Air Heater) ((V) TOHA999999) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI] - Heater Hoses (Front) (5.0L OHC SGDI NA V8 Petrol - AJ133, With Ptc Heater, 5.0L OHC SGDI SC V8...

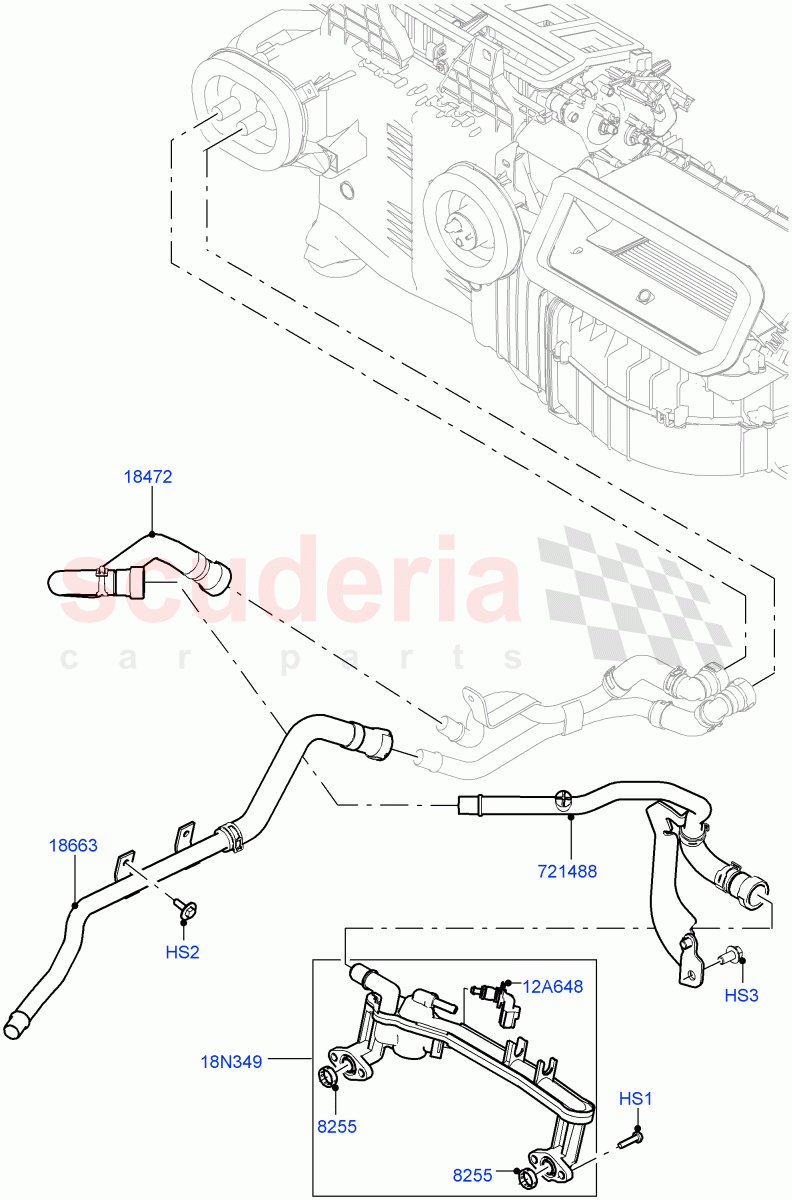

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011270	SCREW	$1.23	To Order

Photo	Part No	Description	Price (each)	Stock
	KYG500380	SCREW AND WASHER - HEX HEAD	$0.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FS110206	BOLT - HEX.HEAD	$0.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010793	GASKET - WATER MANIFOLD	$9.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034616	HOSE - HEATER WATER	$26.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034597	TUBE - HEATER WATER	$49.47	To Order

Photo	Part No	Description	Price (each)	Stock
	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	$59.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122709	MANIFOLD - HEATER	$139.66	To Order
	LR077042	MANIFOLD - HEATER	$76.67	To Order
	LR087559	MANIFOLD - HEATER	$125.20	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR034624	HOSE AND BRACKET - HEATING	$101.78	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR011270	SCREW	LR011270 SCREW M6 x 25MM, Torx	$1.23	4
HS2	KYG500380	SCREW AND WASHER - HEX HEAD IN STOCK	KYG500380 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 13.5MM IN STOCK	$0.36	2
HS3	FS110206	BOLT - HEX.HEAD	FS110206 BOLT - HEX.HEAD Hexagonal Head, M10 X 20MM	$0.78	1
12A648	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	4346360 SENSOR - ENGINE COOLANT TEMPERATURE	$59.41	1
18N349	LR122709	MANIFOLD - HEATER	LR122709 MANIFOLD - HEATER Heater, Tube From Engine Block To Heater Inlet Hose, With Sensor / To: FA999999	$139.66	1
18N349	LR077042	MANIFOLD - HEATER	LR077042 MANIFOLD - HEATER Heater, Tube From Engine Block To Heater Inlet Hose, With Sensor / From: GA000001 / To: GA294777	$76.67	1
18N349	LR087559	MANIFOLD - HEATER	LR087559 MANIFOLD - HEATER Heater, Tube From Engine Block To Heater Inlet Hose, With Sensor / From: GA294778 / To: GA999999	$125.20	1
18N349	LR122709	MANIFOLD - HEATER	LR122709 MANIFOLD - HEATER Heater, Tube From Engine Block To Heater Inlet Hose, With Sensor / From: HA000001 / To: HA362949	$139.66	1
18N349	LR122709	MANIFOLD - HEATER	LR122709 MANIFOLD - HEATER Heater, Tube From Engine Block To Heater Inlet Hose, With Sensor / From: HA362950	$139.66	1
8255	LR010793	GASKET - WATER MANIFOLD	LR010793 GASKET - WATER MANIFOLD	$9.56	2
18472	LR034616	HOSE - HEATER WATER	LR034616 HOSE - HEATER WATER	$26.25	1
18663	LR034597	TUBE - HEATER WATER	LR034597 TUBE - HEATER WATER	$49.47	1
721488	LR034624	HOSE AND BRACKET - HEATING	LR034624 HOSE AND BRACKET - HEATING From Engine Block To Heater Inlet Hose	$101.78	1
