Name: Air Conditioning Condensr/Compressr (Rear) (Premium Air Con Hybrid Front/Rear) ((V) FROMEA000001, (V) TOHA999999)
Rating: 4.6 (1 reviews)

Air Conditioning Condensr/Compressr (Rear) (Premium Air Con Hybrid Front/Rear) ((V) FROMEA000001, (V) TOHA999999) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI] - Air Conditioning Condensr/Compressr (Rear) (Premium Air Con Hybrid Front/Rear) ((V) FROMEA000001,...

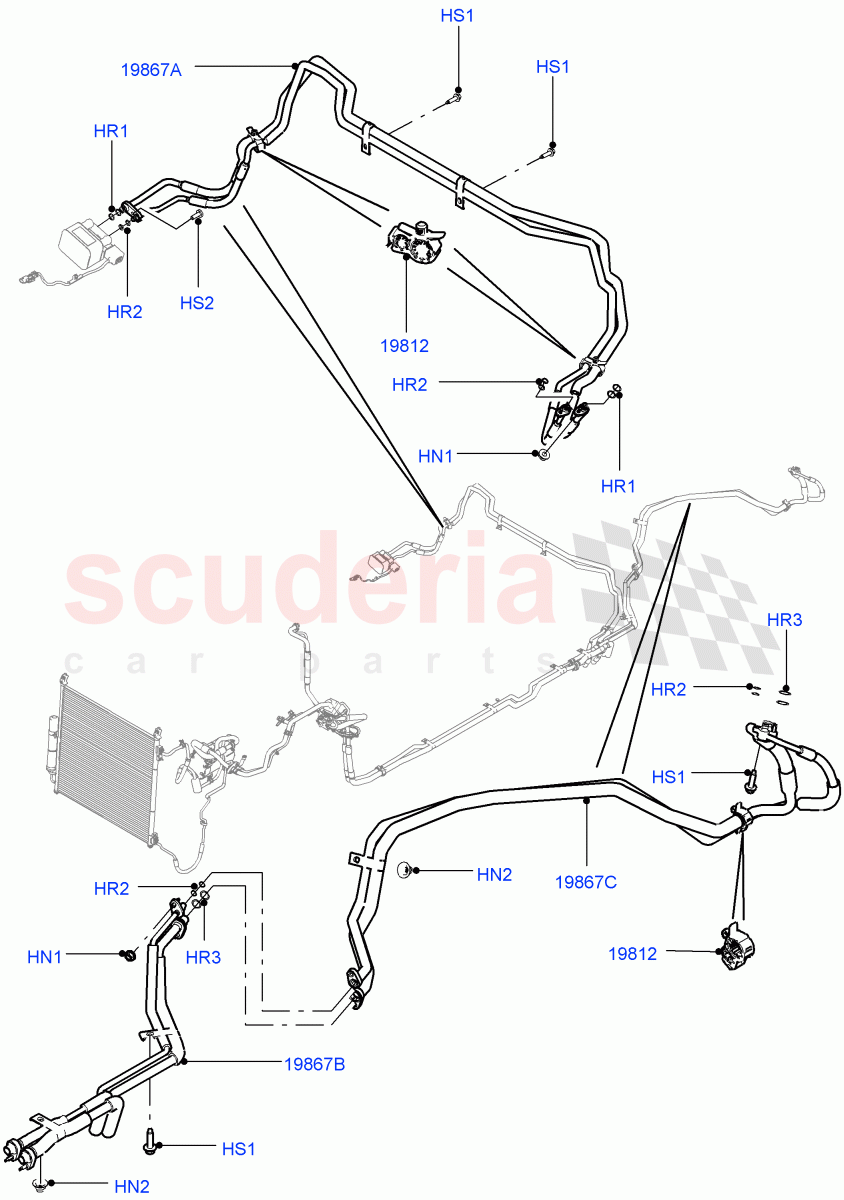

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR038544	NUT	$2.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054871	O-RING	$3.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044466	O-RING	$4.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044465	O-RING	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500220	SCREW	$3.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYP500950	SCREW	$0.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR038548	BRACKET - A/C PIPE	$21.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048886	TUBE - BATTERY COOLER	$236.84	To Order
	LR052255	TUBE - BATTERY COOLER	$1,004.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048883	TUBE - AUXILIARY HEATER SUPPLY	$282.31	To Order
	LR057843	TUBE - AUXILIARY HEATER SUPPLY	$785.93	To Order
	LR072555	TUBE - AUXILIARY HEATER SUPPLY	$312.71	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR036411	TUBE - AUXILIARY EVAPORATOR	$230.74	To Order
	LR061560	TUBE - AUXILIARY EVAPORATOR	$226.20	To Order
	LR072191	TUBE - AUXILIARY EVAPORATOR	$379.29	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 / From: EA000001 IN STOCK	$1.46	4
HN2	LR038544	NUT	LR038544 NUT 6 X 1.6MM / From: EA000001	$2.10	2
HR1	LR054871	O-RING	LR054871 O-RING 10.82MM X 1.78MM / From: EA000001	$3.30	4
HR2	LR044466	O-RING	LR044466 O-RING 7.65 X 1.78 / From: EA000001	$4.33	8
HR3	LR044465	O-RING	LR044465 O-RING 14 X 1.78 / From: EA000001	$2.92	4
HS1	RYG500220	SCREW IN STOCK	RYG500220 SCREW Hexagonal Head, M6 X 20MM / From: EA000001 IN STOCK	$3.45	5
HS2	RYP500950	SCREW IN STOCK	RYP500950 SCREW M6 X 16MM, Torx / From: EA000001 IN STOCK	$0.66	1
19812	LR038548	BRACKET - A/C PIPE	LR038548 BRACKET - A/C PIPE Air Conditioning Pipe / From: EA000001	$21.14	3
19867A	LR048886	TUBE - BATTERY COOLER	LR048886 TUBE - BATTERY COOLER Standard Wheelbase / Battery Cooler, RH Front, Set Of 2 Pieces / From: EA000001	$236.84	1
19867A	LR052255	TUBE - BATTERY COOLER	LR052255 TUBE - BATTERY COOLER Long Wheelbase / Battery Cooler, RH Front, Set Of 2 Pieces / From: EA000001	$1,004.81	1
19867B	LR048883	TUBE - AUXILIARY HEATER SUPPLY	LR048883 TUBE - AUXILIARY HEATER SUPPLY Standard Wheelbase / Battery Cooler, LH Front, Set Of 2 Pieces, With Rear A/C / From: EA000001 / To: EA194020	$282.31	1
19867B	LR057843	TUBE - AUXILIARY HEATER SUPPLY	LR057843 TUBE - AUXILIARY HEATER SUPPLY Long Wheelbase / Battery Cooler, LH Front, Set Of 2 Pieces, With Rear A/C / From: EA000001 / To: EA194020	$785.93	1
19867B	LR072555	TUBE - AUXILIARY HEATER SUPPLY	LR072555 TUBE - AUXILIARY HEATER SUPPLY Standard Wheelbase / Battery Cooler, LH Front, Set Of 2 Pieces, With Rear A/C / From: EA194021	$312.71	1
19867B	LR072574	TUBE - AUXILIARY HEATER SUPPLY	LR072574 TUBE - AUXILIARY HEATER SUPPLY Long Wheelbase / Battery Cooler, LH Front, Set Of 2 Pieces, With Rear A/C / From: EA194021	$603.10	1
19867C	LR036411	TUBE - AUXILIARY EVAPORATOR	LR036411 TUBE - AUXILIARY EVAPORATOR Connects To Rear Evaporator Core, Rear, Set Of 2 Pieces, With Rear A/C / From: EA000001 / To: EA163933	$230.74	1
19867C	LR061560	TUBE - AUXILIARY EVAPORATOR	LR061560 TUBE - AUXILIARY EVAPORATOR Connects To Rear Evaporator Core, Rear, Set Of 2 Pieces, With Rear A/C / From: EA163934 / To: EA194020	$226.20	1
19867C	LR072191	TUBE - AUXILIARY EVAPORATOR	LR072191 TUBE - AUXILIARY EVAPORATOR Connects To Rear Evaporator Core, Rear, Set Of 2 Pieces, With Rear A/C / From: EA194021	$379.29	1
