Air Conditioning Condensr/Compressr (Rear) (With Air Conditioning - Front/Rear, Electric Engine...

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI] - Air Conditioning Condensr/Compressr (Rear) (With Air Conditioning - Front/Rear, Electric Engine...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4147433 BOLT $1.63 IN STOCK
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.45 IN STOCK
Photo Part No Description Price (each) Stock
LR038544 NUT $2.09 To Order
Photo Part No Description Price (each) Stock
LR044466 O-RING $4.31 To Order
Photo Part No Description Price (each) Stock
LR044465 O-RING $2.91 To Order
Photo Part No Description Price (each) Stock
LR038548 BRACKET - A/C PIPE $21.07 To Order
Photo Part No Description Price (each) Stock
LR101275 TUBE - AUXILIARY EVAPORATOR $160.76 To Order
LR099642 TUBE - AUXILIARY HEATER SUPPLY $169.45 To Order
Photo Part No Description Price (each) Stock
LR101274 TUBE - AUXILIARY EVAPORATOR $301.22 To Order
LR128626 TUBE - AUXILIARY HEATER SUPPLY $201.66 IN STOCK
View All

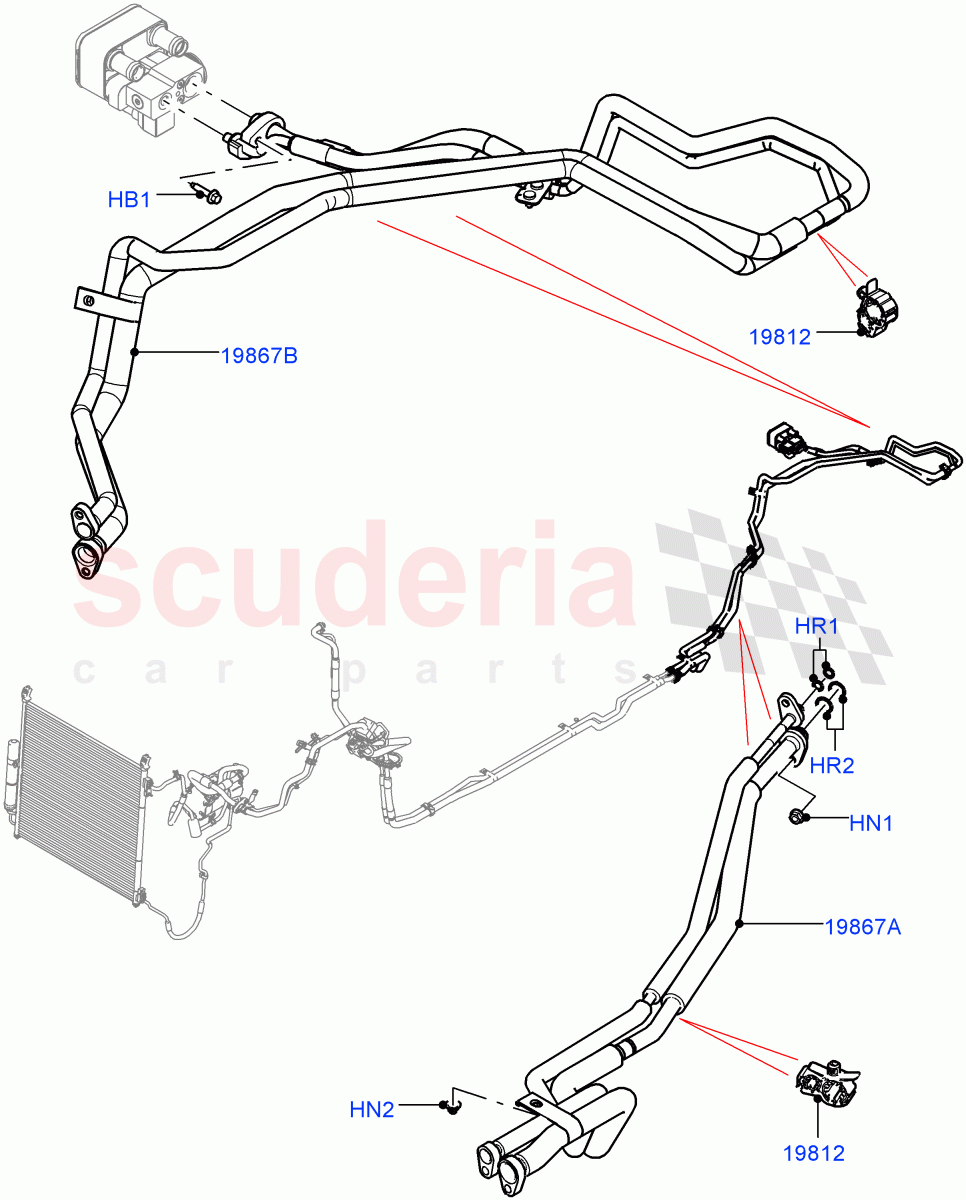

Air Conditioning Condensr/Compressr (Rear) (With Air Conditioning - Front/Rear, Electric Engine Battery-PHEV) ((V) FROMKA000001) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 4147433
BOLT
M6 X 25MM / From: KA000001
IN STOCK 		$1.63 1
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: KA000001
IN STOCK 		$1.45 2
HN2 LR038544
NUT
6 X 1.6MM / From: KA000001 		$2.09 2
HR1 LR044466
O-RING
7.65 X 1.78 / From: KA000001 		$4.31 2
HR2 LR044465
O-RING
14 X 1.78 / From: KA000001 		$2.91 2
19812 LR038548
BRACKET - A/C PIPE
Air Conditioning Pipe / From: KA000001 		$21.07 2
19867A LR101275
TUBE - AUXILIARY EVAPORATOR
Standard Wheelbase / Battery Cooler, Front, Set Of 2 Pieces / From: KA000001 		$160.76 1
19867A LR099642
TUBE - AUXILIARY HEATER SUPPLY
Long Wheelbase / Battery Cooler, Front, Set Of 2 Pieces / From: KA000001 		$169.45 1
19867B LR101274
TUBE - AUXILIARY EVAPORATOR
Battery Cooler, Rear, Set Of 2 Pieces / From: KA000001 / To: KA868143 		$301.22 1
19867B LR128626
TUBE - AUXILIARY HEATER SUPPLY
Battery Cooler, Rear, Set Of 2 Pieces / From: KA868144
IN STOCK 		$201.66 1
