Body Mouldings (Changsu (China)) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Body Mouldings (Changsu (China))

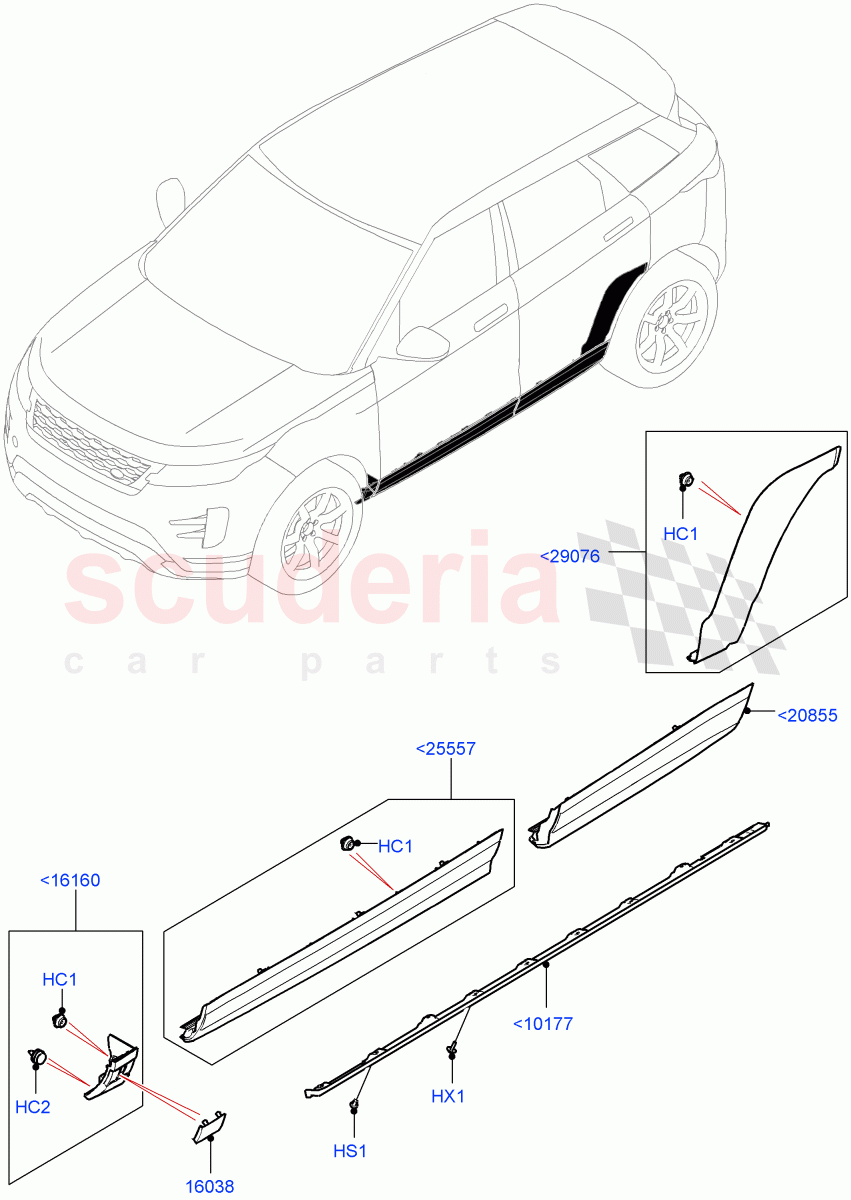

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	T2R31859	CLIP	Enquire	IN STOCK
	T2R31859	CLIP	Enquire	IN STOCK
	T2R31859	CLIP	Enquire	IN STOCK

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR035841	CLIP - TRIM - PILLARS	$2.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106155	SCREW AND WASHER	$2.29	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500070	PIN - RETAINING 6.3 X 22MM	$1.51	IN STOCK
	RYQ500070	PIN - RETAINING 6.3 X 22MM	$1.51	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR117759	MOULDING - FENDER	$27.10	To Order
	LR117760	MOULDING - FENDER	$27.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114456	MOULDING - DOOR SILL	$186.26	To Order
	LR114457	MOULDING - DOOR SILL	$186.47	To Order
	LR155550	MOULDING - DOOR SILL	$264.08	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR137455	MOULDING - FENDER	$123.04	To Order
	LR137460	MOULDING - FENDER	$123.04	To Order
	LR128365	MOULDING	$49.73	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR132778	MOULDING - DOOR OUTSIDE	$212.94	To Order
	LR132788	MOULDING - DOOR OUTSIDE	$201.84	To Order
	LR133238	MOULDING - DOOR OUTSIDE	$212.94	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR132725	MOULDING - DOOR OUTSIDE	$161.44	To Order
	LR132757	MOULDING - DOOR OUTSIDE	$255.43	To Order
	LR132764	MOULDING - DOOR OUTSIDE	$176.42	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR136888	MOULDING - REAR WHEEL ARCH	$73.81	To Order
	LR136889	MOULDING - REAR WHEEL ARCH	$74.49	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<10177	LR114456	MOULDING - DOOR SILL	LR114456 MOULDING - DOOR SILL Standard Wheelbase / LH	$186.26	1
<10177	LR114457	MOULDING - DOOR SILL	LR114457 MOULDING - DOOR SILL Standard Wheelbase / RH	$186.47	1
<10177	LR155550	MOULDING - DOOR SILL	LR155550 MOULDING - DOOR SILL Long Wheelbase / LH / From: MG575835	$264.08	1
<10177	LR155551	MOULDING - DOOR SILL	LR155551 MOULDING - DOOR SILL Long Wheelbase / RH / From: MG575835	$264.08	1
<16160	LR137455	MOULDING - FENDER	LR137455 MOULDING - FENDER Cladding - Narvik Black / RH	$123.04	1
<16160	LR137460	MOULDING - FENDER	LR137460 MOULDING - FENDER Cladding - Corris Gray / LH	$123.04	1
<16160	LR128365	MOULDING	LR128365 MOULDING Lower Body Side Moulding - Black / LH / To: LG563748	$49.73	1
<16160	LR128363	MOULDING	LR128363 MOULDING Lower Body Side Moulding - Black / RH / To: LG563754	$49.73	1
<16160	LR137456	MOULDING - FENDER	LR137456 MOULDING - FENDER Lower Body Side Moulding - Black / RH / From: LG563755 / To: MG575834	$49.73	1
<16160	LR137457	MOULDING - FENDER	LR137457 MOULDING - FENDER Lower Body Side Moulding - Black / LH / From: LG563749 / To: MG575834	$49.73	1
<16160	LR155570	MOULDING	LR155570 MOULDING Long Wheelbase, With Feldberg Grey Moulding / RH / From: MG575835	$49.73	1
<16160	LR155572	MOULDING	LR155572 MOULDING Long Wheelbase, With Feldberg Grey Moulding / LH / From: MG575835	$49.73	1
<16160	LR155569	MOULDING	LR155569 MOULDING Long Wheelbase, Lower Body Side Moulding - Black / RH / From: MG575835	$49.73	1
<16160	LR155571	MOULDING	LR155571 MOULDING Long Wheelbase, Lower Body Side Moulding - Black / LH / From: MG575835	$49.73	1
<20855	LR132778	MOULDING - DOOR OUTSIDE	LR132778 MOULDING - DOOR OUTSIDE Lower Body Side Moulding - Black, Standard Wheelbase / RH, Primed, Rear / To: MG575834	$212.94	1
<20855	LR132788	MOULDING - DOOR OUTSIDE	LR132788 MOULDING - DOOR OUTSIDE Cladding - Narvik Black, Standard Wheelbase / RH, Primed, Rear / To: MG575834	$201.84	1
<20855	LR133238	MOULDING - DOOR OUTSIDE	LR133238 MOULDING - DOOR OUTSIDE Cladding - Corris Gray, Standard Wheelbase / RH, Primed, Rear / To: MG575834	$212.94	1
<20855	LR132792	MOULDING - DOOR OUTSIDE	LR132792 MOULDING - DOOR OUTSIDE Lower Body Side Moulding - Black, Standard Wheelbase / LH, Primed, Rear / To: MG575834	$212.94	1
<20855	LR132789	MOULDING - DOOR OUTSIDE	LR132789 MOULDING - DOOR OUTSIDE Cladding - Narvik Black, Standard Wheelbase / LH, Primed, Rear / To: MG575834	$212.94	1
<20855	LR132793	MOULDING - DOOR OUTSIDE	LR132793 MOULDING - DOOR OUTSIDE Cladding - Corris Gray, Standard Wheelbase / LH, Primed, Rear / To: MG575834	$212.94	1
<20855	LR155720	MOULDING - DOOR OUTSIDE	LR155720 MOULDING - DOOR OUTSIDE Long Wheelbase, With Feldberg Grey Moulding / RH, Primed, Rear / From: MG575835	$216.78	1
<20855	LR155712	MOULDING - DOOR OUTSIDE	LR155712 MOULDING - DOOR OUTSIDE Cladding - Narvik Black, Long Wheelbase / RH, Primed, Rear / From: MG575835	$216.78	1
<20855	LR155664	MOULDING - DOOR OUTSIDE	LR155664 MOULDING - DOOR OUTSIDE Long Wheelbase, With Feldberg Grey Moulding / LH, Primed, Rear / From: MG575835	$216.78	1
<20855	LR155662	MOULDING - DOOR OUTSIDE	LR155662 MOULDING - DOOR OUTSIDE Cladding - Narvik Black, Long Wheelbase / LH, Primed, Rear / From: MG575835	$216.78	1
<20855	LR155727	Moulding - Door Outside	LR155727 Moulding - Door Outside Long Wheelbase, Lower Body Side Moulding - Black / RH, Primed, Rear / From: MG575835	$151.85	1
<20855	LR155705	Moulding - Door Outside	LR155705 Moulding - Door Outside Long Wheelbase, Lower Body Side Moulding - Black / LH, Primed, Rear / From: MG575835	$217.17	1
<25557	LR132725	MOULDING - DOOR OUTSIDE	LR132725 MOULDING - DOOR OUTSIDE Lower Body Side Moulding - Black / RH, Front, Primed / To: MG575834	$161.44	1
<25557	LR132757	MOULDING - DOOR OUTSIDE	LR132757 MOULDING - DOOR OUTSIDE Cladding - Narvik Black / RH, Front, Primed / To: MG575834	$255.43	1
<25557	LR132764	MOULDING - DOOR OUTSIDE	LR132764 MOULDING - DOOR OUTSIDE Cladding - Corris Gray / RH, Front, Primed / To: MG575834	$176.42	1
<25557	LR132735	MOULDING - DOOR OUTSIDE	LR132735 MOULDING - DOOR OUTSIDE Lower Body Side Moulding - Black / LH, Front, Primed / To: MG575834	$172.84	1
<25557	LR132767	MOULDING - DOOR OUTSIDE	LR132767 MOULDING - DOOR OUTSIDE Cladding - Narvik Black / LH, Front, Primed / To: MG575834	$259.27	1
<25557	LR164828	MOULDING - DOOR OUTSIDE	LR164828 MOULDING - DOOR OUTSIDE Cladding - Corris Gray / LH, Front, Primed / To: MG575834	$259.27	1
<25557	LR149788	MOULDING - DOOR OUTSIDE	LR149788 MOULDING - DOOR OUTSIDE Cladding - Narvik Black / RH, Front, Primed / From: MG575835	$255.43	1
<25557	LR155782	MOULDING - DOOR OUTSIDE	LR155782 MOULDING - DOOR OUTSIDE Long Wheelbase, Version - R-Dynamic, With Feldberg Grey Moulding / RH, Front, Primed / From: MG575835	$173.80	1
<25557	LR161064	MOULDING - DOOR OUTSIDE	LR161064 MOULDING - DOOR OUTSIDE Long Wheelbase, Version - First Edition, With Feldberg Grey Moulding / RH, Front, Primed / From: MG575835	$176.42	1
<25557	LR149791	MOULDING - DOOR OUTSIDE	LR149791 MOULDING - DOOR OUTSIDE Cladding - Narvik Black / LH, Front, Primed / From: MG575835	$259.27	1
<25557	LR155756	MOULDING - DOOR OUTSIDE	LR155756 MOULDING - DOOR OUTSIDE Long Wheelbase, Version - R-Dynamic, With Feldberg Grey Moulding / LH, Front, Primed / From: MG575835	$173.80	1
<25557	LR161063	MOULDING - DOOR OUTSIDE	LR161063 MOULDING - DOOR OUTSIDE Long Wheelbase, Version - First Edition, With Feldberg Grey Moulding / LH, Front, Primed / From: MG575835	$176.42	1
<29076	LR136888	MOULDING - REAR WHEEL ARCH	LR136888 MOULDING - REAR WHEEL ARCH RH / From: KG006088	$73.81	1
<29076	LR136889	MOULDING - REAR WHEEL ARCH	LR136889 MOULDING - REAR WHEEL ARCH LH / From: KG006088	$74.49	1
HC1	T2R31859	CLIP IN STOCK	T2R31859 CLIP Clip Lantern 8.2 X 0.65-1 + 2 Plastic, Rear Door IN STOCK	-	9	Enquire
HC1	T2R31859	CLIP IN STOCK	T2R31859 CLIP Clip Lantern 8.2 X 0.65-1 + 2 Plastic, Front Door IN STOCK	-	13	Enquire
HC1	T2R31859	CLIP IN STOCK	T2R31859 CLIP Clip Lantern 8.2 X 0.65-1 + 2 Plastic, Door Cladding IN STOCK	-	2	Enquire
HC1	T2R31859	CLIP IN STOCK	T2R31859 CLIP Clip Lantern 8.2 X 0.65-1 + 2 Plastic, Rear Wheelarch Moulding IN STOCK	-	6	Enquire
HC2	LR035841	CLIP - TRIM - PILLARS	LR035841 CLIP - TRIM - PILLARS Clip Lantern 7.1 X 1.5 - 3 + 2.2, Door Cladding	$2.29	2
HS1	LR106155	SCREW AND WASHER	LR106155 SCREW AND WASHER Hexagonal Head, M6 X 20MM	$2.29	2
HX1	RYQ500070	PIN - RETAINING 6.3 X 22MM IN STOCK	RYQ500070 PIN - RETAINING 6.3 X 22MM 6.3 X 22MM, Push Pin IN STOCK	$1.51	7
HX1	RYQ500070	PIN - RETAINING 6.3 X 22MM IN STOCK	RYQ500070 PIN - RETAINING 6.3 X 22MM 6.3 X 22MM, Front, Push Pin IN STOCK	$1.51	2
16038	LR117759	MOULDING - FENDER	LR117759 MOULDING - FENDER RH, Primed	$27.10	1
16038	LR117760	MOULDING - FENDER	LR117760 MOULDING - FENDER LH, Primed	$27.10	1

Body Mouldings (Changsu (China))

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Body Mouldings (Changsu (China))
