Name: Insulators - Body (Changsu (China))
Rating: 5.0 (1 reviews)

Insulators - Body (Changsu (China)) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Insulators - Body (Changsu (China))

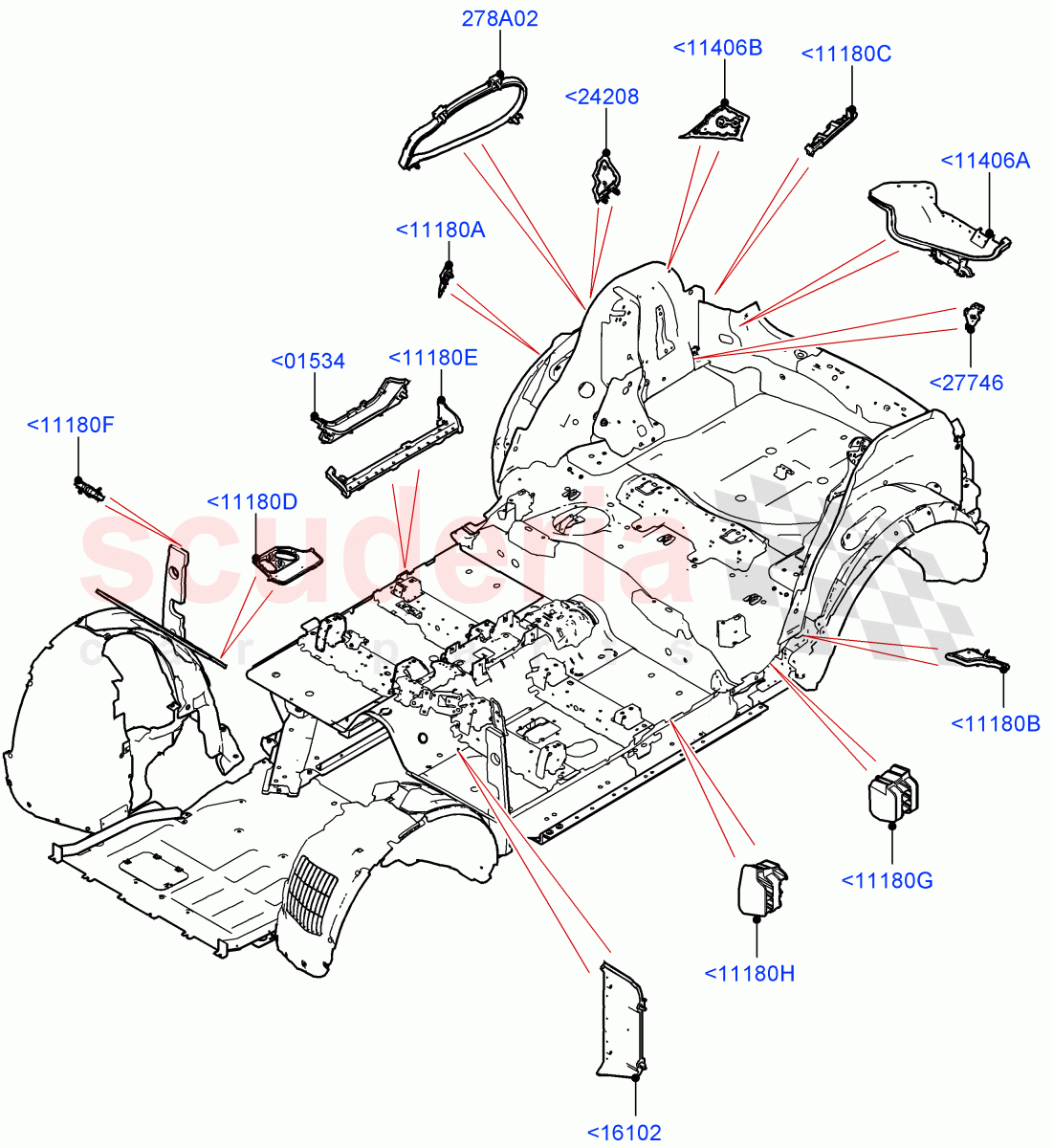

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR117345	INSULATOR - "B" PILLAR	$18.29	To Order
	LR117346	INSULATOR - "B" PILLAR	$18.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117339	INSULATOR - SOUND - BODY	$10.23	To Order
	LR117338	INSULATOR - SOUND - BODY	$14.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117332	INSULATOR - QUARTER PANEL	$31.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117359	INSULATOR - QUARTER PANEL	$21.90	To Order
	LR123936	PAD	$21.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117361	GASKET - FILLER PIPE	$48.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121018	INSULATOR - QUARTER PANEL	$11.88	To Order
	LR121020	INSULATOR - QUARTER PANEL	$11.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117333	INSULATOR - WHEELHOUSE	$7.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117336	INSULATOR - SOUND - BODY	$7.33	To Order
	LR117337	INSULATOR - SOUND - BODY	$7.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117341	INSULATOR - "A" PILLAR	$13.20	To Order
	LR117343	INSULATOR - "A" PILLAR	$13.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR118028	INSULATOR - "B" PILLAR	$25.14	To Order
	LR118029	INSULATOR - "B" PILLAR	$23.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117358	INSULATOR - "A" PILLAR	$5.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155981	FOAM - SEALING	$20.86	To Order
	LR155982	FOAM - SEALING	$20.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155534	INSULATOR - FOAM PAD	$17.13	To Order
	LR155535	INSULATOR - FOAM PAD	$17.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117330	INSULATOR - REAR QUARTER PANEL	$14.54	To Order
	LR117331	INSULATOR - REAR QUARTER PANEL	$14.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117334	INSULATOR - QUARTER PANEL	$12.80	To Order
	LR117335	INSULATOR - QUARTER PANEL	$12.80	To Order
	LR155593	INSULATOR - QUARTER PANEL	$53.69	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<01534	LR117345	INSULATOR - "B" PILLAR	LR117345 INSULATOR - "B" PILLAR RH	$18.29	1
<01534	LR117346	INSULATOR - "B" PILLAR	LR117346 INSULATOR - "B" PILLAR LH	$18.29	1
<11180A	LR121018	INSULATOR - QUARTER PANEL	LR121018 INSULATOR - QUARTER PANEL RH	$11.88	1
<11180A	LR121020	INSULATOR - QUARTER PANEL	LR121020 INSULATOR - QUARTER PANEL LH	$11.88	1
<11180B	LR117333	INSULATOR - WHEELHOUSE	LR117333 INSULATOR - WHEELHOUSE LH	$7.01	1
<11180C	LR117336	INSULATOR - SOUND - BODY	LR117336 INSULATOR - SOUND - BODY RH	$7.33	1
<11180C	LR117337	INSULATOR - SOUND - BODY	LR117337 INSULATOR - SOUND - BODY LH	$7.33	1
<11180D	LR117341	INSULATOR - "A" PILLAR	LR117341 INSULATOR - "A" PILLAR RH	$13.20	1
<11180D	LR117343	INSULATOR - "A" PILLAR	LR117343 INSULATOR - "A" PILLAR LH	$13.20	1
<11180E	LR118028	INSULATOR - "B" PILLAR	LR118028 INSULATOR - "B" PILLAR RH	$25.14	1
<11180E	LR118029	INSULATOR - "B" PILLAR	LR118029 INSULATOR - "B" PILLAR LH	$23.56	1
<11180F	LR117358	INSULATOR - "A" PILLAR	LR117358 INSULATOR - "A" PILLAR RH/LH	$5.60	2
<11180G	LR155981	FOAM - SEALING	LR155981 FOAM - SEALING Long Wheelbase / RH / From: MG575835	$20.86	1
<11180G	LR155982	FOAM - SEALING	LR155982 FOAM - SEALING Long Wheelbase / LH / From: MG575835	$20.86	1
<11180H	LR155534	INSULATOR - FOAM PAD	LR155534 INSULATOR - FOAM PAD Long Wheelbase / RH / From: MG575835	$17.13	1
<11180H	LR155535	INSULATOR - FOAM PAD	LR155535 INSULATOR - FOAM PAD Long Wheelbase / LH / From: MG575835	$17.13	1
<11406A	LR117330	INSULATOR - REAR QUARTER PANEL	LR117330 INSULATOR - REAR QUARTER PANEL RH	$14.54	1
<11406A	LR117331	INSULATOR - REAR QUARTER PANEL	LR117331 INSULATOR - REAR QUARTER PANEL LH	$14.54	1
<11406B	LR117334	INSULATOR - QUARTER PANEL	LR117334 INSULATOR - QUARTER PANEL Standard Wheelbase / RH / To: MG575834	$12.80	1
<11406B	LR117335	INSULATOR - QUARTER PANEL	LR117335 INSULATOR - QUARTER PANEL Standard Wheelbase / LH / To: MG575834	$12.80	1
<11406B	LR155593	INSULATOR - QUARTER PANEL	LR155593 INSULATOR - QUARTER PANEL Long Wheelbase / LH / From: MG575835	$53.69	1
<11406B	LR155592	INSULATOR - QUARTER PANEL	LR155592 INSULATOR - QUARTER PANEL Long Wheelbase / RH / From: MG575835	$53.69	1
<16102	LR117339	INSULATOR - SOUND - BODY	LR117339 INSULATOR - SOUND - BODY LH	$10.23	1
<16102	LR117338	INSULATOR - SOUND - BODY	LR117338 INSULATOR - SOUND - BODY RH	$14.91	1
<24208	LR117332	INSULATOR - QUARTER PANEL	LR117332 INSULATOR - QUARTER PANEL	$31.73	2
<27746	LR117359	INSULATOR - QUARTER PANEL	LR117359 INSULATOR - QUARTER PANEL RH	$21.90	1
<27746	LR123936	PAD	LR123936 PAD LH	$21.90	1
278A02	LR117361	GASKET - FILLER PIPE	LR117361 GASKET - FILLER PIPE	$48.84	1

Insulators - Body (Changsu (China))

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Insulators - Body (Changsu (China))
