Radiator Grille And Front Bumper (Itatiaia (Brazil), Front Bumper - Painted Body Colour)

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Radiator Grille And Front Bumper (Itatiaia (Brazil), Front Bumper - Painted Body Colour)

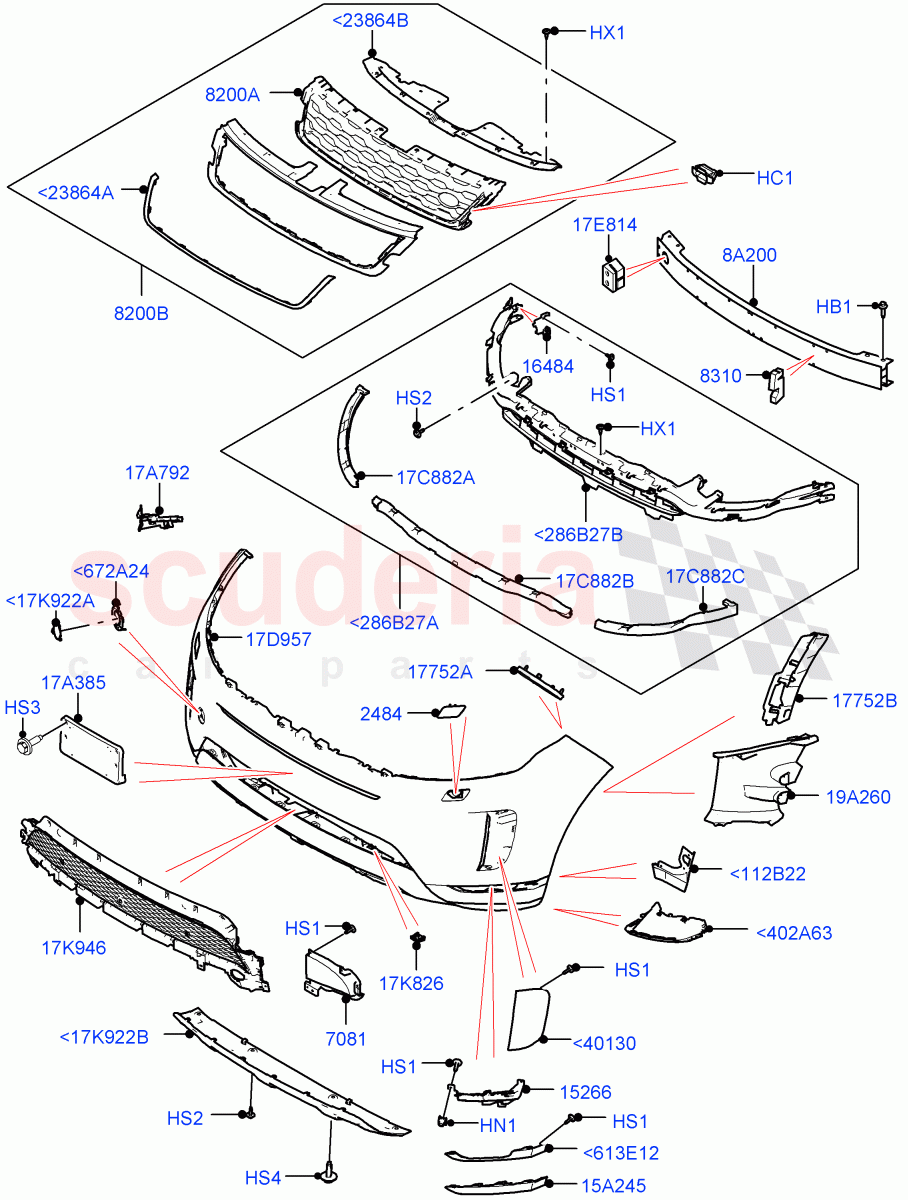

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR057599 BOLT AND WASHER - HEX.HEAD $4.64 To Order
Photo Part No Description Price (each) Stock
LR018173 CLIP - RETAINING $3.19 IN STOCK
Photo Part No Description Price (each) Stock
LR045194 NUT $2.64 IN STOCK
Photo Part No Description Price (each) Stock
LR038663 SCREW - FLAT ROUND HEAD $2.14 IN STOCK
LR038663 SCREW - FLAT ROUND HEAD $2.14 IN STOCK
LR038663 SCREW - FLAT ROUND HEAD $2.14 IN STOCK
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR006025 BOLT $1.37 IN STOCK
Photo Part No Description Price (each) Stock
DYP000040 SCREW $1.21 IN STOCK
Photo Part No Description Price (each) Stock
LR083229 SCREW $4.21 IN STOCK
Photo Part No Description Price (each) Stock
RYQ500070 PIN - RETAINING 6.3 X 22MM $1.49 IN STOCK
RYQ500070 PIN - RETAINING 6.3 X 22MM $1.49 IN STOCK
Photo Part No Description Price (each) Stock
LR114693 CAP - POWERWASH JET $17.02 To Order
LR114694 CAP - POWERWASH JET $18.43 To Order
Photo Part No Description Price (each) Stock
LR114722 PLATE - BLANKING $34.62 To Order
LR114723 PLATE - BLANKING $34.62 To Order
Photo Part No Description Price (each) Stock
LR155199 FOAM BLOCK - BUMPER $57.86 To Order
Photo Part No Description Price (each) Stock
LR114801 BRACKET - FOG LAMP $14.28 To Order
LR114803 BRACKET - FOG LAMP $14.73 To Order
LR114802 BRACKET - FOG LAMP $13.68 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR153999 BRACKET - MOULDING MOUNTING $25.05 To Order
LR154000 BRACKET - MOULDING MOUNTING $23.95 To Order
Photo Part No Description Price (each) Stock
LR114486 MESH - RADIATOR GRILLE $273.67 To Order
LR114487 MESH - RADIATOR GRILLE $273.67 To Order
LR114488 MESH - RADIATOR GRILLE $273.67 To Order
Photo Part No Description Price (each) Stock
LR114480 GRILLE - RADIATOR $391.22 To Order
LR134490 GRILLE - RADIATOR $306.04 To Order
LR134491 GRILLE - RADIATOR $404.28 To Order
Photo Part No Description Price (each) Stock
LR136981 REINFORCEMENT - BUMPER BAR BRACKET $156.51 To Order
Photo Part No Description Price (each) Stock
LR128214 FINISHER - BUMPER $56.77 To Order
LR128215 FINISHER - BUMPER $56.77 To Order
Photo Part No Description Price (each) Stock
LR114795 COVER - FRONT FOG LAMP $69.12 To Order
LR114796 COVER - FRONT FOG LAMP $69.38 To Order
Photo Part No Description Price (each) Stock
LR137680 BRACKET - BUMPER MOUNTING $12.08 To Order
LR137681 BRACKET - BUMPER MOUNTING $12.08 To Order
Photo Part No Description Price (each) Stock
LR139785 BRACKET - AIR DUCT SUPPORT $30.86 To Order
LR139787 BRACKET - AIR DUCT SUPPORT $30.86 To Order
Photo Part No Description Price (each) Stock
LR114703 BRACKET - LICENSE PLATE $34.52 To Order
Photo Part No Description Price (each) Stock
LR114705 REINFORCEMENT - FRONT BUMPER $21.12 To Order
LR114706 REINFORCEMENT - FRONT BUMPER $21.12 To Order
Photo Part No Description Price (each) Stock
LR154718 BUMPER - FRONT $909.82 To Order
LR154719 BUMPER - FRONT $1,009.49 To Order
LR159871 BUMPER - FRONT $637.95 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR137622 REINFORCEMENT - FRONT END $9.34 To Order
Photo Part No Description Price (each) Stock
LR006719 RETAINER - NUT $1.87 To Order
Photo Part No Description Price (each) Stock
LR154722 GRILLE - BUMPER $113.50 To Order
LR154723 GRILLE - BUMPER $113.50 To Order
Photo Part No Description Price (each) Stock
LR139777 BRACKET - AIR DUCT SUPPORT $27.16 To Order
LR139779 BRACKET - AIR DUCT SUPPORT $27.16 To Order
Photo Part No Description Price (each) Stock
LR120582 DEFLECTOR - AIR $42.81 To Order
LR120584 DEFLECTOR - AIR $42.13 To Order
LR120586 DEFLECTOR - AIR $42.81 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR114483 INSERT - FINISH PANEL $147.06 To Order
LR114484 INSERT - FINISH PANEL $147.06 To Order
LR114485 INSERT - FINISH PANEL $147.06 To Order
Photo Part No Description Price (each) Stock
LR137690 PANEL - FINISH $71.05 To Order
Photo Part No Description Price (each) Stock
LR129399 DUCT - BRAKE CALIPER COOLING $19.31 To Order
LR129400 DUCT - BRAKE CALIPER COOLING $19.31 To Order
Photo Part No Description Price (each) Stock
LR114805 BEZEL - FOG LAMP $69.67 To Order
LR114806 BEZEL - FOG LAMP $69.62 To Order
Photo Part No Description Price (each) Stock
LR114707 CLIP - SPECIAL $2.89 To Order
Photo Part No Description Price (each) Stock
LR140154 FOAM BLOCK - BUMPER $11.46 To Order
Photo Part No Description Price (each) Stock
LR140156 FOAM BLOCK - BUMPER $19.60 To Order
Photo Part No Description Price (each) Stock
LR140155 FOAM BLOCK - BUMPER $11.46 To Order
Photo Part No Description Price (each) Stock
LR114692 COVER - TOWING HOOK OPENING $13.43 To Order
Photo Part No Description Price (each) Stock
LR138688 COVER - TOW HOOK $127.77 To Order
LR128228 COVER - TOW HOOK $181.46 To Order
Photo Part No Description Price (each) Stock
LR140157 MOULDING - BUMPER PROTECTION $129.91 To Order
LR126165 MOULDING - BUMPER PROTECTION $127.97 To Order
Photo Part No Description Price (each) Stock
LR153998 MOULDING - BUMPER PROTECTION $91.78 To Order
View All
Radiator Grille And Front Bumper (Itatiaia (Brazil), Front Bumper - Painted Body Colour) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<17K922A LR114692
COVER - TOWING HOOK OPENING
Primed 		$13.43 1
<17K922B LR138688
COVER - TOW HOOK
Rear Bmp Lwr Valance - White Silver 		$127.77 1
<17K922B LR128228
COVER - TOW HOOK
Tow Eye Cover-Body Col/Corris Grey / Primed 		$181.46 1
<112B22 LR120582
DEFLECTOR - AIR
245/45 R21 Summer, 7.5 x 17 235 / 65R 17 AT, 7.5 x 18 235 / 60R 18 AT / RH 		$42.81 1
<112B22 LR120584
DEFLECTOR - AIR
225/65 R17 Eco Summer, 255/65R19 114H AT, 255/70R18 116V AT / RH 		$42.13 1
<112B22 LR120586
DEFLECTOR - AIR
235/60 R18 LRR, 245/45 R21 A/T, 7.5 x 17 235 / 65R 17 AT / LH 		$42.81 1
<112B22 LR120588
DEFLECTOR - AIR
225/65 R17 Eco Summer, 255/65R19 114H AT, 255/70R18 116V AT / LH 		$42.13 1
<286B27A LR140157
MOULDING - BUMPER PROTECTION
Deployable Bonnet/Scuttle Abag 		$129.91 1
<286B27A LR126165
MOULDING - BUMPER PROTECTION
Less External Deployable Device 		$127.97 1
<286B27B LR153998
MOULDING - BUMPER PROTECTION
Moulding 		$91.78 1
<402A63 LR129399
DUCT - BRAKE CALIPER COOLING
Standard Tyre / RH 		$19.31 1
<402A63 LR129400
DUCT - BRAKE CALIPER COOLING
Standard Tyre / LH 		$19.31 1
<613E12 LR114805
BEZEL - FOG LAMP
With Front Fog Lamps / RH 		$69.67 1
<613E12 LR114806
BEZEL - FOG LAMP
With Front Fog Lamps / LH 		$69.62 1
<672A24 LR114707
CLIP - SPECIAL 		$2.89 1
<23864A LR114483
INSERT - FINISH PANEL
Grille - Atlas / Lower 		$147.06 1
<23864A LR114484
INSERT - FINISH PANEL
Grille - Dark Atlas / Lower 		$147.06 1
<23864A LR114485
INSERT - FINISH PANEL
With Black Gloss Grille / Lower 		$147.06 1
<23864B LR137690
PANEL - FINISH
With Black Gloss Grille / Upper 		$71.05 1
<40130 LR128214
FINISHER - BUMPER
RH, Primed 		$56.77 1
<40130 LR128215
FINISHER - BUMPER
LH, Primed 		$56.77 1
HB1 LR057599
BOLT AND WASHER - HEX.HEAD
M10 X 122, Reinforcement 		$4.64 4
HC1 LR018173
CLIP - RETAINING
Bumper Grille
IN STOCK 		$3.19 4
HN1 LR045194
NUT
Less Front Fog Lamps / RH, Plastic
IN STOCK 		$2.64 3
HS1 LR038663
SCREW - FLAT ROUND HEAD
4 X 16MM, Brackets, Pan Head - Torx
IN STOCK 		$2.14 8
HS1 LR038663
SCREW - FLAT ROUND HEAD
4 X 16MM, Bezel, Pan Head - Torx
IN STOCK 		$2.14 6
HS1 LR038663
SCREW - FLAT ROUND HEAD
4 X 16MM, Cover, Pan Head - Torx
IN STOCK 		$2.14 2
HS1 LR038663
SCREW - FLAT ROUND HEAD
4 X 16MM, Pan Head - Torx, Panel
IN STOCK 		$2.14 18
HS1 LR038663
SCREW - FLAT ROUND HEAD
4 X 16MM, Moulding, Pan Head - Torx
IN STOCK 		$2.14 4
HS2 LR006025
BOLT
Bolt And Washer, M6 X 15 Hex
IN STOCK 		$1.37 12
HS3 DYP000040
SCREW
M5
IN STOCK 		$1.21 4
HS4 LR083229
SCREW
M6 x 18MM
IN STOCK 		$4.21 4
HX1 RYQ500070
PIN - RETAINING 6.3 X 22MM
6.3 X 22MM, Bracket, Push Pin
IN STOCK 		$1.49 4
HX1 RYQ500070
PIN - RETAINING 6.3 X 22MM
6.3 X 22MM, Moulding, Push Pin
IN STOCK 		$1.49 6
8A200 LR136981
REINFORCEMENT - BUMPER BAR BRACKET 		$156.51 1
15A245 LR114795
COVER - FRONT FOG LAMP
Less Front Fog Lamps, Lower Body Side Moulding - Black / RH 		$69.12 1
15A245 LR114796
COVER - FRONT FOG LAMP
Less Front Fog Lamps, Lower Body Side Moulding - Black / LH 		$69.38 1
17A385 LR114703
BRACKET - LICENSE PLATE
Front Number Plate Plinth NAS 		$34.52 1
17A792 LR114705
REINFORCEMENT - FRONT BUMPER
With Headlamp Power Wash / RH 		$21.12 1
17A792 LR114706
REINFORCEMENT - FRONT BUMPER
With Headlamp Power Wash / LH 		$21.12 1
17C882A LR140154
FOAM BLOCK - BUMPER
RH 		$11.46 1
17C882B LR140156
FOAM BLOCK - BUMPER
Centre 		$19.60 1
17C882C LR140155
FOAM BLOCK - BUMPER
LH 		$11.46 1
17D957 LR154718
BUMPER - FRONT
Less Headlamp Washer, Surround Camera Sys+Water Wade Aid / Primed 		$909.82 1
17D957 LR154719
BUMPER - FRONT
Surround Camera Sys+Water Wade Aid, With Headlamp Power Wash / Primed 		$1,009.49 1
17D957 LR159871
BUMPER - FRONT
Less Headlamp Washer, Rear View Camera-Fixed / Primed 		$637.95 1
17D957 LR159872
BUMPER - FRONT
Rear View Camera-Fixed, With Headlamp Power Wash / Primed 		$801.84 1
17E814 LR137622
REINFORCEMENT - FRONT END
RH 		$9.34 1
17K826 LR006719
RETAINER - NUT
Nut "U" Spring, 		$1.87 6
17K946 LR154722
GRILLE - BUMPER
With Speed Control / Lower 		$113.50 1
17K946 LR154723
GRILLE - BUMPER
ACC + Adaptive Lane Control / Lower 		$113.50 1
19A260 LR139777
BRACKET - AIR DUCT SUPPORT
1.5L AJ20P3 Petrol High, 3D Surround Camera / RH 		$27.16 1
19A260 LR139779
BRACKET - AIR DUCT SUPPORT
2.0L AJ21D4 Diesel Mid, 3D Surround Camera / LH 		$27.16 1
2484 LR114693
CAP - POWERWASH JET
RH 		$17.02 1
2484 LR114694
CAP - POWERWASH JET
LH 		$18.43 1
7081 LR114722
PLATE - BLANKING
2.0L AJ20P4 Petrol Mid PTA, 3D Surround Camera, Medium Engine Cooling / Blanking 		$34.62 1
7081 LR114723
PLATE - BLANKING
2.0L AJ20P4 Petrol Mid PTA, 3D Surround Camera, High Engine Cooling / LH, Blanking 		$34.62 1
8200A LR114486
MESH - RADIATOR GRILLE
Grille - Atlas 		$273.67 1
8200A LR114487
MESH - RADIATOR GRILLE
Grille - Dark Atlas 		$273.67 1
8200A LR114488
MESH - RADIATOR GRILLE
With Black Gloss Grille 		$273.67 1
8200B LR114480
GRILLE - RADIATOR
Grille - Atlas / Kit 		$391.22 1
8200B LR134490
GRILLE - RADIATOR
Grille - Dark Atlas / Kit 		$306.04 1
8200B LR134491
GRILLE - RADIATOR
With Black Gloss Grille / Kit 		$404.28 1
8310 LR155199
FOAM BLOCK - BUMPER
Foam, RH/LH 		$57.86 2
15266 LR114801
BRACKET - FOG LAMP
Less Front Fog Lamps, Lower Body Side Moulding - Black / RH, Mounting Bracket 		$14.28 1
15266 LR114803
BRACKET - FOG LAMP
Cladding - Corris Gray, Less Front Fog Lamps / RH, Mounting Bracket 		$14.73 1
15266 LR114802
BRACKET - FOG LAMP
Less Front Fog Lamps, Lower Body Side Moulding - Black / LH, Mounting Bracket 		$13.68 1
15266 LR114804
BRACKET - FOG LAMP
Cladding - Corris Gray, Less Front Fog Lamps / LH, Mounting Bracket 		$14.06 1
16484 LR153999
BRACKET - MOULDING MOUNTING
Deployable Bonnet/Scuttle Abag / RH 		$25.05 1
16484 LR154000
BRACKET - MOULDING MOUNTING
Deployable Bonnet / LH 		$23.95 1
17752A LR137680
BRACKET - BUMPER MOUNTING
RH, Side, Upper 		$12.08 1
17752A LR137681
BRACKET - BUMPER MOUNTING
LH, Side, Upper 		$12.08 1
17752B LR139785
BRACKET - AIR DUCT SUPPORT
1.5L AJ20P3 Petrol High, Surround Camera Sys+Water Wade Aid / RH, Middle, Side 		$30.86 1
17752B LR139787
BRACKET - AIR DUCT SUPPORT
2.0L AJ20P4 Petrol Mid PTA, Extra High Engine Cooling, Surround Camera Sys+Water Wade Aid / LH, Middle, Side 		$30.86 1

Haven't found what you're looking for?

More: Land Rover Radiators Tuning Parts Need help? Call us

View Cart / Checkout
