Splash And Heat Shields (Middle And Rear Section) (Itatiaia (Brazil))

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Splash And Heat Shields (Middle And Rear Section) (Itatiaia (Brazil))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108256 BOLT $3.57 IN STOCK
Photo Part No Description Price (each) Stock
LR123106 BOLT AND WASHER - HEX.HEAD $1.11 To Order
Photo Part No Description Price (each) Stock
LR003643 NUT - SPECIAL $0.61 To Order
LR003643 NUT - SPECIAL $0.61 To Order
LR003643 NUT - SPECIAL $0.61 To Order
Photo Part No Description Price (each) Stock
RYH500290 NUT AND WASHER - HEX. $2.29 To Order
Photo Part No Description Price (each) Stock
LR006025 BOLT $1.39 IN STOCK
LR006025 BOLT $1.39 IN STOCK
Photo Part No Description Price (each) Stock
LR007651 SCREW $0.89 To Order
Photo Part No Description Price (each) Stock
LR142098 HEAT SHIELD - EXHAUST $158.76 To Order
Photo Part No Description Price (each) Stock
LR146034 SHIELD - FUEL TANK $35.68 To Order
Photo Part No Description Price (each) Stock
LR140360 COVER - INSTRUMENT PANEL $14.06 To Order
Photo Part No Description Price (each) Stock
LR114212 HEAT SHIELD - EXHAUST $61.05 To Order
Photo Part No Description Price (each) Stock
LR114214 HEAT SHIELD - EXHAUST $61.05 To Order
Photo Part No Description Price (each) Stock
LR114209 HEAT SHIELD - EXHAUST $76.07 To Order
Photo Part No Description Price (each) Stock
LR114211 HEAT SHIELD - EXHAUST $145.06 To Order
Photo Part No Description Price (each) Stock
LR128569 HEAT SHIELD - EXHAUST $152.32 To Order
Photo Part No Description Price (each) Stock
LR140570 HEAT SHIELD $34.17 To Order
Photo Part No Description Price (each) Stock
LR149605 HEAT SHIELD $33.18 To Order
Photo Part No Description Price (each) Stock
LR143153 SHIELD - FLOOR $90.04 To Order
Photo Part No Description Price (each) Stock
LR135209 SHIELD - FLOOR $80.59 To Order
Photo Part No Description Price (each) Stock
LR154934 BRACKET - BUMPER MOUNTING $20.08 To Order
Photo Part No Description Price (each) Stock
LR135173 BRACKET - INVERTER $32.78 To Order
Photo Part No Description Price (each) Stock
LR135603 BRACKET - INVERTER $81.97 To Order
Photo Part No Description Price (each) Stock
LR117655 BRACKET - HEATSHIELD $162.08 To Order
Photo Part No Description Price (each) Stock
LR117654 BRACKET - HEATSHIELD $155.81 To Order
Photo Part No Description Price (each) Stock
LR133953 BRACKET - HEATSHIELD $40.72 To Order
Photo Part No Description Price (each) Stock
LR139084 INSULATOR $118.95 To Order
View All

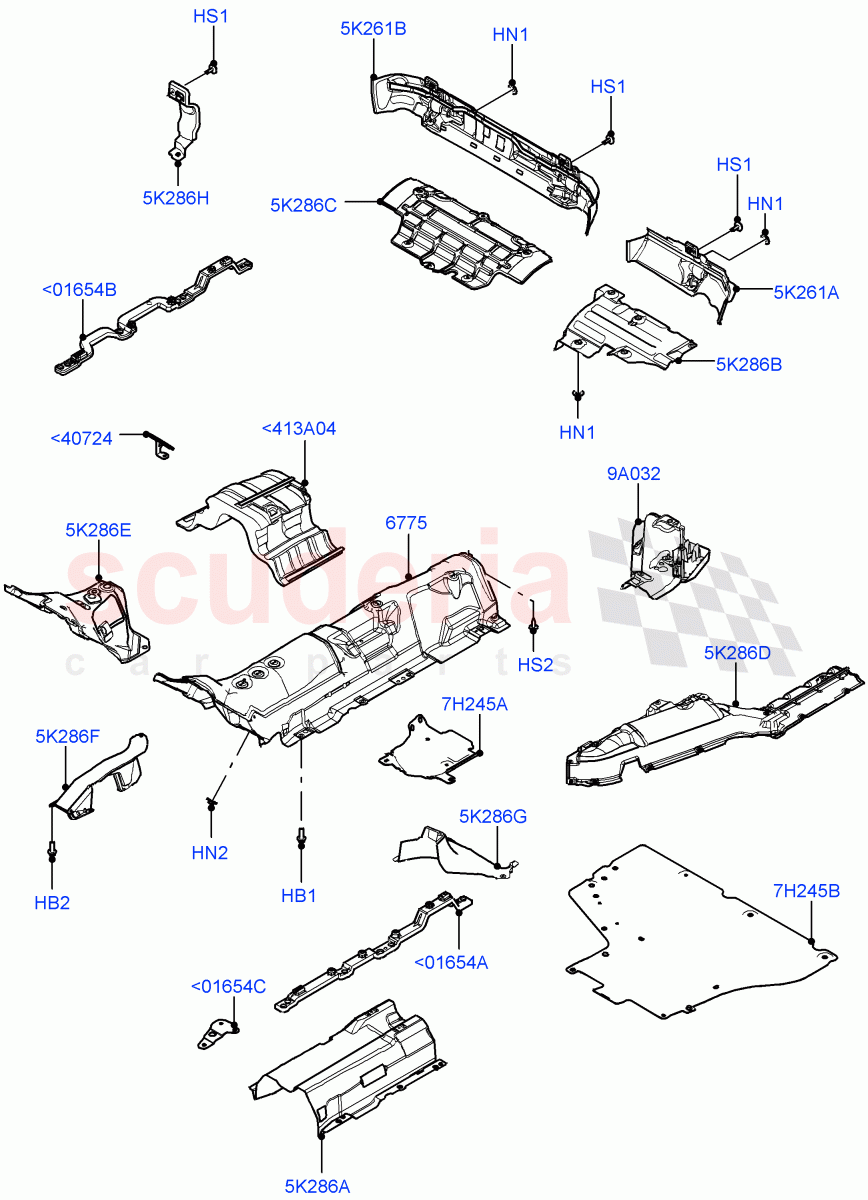

Splash And Heat Shields (Middle And Rear Section) (Itatiaia (Brazil)) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<413A04 LR139084
INSULATOR
1.5L AJ20P3 Petrol High PHEV 		$118.95 1
<01654A LR117655
BRACKET - HEATSHIELD
LH 		$162.08 1
<01654B LR117654
BRACKET - HEATSHIELD
RH 		$155.81 1
<01654C LR133953
BRACKET - HEATSHIELD
Electric Engine Battery-MHEV / LH 		$40.72 1
<40724 LR140360
COVER - INSTRUMENT PANEL
1.5L AJ20P3 Petrol High PHEV 		$14.06 1
HB1 FS108256
BOLT
Hexagonal Head, M8 X 25MM
IN STOCK 		$3.57 11
HB2 LR123106
BOLT AND WASHER - HEX.HEAD
1.5L AJ20P3 Petrol High PHEV / M6 x 18MM 		$1.11 2
HN1 LR003643
NUT - SPECIAL
EU6D Diesel + DPF Emissions / Heatshield, M5, Rear 		$0.61 10
HN1 LR003643
NUT - SPECIAL
Beijing 6 Petrol Emission / Heatshield, M5, Rear 		$0.61 14
HN1 LR003643
NUT - SPECIAL
M5, Tunnel Insulator 		$0.61 6
HN2 RYH500290
NUT AND WASHER - HEX.
M6, Tunnel Insulator 		$2.29 7
HS1 LR006025
BOLT
EU6 Emissions / Bolt And Washer, Heatshield, M6 X 15 Hex, Rear
IN STOCK 		$1.39 1
HS1 LR006025
BOLT
Beijing 6 Petrol Emission / Bolt And Washer, Heatshield, M6 X 15 Hex, Rear
IN STOCK 		$1.39 2
HS2 LR007651
SCREW
Electric Engine Battery-MHEV / M6 X 10MM 		$0.89 1
5K261A LR114212
HEAT SHIELD - EXHAUST
2.0L AJ21D4 Diesel Mid / Rear Bumper 		$61.05 1
5K261B LR114214
HEAT SHIELD - EXHAUST
2.0L AJ20P4 Petrol E100 PTA / Rear Bumper 		$61.05 1
5K286A LR114209
HEAT SHIELD - EXHAUST
2.0L AJ21D4 Diesel Mid / Centre 		$76.07 1
5K286B LR114211
HEAT SHIELD - EXHAUST
2.0L AJ21D4 Diesel Mid / For Rear Muffler 		$145.06 1
5K286C LR128569
HEAT SHIELD - EXHAUST
1.5L AJ20P3 Petrol High / For Rear Muffler 		$152.32 1
5K286D LR140570
HEAT SHIELD
1.5L AJ20P3 Petrol High PHEV 		$34.17 1
5K286E LR149605
HEAT SHIELD
1.5L AJ20P3 Petrol High PHEV 		$33.18 1
5K286F LR143153
SHIELD - FLOOR
1.5L AJ20P3 Petrol High PHEV 		$90.04 1
5K286G LR135209
SHIELD - FLOOR
1.5L AJ20P3 Petrol High PHEV 		$80.59 1
5K286H LR154934
BRACKET - BUMPER MOUNTING
2.0L AJ21D4 Diesel Mid, Less Emission Tank / RH, Rear 		$20.08 1
7H245A LR135173
BRACKET - INVERTER
Electric Engine Battery-PHEV 		$32.78 1
7H245B LR135603
BRACKET - INVERTER
Electric Engine Battery-PHEV 		$81.97 1
9A032 LR146034
SHIELD - FUEL TANK
1.5L AJ20P3 Petrol High PHEV 		$35.68 1
6775 LR142098
HEAT SHIELD - EXHAUST
1.5L AJ20P3 Petrol High 		$158.76 1
