Splash And Heat Shields (Middle And Rear Section) (Changsu (China))

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Splash And Heat Shields (Middle And Rear Section) (Changsu (China))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108256 BOLT $3.56 IN STOCK
Photo Part No Description Price (each) Stock
LR123106 BOLT AND WASHER - HEX.HEAD $1.10 To Order
Photo Part No Description Price (each) Stock
LR003643 NUT - SPECIAL $0.61 To Order
LR003643 NUT - SPECIAL $0.61 To Order
Photo Part No Description Price (each) Stock
RYH500290 NUT AND WASHER - HEX. $2.28 To Order
RYH500290 NUT AND WASHER - HEX. $2.28 To Order
Photo Part No Description Price (each) Stock
LR006025 BOLT $1.38 IN STOCK
Photo Part No Description Price (each) Stock
PYG500050 SCREW $1.06 IN STOCK
Photo Part No Description Price (each) Stock
LR114210 HEAT SHIELD - EXHAUST $156.17 To Order
LR155527 HEAT SHIELD - EXHAUST $156.17 To Order
LR114210 HEAT SHIELD - EXHAUST $156.17 To Order
Photo Part No Description Price (each) Stock
LR114214 HEAT SHIELD - EXHAUST $60.77 To Order
Photo Part No Description Price (each) Stock
LR155544 SHIELD - FUEL TANK $54.99 To Order
Photo Part No Description Price (each) Stock
LR140360 COVER - INSTRUMENT PANEL $13.99 To Order
Photo Part No Description Price (each) Stock
LR114209 HEAT SHIELD - EXHAUST $75.72 To Order
Photo Part No Description Price (each) Stock
LR128569 HEAT SHIELD - EXHAUST $151.60 To Order
Photo Part No Description Price (each) Stock
LR135209 SHIELD - FLOOR $80.22 To Order
Photo Part No Description Price (each) Stock
LR162019 HEAT SHIELD $42.13 To Order
Photo Part No Description Price (each) Stock
LR149605 HEAT SHIELD $33.03 To Order
Photo Part No Description Price (each) Stock
LR143153 SHIELD - FLOOR $89.61 To Order
Photo Part No Description Price (each) Stock
LR135173 BRACKET - INVERTER $32.63 To Order
Photo Part No Description Price (each) Stock
LR135603 BRACKET - INVERTER $81.58 To Order
Photo Part No Description Price (each) Stock
LR117655 BRACKET - HEATSHIELD $161.32 To Order
Photo Part No Description Price (each) Stock
LR117654 BRACKET - HEATSHIELD $155.08 To Order
Photo Part No Description Price (each) Stock
LR117656 BRACKET - HEATSHIELD $40.63 To Order
LR133953 BRACKET - HEATSHIELD $40.53 To Order
Photo Part No Description Price (each) Stock
LR139084 INSULATOR $118.39 To Order
View All

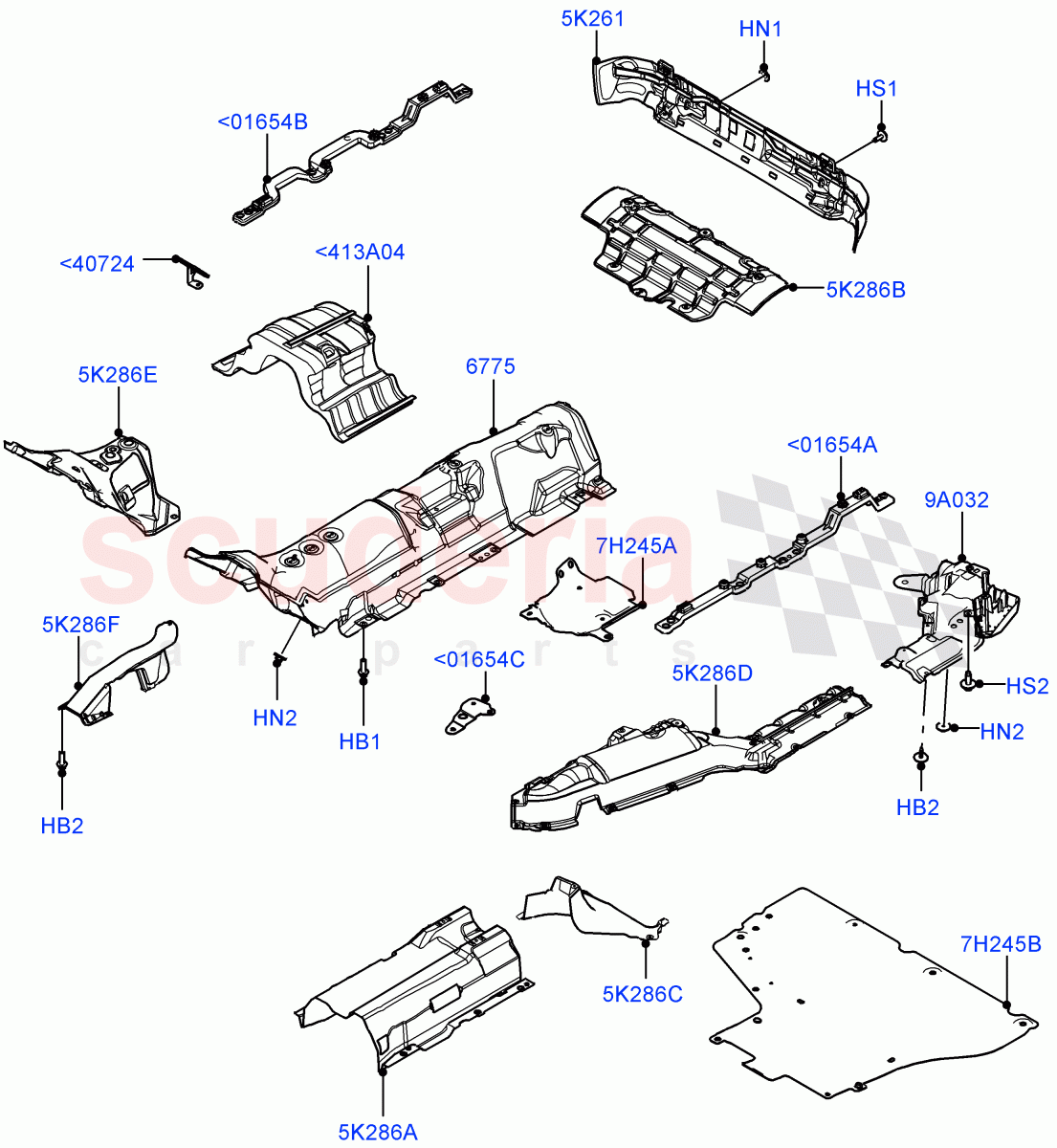

Splash And Heat Shields (Middle And Rear Section) (Changsu (China)) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<413A04 LR139084
INSULATOR
1.5L AJ20P3 Petrol High PHEV / From: MG575835 		$118.39 1
<01654A LR117655
BRACKET - HEATSHIELD
LH 		$161.32 1
<01654B LR117654
BRACKET - HEATSHIELD
RH 		$155.08 1
<01654C LR117656
BRACKET - HEATSHIELD
Electric Engine Battery-MHEV / LH / To: MG575834 		$40.63 1
<01654C LR133953
BRACKET - HEATSHIELD
Electric Engine Battery-MHEV / LH / From: MG575835 		$40.53 1
<40724 LR140360
COVER - INSTRUMENT PANEL
1.5L AJ20P3 Petrol High PHEV / From: MG575835 		$13.99 1
HB1 FS108256
BOLT
Hexagonal Head, M8 X 25MM
IN STOCK 		$3.56 11
HB2 LR123106
BOLT AND WASHER - HEX.HEAD
1.5L AJ20P3 Petrol High PHEV / M6 x 18MM / From: MG575835 		$1.10 4
HN1 LR003643
NUT - SPECIAL
Beijing 6 Petrol Emission / Heatshield, M5, Rear 		$0.61 14
HN1 LR003643
NUT - SPECIAL
M5, Tunnel Insulator 		$0.61 6
HN2 RYH500290
NUT AND WASHER - HEX.
M6, Tunnel Insulator 		$2.28 7
HN2 RYH500290
NUT AND WASHER - HEX.
1.5L AJ20P3 Petrol High, Long Wheelbase / Heat Shield, M6 / From: MG575835 		$2.28 2
HS1 LR006025
BOLT
Bolt And Washer, Heatshield, M6 X 15 Hex, Rear
IN STOCK 		$1.38 2
HS2 PYG500050
SCREW
1.5L AJ20P3 Petrol High PHEV / M8 X 20MM / From: MG575835
IN STOCK 		$1.06 1
5K261 LR114214
HEAT SHIELD - EXHAUST
Rear Bumper 		$60.77 1
5K286A LR114209
HEAT SHIELD - EXHAUST
Centre 		$75.72 1
5K286B LR128569
HEAT SHIELD - EXHAUST
For Rear Muffler 		$151.60 1
5K286C LR135209
SHIELD - FLOOR
1.5L AJ20P3 Petrol High PHEV / From: MG575835 		$80.22 1
5K286D LR162019
HEAT SHIELD
1.5L AJ20P3 Petrol High PHEV / From: MG575835 		$42.13 1
5K286E LR149605
HEAT SHIELD
1.5L AJ20P3 Petrol High PHEV / From: MG575835 		$33.03 1
5K286F LR143153
SHIELD - FLOOR
1.5L AJ20P3 Petrol High PHEV / From: MG575835 		$89.61 1
7H245A LR135173
BRACKET - INVERTER
Electric Engine Battery-PHEV 		$32.63 1
7H245B LR135603
BRACKET - INVERTER
Electric Engine Battery-PHEV 		$81.58 1
9A032 LR155544
SHIELD - FUEL TANK
1.5L AJ20P3 Petrol High PHEV, Long Wheelbase / From: MG575835 		$54.99 1
6775 LR114210
HEAT SHIELD - EXHAUST
To: MG575834 		$156.17 1
6775 LR155527
HEAT SHIELD - EXHAUST
2.0L AJ20P4 Petrol High PTA, Long Wheelbase / From: MG575835 		$156.17 1
6775 LR114210
HEAT SHIELD - EXHAUST
Standard Wheelbase / From: MG575835 		$156.17 1
