Name: Front Doors, Hinges & Weatherstrips (Door And Fixings) (Changsu (China))
Rating: 5.0 (1 reviews)

View All

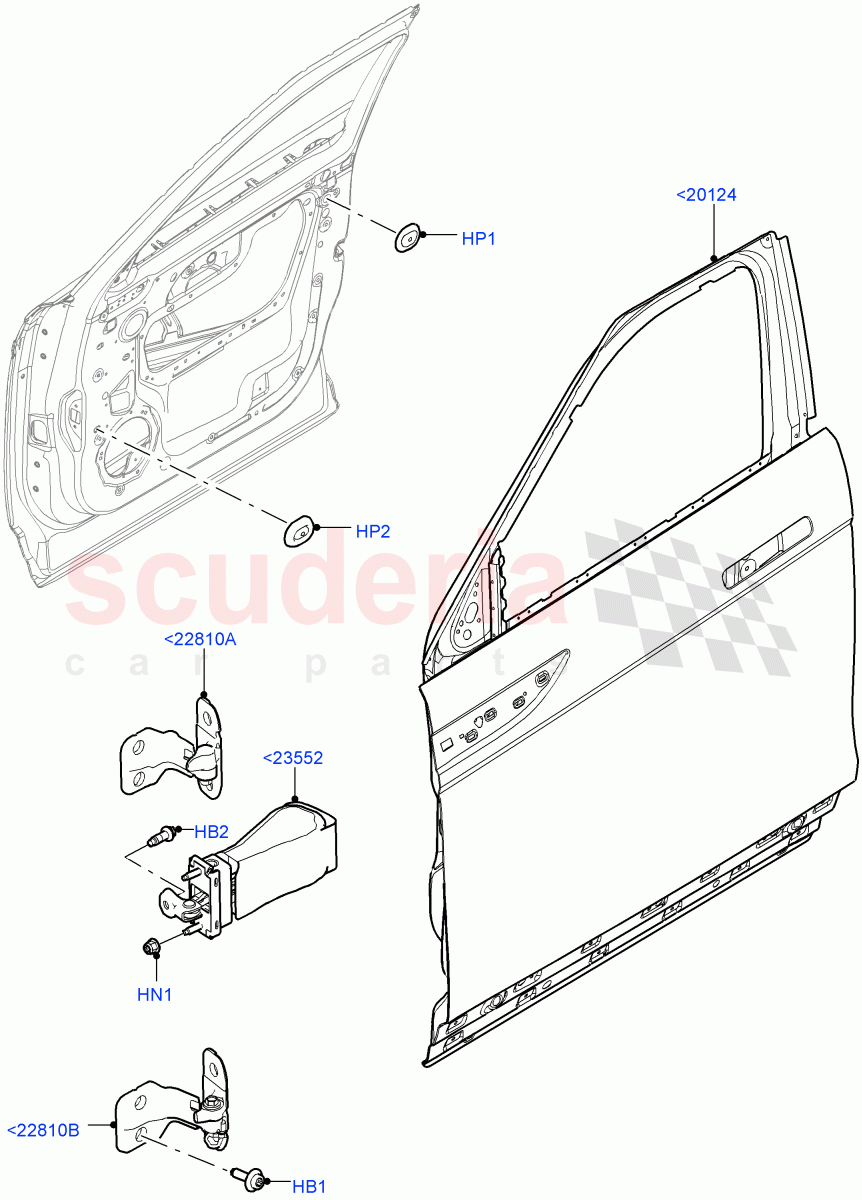

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR025399	BOLT	$2.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032819	BOLT AND WASHER - TORX HEAD	$1.23	To Order

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	$0.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR003553	PLUG	$3.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127905	PLUG	$4.38	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR117205	CHECK - DOOR	$51.28	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<20124	LR117201	DOOR - FRONT	LR117201 DOOR - FRONT RH / From: KG006088 / To: LG566461	$805.05	1
<20124	LR138379	DOOR - FRONT	LR138379 DOOR - FRONT LH / From: LG566462	$986.33	1
<20124	LR138378	DOOR - FRONT	LR138378 DOOR - FRONT RH / From: LG566462	$986.33	1
<20124	LR117202	DOOR - FRONT	LR117202 DOOR - FRONT LH / From: KG006088 / To: LG566461	$805.05	1
<22810A	LR056353	HINGE - DOOR	LR056353 HINGE - DOOR RH, Upper	$73.17	2
<22810A	LR056354	HINGE - DOOR	LR056354 HINGE - DOOR LH, Upper	$78.16	2
<22810B	LR056351	HINGE - DOOR	LR056351 HINGE - DOOR RH, Lower	$78.16	2
<22810B	LR056352	HINGE - DOOR	LR056352 HINGE - DOOR LH, Lower	$70.00	2
<23552	LR117205	CHECK - DOOR	LR117205 CHECK - DOOR RH/LH	$51.28	2
HB1	LR025399	BOLT	LR025399 BOLT M8 X 25MM	$2.00	16
HB2	LR032819	BOLT AND WASHER - TORX HEAD	LR032819 BOLT AND WASHER - TORX HEAD M8 X 20MM	$1.23	4
HN1	FY106046	NUT - HEX. IN STOCK	FY106046 NUT - HEX. Hexagonal Head, M6 IN STOCK	$0.67	4
HP1	LR003553	PLUG	LR003553 PLUG 19.5 X 24.5MM	$3.35	2
HP2	LR127905	PLUG	LR127905 PLUG	$4.38	1

Front Doors, Hinges & Weatherstrips (Door And Fixings) (Changsu (China))

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]
