Rear Bumper (Changsu (China), Front Bumper - Painted Body Colour)

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Rear Bumper (Changsu (China), Front Bumper - Painted Body Colour)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR090697 BOLT $3.54 To Order
Photo Part No Description Price (each) Stock
RZM500140 CLIP $1.16 IN STOCK
Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED $0.60 IN STOCK
Photo Part No Description Price (each) Stock
RYH500290 NUT AND WASHER - HEX. $2.29 To Order
Photo Part No Description Price (each) Stock
LR114151 NUT $1.38 IN STOCK
Photo Part No Description Price (each) Stock
LR126277 NUT - EXPANSION $0.68 To Order
Photo Part No Description Price (each) Stock
LR062611 SCREW $1.41 To Order
LR062611 SCREW $1.41 To Order
LR062611 SCREW $1.41 To Order
Photo Part No Description Price (each) Stock
LR006025 BOLT $1.38 IN STOCK
Photo Part No Description Price (each) Stock
LR010155 SCREW $1.32 To Order
Photo Part No Description Price (each) Stock
LR000890 SCREW AND WASHER $0.67 To Order
Photo Part No Description Price (each) Stock
LR002162 SCREW AND WASHER $0.83 To Order
Photo Part No Description Price (each) Stock
LR114860 MOULDING - REAR WHEEL ARCH $39.77 To Order
LR114861 MOULDING - REAR WHEEL ARCH $38.49 To Order
LR138236 MOULDING - REAR WHEEL ARCH $39.77 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR137682 BRACKET - BUMPER MOUNTING $64.81 To Order
Photo Part No Description Price (each) Stock
LR135016 BUMPER - REAR $709.93 To Order
Photo Part No Description Price (each) Stock
LR117425 INSERT - BUMPER $94.77 To Order
LR117427 INSERT - BUMPER $94.77 To Order
LR117426 INSERT - BUMPER $101.37 To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR114905 AEROBLADE - BUMPER $108.96 To Order
LR114906 AEROBLADE - BUMPER $108.96 To Order
Photo Part No Description Price (each) Stock
LR137462 REINFORCEMENT - REAR BUMPER $237.83 To Order
Photo Part No Description Price (each) Stock
LR124670 BRACKET - BUMPER MOUNTING $43.30 To Order
LR124671 BRACKET - BUMPER MOUNTING $43.30 To Order
Photo Part No Description Price (each) Stock
LR006719 RETAINER - NUT $1.89 To Order
Photo Part No Description Price (each) Stock
LR114847 COVER - TOWING HOOK OPENING $103.88 To Order
LR155839 COVER - TOWING HOOK OPENING $103.88 To Order
LR117423 BUMPER - COVER $183.39 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR128231 FINISHER - BUMPER $278.07 To Order
LR114912 FINISHER - BUMPER $158.46 To Order
LR155671 FINISHER - BUMPER $251.28 To Order
Photo Part No Description Price (each) Stock
LR128233 COVER - TOWING HOOK $19.29 To Order
LR114908 COVER - TOWING HOOK $12.63 To Order
LR114909 COVER - TOWING HOOK $14.60 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR114858 BRACKET - CABLE SUPPORT $18.47 To Order
LR114859 BRACKET - CABLE SUPPORT $18.47 To Order
Photo Part No Description Price (each) Stock
LR114958 BRACKET - BUMPER MOUNTING $67.32 To Order
LR114959 BRACKET - BUMPER MOUNTING $67.32 To Order
LR139812 BRACKET - BUMPER MOUNTING $66.87 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR114960 BRACKET - BUMPER MOUNTING $37.34 To Order
LR114962 BRACKET - BUMPER MOUNTING $37.34 To Order
Photo Part No Description Price (each) Stock
LR118277 BRACKET - SUPPORT $15.17 To Order
LR118210 BRACKET - SUPPORT $15.17 To Order
Photo Part No Description Price (each) Stock
LR114871 FINISHER - BUMPER $262.47 To Order
LR128230 FINISHER - BUMPER $158.69 To Order
Photo Part No Description Price (each) Stock
LR114862 CAP - BUMPER END $63.22 To Order
LR114863 CAP - BUMPER END $65.17 To Order
LR155574 CAP - BUMPER END $55.94 To Order
...and 1 more part variants. See table on right for more details.
View All

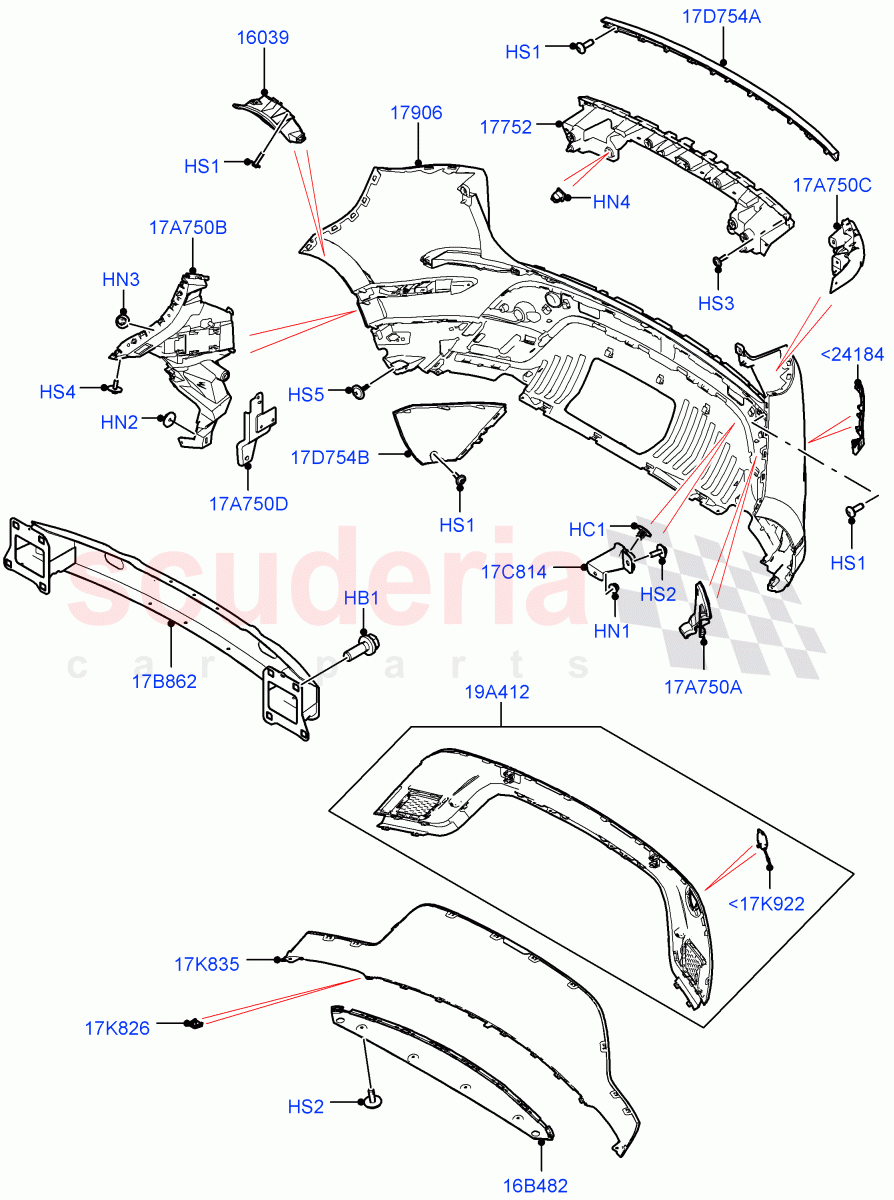

Rear Bumper (Changsu (China), Front Bumper - Painted Body Colour) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<17K922 LR128233
COVER - TOWING HOOK
Primed 		$19.29 1
<17K922 LR114908
COVER - TOWING HOOK
Tow Eye Cover-Satin Blk/Dar Tch Slv 		$12.63 1
<17K922 LR114909
COVER - TOWING HOOK
Tow Eye Cover-Satin Blk/Narvik Blk 		$14.60 1
<17K922 LR114911
COVER - TOWING HOOK
Tow Eye Cover-Body Col/Corris Grey 		$15.79 1
<24184 LR117425
INSERT - BUMPER
360 Parking Aid and Autobrake, Less Park Assist, Lower Body Side Moulding - Black, Rear Bumpers CCR / RH / To: MG575834 		$94.77 1
<24184 LR117427
INSERT - BUMPER
Lower Body Side Moulding - Black, Park Assist / RH / To: MG575834 		$94.77 1
<24184 LR117426
INSERT - BUMPER
360 Parking Aid and Autobrake, Less Park Assist, Lower Body Side Moulding - Black / LH / To: MG575834 		$101.37 1
<24184 LR117428
INSERT - BUMPER
Lower Body Side Moulding - Black, Park Assist / LH / To: MG575834 		$101.37 1
<24184 LR128243
INSERT - BUMPER
Lower Body Side Moulding - Black, Park Assist / LH, Primed / To: MG575834 		$109.82 1
<24184 LR128242
INSERT - BUMPER
Cladding - Narvik Black, Park Assist / RH, Primed / To: MG575834 		$102.66 1
<24184 LR161455
INSERT - BUMPER
3D Surround Camera, Long Wheelbase, With Feldberg Grey Moulding / RH / From: MG575835 		$104.83 1
<24184 LR161456
INSERT - BUMPER
Long Wheelbase, Rear View Camera-Fixed, With Feldberg Grey Moulding / RH / From: MG575835 		$104.83 1
<24184 LR161462
INSERT - BUMPER
3D Surround Camera, Long Wheelbase, With Feldberg Grey Moulding / LH / From: MG575835 		$21.70 1
<24184 LR161463
INSERT - BUMPER
Long Wheelbase, Rear View Camera-Fixed, With Feldberg Grey Moulding / LH / From: MG575835 		$21.70 1
HB1 LR090697
BOLT
Hexagonal Head, M14 X 43mm 		$3.54 8
HC1 RZM500140
CLIP
Trim Pin 12 X 0.8 - 8.4 Nylon
IN STOCK 		$1.16 2
HN1 FX106046
NUT - FLANGED
Hexagonal Head, M6
IN STOCK 		$0.60 4
HN2 RYH500290
NUT AND WASHER - HEX.
M6 		$2.29 2
HN3 LR114151
NUT
5X8X8X0.7-1.3, Expanding Rivet
IN STOCK 		$1.38 22
HN4 LR126277
NUT - EXPANSION
Support 		$0.68 7
HS1 LR062611
SCREW
4 X 16MM, Centre Finisher 		$1.41 6
HS1 LR062611
SCREW
4 X 16MM, Attaches to Rear Bumper 		$1.41 4
HS1 LR062611
SCREW
4 X 16MM, Attaches Insert 		$1.41 2
HS2 LR006025
BOLT
Bolt And Washer, M6 X 15 Hex
IN STOCK 		$1.38 4
HS3 LR010155
SCREW
M5 X 16MM, Torx, Woofer 		$1.32 2
HS4 LR000890
SCREW AND WASHER
4.8 X 19MM 		$0.67 28
HS5 LR002162
SCREW AND WASHER
4.8 x 20MM, Cross Recess Drive 		$0.83 6
16B482 LR114905
AEROBLADE - BUMPER
Less Trailer Towing Hitch, Rear Bmp Lwr Valance - White Silver 		$108.96 1
16B482 LR114906
AEROBLADE - BUMPER
Less Trailer Towing Hitch, Rear Bumper Lower Valance-Narvik Bk 		$108.96 1
17A750A LR114858
BRACKET - CABLE SUPPORT
RH 		$18.47 1
17A750A LR114859
BRACKET - CABLE SUPPORT
LH 		$18.47 1
17A750B LR114958
BRACKET - BUMPER MOUNTING
RH / To: MG575834 		$67.32 1
17A750B LR114959
BRACKET - BUMPER MOUNTING
LH / To: MG575834 		$67.32 1
17A750B LR139812
BRACKET - BUMPER MOUNTING
RH / From: MG575835 		$66.87 1
17A750B LR139813
BRACKET - BUMPER MOUNTING
LH / From: MG575835 		$66.87 1
17A750C LR114960
BRACKET - BUMPER MOUNTING
RH 		$37.34 1
17A750C LR114962
BRACKET - BUMPER MOUNTING
LH 		$37.34 1
17A750D LR118277
BRACKET - SUPPORT
RH 		$15.17 1
17A750D LR118210
BRACKET - SUPPORT
LH 		$15.17 1
17B862 LR137462
REINFORCEMENT - REAR BUMPER
From: KG006088 		$237.83 1
17C814 LR124670
BRACKET - BUMPER MOUNTING
RH 		$43.30 1
17C814 LR124671
BRACKET - BUMPER MOUNTING
LH 		$43.30 1
17D754A LR114871
FINISHER - BUMPER
Front Bumper - Painted Body Colour / Centre 		$262.47 1
17D754A LR128230
FINISHER - BUMPER
Centre 		$158.69 1
17D754B LR114862
CAP - BUMPER END
Front Bumper - Painted Body Colour / RH / To: MG575834 		$63.22 1
17D754B LR114863
CAP - BUMPER END
Front Bumper - Painted Body Colour / LH / To: MG575834 		$65.17 1
17D754B LR155574
CAP - BUMPER END
Front Bumper - Painted Body Colour, Lower Body Side Moulding - Black / RH / From: MG575835 		$55.94 1
17D754B LR155576
CAP - BUMPER END
Front Bumper - Painted Body Colour, Lower Body Side Moulding - Black / LH / From: MG575835 		$61.36 1
17K826 LR006719
RETAINER - NUT
Nut "U" Spring, 		$1.89 6
17K835 LR114847
COVER - TOWING HOOK OPENING
Rear Bmp Lwr Valance - White Silver / To: MG575834 		$103.88 1
17K835 LR155839
COVER - TOWING HOOK OPENING
Tow Eye Cover -Starlite Dark Chrome / From: MG575835 		$103.88 1
17K835 LR117423
BUMPER - COVER
Bmpr Lwr Vlc-Fr Corris Grey/Rr Body / Primed / To: MG575834 		$183.39 1
17K835 LR117423
BUMPER - COVER
Towing Eye Cover - Narvik Black / Primed / From: MG575835 		$183.39 1
19A412 LR128231
FINISHER - BUMPER
Primed / To: MG575834 		$278.07 1
19A412 LR114912
FINISHER - BUMPER
Tow Eye Cover-Satin Blk/Dar Tch Slv / To: MG575834 		$158.46 1
19A412 LR155671
FINISHER - BUMPER
Towing Eye Cover-Feldberg Grey/Body / From: MG575835 		$251.28 1
16039 LR114860
MOULDING - REAR WHEEL ARCH
RH / To: LG561442 		$39.77 1
16039 LR114861
MOULDING - REAR WHEEL ARCH
LH / To: LG561442 		$38.49 1
16039 LR138236
MOULDING - REAR WHEEL ARCH
RH / From: LG561443 		$39.77 1
16039 LR138235
MOULDING - REAR WHEEL ARCH
LH / From: LG561443 		$38.49 1
17752 LR137682
BRACKET - BUMPER MOUNTING
Centre / From: KG006088 		$64.81 1
17906 LR135016
BUMPER - REAR 		$709.93 1
