Transmission Mounting (2.0L 16V Tivct T/C 240Ps Petrol, 9 Speed Auto Awd, Halewood (Uk), 2.0L 16V...

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Transmission Mounting (2.0L 16V TIVCT T/C 240PS Petrol, 9 Speed Auto AWD, Halewood (UK), 2.0L 16V...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR001187 BOLT $4.62 To Order
Photo Part No Description Price (each) Stock
FS112406 BOLT - HEX.HEAD $1.55 To Order
Photo Part No Description Price (each) Stock
LR055423 BOLT $0.99 To Order
Photo Part No Description Price (each) Stock
BYG500120 BOLT $2.31 To Order
Photo Part No Description Price (each) Stock
FB108106 BOLT $10.96 To Order
Photo Part No Description Price (each) Stock
RYG500170 BOLT $0.44 To Order
Photo Part No Description Price (each) Stock
LR004838 NUT $1.76 To Order
Photo Part No Description Price (each) Stock
FX108046 NUT - LOCKING $0.40 IN STOCK
Photo Part No Description Price (each) Stock
LR020623 REINFORCEMENT - ENGINE SUPPORT $40.70 To Order
Photo Part No Description Price (each) Stock
LR047393 DAMPER - VIBRATION $155.30 To Order
LR057475 DAMPER - VIBRATION $186.81 To Order
Photo Part No Description Price (each) Stock
LR047400 BRACKET - DAMPER $37.73 To Order
Photo Part No Description Price (each) Stock
LR047371 HOUSING - TRANSMISSION EXTENSION $180.51 To Order
LR061456 HOUSING - TRANSMISSION EXTENSION $169.73 To Order
LR083342 HOUSING - TRANSMISSION EXTENSION $548.58 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR047379 SUPPORT - TRANSMISSION CENTRE $396.32 To Order
View All

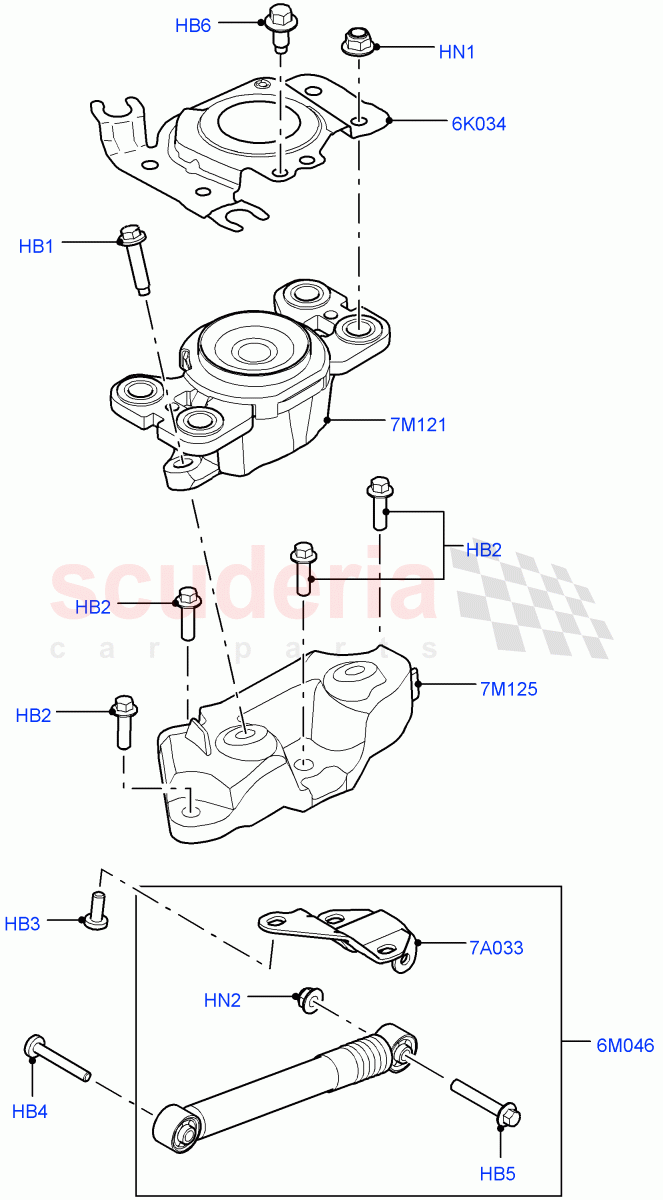

Transmission Mounting (2.0L 16V TIVCT T/C 240PS Petrol, 9 Speed Auto AWD, Halewood (UK), 2.0L 16V TIVCT T/C Gen2 Petrol) ((V) FROMEH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR001187
BOLT
M14 X 55MM / From: EH000001 		$4.62 2
HB2 FS112406
BOLT - HEX.HEAD
Hexagonal Head, M12 x 40MM / From: EH000001 		$1.55 4
HB3 LR055423
BOLT
M8 X 20MM / From: EH000001 		$0.99 3
HB4 BYG500120
BOLT
M8 x 50MM, Torx / From: EH000001 		$2.31 1
HB5 FB108106
BOLT
Hexagonal Head, M8 x 50MM / From: EH000001 		$10.96 1
HB6 RYG500170
BOLT
Bracket, M8 X 14MM 		$0.44 2
HN1 LR004838
NUT
M12, Nut And Washer / From: EH000001 		$1.76 4
HN2 FX108046
NUT - LOCKING
M8
IN STOCK 		$0.40 1
6K034 LR020623
REINFORCEMENT - ENGINE SUPPORT
From: EH000001 		$40.70 1
6M046 LR047393
DAMPER - VIBRATION
Transmission / From: EH000001 / To: EH869525 		$155.30 1
6M046 LR057475
DAMPER - VIBRATION
Transmission / From: EH869526 		$186.81 1
7A033 LR047400
BRACKET - DAMPER
From: EH000001 		$37.73 1
7M121 LR047371
HOUSING - TRANSMISSION EXTENSION
With Insulator / From: EH000001 / To: EH902478 		$180.51 1
7M121 LR061456
HOUSING - TRANSMISSION EXTENSION
5 Door / With Insulator / From: EH902479 		$169.73 1
7M121 LR083342
HOUSING - TRANSMISSION EXTENSION
2 Door Convertible / With Insulator / From: GH000001 / To: GH163652 		$548.58 1
7M121 LR090562
HOUSING - TRANSMISSION EXTENSION
2 Door Convertible / With Insulator / From: GH163653 		$209.40 1
7M125 LR047379
SUPPORT - TRANSMISSION CENTRE
From: EH000001 		$396.32 1
