Name: Floor Pan - Centre And Rear (Changsu (China)) ((V) FROMEG000001)
Rating: 4.6 (1 reviews)

Floor Pan - Centre And Rear (Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Floor Pan - Centre And Rear (Changsu (China)) ((V) FROMEG000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR023457	BOLT	$6.15	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500420	NUT AND WASHER - HEX.	$0.44	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR038358	GUSSET - MEMBER - FLOOR SIDE	$28.28	To Order
	LR038359	GUSSET - MEMBER - FLOOR SIDE	$28.28	To Order
	LR083801	GUSSET - MEMBER - FLOOR SIDE	$28.28	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR028935	MOULDING - FUEL TANK PROTECTION	$25.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048726	MEMBER - FLOOR SIDE	$769.42	To Order
	LR051412	MEMBER - FLOOR SIDE	$769.18	To Order
	LR076971	MEMBER - FLOOR SIDE	$711.38	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR027571	CROSSMEMBER - REAR FLOOR	$880.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027572	PAN - FLOOR - REAR	$1,424.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000179	BRACKET - SPARE WHEEL CARRIER	$10.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044060	BRACKET - TOW EYE	$99.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027576	EXTENSION - REAR FLOOR SIDE MEMBER	$9.51	To Order
	LR027577	EXTENSION - REAR FLOOR SIDE MEMBER	$8.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028332	PANEL - BODY REAR	$374.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049330	STIFFENER - XMEMBER	$106.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027574	PAN - FLOOR SIDE	$191.34	To Order
	LR027575	PAN - FLOOR SIDE	$127.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032529	PAD - ANTI-RATTLE	$8.95	To Order

View All

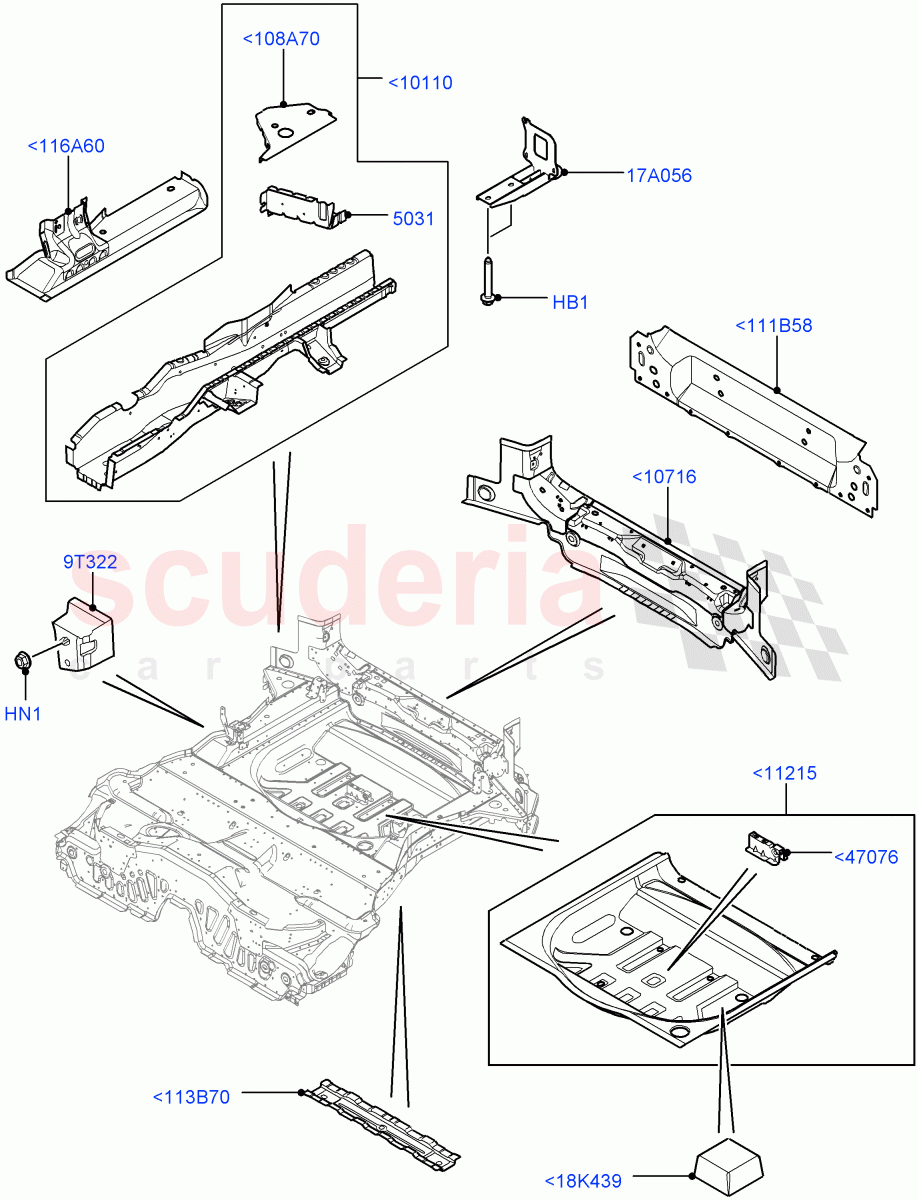

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<18K439	LR032529	PAD - ANTI-RATTLE	LR032529 PAD - ANTI-RATTLE Less Tyre Repair Service Kit / For Spare Wheel / From: EG000001	$8.95	2
<108A70	LR027576	EXTENSION - REAR FLOOR SIDE MEMBER	LR027576 EXTENSION - REAR FLOOR SIDE MEMBER RH / From: EG000001	$9.51	1
<108A70	LR027577	EXTENSION - REAR FLOOR SIDE MEMBER	LR027577 EXTENSION - REAR FLOOR SIDE MEMBER LH / From: EG000001	$8.84	1
<111B58	LR028332	PANEL - BODY REAR	LR028332 PANEL - BODY REAR Lower, Outer / From: EG000001	$374.94	1
<113B70	LR049330	STIFFENER - XMEMBER	LR049330 STIFFENER - XMEMBER Centre / From: EG000001	$106.24	1
<116A60	LR027574	PAN - FLOOR SIDE	LR027574 PAN - FLOOR SIDE RH / From: EG000001	$191.34	1
<116A60	LR027575	PAN - FLOOR SIDE	LR027575 PAN - FLOOR SIDE LH / From: EG000001	$127.57	1
<10110	LR048726	MEMBER - FLOOR SIDE	LR048726 MEMBER - FLOOR SIDE RH / From: EG000001 / To: GG134737	$769.42	1
<10110	LR051412	MEMBER - FLOOR SIDE	LR051412 MEMBER - FLOOR SIDE LH / From: EG000001 / To: GG134737	$769.18	1
<10110	LR076971	MEMBER - FLOOR SIDE	LR076971 MEMBER - FLOOR SIDE RH / From: GG134738 / To: HG158028	$711.38	1
<10110	LR076972	MEMBER - FLOOR SIDE	LR076972 MEMBER - FLOOR SIDE LH / From: GG134738 / To: HG158028	$693.84	1
<10110	LR106410	MEMBER - FLOOR SIDE	LR106410 MEMBER - FLOOR SIDE RH / From: HG158029	$711.38	1
<10110	LR106409	MEMBER - FLOOR SIDE	LR106409 MEMBER - FLOOR SIDE LH / From: HG158029	$693.84	1
<10716	LR027571	CROSSMEMBER - REAR FLOOR	LR027571 CROSSMEMBER - REAR FLOOR From: EG000001	$880.18	1
<11215	LR027572	PAN - FLOOR - REAR	LR027572 PAN - FLOOR - REAR From: EG000001	$1,424.81	1
<47076	LR000179	BRACKET - SPARE WHEEL CARRIER	LR000179 BRACKET - SPARE WHEEL CARRIER From: EG000001	$10.25	1
HB1	LR023457	BOLT	LR023457 BOLT Hex Head, M14 X 90 / From: EG000001	$6.15	2
HN1	RYH500420	NUT AND WASHER - HEX. IN STOCK	RYH500420 NUT AND WASHER - HEX. Hexagonal Head, M6, Nut And Washer / From: EG000001 IN STOCK	$0.44	1
9T322	LR028935	MOULDING - FUEL TANK PROTECTION	LR028935 MOULDING - FUEL TANK PROTECTION From: EG000001	$25.06	1
17A056	LR044060	BRACKET - TOW EYE	LR044060 BRACKET - TOW EYE Towing Eye / From: EG000001	$99.99	1
5031	LR038358	GUSSET - MEMBER - FLOOR SIDE	LR038358 GUSSET - MEMBER - FLOOR SIDE RH, Member Assy - Floor Side / From: EG000001 / To: HG150633	$28.28	1
5031	LR038359	GUSSET - MEMBER - FLOOR SIDE	LR038359 GUSSET - MEMBER - FLOOR SIDE LH, Member Assy - Floor Side / From: EG000001 / To: GG134737	$28.28	1
5031	LR083801	GUSSET - MEMBER - FLOOR SIDE	LR083801 GUSSET - MEMBER - FLOOR SIDE LH, Member Assy - Floor Side / From: GG134738 / To: HG158027	$28.28	1
5031	LR083800	GUSSET - MEMBER - FLOOR SIDE	LR083800 GUSSET - MEMBER - FLOOR SIDE RH, Member Assy - Floor Side / From: HG150634 / To: HG158027	$28.28	1
5031	LR106411	GUSSET - MEMBER - FLOOR SIDE	LR106411 GUSSET - MEMBER - FLOOR SIDE RH, Member Assy - Floor Side / From: HG158028	$28.28	1
5031	LR106412	GUSSET - MEMBER - FLOOR SIDE	LR106412 GUSSET - MEMBER - FLOOR SIDE LH, Member Assy - Floor Side / From: HG158028	$28.28	1

Floor Pan - Centre And Rear (Changsu (China)) ((V) Fromeg000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Floor Pan - Centre And Rear (Changsu (China)) ((V) FROMEG000001)
