Luggage Compartment Door (Door And Fixings) (3 Door, Halewood (UK), 5 Door) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Luggage Compartment Door (Door And Fixings) (3 Door, Halewood (UK), 5 Door)

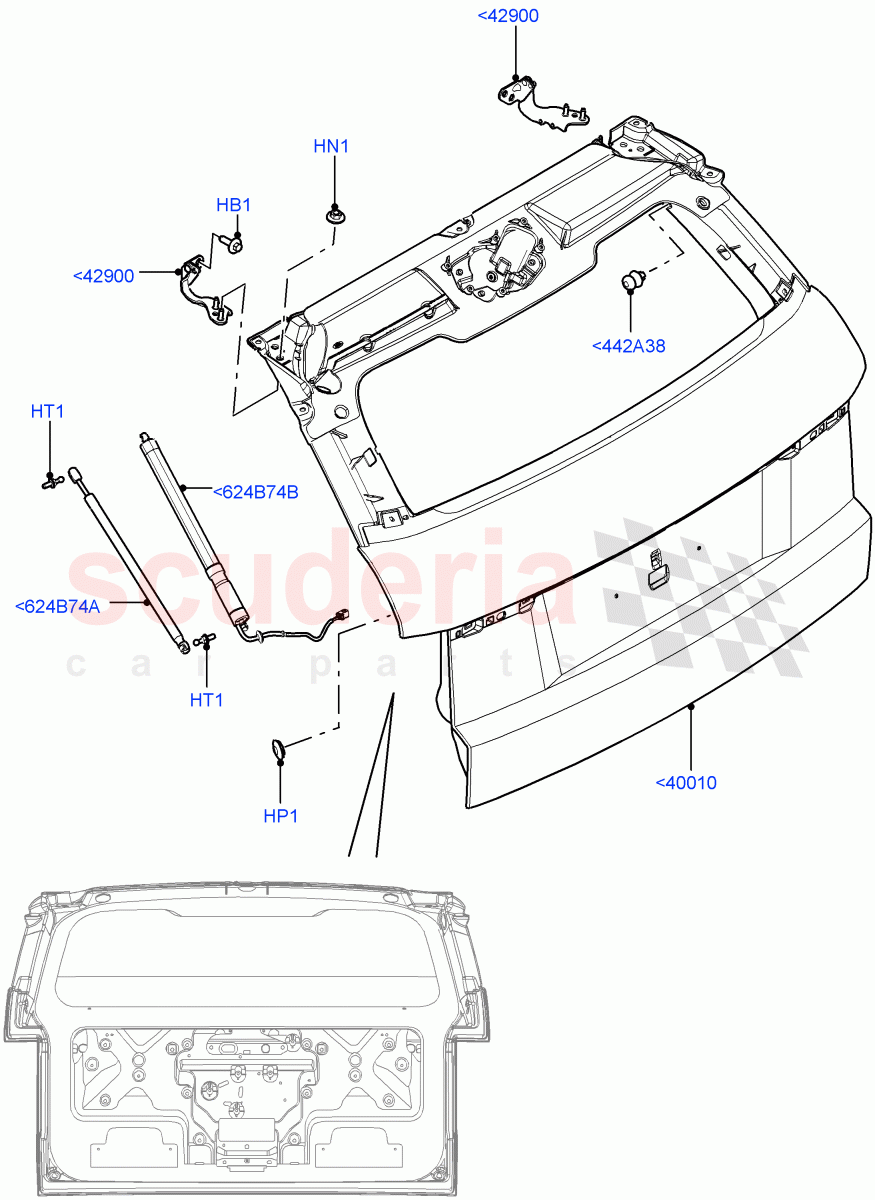

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR024183	BOLT	$1.79	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500370	NUT AND WASHER - HEX.	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012710	PLUG - BODY SEALING	$1.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002226	STUD	$1.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027614	DOOR - REAR - LESS HINGES	$2,011.81	To Order
	LR027615	DOOR - REAR - LESS HINGES	$2,011.81	To Order
	LR033119	DOOR - REAR - LESS HINGES	$1,851.39	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR025445	HINGE - TAILGATE	$31.08	To Order
	LR025446	HINGE - TAILGATE	$31.08	To Order
	LR038586	HINGE - TAILGATE	$31.08	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR025401	BUTTON - PACKAGE TRAY STRAP	$5.81	To Order
	LR074992	HOOK PIN - LOAD SPACE CORD	$6.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025379	STRUT - TAILGATE	$47.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135655	STRUT - TAILGATE	$431.67	To Order
	LR051452	STRUT - TAILGATE	$373.92	To Order
	LR061667	STRUT - TAILGATE	$327.51	To Order

...and 3 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<442A38	LR025401	BUTTON - PACKAGE TRAY STRAP	LR025401 BUTTON - PACKAGE TRAY STRAP To: DH733358	$5.81	2
<442A38	LR074992	HOOK PIN - LOAD SPACE CORD	LR074992 HOOK PIN - LOAD SPACE CORD From: DH733359	$6.41	2
<624B74A	LR025379	STRUT - TAILGATE	LR025379 STRUT - TAILGATE With Conventional Tailgate / Gas	$47.37	2
<624B74B	LR135655	STRUT - TAILGATE	LR135655 STRUT - TAILGATE Tailgate-Powered Upper / To: DH807513	$431.67	2
<624B74B	LR051452	STRUT - TAILGATE	LR051452 STRUT - TAILGATE Tailgate-Powered Upper / From: DH807514 / To: EH869533	$373.92	2
<624B74B	LR061667	STRUT - TAILGATE	LR061667 STRUT - TAILGATE Tailgate - Hands Free / From: EH869534 / To: GH112206	$327.51	2
<624B74B	LR081964	STRUT - TAILGATE	LR081964 STRUT - TAILGATE Tailgate - Hands Free / From: GH112207 / To: HH237348	$442.88	2
<624B74B	LR105392	STRUT - TAILGATE	LR105392 STRUT - TAILGATE Tailgate-Powered Upper / From: HH237349 / To: KH112206	$386.58	2
<624B74B	LR135655	STRUT - TAILGATE	LR135655 STRUT - TAILGATE Tailgate-Powered Upper / From: KH112207	$431.67	2
<40010	LR027614	DOOR - REAR - LESS HINGES	LR027614 DOOR - REAR - LESS HINGES 5 Door / Before Ordering A Tailgate, Please Refer To Topix - TSB Bulletin LTB01093v2 / To: CH619600	$2,011.81	1
<40010	LR027615	DOOR - REAR - LESS HINGES	LR027615 DOOR - REAR - LESS HINGES 3 Door / Before Ordering A Tailgate, Please Refer To Topix - TSB Bulletin LTB01093v2 / To: CH619600	$2,011.81	1
<40010	LR033119	DOOR - REAR - LESS HINGES	LR033119 DOOR - REAR - LESS HINGES 5 Door / Before Ordering A Tailgate, Please Refer To Topix - TSB Bulletin LTB01093v2 / From: CH619601 / To: CH622056	$1,851.39	1
<40010	LR033120	DOOR - REAR - LESS HINGES	LR033120 DOOR - REAR - LESS HINGES 3 Door / Before Ordering A Tailgate, Please Refer To Topix - TSB Bulletin LTB01093v2 / From: CH619601 / To: CH622056	$1,851.39	1
<40010	LR036460	DOOR - REAR - LESS HINGES	LR036460 DOOR - REAR - LESS HINGES 3 Door / Before Ordering A Tailgate, Please Refer To Topix - TSB Bulletin LTB01093v2 / From: CH622057 / To: DH733358	$1,912.63	1
<40010	LR036459	DOOR - REAR - LESS HINGES	LR036459 DOOR - REAR - LESS HINGES 5 Door / Before Ordering A Tailgate, Please Refer To Topix - TSB Bulletin LTB01093v2 / From: CH622057 / To: DH733358	$1,914.69	1
<40010	LR046909	DOOR - REAR - LESS HINGES	LR046909 DOOR - REAR - LESS HINGES 5 Door / Also Please Order Two Pivots LR048571, Before Ordering A Tailgate, Please Refer To Topix - TSB Bulletin LTB01093v2 / From: DH733359 / To: EH864585	$1,839.13	1
<40010	LR046935	DOOR - REAR - LESS HINGES	LR046935 DOOR - REAR - LESS HINGES 3 Door / Also Please Order Two Pivots LR048571, Before Ordering A Tailgate, Please Refer To Topix - TSB Bulletin LTB01093v2 / From: DH733359 / To: EH864585	$1,933.47	1
<40010	LR064614	DOOR - REAR - LESS HINGES	LR064614 DOOR - REAR - LESS HINGES 5 Door / Also Please Order Two Pivots LR048571, Before Ordering A Tailgate, Please Refer To Topix - TSB Bulletin LTB01093v2 / From: EH864586 / To: FH057635	$1,828.95	1
<40010	LR064615	DOOR - REAR - LESS HINGES	LR064615 DOOR - REAR - LESS HINGES 3 Door / Also Please Order Two Pivots LR048571, Before Ordering A Tailgate, Please Refer To Topix - TSB Bulletin LTB01093v2 / From: EH864586 / To: FH057635	$1,845.22	1
<40010	LR077685	DOOR - REAR - LESS HINGES	LR077685 DOOR - REAR - LESS HINGES 5 Door / Also Please Order Two Pivots LR048571, Before Ordering A Tailgate, Please Refer To Topix - TSB Bulletin LTB01093v2 / From: FH057636	$1,832.21	1
<40010	LR077688	DOOR - REAR - LESS HINGES	LR077688 DOOR - REAR - LESS HINGES 3 Door / Also Please Order Two Pivots LR048571, Before Ordering A Tailgate, Please Refer To Topix - TSB Bulletin LTB01093v2 / From: FH057636	$1,845.22	1
<42900	LR025445	HINGE - TAILGATE	LR025445 HINGE - TAILGATE RH / To: CH652558	$31.08	1
<42900	LR025446	HINGE - TAILGATE	LR025446 HINGE - TAILGATE LH / To: CH652558	$31.08	1
<42900	LR038586	HINGE - TAILGATE	LR038586 HINGE - TAILGATE RH / From: CH652559 / To: EH790640	$31.08	1
<42900	LR038587	HINGE - TAILGATE	LR038587 HINGE - TAILGATE LH / From: CH652559 / To: EH790640	$29.47	1
<42900	LR051477	HINGE - TAILGATE	LR051477 HINGE - TAILGATE LH / From: EH790641 / To: FH999999	$46.70	1
<42900	LR051478	HINGE - TAILGATE	LR051478 HINGE - TAILGATE RH / From: EH790641 / To: FH999999	$44.24	1
<42900	LR074264	HINGE - DOOR	LR074264 HINGE - DOOR LH / From: GH000001 / To: GH999999	$60.31	1
<42900	LR074263	HINGE - DOOR	LR074263 HINGE - DOOR RH / From: GH000001 / To: GH999999	$64.59	1
<42900	LR088975	HINGE - DOOR	LR088975 HINGE - DOOR RH / From: HH000001	$83.13	1
<42900	LR088976	HINGE - DOOR	LR088976 HINGE - DOOR LH / From: HH000001	$83.13	1
HB1	LR024183	BOLT	LR024183 BOLT Hexagonal Head, M8 X 25MM	$1.79	4
HN1	RYH500370	NUT AND WASHER - HEX.	RYH500370 NUT AND WASHER - HEX. M8 Hex, Nut And Washer	$0.67	4
HP1	LR012710	PLUG - BODY SEALING	LR012710 PLUG - BODY SEALING	$1.32	-
HT1	LR002226	STUD	LR002226 STUD M8 x 19MM	$1.76	4

Luggage Compartment Door (Door And Fixings) (3 Door, Halewood (Uk), 5 Door)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Luggage Compartment Door (Door And Fixings) (3 Door, Halewood (UK), 5 Door)
