Side Panels - Inner (Rear) (Itatiaia (Brazil)) ((V) Fromgt000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Side Panels - Inner (Rear) (Itatiaia (Brazil)) ((V) FROMGT000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYH500780 NUT - HEX. $1.21 To Order
Photo Part No Description Price (each) Stock
RYH500950 NUT - ADJUSTING $1.22 To Order
Photo Part No Description Price (each) Stock
LR000890 SCREW AND WASHER $0.64 To Order
Photo Part No Description Price (each) Stock
LR002162 SCREW AND WASHER $0.83 To Order
Photo Part No Description Price (each) Stock
RYQ500070 PIN - RETAINING 6.3 X 22MM $1.53 IN STOCK
Photo Part No Description Price (each) Stock
LR027603 REINFORCEMENT - REAR QUARTER PANEL $117.28 To Order
LR027604 REINFORCEMENT - REAR QUARTER PANEL $117.28 To Order
Photo Part No Description Price (each) Stock
LR083865 SHIELD - SPLASH - WHEELHOUSE $150.74 To Order
LR083867 SHIELD - SPLASH - WHEELHOUSE $153.44 To Order
Photo Part No Description Price (each) Stock
LR072705 PANEL - REAR QUARTER - INNER $1,095.69 To Order
LR072713 PANEL - REAR QUARTER - INNER $1,095.69 To Order
View All

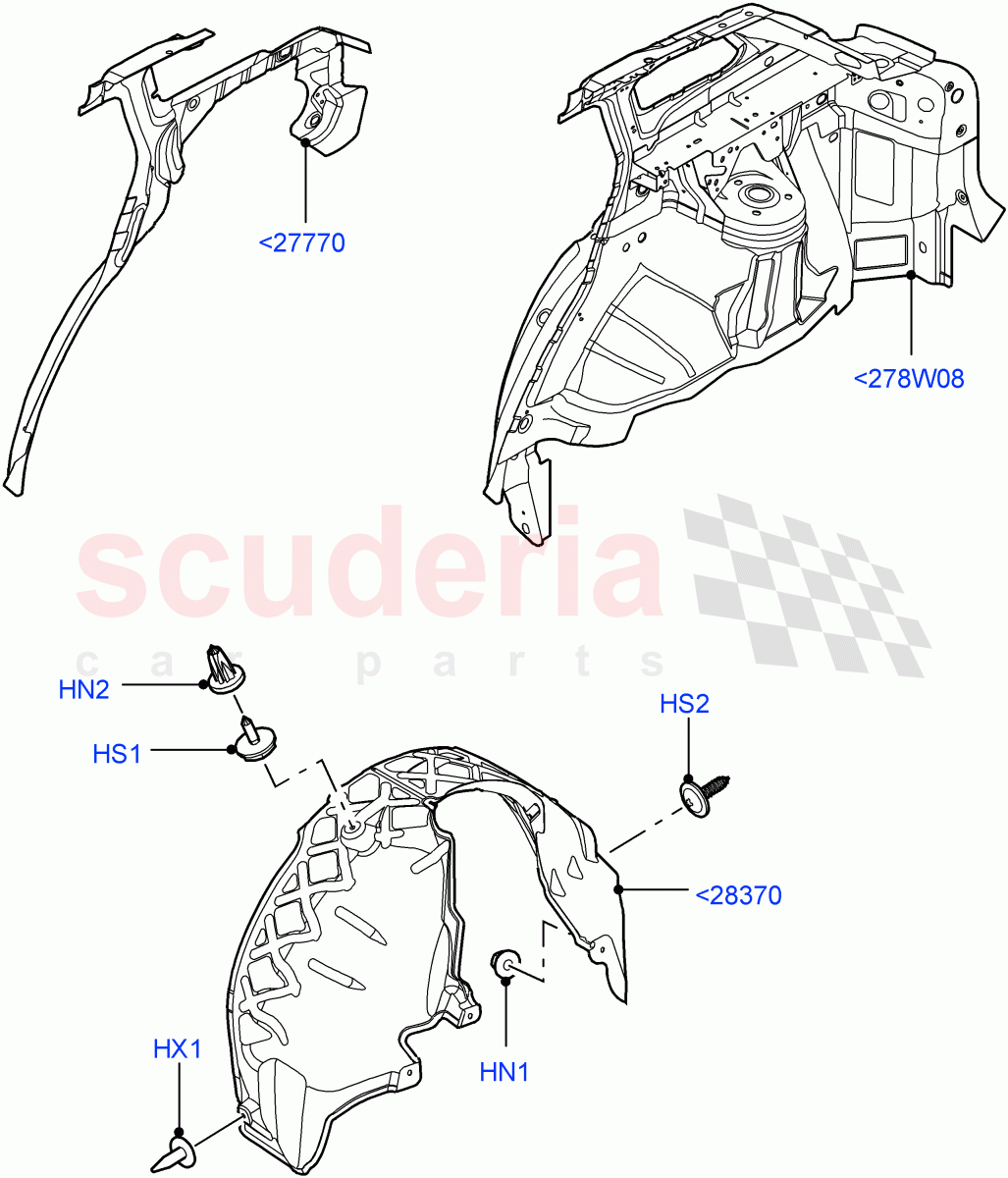

Side Panels - Inner (Rear) (Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<278W08 LR072705
PANEL - REAR QUARTER - INNER
Less Bonnet Scoop / RH / From: GT000001 		$1,095.69 1
<278W08 LR072713
PANEL - REAR QUARTER - INNER
Less Bonnet Scoop / LH / From: GT000001 		$1,095.69 1
<27770 LR027603
REINFORCEMENT - REAR QUARTER PANEL
RH / From: GT000001 		$117.28 1
<27770 LR027604
REINFORCEMENT - REAR QUARTER PANEL
LH / From: GT000001 		$117.28 1
<28370 LR083865
SHIELD - SPLASH - WHEELHOUSE
RH / From: GT000001 		$150.74 1
<28370 LR083867
SHIELD - SPLASH - WHEELHOUSE
LH / From: GT000001 		$153.44 1
HN1 RYH500780
NUT - HEX.
M6, Plastic Nut / From: GT000001 		$1.21 2
HN2 RYH500950
NUT - ADJUSTING
4.8 X 8 X 8 X 0.7, Expanding Rivet, Includes Seal / From: GT000001 		$1.22 2
HS1 LR000890
SCREW AND WASHER
4.8 X 19MM, Screw And Washer / From: GT000001 		$0.64 2
HS2 LR002162
SCREW AND WASHER
4.8 x 20MM, Cross Recess Drive / From: GT000001 		$0.83 2
HX1 RYQ500070
PIN - RETAINING 6.3 X 22MM
6.3 X 22MM, Push Pin / From: GT000001
IN STOCK 		$1.53 6
