Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Front Doors, Hinges & Weatherstrips (Door And Fixings) (3 Door, Halewood (UK), 5 Door)

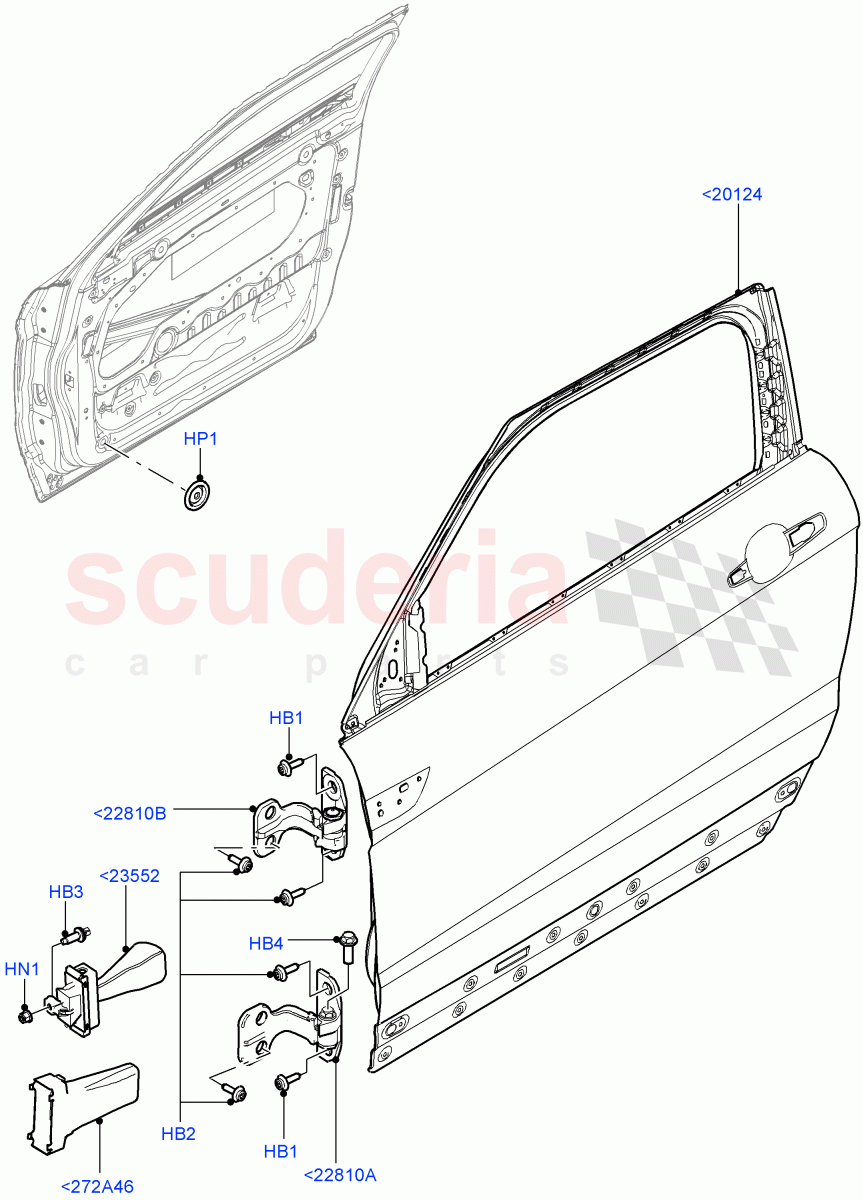

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR025397	BOLT	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025399	BOLT	$2.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032819	BOLT AND WASHER - TORX HEAD	$1.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027625	BOLT	$1.11	To Order
	LR037063	BOLT	$1.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000046	NUT - HEX.	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005590	PLUG	$3.68	To Order
	LR095474	PLUG - BODY SEALING	$5.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028553	DOOR - FRONT - LESS HINGES	$1,705.57	To Order
	LR028555	DOOR - FRONT - LESS HINGES	$2,857.98	To Order
	LR028554	DOOR - FRONT - LESS HINGES	$2,857.98	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR027612	CHECK - DOOR	$29.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025387	HINGE - DOOR	$70.01	To Order
	LR025388	HINGE - DOOR	$70.01	To Order
	LR042350	HINGE - DOOR	$70.01	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR025385	HINGE - DOOR	$70.01	To Order
	LR025384	HINGE - DOOR	$70.01	To Order
	LR042352	HINGE - DOOR	$70.01	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	BFM500020	COVER - DOOR CHECK PROTECTION	$10.46	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<272A46	BFM500020	COVER - DOOR CHECK PROTECTION	BFM500020 COVER - DOOR CHECK PROTECTION With Weather Protection Seals	$10.46	2
<20124	LR028553	DOOR - FRONT - LESS HINGES	LR028553 DOOR - FRONT - LESS HINGES 5 Door / LH	$1,705.57	1
<20124	LR028555	DOOR - FRONT - LESS HINGES	LR028555 DOOR - FRONT - LESS HINGES 3 Door / LH	$2,857.98	1
<20124	LR028554	DOOR - FRONT - LESS HINGES	LR028554 DOOR - FRONT - LESS HINGES 3 Door / RH	$2,857.98	1
<20124	LR028552	DOOR - FRONT - LESS HINGES	LR028552 DOOR - FRONT - LESS HINGES 5 Door / RH	$1,705.57	1
<22810A	LR025387	HINGE - DOOR	LR025387 HINGE - DOOR RH, Lower / To: DH720024	$70.01	1
<22810A	LR025388	HINGE - DOOR	LR025388 HINGE - DOOR LH, Lower / To: DH720024	$70.01	1
<22810A	LR042350	HINGE - DOOR	LR042350 HINGE - DOOR RH, Lower / From: DH720025 / To: DH854641	$70.01	1
<22810A	LR042351	HINGE - DOOR	LR042351 HINGE - DOOR LH, Lower / From: DH720025 / To: DH854641	$70.01	1
<22810A	LR056351	HINGE - DOOR	LR056351 HINGE - DOOR RH, Lower / From: DH854642	$78.76	1
<22810A	LR056352	HINGE - DOOR	LR056352 HINGE - DOOR LH, Lower / From: DH854642	$70.53	1
<22810B	LR025385	HINGE - DOOR	LR025385 HINGE - DOOR LH, Upper / To: DH720024	$70.01	1
<22810B	LR025384	HINGE - DOOR	LR025384 HINGE - DOOR RH, Upper / To: DH720024	$70.01	1
<22810B	LR042352	HINGE - DOOR	LR042352 HINGE - DOOR RH, Upper / From: DH720025 / To: DH854641	$70.01	1
<22810B	LR042353	HINGE - DOOR	LR042353 HINGE - DOOR LH, Upper / From: DH720025 / To: DH854641	$70.01	1
<22810B	LR056353	HINGE - DOOR	LR056353 HINGE - DOOR RH, Upper / From: DH854642	$73.73	1
<22810B	LR056354	HINGE - DOOR	LR056354 HINGE - DOOR LH, Upper / From: DH854642	$78.76	1
<23552	LR027612	CHECK - DOOR	LR027612 CHECK - DOOR	$29.60	1
HB1	LR025397	BOLT	LR025397 BOLT Door Hinge, M8 X 25MM	$1.51	2
HB2	LR025399	BOLT	LR025399 BOLT Door Hinge, M8 X 25MM	$2.01	6
HB3	LR032819	BOLT AND WASHER - TORX HEAD	LR032819 BOLT AND WASHER - TORX HEAD M8 X 20MM	$1.24	1
HB4	LR027625	BOLT	LR027625 BOLT Door Hinge, M8 x 19MM / To: DH720024	$1.11	2
HB4	LR037063	BOLT	LR037063 BOLT Door Hinge, M7 X 14.4 / From: DH720025	$1.81	2
HN1	LR000046	NUT - HEX.	LR000046 NUT - HEX. Hexagonal Head, M6	$0.52	2
HP1	LR005590	PLUG	LR005590 PLUG 19 x 0.7MM, For Front Door / To: HH202101	$3.68	2
HP1	LR095474	PLUG - BODY SEALING	LR095474 PLUG - BODY SEALING For Front Door,	$5.48	2
