Rear Bumper (Changsu (China), Sport/Dynamic) ((V) Fromeg000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Rear Bumper (Changsu (China), Sport/Dynamic) ((V) FROMEG000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR028941 BOLT $1.39 To Order
Photo Part No Description Price (each) Stock
LR027255 CLIP $4.16 IN STOCK
Photo Part No Description Price (each) Stock
RZM500140 CLIP $1.16 IN STOCK
Photo Part No Description Price (each) Stock
RYH500950 NUT - ADJUSTING $1.23 To Order
Photo Part No Description Price (each) Stock
RYH500370 NUT AND WASHER - HEX. $0.67 To Order
Photo Part No Description Price (each) Stock
LR000053 NUT - FLANGED $1.63 IN STOCK
Photo Part No Description Price (each) Stock
RYH500540 NUT - SPECIAL $1.24 To Order
RYH500570 NUT - ADJUSTING $2.85 To Order
Photo Part No Description Price (each) Stock
LR006025 BOLT $1.39 IN STOCK
Photo Part No Description Price (each) Stock
LR001598 SCREW $0.67 To Order
Photo Part No Description Price (each) Stock
CYP100791 SCREW $2.29 IN STOCK
Photo Part No Description Price (each) Stock
LR083229 SCREW $4.25 IN STOCK
Photo Part No Description Price (each) Stock
LR083229 SCREW $4.25 IN STOCK
Photo Part No Description Price (each) Stock
RYQ500070 PIN - RETAINING 6.3 X 22MM $1.51 IN STOCK
Photo Part No Description Price (each) Stock
LR058059 BUMPER - REAR $945.89 To Order
LR048692 BUMPER - REAR $1,085.91 To Order
LR088361 BUMPER - REAR $1,085.91 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR027868 HEAT SHIELD - MUFFLER $52.54 To Order
Photo Part No Description Price (each) Stock
LR112629 HEAT SHIELD - EXHAUST $32.21 To Order
LR112630 HEAT SHIELD - EXHAUST $32.04 To Order
Photo Part No Description Price (each) Stock
LR029080 FINISHER - BUMPER $48.42 To Order
LR029079 FINISHER - BUMPER $48.42 To Order
Photo Part No Description Price (each) Stock
LR044061 REINFORCEMENT - BUMPER BAR BRACKET $631.51 To Order
LR066891 REINFORCEMENT - BUMPER BAR BRACKET $553.54 To Order
Photo Part No Description Price (each) Stock
LR042994 BRACKET - BUMPER MOUNTING $40.77 To Order
LR042995 BRACKET - BUMPER MOUNTING $40.77 To Order
Photo Part No Description Price (each) Stock
LR035106 BRACKET - BUMPER MOUNTING $22.88 To Order
LR035107 BRACKET - BUMPER MOUNTING $22.88 To Order
Photo Part No Description Price (each) Stock
LR006719 RETAINER - NUT $1.89 To Order
Photo Part No Description Price (each) Stock
LR027871 FINISHER - EXHAUST $332.79 To Order
LR027872 FINISHER - EXHAUST $332.79 To Order
LR049367 FINISHER - EXHAUST $1,011.36 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR112588 COVER - TOWING HOOK $837.37 To Order
LR112589 PANEL - VALANCE $768.08 To Order
Photo Part No Description Price (each) Stock
LR028089 COVER - TOWING HOOK $96.99 To Order
LR028087 COVER - TOWING HOOK $110.73 To Order
Photo Part No Description Price (each) Stock
LR048699 BRACKET - BUMPER MOUNTING $97.63 To Order
LR048700 BRACKET - BUMPER MOUNTING $97.63 To Order
LR048696 BRACKET - BUMPER MOUNTING $29.03 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR035104 BRACKET - BUMPER MOUNTING $50.06 To Order
LR035105 BRACKET - BUMPER MOUNTING $50.06 To Order
View All

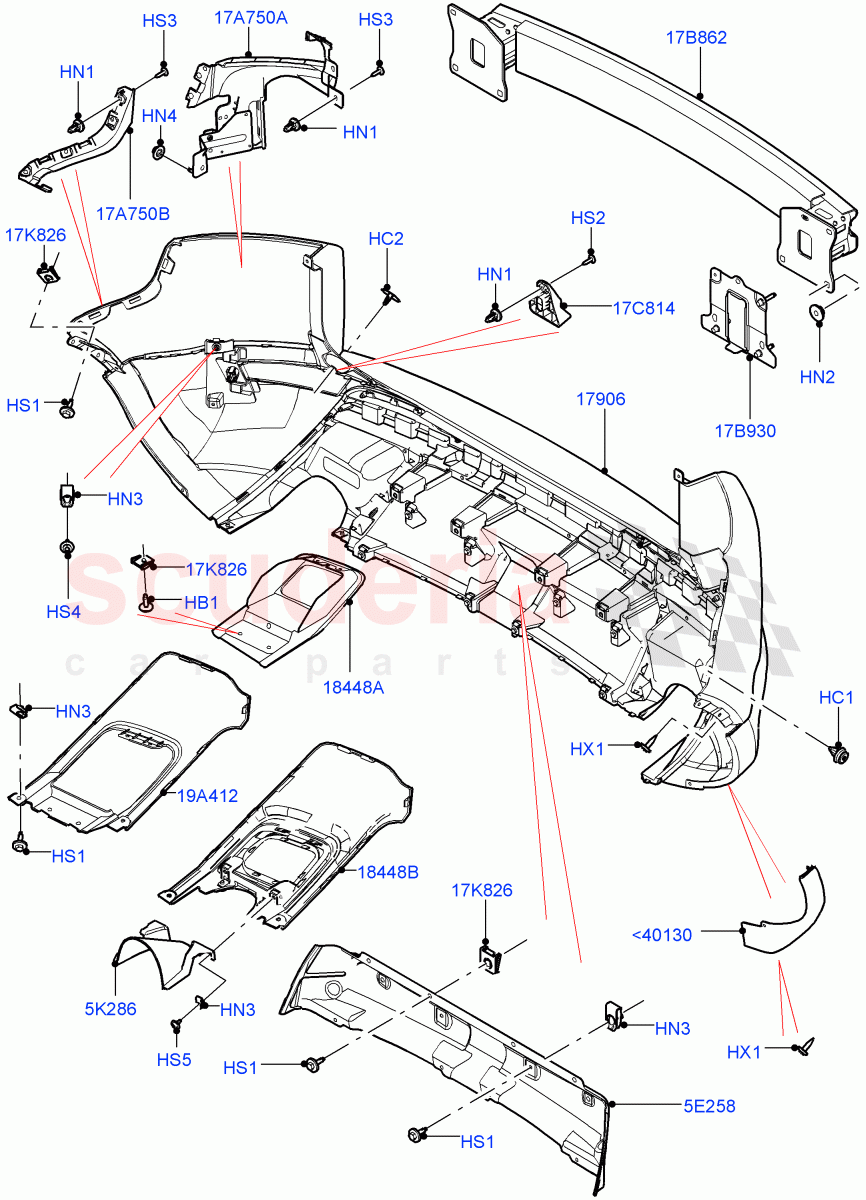

Rear Bumper (Changsu (China), Sport/Dynamic) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<40130 LR029080
FINISHER - BUMPER
Less Automated Parking System / LH / From: EG000001 		$48.42 1
<40130 LR029079
FINISHER - BUMPER
Less Automated Parking System / RH / From: EG000001 		$48.42 1
HB1 LR028941
BOLT
Exhaust Exit Bumper Finisher, M6 x 18MM / From: EG000001 		$1.39 2
HC1 LR027255
CLIP
Trim Pin 8 X 2.9 - 3.1 + 2.3 Special Plastic, Wheelarch / From: EG000001
IN STOCK 		$4.16 4
HC2 RZM500140
CLIP
Trim Pin 12 X 0.8 - 8.4 Nylon / From: EG000001
IN STOCK 		$1.16 2
HN1 RYH500950
NUT - ADJUSTING
4.8 X 8 X 8 X 0.7, Expanding Rivet, Includes Seal / From: EG000001 		$1.23 16
HN2 RYH500370
NUT AND WASHER - HEX.
M8 Hex, Nut And Washer / From: EG000001 		$0.67 6
HN3 LR000053
NUT - FLANGED
U-Nut M6 X 0.8 - 4.0 / From: EG000001
IN STOCK 		$1.63 8
HN4 RYH500540
NUT - SPECIAL
With Blind Spot Monitoring / M6 / From: EG000001 		$1.24 2
HN4 RYH500570
NUT - ADJUSTING
Lane Change Merge Aid / M6 / From: EG000001 		$2.85 2
HS1 LR006025
BOLT
Bolt And Washer, M6 X 15 Hex / From: EG000001
IN STOCK 		$1.39 18
HS2 LR001598
SCREW
4.8 X 19MM, Torx / From: EG000001 		$0.67 4
HS3 CYP100791
SCREW
M5 / From: EG000001
IN STOCK 		$2.29 12
HS4 LR083229
SCREW
M6 x 18MM / From: EG000001
IN STOCK 		$4.25 2
HS5 LR083229
SCREW
Exhaust, Exhaust Exit Bumper Finisher, M6 X 14MM / From: HG161788
IN STOCK 		$4.25 8
HX1 RYQ500070
PIN - RETAINING 6.3 X 22MM
6.3 X 22MM, Push Pin / From: EG000001
IN STOCK 		$1.51 4
5E258 LR027868
HEAT SHIELD - MUFFLER
Muffler Heat Shield / From: EG000001 		$52.54 1
5K286 LR112629
HEAT SHIELD - EXHAUST
Dual Exh Olet W/Squa Tail Pipe Garn / LH / From: HG161788 		$32.21 1
5K286 LR112630
HEAT SHIELD - EXHAUST
Dual Exh Olet W/Squa Tail Pipe Garn / RH / From: HG161788 		$32.04 1
17A750A LR048699
BRACKET - BUMPER MOUNTING
Reverse Traffic Detection/CTA/LCMA / RH / From: EG000001 / To: HG161787 		$97.63 1
17A750A LR048700
BRACKET - BUMPER MOUNTING
Reverse Traffic Detection/CTA/LCMA / LH / From: EG000001 / To: HG161787 		$97.63 1
17A750A LR048696
BRACKET - BUMPER MOUNTING
Less Blind Spot Information System / RH / From: EG000001 / To: HG161787 		$29.03 1
17A750A LR048697
BRACKET - BUMPER MOUNTING
Less Blind Spot Information System / LH / From: EG000001 / To: HG161787 		$32.40 1
17A750A LR099518
BRACKET - BUMPER MOUNTING
Reverse Traffic Detection/CTA/LCMA / RH / From: HG161788 		$119.33 1
17A750A LR099520
BRACKET - BUMPER MOUNTING
Reverse Traffic Detection/CTA/LCMA / LH / From: HG161788 		$119.33 1
17A750A LR099648
BRACKET - BUMPER MOUNTING
Less Blind Spot Information System / RH / From: HG161788 		$27.67 1
17A750A LR099649
BRACKET - BUMPER MOUNTING
Less Blind Spot Information System / LH / From: HG161788 		$27.67 1
17A750B LR035104
BRACKET - BUMPER MOUNTING
RH / From: EG000001 		$50.06 1
17A750B LR035105
BRACKET - BUMPER MOUNTING
LH / From: EG000001 		$50.06 1
17B862 LR044061
REINFORCEMENT - BUMPER BAR BRACKET
Armature / From: EG000001 / To: FG105209 		$631.51 1
17B862 LR066891
REINFORCEMENT - BUMPER BAR BRACKET
Armature / From: FG105210 		$553.54 1
17B930 LR042994
BRACKET - BUMPER MOUNTING
RH / From: EG000001 		$40.77 1
17B930 LR042995
BRACKET - BUMPER MOUNTING
LH / From: EG000001 		$40.77 1
17C814 LR035106
BRACKET - BUMPER MOUNTING
RH, Lower / From: EG000001 		$22.88 1
17C814 LR035107
BRACKET - BUMPER MOUNTING
LH, Lower / From: EG000001 		$22.88 1
17K826 LR006719
RETAINER - NUT
Nut "U" Spring, 		$1.89 14
19A412 LR028089
COVER - TOWING HOOK
Dual Exh Olet W/Squa Tail Pipe Garn / LH, Primed / From: EG000001 / To: HG161787 		$96.99 1
19A412 LR028087
COVER - TOWING HOOK
Dual Exh Olet W/Squa Tail Pipe Garn / RH, Primed, Towing Eye / From: EG000001 / To: HG161787 		$110.73 1
17906 LR058059
BUMPER - REAR
Less Automated Parking System / From: EG000001 / To: GG134737 		$945.89 1
17906 LR048692
BUMPER - REAR
Autom Perpendicular Parking System / From: EG000001 / To: GG146040 		$1,085.91 1
17906 LR088361
BUMPER - REAR
Autom Perpendicular Parking System / From: GG146041 		$1,085.91 1
17906 LR074965
BUMPER - REAR
Less Automated Parking System / From: GG134738 		$865.33 1
18448A LR027871
FINISHER - EXHAUST
Dual Exh Olet W/Squa Tail Pipe Garn, Rear Bumper Guards - Silver / RH, Exhaust / From: EG000001 / To: HG161787 		$332.79 1
18448A LR027872
FINISHER - EXHAUST
Dual Exh Olet W/Squa Tail Pipe Garn, Rear Bumper Guards - Silver / LH, Exhaust / From: EG000001 / To: HG161787 		$332.79 1
18448A LR049367
FINISHER - EXHAUST
Dual Exh Olet W/Squa Tail Pipe Garn, Rear Bumper Guards - Black / RH, Exhaust / To: HG161787 		$1,011.36 1
18448A LR049368
FINISHER - EXHAUST
Dual Exh Olet W/Squa Tail Pipe Garn, Rear Bumper Guards - Black / LH, Exhaust / To: HG161787 		$1,011.36 1
18448B LR112588
COVER - TOWING HOOK
Dual Exh Olet W/Squa Tail Pipe Garn, Tow Eye Cover - Carpathian Grey / RH, Exhaust Finisher With Valance, Primed / From: HG161788 		$837.37 1
18448B LR112589
PANEL - VALANCE
Dual Exh Olet W/Squa Tail Pipe Garn, Tow Eye Cover - Carpathian Grey / LH, Exhaust Finisher With Valance, Primed / From: HG161788 		$768.08 1
