Name: Engine Mounting (2.0L I4 DSL MID DOHC AJ200, Halewood (UK), 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMGH000001)
Rating: 5.0 (1 reviews)

Engine Mounting (2.0L I4 DSL MID DOHC AJ200, Halewood (UK), 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMGH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Engine Mounting (2.0L I4 DSL MID DOHC AJ200, Halewood (UK), 2.0L I4 DSL HIGH DOHC AJ200) ((V)...

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000039	BOLT	$1.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072005	BOLT	$4.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078389	BOLT - FLANGED HEX.	$3.40	To Order
	LR090632	BOLT - FLANGED HEX.	$3.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000094	BOLT - HEX.HEAD	$1.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR045671	BOLT	$2.53	To Order
	LR080289	BOLT	$3.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071928	BOLT AND WASHER - HEX.HEAD	$3.12	To Order

Photo	Part No	Description	Price (each)	Stock
	FY112046	NUT - HEX.	$0.56	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500570	SCREW	$2.16	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG501260	SCREW AND WASHER	$1.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045673	SCREW	$4.29	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500190	SCREW	$0.65	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR072044	SUPPORT - ENGINE MOUNTING - FRONT	$359.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024729	BRACKET - ENGINE FRONT SUPPORT	$172.14	To Order
	LR024729	BRACKET - ENGINE FRONT SUPPORT	$172.14	To Order
	LR084535	BRACKET - ENGINE FRONT SUPPORT	$451.98	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR000596	INSULATOR - ENGINE COMPARTMENT	$5.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000598	INSULATOR - ENGINE COMPARTMENT	$5.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071977	BRACKET - ENGINE FRONT SUPPORT	$165.65	To Order
	LR095899	BRACKET - ENGINE FRONT SUPPORT	$163.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072074	HEAT SHIELD - ENGINE INSULATOR	$24.39	To Order
	LR084277	HEAT SHIELD - ENGINE INSULATOR	$22.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000520	INSULATOR - STABILIZER BAR	$89.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078721	BRACKET - ENGINE SUPPORT	$49.05	To Order
	LR117091	BRACKET - ENGINE SUPPORT	$51.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000597	INSULATOR - ENGINE COMPARTMENT	$87.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039527	INSULATOR - ENGINE SUPPORT	$96.85	IN STOCK

View All

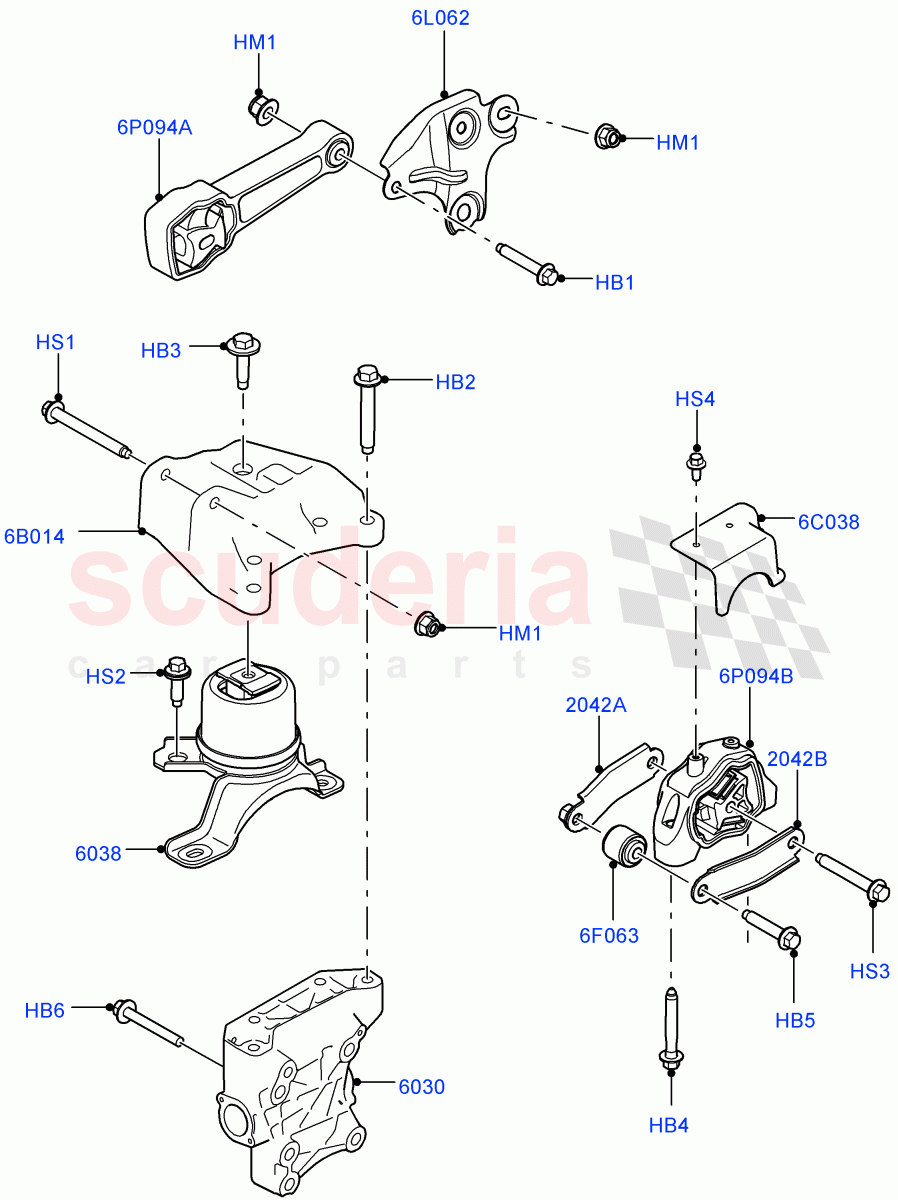

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR000039	BOLT	LR000039 BOLT Hexagonal Head, M12 x 65MM / From: GH000001	$1.68	1
HB2	LR072005	BOLT	LR072005 BOLT M14 X 65mm / From: GH000001	$4.52	4
HB3	LR078389	BOLT - FLANGED HEX.	LR078389 BOLT - FLANGED HEX. Bolt And Washer, M12 x 40MM / From: GH000001 / To: HH193111	$3.40	1
HB3	LR090632	BOLT - FLANGED HEX.	LR090632 BOLT - FLANGED HEX. Bolt And Washer, M12 x 40MM / From: HH193112	$3.39	1
HB4	LR000094	BOLT - HEX.HEAD IN STOCK	LR000094 BOLT - HEX.HEAD M12 x 75MM / From: GH000001 IN STOCK	$1.16	2
HB5	LR045671	BOLT	LR045671 BOLT M12 x 65MM / From: GH000001 / To: GH136432	$2.53	1
HB5	LR080289	BOLT	LR080289 BOLT M12 X 60MM / From: GH136433	$3.55	1
HB6	LR071928	BOLT AND WASHER - HEX.HEAD	LR071928 BOLT AND WASHER - HEX.HEAD M12 x 75MM / From: GH000001	$3.12	5
HM1	FY112046	NUT - HEX.	FY112046 NUT - HEX. M12, Nut / From: GH000001	$0.56	5
HS1	RYG500570	SCREW	RYG500570 SCREW M12 X 110MM / From: GH000001	$2.16	1
HS2	RYG501260	SCREW AND WASHER	RYG501260 SCREW AND WASHER M12X1.75 / From: GH000001	$1.43	3
HS3	LR045673	SCREW	LR045673 SCREW M12 x 85MM / From: GH000001	$4.29	1
HS4	RYP500190	SCREW IN STOCK	RYP500190 SCREW Hexagonal Head, M6 x 12MM / From: GH000001 IN STOCK	$0.65	2
6B014	LR071977	BRACKET - ENGINE FRONT SUPPORT	LR071977 BRACKET - ENGINE FRONT SUPPORT From: GH000001 / To: HH229191	$165.65	1
6B014	LR095899	BRACKET - ENGINE FRONT SUPPORT	LR095899 BRACKET - ENGINE FRONT SUPPORT From: HH229192	$163.57	1
6C038	LR072074	HEAT SHIELD - ENGINE INSULATOR	LR072074 HEAT SHIELD - ENGINE INSULATOR From: GH000001 / To: GH157292	$24.39	1
6C038	LR084277	HEAT SHIELD - ENGINE INSULATOR	LR084277 HEAT SHIELD - ENGINE INSULATOR From: GH157293	$22.06	1
6F063	LR000520	INSULATOR - STABILIZER BAR	LR000520 INSULATOR - STABILIZER BAR Bushing / From: GH000001	$89.95	1
6L062	LR078721	BRACKET - ENGINE SUPPORT	LR078721 BRACKET - ENGINE SUPPORT From: GH000001 / To: JH315035	$49.05	1
6L062	LR117091	BRACKET - ENGINE SUPPORT	LR117091 BRACKET - ENGINE SUPPORT From: JH315036	$51.50	1
6P094A	LR000597	INSULATOR - ENGINE COMPARTMENT	LR000597 INSULATOR - ENGINE COMPARTMENT Upper / From: GH000001	$87.75	1
6P094B	LR039527	INSULATOR - ENGINE SUPPORT IN STOCK	LR039527 INSULATOR - ENGINE SUPPORT Lower / From: GH000001 IN STOCK	$96.85	1
2042A	LR000596	INSULATOR - ENGINE COMPARTMENT	LR000596 INSULATOR - ENGINE COMPARTMENT RH, Insulator / From: GH000001	$5.54	1
2042B	LR000598	INSULATOR - ENGINE COMPARTMENT	LR000598 INSULATOR - ENGINE COMPARTMENT LH, Insulator / From: GH000001	$5.48	1
6030	LR072044	SUPPORT - ENGINE MOUNTING - FRONT	LR072044 SUPPORT - ENGINE MOUNTING - FRONT RH / From: GH000001	$359.26	1
6038	LR024729	BRACKET - ENGINE FRONT SUPPORT	LR024729 BRACKET - ENGINE FRONT SUPPORT Engine Mounting / From: GH000001 / To: GH125983	$172.14	1
6038	LR024729	BRACKET - ENGINE FRONT SUPPORT	LR024729 BRACKET - ENGINE FRONT SUPPORT 3 Door / Engine Mounting / From: GH125984	$172.14	1
6038	LR084535	BRACKET - ENGINE FRONT SUPPORT	LR084535 BRACKET - ENGINE FRONT SUPPORT 2 Door Convertible / Engine Mounting / From: GH125984 / To: GH164495	$451.98	1
6038	LR090560	BRACKET - ENGINE FRONT SUPPORT	LR090560 BRACKET - ENGINE FRONT SUPPORT 2 Door Convertible / Engine Mounting / From: GH164496	$173.81	1
