Exterior Rear View Mirror ((V) Fromfa000001, (V) Tofa999999)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Exterior Rear View Mirror ((V) FROMFA000001, (V) TOFA999999)

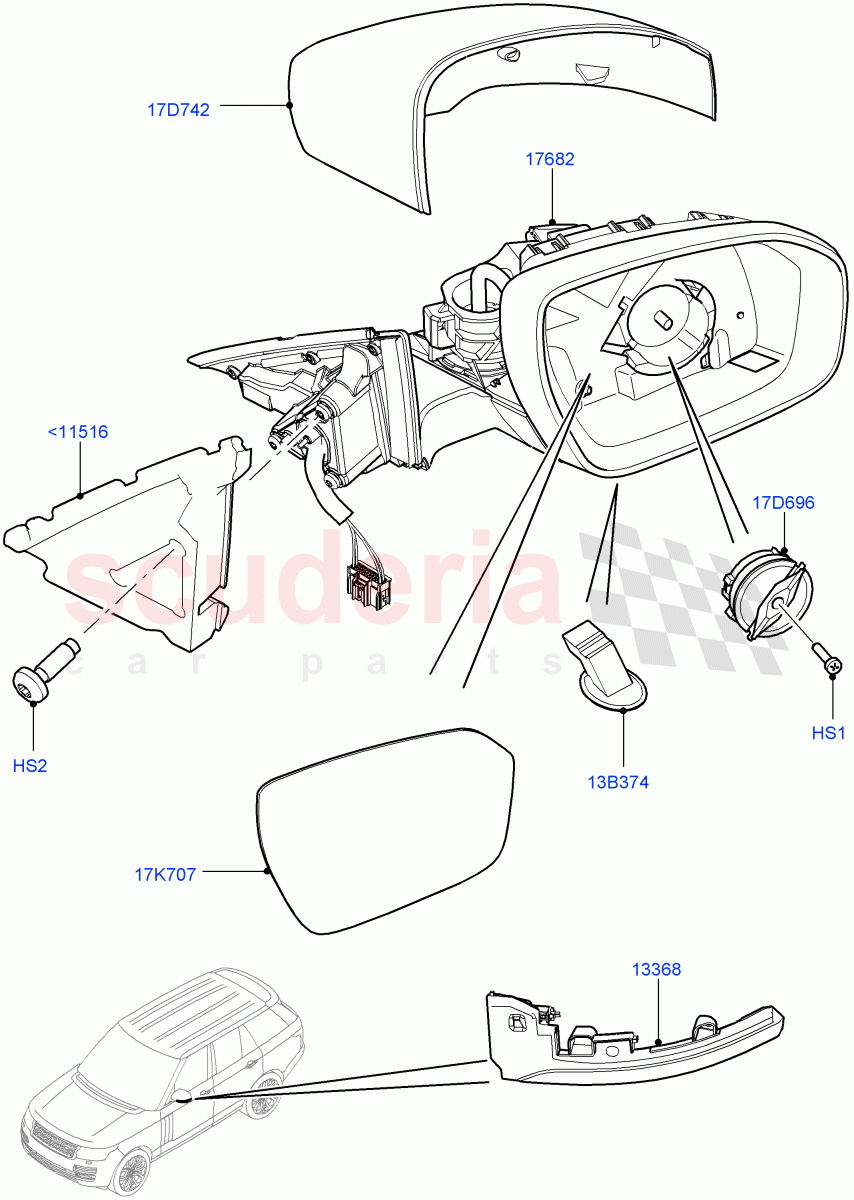

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR011865 SCREW $1.28 IN STOCK
Photo Part No Description Price (each) Stock
LR025172 SCREW $1.23 IN STOCK
Photo Part No Description Price (each) Stock
LR027945 LAMP - SIDE FLASHER $95.75 To Order
LR027946 LAMP - SIDE FLASHER $95.75 IN STOCK
Photo Part No Description Price (each) Stock
LR064724 MIRROR - REAR VIEW - OUTER $1,064.71 To Order
LR064720 MIRROR - REAR VIEW - OUTER $803.28 To Order
LR064722 MIRROR - REAR VIEW - OUTER $509.82 To Order
...and 38 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR046775 INSULATOR - SOUND - DOOR $46.09 To Order
LR046772 INSULATOR - SOUND - DOOR $46.09 To Order
Photo Part No Description Price (each) Stock
LR062159 LAMP - EXTERIOR MIRROR $75.84 To Order
LR062160 LAMP - EXTERIOR MIRROR $75.84 To Order
Photo Part No Description Price (each) Stock
CRP500041 MOTOR - EXTERIOR REAR VIEW MIRROR $130.29 To Order
LR015051 MOTOR - EXTERIOR REAR VIEW MIRROR $135.04 To Order
Photo Part No Description Price (each) Stock
LR035089 COVER - MIRROR HOUSING $113.01 To Order
LR035090 COVER - MIRROR HOUSING $113.01 To Order
LR035091 COVER - MIRROR HOUSING $121.18 IN STOCK
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR035032 GLASS - REAR VIEW OUTER MIRROR $121.36 To Order
LR035033 GLASS - REAR VIEW OUTER MIRROR $121.36 To Order
LR035034 GLASS - REAR VIEW OUTER MIRROR $121.36 To Order
...and 14 more part variants. See table on right for more details.
View All
Exterior Rear View Mirror ((V) FROMFA000001, (V) TOFA999999) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<11516 LR046775
INSULATOR - SOUND - DOOR
RH / From: FA000001 		$46.09 1
<11516 LR046772
INSULATOR - SOUND - DOOR
LH / From: FA000001 		$46.09 1
HS1 LR011865
SCREW
M3 X 25MM, Motor Mounting / From: FA000001
IN STOCK 		$1.28 2
HS2 LR025172
SCREW
M6 X 16MM, Mirror To Door / From: FA000001
IN STOCK 		$1.23 6
13B374 LR062159
LAMP - EXTERIOR MIRROR
Less Blind Spot Information System / RH / From: FA000001 		$75.84 1
13B374 LR062160
LAMP - EXTERIOR MIRROR
Less Blind Spot Information System / LH / From: FA000001 		$75.84 1
17D696 CRP500041
MOTOR - EXTERIOR REAR VIEW MIRROR
RH, 8 Pin Connector, With Memory / From: FA000001 		$130.29 1
17D696 LR015051
MOTOR - EXTERIOR REAR VIEW MIRROR
LH, 8 Pin Connector, With Memory / From: FA000001 		$135.04 1
17D742 LR035089
COVER - MIRROR HOUSING
Exterior Mirror Finish - Dark Atlas / RH / From: FA000001 		$113.01 1
17D742 LR035090
COVER - MIRROR HOUSING
Exterior Mirror Finish - Dark Atlas / LH / From: FA000001 		$113.01 1
17D742 LR035091
COVER - MIRROR HOUSING
With Body Coloured Exterior Mirror / RH, Primed / From: FA000001
IN STOCK 		$121.18 1
17D742 LR035092
COVER - MIRROR HOUSING
With Body Coloured Exterior Mirror / LH, Primed / From: FA000001
IN STOCK 		$121.18 1
17K707 LR035032
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Less Blind Spot Information System, Less Extra Mirror Electro Chromatic, Less Water Wading Equipment, RHD / RH, Convex Glass / From: FA000001 		$121.36 1
17K707 LR035033
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Less Blind Spot Information System, Less Extra Mirror Electro Chromatic, Less Water Wading Equipment / LH, Convex Glass / From: FA000001 		$121.36 1
17K707 LR035034
GLASS - REAR VIEW OUTER MIRROR
1 Flat / 1 1400MM Convex - NAS, LHD, Less Blind Spot Information System, Less Extra Mirror Electro Chromatic, Less Water Wading Equipment / RH, Convex Glass / From: FA000001 		$121.36 1
17K707 LR035041
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, LHD, Less Blind Spot Information System, Less Extra Mirror Electro Chromatic, Less Water Wading Equipment / LH, Arabic Script, Convex Glass / From: FA000001 		$121.36 1
17K707 LR035043
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Extra Mirror-Electro Chromatic, Less Blind Spot Information System, Less Water Wading Equipment, RHD / RH, Convex Glass / From: FA000001 		$360.18 1
17K707 LR035046
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Extra Mirror-Electro Chromatic, Less Blind Spot Information System, Less Water Wading Equipment / LH, Convex Glass / From: FA000001 		$360.18 1
17K707 LR035055
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Extra Mirror-Electro Chromatic, LHD, Less Blind Spot Information System / RH, Arabic Lettering On Glass, Convex Glass / From: FA000001 		$360.18 1
17K707 LR035057
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Extra Mirror-Electro Chromatic, LHD, Less Blind Spot Information System / LH, Arabic Lettering On Glass, Convex Glass / From: FA000001 		$360.18 1
17K707 LR035061
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Extra Mirror-Electro Chromatic, Lane Change Merge Aid, Proximity Mirror Camera, Water Wading Aid - Electronic / RH, Convex Glass / From: FA000001 		$385.21 1
17K707 LR035063
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Extra Mirror-Electro Chromatic, Lane Change Merge Aid, Proximity Mirror Camera, Water Wading Aid - Electronic / LH, Convex Glass / From: FA000001 		$385.21 1
17K707 LR035066
GLASS - REAR VIEW OUTER MIRROR
1 Flat / 1 1400MM Convex - NAS, Extra Mirror-Electro Chromatic, LHD, Proximity Mirror Camera, Reverse Traffic Detection/CTA/LCMA, Water Wading Aid - Electronic / RH, Convex Glass + Script / From: FA000001 		$385.21 1
17K707 LR035073
GLASS - REAR VIEW OUTER MIRROR
1 Flat/1 Convex Glass - Canada, Extra Mirror-Electro Chromatic, LHD, Less Proximity Mirrors, Reverse Traffic Detection/CTA/LCMA, Water Wading Aid - Electronic / LH, Flat Glass / From: FA000001 		$385.21 1
17K707 LR035076
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Extra Mirror-Electro Chromatic, LHD, Lane Change Merge Aid, Less Water Wading Equipment / RH, Arabic Lettering On Glass, Arabic Script, Convex Glass / From: FA000001 		$385.21 1
17K707 LR035078
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Extra Mirror-Electro Chromatic, LHD, Lane Change Merge Aid, Less Water Wading Equipment / LH, Arabic Lettering On Glass, Arabic Script, Convex Glass / From: FA000001 		$385.21 1
17K707 LR035052
GLASS - REAR VIEW OUTER MIRROR
1 Flat / 1 1400MM Convex - NAS, Extra Mirror-Electro Chromatic, LHD, Less Blind Spot Information System / LH, Flat Glass / From: FA000001 		$360.18 1
17K707 LR035047
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Glass With Script, Extra Mirror-Electro Chromatic, Less Blind Spot Information System, RHD / RH, Convex Glass / From: FA000001 		$385.88 1
17K707 LR035036
GLASS - REAR VIEW OUTER MIRROR
1 Flat / 1 1400MM Convex - NAS, LHD, Less Blind Spot Information System, Less Extra Mirror Electro Chromatic, Less Water Wading Equipment / LH, Flat Glass / From: FA000001 		$121.36 1
13368 LR027945
LAMP - SIDE FLASHER
RH / From: FA000001 		$95.75 1
13368 LR027946
LAMP - SIDE FLASHER
LH / From: FA000001
IN STOCK 		$95.75 1
17682 LR064724
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Less Blind Spot Information System, Less Extra Mirror Electro Chromatic, Proximity Mirror Camera, RHD, Water Wading Aid - Electronic / RH / From: FA000001 		$1,064.71 1
17682 LR064720
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Less Blind Spot Information System, Less Extra Mirror Electro Chromatic, Less Water Wading Equipment, Proximity Mirror Camera, RHD / RH / From: FA000001 		$803.28 1
17682 LR064722
MIRROR - REAR VIEW - OUTER
1 Flat/1 Convex Glass - Canada, LHD, Less Blind Spot Information System, Less Extra Mirror Electro Chromatic, Less Water Wading Equipment, Proximity Mirror Camera / RH / From: FA000001 		$509.82 1
17682 LR064726
MIRROR - REAR VIEW - OUTER
2 1400MM Convex (SAS) Glass, LHD, Less Blind Spot Information System, Less Extra Mirror Electro Chromatic, Proximity Mirror Camera, Water Wading Aid - Electronic / RH / From: FA000001 		$611.78 1
17682 LR064717
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Extra Mirror-Electro Chromatic, Less Proximity Mirrors, RHD, Reverse Traffic Detection/CTA/LCMA, Water Wading Aid - Electronic / RH / From: FA000001 		$934.03 1
17682 LR064719
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Extra Mirror-Electro Chromatic, LHD, Less Proximity Mirrors, Reverse Traffic Detection/CTA/LCMA, Water Wading Aid - Electronic / RH / From: FA000001 		$803.28 1
17682 LR064721
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Extra Mirror-Electro Chromatic, Less Blind Spot Information System, Less Water Wading Equipment, Proximity Mirror Camera, RHD / RH / From: FA000001 		$855.84 1
17682 LR064723
MIRROR - REAR VIEW - OUTER
2 1400MM Convex (SAS) Glass, Extra Mirror-Electro Chromatic, LHD, Less Blind Spot Information System, Less Water Wading Equipment, Proximity Mirror Camera / RH / From: FA000001 		$1,124.63 1
17682 LR064725
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Extra Mirror-Electro Chromatic, Less Blind Spot Information System, Proximity Mirror Camera, RHD, Water Wading Aid - Electronic / RH / From: FA000001 		$1,117.99 1
17682 LR064727
MIRROR - REAR VIEW - OUTER
2 1400MM Convex (SAS) Glass, Extra Mirror-Electro Chromatic, LHD, Less Blind Spot Information System, Proximity Mirror Camera, Water Wading Aid - Electronic / RH / From: FA000001 		$632.19 1
17682 LR064729
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Extra Mirror-Electro Chromatic, Lane Change Merge Aid, Less Water Wading Equipment, Proximity Mirror Camera, RHD / RH / From: FA000001 		$986.29 1
17682 LR064731
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Extra Mirror-Electro Chromatic, LHD, Lane Change Merge Aid, Less Water Wading Equipment, Proximity Mirror Camera / RH / From: FA000001 		$855.56 1
17682 LR064736
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Extra Mirror-Electro Chromatic, Lane Change Merge Aid, Proximity Mirror Camera, RHD, Water Wading Aid - Electronic / RH / From: FA000001 		$1,247.69 1
17682 LR064738
MIRROR - REAR VIEW - OUTER
1 Flat/1 Convex Glass - Canada, Extra Mirror-Electro Chromatic, LHD, Proximity Mirror Camera, Reverse Traffic Detection/CTA/LCMA, Water Wading Aid - Electronic / RH / From: FA000001 		$1,118.40 1
17682 LR064743
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Less Blind Spot Information System, Less Extra Mirror Electro Chromatic, Less Water Wading Equipment, Proximity Mirror Camera, RHD / LH / From: FA000001 		$797.37 1
17682 LR064745
MIRROR - REAR VIEW - OUTER
1 Flat/1 Convex Glass - Canada, LHD, Less Blind Spot Information System, Less Extra Mirror Electro Chromatic, Less Water Wading Equipment, Proximity Mirror Camera / LH / From: FA000001 		$798.36 1
17682 LR064747
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Less Blind Spot Information System, Less Extra Mirror Electro Chromatic, Proximity Mirror Camera, RHD, Water Wading Aid - Electronic / LH / From: FA000001 		$1,056.91 1
17682 LR064749
MIRROR - REAR VIEW - OUTER
2 1400MM Convex (SAS) Glass, LHD, Less Blind Spot Information System, Less Extra Mirror Electro Chromatic, Proximity Mirror Camera, Water Wading Aid - Electronic / LH / From: FA000001 		$611.78 1
17682 LR064751
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Extra Mirror-Electro Chromatic, Less Blind Spot Information System, Less Proximity Mirrors, Less Water Wading Equipment, RHD / LH / From: FA000001 		$536.31 1
17682 LR064753
MIRROR - REAR VIEW - OUTER
1 Flat/1 Convex Glass - Canada, Extra Mirror-Electro Chromatic, LHD, Less Blind Spot Information System, Less Proximity Mirrors, Less Water Wading Equipment / LH / From: FA000001 		$543.37 1
17682 LR064759
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Blind Spot Monit/CVS/RTD/Side Swipe, Extra Mirror-Electro Chromatic, LHD, Less Proximity Mirrors, Less Water Wading Equipment / LH / From: FA000001 		$542.43 1
17682 LR064740
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Extra Mirror-Electro Chromatic, Less Proximity Mirrors, RHD, Reverse Traffic Detection/CTA/LCMA, Water Wading Aid - Electronic / LH / From: FA000001 		$927.17 1
17682 LR064742
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Extra Mirror-Electro Chromatic, LHD, Less Proximity Mirrors, Reverse Traffic Detection/CTA/LCMA, Water Wading Aid - Electronic / LH / From: FA000001 		$803.39 1
17682 LR064744
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Extra Mirror-Electro Chromatic, Less Blind Spot Information System, Less Water Wading Equipment, Proximity Mirror Camera, RHD / LH / From: FA000001 		$855.56 1
17682 LR064746
MIRROR - REAR VIEW - OUTER
2 1400MM Convex (SAS) Glass, Extra Mirror-Electro Chromatic, LHD, Less Blind Spot Information System, Less Water Wading Equipment, Proximity Mirror Camera / LH / From: FA000001 		$1,124.63 1
17682 LR064748
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Extra Mirror-Electro Chromatic, Less Blind Spot Information System, Proximity Mirror Camera, RHD, Water Wading Aid - Electronic / LH / From: FA000001 		$1,109.53 1
17682 LR064750
MIRROR - REAR VIEW - OUTER
2 1400MM Convex (SAS) Glass, Extra Mirror-Electro Chromatic, LHD, Less Blind Spot Information System, Proximity Mirror Camera, Water Wading Aid - Electronic / LH / From: FA000001 		$632.19 1
17682 LR064752
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Extra Mirror-Electro Chromatic, Lane Change Merge Aid, Less Water Wading Equipment, Proximity Mirror Camera, RHD / LH / From: FA000001 		$977.39 1
17682 LR064754
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Extra Mirror-Electro Chromatic, LHD, Lane Change Merge Aid, Less Water Wading Equipment, Proximity Mirror Camera / LH / From: FA000001 		$856.15 1
17682 LR064756
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Extra Mirror-Electro Chromatic, Lane Change Merge Aid, Proximity Mirror Camera, RHD, Water Wading Aid - Electronic / LH / From: FA000001 		$1,248.42 1
17682 LR064761
MIRROR - REAR VIEW - OUTER
1 Flat/1 Convex Glass - Canada, Extra Mirror-Electro Chromatic, LHD, Proximity Mirror Camera, Reverse Traffic Detection/CTA/LCMA, Water Wading Aid - Electronic / LH / From: FA000001 		$1,117.13 1
17682 LR062845
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Extra Mirror-Electro Chromatic, Less Proximity Mirrors, Less Water Wading Equipment, RHD, Reverse Traffic Detection/CTA/LCMA / LH / From: FA000001 		$974.58 1
17682 LR064739
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Less Blind Spot Information System, Less Extra Mirror Electro Chromatic, Less Proximity Mirrors, Less Water Wading Equipment, RHD / LH / From: FA000001 		$490.27 1
17682 LR064739
MIRROR - REAR VIEW - OUTER
Less Blind Spot Information System, Less Extra Mirror Electro Chromatic, Less Water Wading Equipment, RHD, Rear View Camera-Fixed / LH, Contains Ambient Air Temperature Sensor / From: GA000001 / To: JA999999 		$490.27 1
17682 LR064741
MIRROR - REAR VIEW - OUTER
2 1400MM Convex (SAS) Glass, LHD, Less Blind Spot Information System, Less Extra Mirror Electro Chromatic, Less Proximity Mirrors, Less Water Wading Equipment / LH / From: FA000001 		$490.54 1
17682 LR064716
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Less Blind Spot Information System, Less Extra Mirror Electro Chromatic, Less Proximity Mirrors, Less Water Wading Equipment, RHD / RH / From: FA000001 		$484.10 1
17682 LR064718
MIRROR - REAR VIEW - OUTER
2 1400MM Convex (SAS) Glass, LHD, Less Blind Spot Information System, Less Extra Mirror Electro Chromatic, Less Proximity Mirrors, Less Water Wading Equipment / RH / From: FA000001 		$489.55 1
17682 LR064728
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Extra Mirror-Electro Chromatic, Less Blind Spot Information System, Less Proximity Mirrors, Less Water Wading Equipment, RHD / RH / From: FA000001 		$536.31 1
17682 LR064730
MIRROR - REAR VIEW - OUTER
1 Flat/1 Convex Glass - Canada, Extra Mirror-Electro Chromatic, LHD, Less Blind Spot Information System, Less Proximity Mirrors, Less Water Wading Equipment / RH / From: FA000001 		$541.86 1
17682 LR061562
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Extra Mirror-Electro Chromatic, Less Proximity Mirrors, Less Water Wading Equipment, RHD, Reverse Traffic Detection/CTA/LCMA / RH / From: FA000001 		$934.03 1
17682 LR064737
MIRROR - REAR VIEW - OUTER
1 Flat / 1 1400MM Convex - NAS, Extra Mirror-Electro Chromatic, LHD, Lane Change Merge Aid, Less Proximity Mirrors, Less Water Wading Equipment / RH / From: FA000001 		$672.53 1
