Name: Front Doors, Hinges & Weatherstrips (Finishers)
Rating: 4.6 (1 reviews)

Front Doors, Hinges & Weatherstrips (Finishers) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Front Doors, Hinges & Weatherstrips (Finishers)

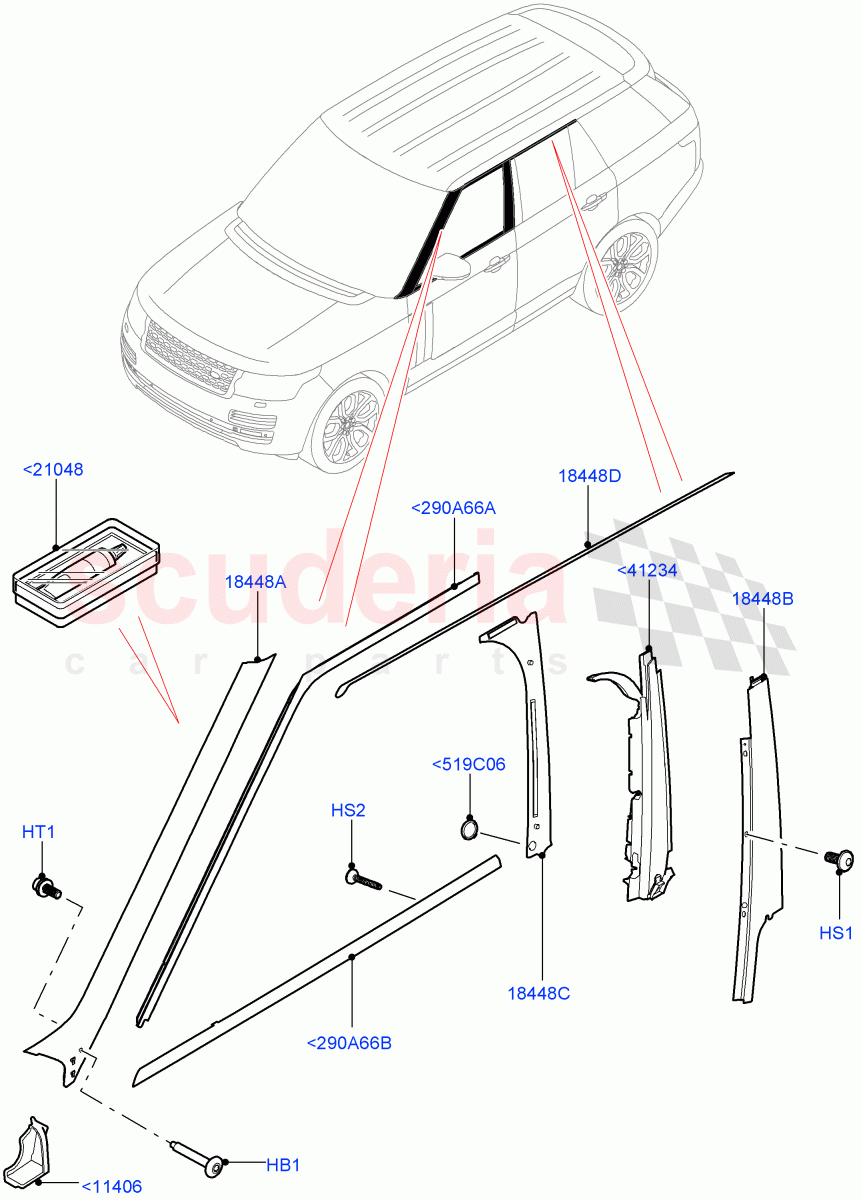

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR087365	BOLT	$0.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034035	SCREW - PAN - TORX	$1.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034049	SCREW - PAN - TORX	$0.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042470	STUD	$1.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR040774	INSULATOR - BULKHEAD	$45.91	To Order
	LR040775	INSULATOR - BULKHEAD	$46.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057984	KIT - SELF-ADHESIVE MOULDING	$201.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034040	INSULATOR - DOOR OUTER PANEL	$51.68	To Order
	LR034041	INSULATOR - DOOR OUTER PANEL	$51.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037541	FINISHER - PILLAR	$64.63	To Order
	LR037542	FINISHER - PILLAR	$78.95	To Order
	LR064783	FINISHER - PILLAR	$96.53	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR034036	FINISHER - 'B' PILLAR - OUTER	$112.14	To Order
	LR034037	FINISHER - 'B' PILLAR - OUTER	$112.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033684	FINISHER - 'B' PILLAR - OUTER	$30.83	To Order
	LR033686	FINISHER - 'B' PILLAR - OUTER	$30.83	To Order
	LR044598	FINISHER - 'B' PILLAR - OUTER	$30.83	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR051840	FINISHER - OUTER - BODY SIDE	$21.25	To Order
	LR054368	FINISHER - OUTER - BODY SIDE	$28.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033687	CAP - COVER - "B" PILLAR	$9.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034038	MOULDING - DOOR WINDOW FRAME	$150.68	To Order
	LR034039	MOULDING - DOOR WINDOW FRAME	$150.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034033	MOULDING - DOOR OUTSIDE	$181.14	To Order
	LR034034	MOULDING - DOOR OUTSIDE	$181.14	To Order
	LR154903	MOULDING - DOOR OUTSIDE	$181.14	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<290A66A	LR034038	MOULDING - DOOR WINDOW FRAME	LR034038 MOULDING - DOOR WINDOW FRAME RH Upper	$150.68	1
<290A66A	LR034039	MOULDING - DOOR WINDOW FRAME	LR034039 MOULDING - DOOR WINDOW FRAME LH Upper	$150.68	1
<290A66B	LR034033	MOULDING - DOOR OUTSIDE	LR034033 MOULDING - DOOR OUTSIDE RH Lower / To: MA428305	$181.14	1
<290A66B	LR034034	MOULDING - DOOR OUTSIDE	LR034034 MOULDING - DOOR OUTSIDE LH Lower / To: MA428305	$181.14	1
<290A66B	LR154903	MOULDING - DOOR OUTSIDE	LR154903 MOULDING - DOOR OUTSIDE RH Lower / From: MA428306	$181.14	1
<290A66B	LR154904	MOULDING - DOOR OUTSIDE	LR154904 MOULDING - DOOR OUTSIDE LH Lower / From: MA428306	$181.14	1
<519C06	LR033687	CAP - COVER - "B" PILLAR	LR033687 CAP - COVER - "B" PILLAR Cap	$9.37	1
<11406	LR040774	INSULATOR - BULKHEAD	LR040774 INSULATOR - BULKHEAD RH	$45.91	1
<11406	LR040775	INSULATOR - BULKHEAD	LR040775 INSULATOR - BULKHEAD LH	$46.84	1
<21048	LR057984	KIT - SELF-ADHESIVE MOULDING	LR057984 KIT - SELF-ADHESIVE MOULDING "A" Pillar, Finisher	$201.73	1
<41234	LR034040	INSULATOR - DOOR OUTER PANEL	LR034040 INSULATOR - DOOR OUTER PANEL RH Upper	$51.68	1
<41234	LR034041	INSULATOR - DOOR OUTER PANEL	LR034041 INSULATOR - DOOR OUTER PANEL LH Upper	$51.68	1
HB1	LR087365	BOLT	LR087365 BOLT M6 x 18MM / From: GA319638	$0.91	2
HS1	LR034035	SCREW - PAN - TORX	LR034035 SCREW - PAN - TORX M4 x 30MM, Torx	$1.39	4
HS2	LR034049	SCREW - PAN - TORX	LR034049 SCREW - PAN - TORX M5 X 12MM	$0.91	6
HT1	LR042470	STUD	LR042470 STUD M6 x 15MM / To: GA319637	$1.43	2
18448A	LR037541	FINISHER - PILLAR	LR037541 FINISHER - PILLAR RH / To: EA166607	$64.63	1
18448A	LR037542	FINISHER - PILLAR	LR037542 FINISHER - PILLAR LH / To: EA166607	$78.95	1
18448A	LR064783	FINISHER - PILLAR	LR064783 FINISHER - PILLAR RH / From: EA166608 / To: FA219923	$96.53	1
18448A	LR064784	FINISHER - PILLAR	LR064784 FINISHER - PILLAR LH / From: EA166608 / To: FA219923	$100.01	1
18448A	LR076494	FINISHER - PILLAR	LR076494 FINISHER - PILLAR RH / From: FA219924	$103.02	1
18448A	LR076493	FINISHER - PILLAR	LR076493 FINISHER - PILLAR LH / From: FA219924	$103.02	1
18448B	LR034036	FINISHER - 'B' PILLAR - OUTER	LR034036 FINISHER - 'B' PILLAR - OUTER RH	$112.14	1
18448B	LR034037	FINISHER - 'B' PILLAR - OUTER	LR034037 FINISHER - 'B' PILLAR - OUTER LH	$112.14	1
18448C	LR033684	FINISHER - 'B' PILLAR - OUTER	LR033684 FINISHER - 'B' PILLAR - OUTER RH / To: DA105052	$30.83	1
18448C	LR033686	FINISHER - 'B' PILLAR - OUTER	LR033686 FINISHER - 'B' PILLAR - OUTER LH / To: DA105052	$30.83	1
18448C	LR044598	FINISHER - 'B' PILLAR - OUTER	LR044598 FINISHER - 'B' PILLAR - OUTER RH / From: DA105053	$30.83	1
18448C	LR044599	FINISHER - 'B' PILLAR - OUTER	LR044599 FINISHER - 'B' PILLAR - OUTER LH / From: DA105053	$30.83	1
18448D	LR051840	FINISHER - OUTER - BODY SIDE	LR051840 FINISHER - OUTER - BODY SIDE Corris Grey Contrast Roof, Standard Wheelbase / Body Upper, RH/LH	$21.25	1
18448D	LR054368	FINISHER - OUTER - BODY SIDE	LR054368 FINISHER - OUTER - BODY SIDE Long Wheelbase, Silver Painted Roof / Body Upper, RH/LH / From: EA147475	$28.26	1
