Splash And Heat Shields (Splash Shield)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Splash And Heat Shields (Splash Shield)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR156842 SCREW $1.75 IN STOCK
Photo Part No Description Price (each) Stock
ANR2224 HARDWARE - MISCELLANEOUS $2.66 To Order
Photo Part No Description Price (each) Stock
RYG500980 SCREW AND WASHER $1.38 To Order
Photo Part No Description Price (each) Stock
LR038764 SHIELD - ENGINE PROTECTING $419.34 To Order
LR133837 SHIELD - ENGINE COMPARTMENT SPLASH $156.71 To Order
LR055850 SHIELD - ENGINE PROTECTING $495.33 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR033164 SHIELD - TRANSMISSION $368.61 To Order
LR062113 SHIELD - TRANSMISSION $226.50 To Order
LR085588 SHIELD - TRANSMISSION $430.00 To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR033166 SHIELD - TRANSMISSION $262.53 To Order
Photo Part No Description Price (each) Stock
LR041944 SHIELD - ALTERNATOR SPLASH $43.27 To Order
LR041945 SHIELD - ALTERNATOR SPLASH $43.27 To Order
LR088328 SHIELD - ALTERNATOR SPLASH $75.73 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR042780 BRACKET - HEATSHIELD $6.02 To Order
LR045811 Bracket $50.18 To Order
LR047571 BRACKET - HEATSHIELD $44.34 To Order
View All

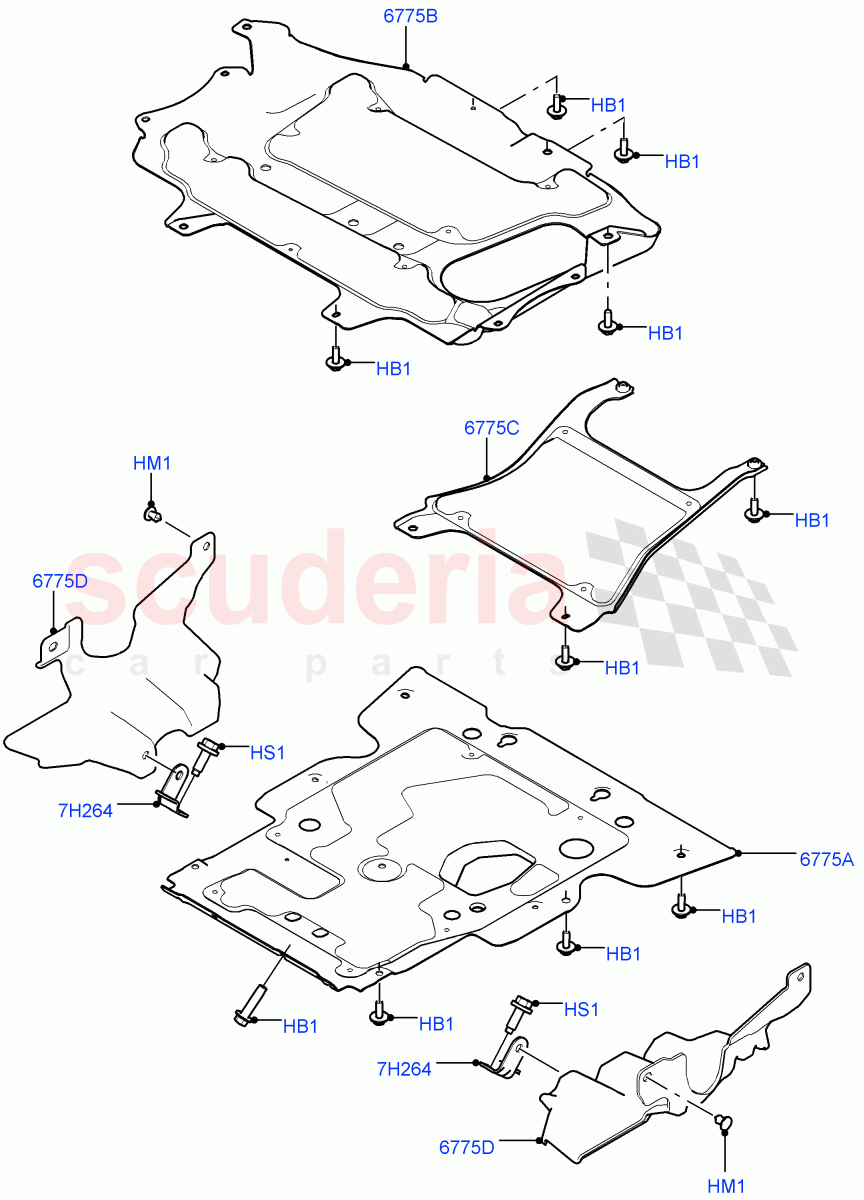

Splash And Heat Shields (Splash Shield) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR156842
SCREW
Hexagonal Head, M10 X 30MM
IN STOCK 		$1.75 16
HM1 ANR2224
HARDWARE - MISCELLANEOUS
8 X 20MM, Pin 		$2.66 6
HS1 RYG500980
SCREW AND WASHER
M8 x 24MM 		$1.38 2
7H264 LR042780
BRACKET - HEATSHIELD
RH/LH, Splash Shield / To: DA108259 		$6.02 2
7H264 LR045811
Bracket
RH/LH, Splash Shield / From: DA108260 / To: DA118203 		$50.18 2
7H264 LR047571
BRACKET - HEATSHIELD
RH/LH, Splash Shield / From: DA118204 		$44.34 2
6775A LR038764
SHIELD - ENGINE PROTECTING
Engine / To: EA162589 		$419.34 1
6775A LR133837
SHIELD - ENGINE COMPARTMENT SPLASH
Engine / From: FA000001 / To: KA550132 		$156.71 1
6775A LR055850
SHIELD - ENGINE PROTECTING
Engine / From: EA162590 / To: EA999999 		$495.33 1
6775A LR124743
SHIELD - ENGINE COMPARTMENT SPLASH
Engine / From: KA550133 / To: LA999999 		$156.71 1
6775A LR133837
SHIELD - ENGINE COMPARTMENT SPLASH
Engine / From: MA000001 / To: MA440519 		$156.71 1
6775A LR133837
SHIELD - ENGINE COMPARTMENT SPLASH
3.0 V6 D Gen2 Mono Turbo / Engine / From: MA440520 		$156.71 1
6775A LR157738
SHIELD - ENGINE COMPARTMENT SPLASH
3.0L AJ20P6 Petrol High / Engine / From: MA440520 		$250.77 1
6775B LR033164
SHIELD - TRANSMISSION
3.0L 24V V6 Turbo Diesel Std Flow / Transmission / To: EA999999 		$368.61 1
6775B LR062113
SHIELD - TRANSMISSION
3.0L DOHC GDI SC V6 PETROL / Transmission / From: FA000001 / To: GA999999 		$226.50 1
6775B LR085588
SHIELD - TRANSMISSION
Transmission / From: HA000001 / To: HA362541 		$430.00 1
6775B LR106821
Shield
Transmission / From: HA362542 / To: HA999999 		$302.98 1
6775B LR100588
SHIELD - TRANSMISSION
3.0L AJ20P6 Petrol High / Transmission / From: JA000001 / To: LA999999 		$327.19 1
6775B LR112607
SHIELD - TRANSMISSION
5.0L P AJ133 DOHC CDA S/C Enhanced / Transmission / From: JA000001 		$431.06 1
6775B LR112608
SHIELD - TRANSMISSION
3.0 V6 D Low MT ROW / Transmission / From: JA000001 		$339.02 1
6775B LR107095
SHIELD - TRANSMISSION
4.4L DOHC DITC V8 Diesel / Transmission / From: JA000001 		$415.00 1
6775B LR146536
SHIELD - TRANSMISSION
3.0L AJ20D6 Diesel High / Transmission / From: MA000001 		$381.39 1
6775B LR146866
SHIELD - TRANSMISSION
2.0L AJ200P Hi PHEV / Transmission / From: MA000001 		$381.39 1
6775C LR033166
SHIELD - TRANSMISSION
4.4L DOHC DITC V8 Diesel / Transmission 		$262.53 1
6775D LR041944
SHIELD - ALTERNATOR SPLASH
RH / To: HA999999 		$43.27 1
6775D LR041945
SHIELD - ALTERNATOR SPLASH
LH / To: HA999999 		$43.27 1
6775D LR088328
SHIELD - ALTERNATOR SPLASH
3.0 V6 D Low MT ROW / RH / From: JA000001 / To: KA550694 		$75.73 1
6775D LR088329
SHIELD - ALTERNATOR SPLASH
5.0 Petrol AJ133 DOHC CDA / LH / From: JA000001 / To: KA550694 		$75.73 1
6775D LR083674
SHIELD - SPLASH
2.0L AJ200P Hi PHEV / LH / From: JA000001 		$117.59 1
6775D LR083673
SHIELD - SPLASH
2.0L AJ200P Hi PHEV / RH / From: JA000001 		$117.59 1
6775D LR118389
SHIELD - SPLASH
3.0 V6 D Gen2 Twin Turbo / RH / From: KA550695 		$70.88 1
6775D LR118390
SHIELD - SPLASH
5.0L P AJ133 DOHC CDA S/C Enhanced / LH / From: KA550695 		$70.88 1
