Insulators - Rear (Luggage Compartment)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Insulators - Rear (Luggage Compartment)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR108386 CLIP - PUSH ON STEEL $1.05 To Order
Photo Part No Description Price (each) Stock
RZM500090 PIN - FIXING $10.14 To Order
RZM500090 PIN - FIXING $10.14 To Order
RZM500090 PIN - FIXING $10.14 To Order
Photo Part No Description Price (each) Stock
LR069819 FOAM PAD - ENERGY ABSORBING $34.83 To Order
Photo Part No Description Price (each) Stock
LR040779 INSULATOR - REAR QUARTER PANEL $37.35 To Order
LR041000 INSULATOR - REAR QUARTER PANEL $29.98 To Order
LR046744 INSULATOR - REAR QUARTER PANEL $28.00 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR040335 INSULATOR - REAR QUARTER PANEL $48.79 To Order
LR047585 INSULATOR - REAR QUARTER PANEL $48.79 To Order
Photo Part No Description Price (each) Stock
LR101731 FOAM PAD - ENERGY ABSORBING $100.60 To Order
Photo Part No Description Price (each) Stock
LR069084 INSULATOR - TRANSMISSION $6.64 To Order
LR069079 INSULATOR - TRANSMISSION $6.64 To Order
LR117585 INSULATOR - WHEELARCH - OUTER $21.70 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR113024 INSULATOR - FOAM PAD $24.59 To Order
Photo Part No Description Price (each) Stock
LR041733 INSULATOR - SPARE WHEEL $213.41 To Order
LR044967 INSULATOR - SPARE WHEEL $83.55 To Order
LR048128 INSULATOR - SPARE WHEEL $122.04 To Order
Photo Part No Description Price (each) Stock
LR037834 INSULATOR - SPARE WHEEL $89.98 To Order
Photo Part No Description Price (each) Stock
LR037824 INSULATOR - WHEELHOUSE $128.74 To Order
LR037818 INSULATOR - WHEELHOUSE $117.88 To Order
LR046328 INSULATOR - REAR QUARTER PANEL $168.99 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR037827 INSULATOR - WHEELHOUSE $128.74 To Order
LR037821 INSULATOR - WHEELHOUSE $122.00 To Order
LR048279 INSULATOR - WHEELHOUSE $127.32 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR042540 INSULATOR - REAR QUARTER PANEL $100.06 To Order
Photo Part No Description Price (each) Stock
LR040332 INSULATOR - REAR QUARTER PANEL $19.88 To Order
LR078979 INSULATOR - REAR QUARTER PANEL $26.85 To Order
Photo Part No Description Price (each) Stock
LR041734 INSULATOR - REAR QUARTER PANEL $62.94 To Order
Photo Part No Description Price (each) Stock
LR040334 INSULATOR - REAR QUARTER PANEL $76.63 To Order
LR048077 INSULATOR - REAR QUARTER PANEL $76.63 To Order
Photo Part No Description Price (each) Stock
LR043301 PAD - FOAM $23.92 To Order
LR043302 PAD - FOAM $23.92 To Order
Photo Part No Description Price (each) Stock
LR042616 INSULATOR - FOAM PAD $40.25 To Order
LR042617 INSULATOR - FOAM PAD $40.25 To Order
LR070727 INSULATOR - TRANSMISSION $22.46 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR043520 INSULATOR - FOAM PAD $45.30 To Order
Photo Part No Description Price (each) Stock
LR101710 INSULATOR - WHEELARCH - OUTER $43.98 To Order
LR101711 INSULATOR - WHEELARCH - OUTER $54.31 To Order
Photo Part No Description Price (each) Stock
LR123821 INSULATOR - WHEELARCH - OUTER $15.99 To Order
Photo Part No Description Price (each) Stock
LR069098 INSULATOR - SOUND - BODY $123.68 To Order
LR069096 INSULATOR - SOUND - BODY $123.68 To Order
LR104284 INSULATOR - SOUND $35.52 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR069824 INSULATOR - FLOOR $20.43 To Order
LR069822 INSULATOR - FLOOR $20.43 To Order
LR104285 INSULATOR - SOUND $45.35 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR069823 INSULATOR - FLOOR $20.43 To Order
View All

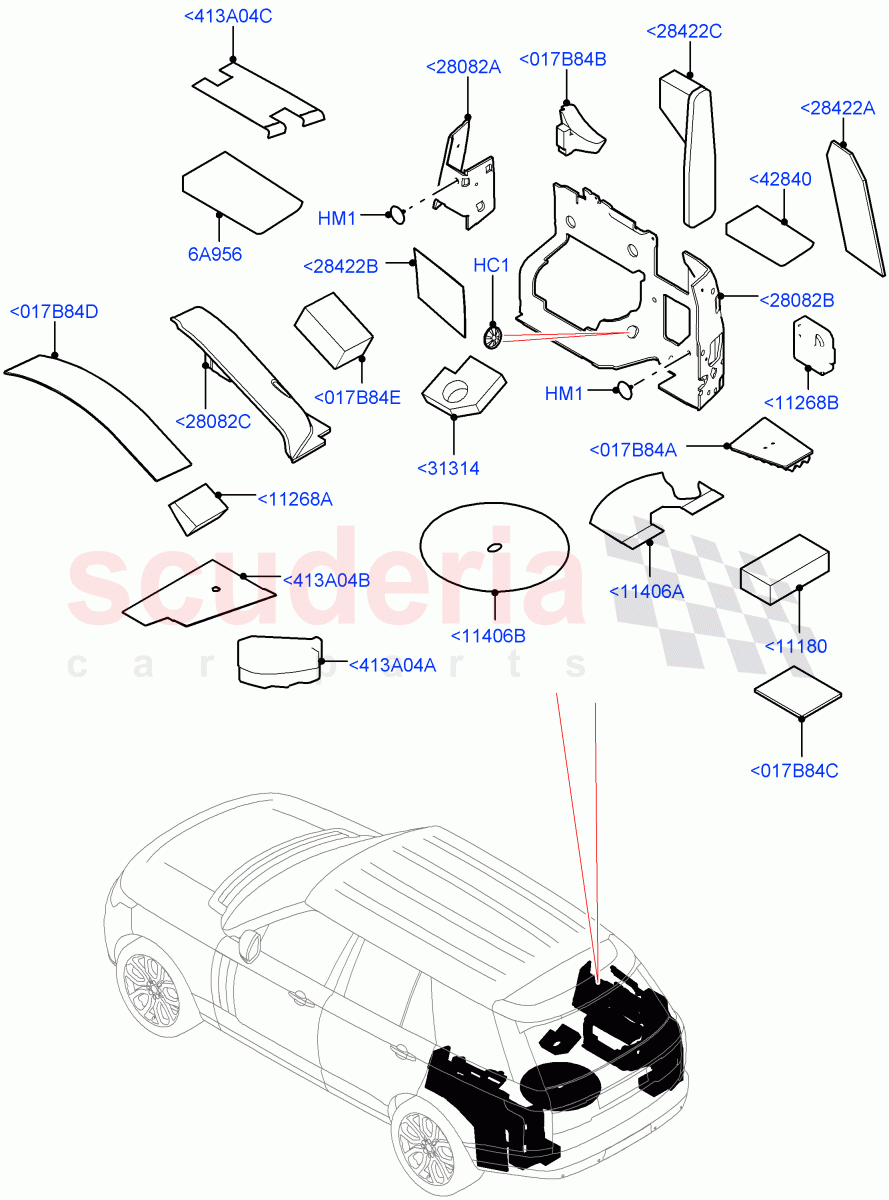

Insulators - Rear (Luggage Compartment) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<017B84A LR043301
PAD - FOAM
RH, Located Inside Luggage Compartment 		$23.92 1
<017B84A LR043302
PAD - FOAM
LH, Located Inside Luggage Compartment 		$23.92 1
<017B84B LR042616
INSULATOR - FOAM PAD
RH / To: FA999999 		$40.25 1
<017B84B LR042617
INSULATOR - FOAM PAD
LH / To: FA999999 		$40.25 1
<017B84B LR070727
INSULATOR - TRANSMISSION
LH / From: GA000001 		$22.46 1
<017B84B LR070726
INSULATOR - TRANSMISSION
RH / From: GA000001 		$22.46 1
<017B84C LR043520
INSULATOR - FOAM PAD
Auxillary Battery 14AH B19 / Located Inside Luggage Compartment 		$45.30 1
<017B84D LR101710
INSULATOR - WHEELARCH - OUTER
RH, Wheelarch / From: JA000001 		$43.98 1
<017B84D LR101711
INSULATOR - WHEELARCH - OUTER
LH, Wheelarch / From: JA000001 		$54.31 1
<017B84E LR123821
INSULATOR - WHEELARCH - OUTER
RH/LH, Wheelhouse / From: KA533869 		$15.99 2
<413A04A LR069098
INSULATOR - SOUND - BODY
LH / From: FA212941 / To: HA999999 		$123.68 1
<413A04A LR069096
INSULATOR - SOUND - BODY
RH / From: FA212941 / To: HA999999 		$123.68 1
<413A04A LR104284
INSULATOR - SOUND
LH / From: JA000001 		$35.52 1
<413A04A LR104283
INSULATOR - SOUND
RH / From: JA000001 		$35.52 1
<413A04B LR069824
INSULATOR - FLOOR
LH / From: FA212941 / To: HA999999 		$20.43 1
<413A04B LR069822
INSULATOR - FLOOR
RH / From: FA212941 / To: HA999999 		$20.43 1
<413A04B LR104285
INSULATOR - SOUND
RH / From: JA000001 		$45.35 1
<413A04B LR104287
INSULATOR - SOUND
LH / From: JA000001 		$45.35 1
<413A04C LR069823
INSULATOR - FLOOR
RH / From: FA212941 		$20.43 1
<11180 LR040779
INSULATOR - REAR QUARTER PANEL
RH, Luggage Compartment / To: DA106654 		$37.35 1
<11180 LR041000
INSULATOR - REAR QUARTER PANEL
LH, Luggage Compartment / To: DA106654 		$29.98 1
<11180 LR046744
INSULATOR - REAR QUARTER PANEL
LH, Luggage Compartment / From: DA106655 		$28.00 1
<11180 LR047582
INSULATOR - REAR QUARTER PANEL
RH, Luggage Compartment / From: DA106655 / To: HA999999 		$45.30 1
<11180 LR047582
INSULATOR - REAR QUARTER PANEL
Less Electric Engine Battery / RH, Luggage Compartment / From: JA000001 		$45.30 1
<11268A LR069084
INSULATOR - TRANSMISSION
RH / From: FA212941 		$6.64 1
<11268A LR069079
INSULATOR - TRANSMISSION
LH / From: FA212941 / To: HA999999 		$6.64 1
<11268A LR117585
INSULATOR - WHEELARCH - OUTER
LH / From: JA508008 		$21.70 1
<11268A LR101709
INSULATOR - WHEELARCH - OUTER
LH / From: JA000001 / To: JA508007 		$21.70 1
<11268B LR113024
INSULATOR - FOAM PAD
Fuse Box / From: JA000001 		$24.59 1
<11406A LR041733
INSULATOR - SPARE WHEEL
For Spare Wheel / To: DA102286 		$213.41 1
<11406A LR044967
INSULATOR - SPARE WHEEL
For Spare Wheel / From: DA102287 / To: DA115762 		$83.55 1
<11406A LR048128
INSULATOR - SPARE WHEEL
For Spare Wheel / From: DA115763 		$122.04 1
<11406B LR037834
INSULATOR - SPARE WHEEL
For Spare Wheel / To: KA554776 		$89.98 1
<28082A LR037824
INSULATOR - WHEELHOUSE
LH / To: DA999999 		$128.74 1
<28082A LR037818
INSULATOR - WHEELHOUSE
RH / To: HA999999 		$117.88 1
<28082A LR046328
INSULATOR - REAR QUARTER PANEL
LH / From: EA000001 / To: GA999999 		$168.99 1
<28082A LR085838
INSULATOR - WHEELHOUSE
LH / From: HA000001 		$107.90 1
<28082A LR106609
INSULATOR - WHEELHOUSE
RH / From: JA000001 		$122.00 1
<28082B LR037827
INSULATOR - WHEELHOUSE
LH / To: DA104247 		$128.74 1
<28082B LR037821
INSULATOR - WHEELHOUSE
RH / To: HA999999 		$122.00 1
<28082B LR048279
INSULATOR - WHEELHOUSE
LH / From: DA104248 / To: HA999999 		$127.32 1
<28082B LR098211
INSULATOR - WHEELHOUSE
RH / From: JA000001 / To: KA550665 		$122.00 1
<28082B LR098235
INSULATOR - REAR QUARTER PANEL
LH / From: JA000001 		$122.08 1
<28082B LR125353
INSULATOR - WHEELHOUSE
RH / From: KA550666 		$100.10 1
<28082C LR042540
INSULATOR - REAR QUARTER PANEL
LH 		$100.06 1
<28422A LR040332
INSULATOR - REAR QUARTER PANEL
RH/LH / To: FA999999 		$19.88 2
<28422A LR078979
INSULATOR - REAR QUARTER PANEL
RH/LH / From: GA000001 		$26.85 2
<28422B LR041734
INSULATOR - REAR QUARTER PANEL
RH/LH 		$62.94 2
<28422C LR040334
INSULATOR - REAR QUARTER PANEL
RH/LH / To: DA105052 		$76.63 2
<28422C LR048077
INSULATOR - REAR QUARTER PANEL
RH/LH / From: DA105053 		$76.63 2
<31314 LR040335
INSULATOR - REAR QUARTER PANEL
Includes RH And LH Sides / To: DA106654 		$48.79 2
<31314 LR047585
INSULATOR - REAR QUARTER PANEL
Includes RH And LH Sides / From: DA106655 		$48.79 2
<42840 LR101731
FOAM PAD - ENERGY ABSORBING
Battery Tray / From: JA000001 		$100.60 1
HC1 LR108386
CLIP - PUSH ON STEEL
M6 / From: JA000001 		$1.05 2
HM1 RZM500090
PIN - FIXING
6.5 X 17MM, Quarter Wheel House 		$10.14 10
HM1 RZM500090
PIN - FIXING
RH, 6.5 X 17MM, Quarter Wheel House 		$10.14 3
HM1 RZM500090
PIN - FIXING
LH, 6.5 X 17MM, Quarter Wheel House 		$10.14 2
6A956 LR069819
FOAM PAD - ENERGY ABSORBING
RH / From: FA212941 		$34.83 1
