Front Doors, Hinges & Weatherstrips (Armoured) ((V) Fromea000001)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Front Doors, Hinges & Weatherstrips (Armoured) ((V) FROMEA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FY108046 NUT M8 FLANGED HEX HEAD $1.12 IN STOCK
Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED $0.60 IN STOCK
Photo Part No Description Price (each) Stock
RYP501050 SCREW - PAN - TORX $1.46 To Order
Photo Part No Description Price (each) Stock
JYP500110 SCREW $1.13 To Order
Photo Part No Description Price (each) Stock
LR176309 Screw $70.46 To Order
Photo Part No Description Price (each) Stock
RYF000021 RESTRICTOR $0.96 IN STOCK
Photo Part No Description Price (each) Stock
LR066193 DOOR - FRONT $17,905.50 To Order
LR066194 DOOR - FRONT $17,905.50 To Order
Photo Part No Description Price (each) Stock
LR066199 CHECK - DOOR $841.21 To Order
LR066200 CHECK - DOOR $908.50 To Order
LR176312 Check - Door $2,096.46 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR066204 LIFT - GAS $421.69 To Order
Photo Part No Description Price (each) Stock
LR066201 LINK - DOOR RELEASE CONTROL $427.65 To Order
LR176311 Link - Door Release Control $698.70 To Order
Photo Part No Description Price (each) Stock
LR057681 HINGE - DOOR $870.79 To Order
LR057685 HINGE - DOOR $870.79 To Order
Photo Part No Description Price (each) Stock
LR057682 HINGE - DOOR $870.79 To Order
LR057686 HINGE - DOOR $870.79 To Order
View All

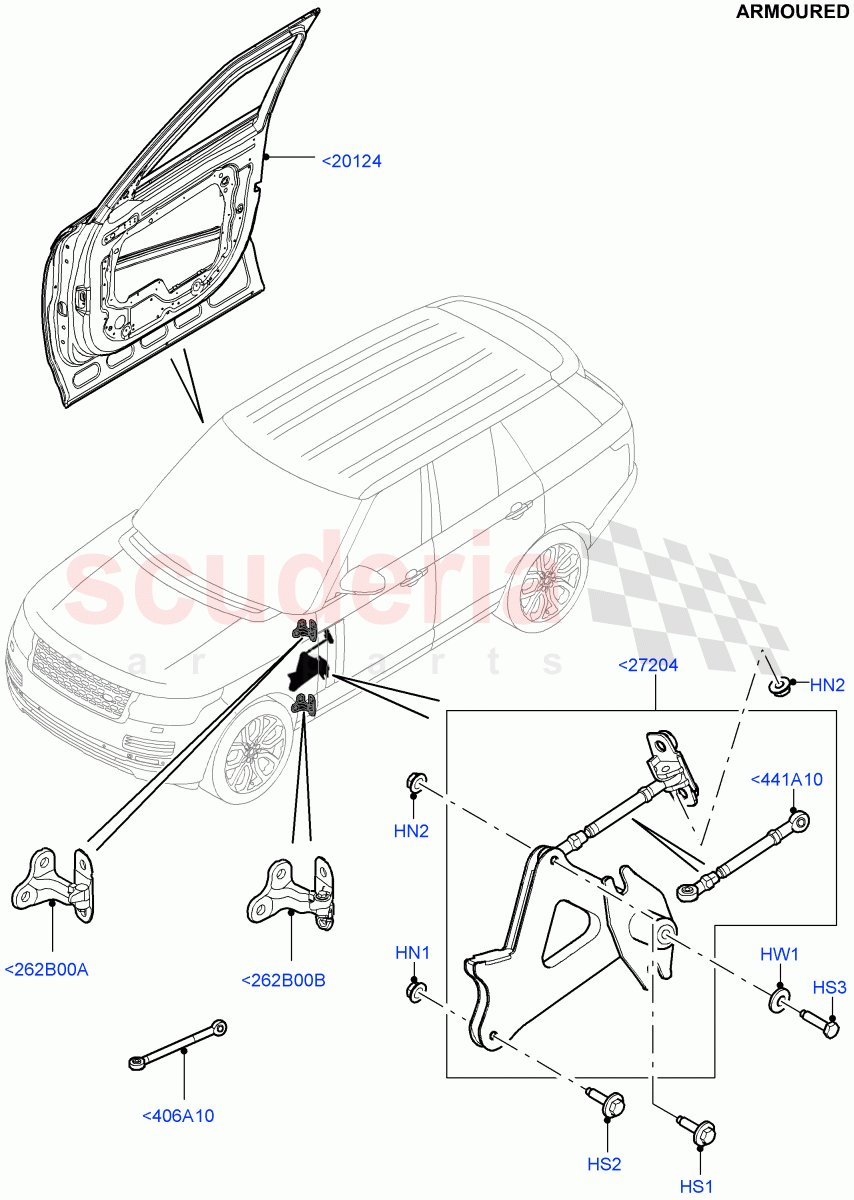

Front Doors, Hinges & Weatherstrips (Armoured) ((V) FROMEA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<262B00A LR057681
HINGE - DOOR
RH, Upper / From: EA000001 		$870.79 1
<262B00A LR057685
HINGE - DOOR
LH, Upper / From: EA000001 		$870.79 1
<262B00B LR057682
HINGE - DOOR
RH, Lower / From: EA000001 		$870.79 1
<262B00B LR057686
HINGE - DOOR
LH, Lower / From: EA000001 		$870.79 1
<406A10 LR066204
LIFT - GAS
RH/LH / From: EA000001 		$421.69 1
<441A10 LR066201
LINK - DOOR RELEASE CONTROL
RH/LH / From: EA000001 / To: HA999999 		$427.65 2
<441A10 LR176311
Link - Door Release Control
RH/LH / From: JA000001 		$698.70 2
<20124 LR066193
DOOR - FRONT
RH / From: EA000001 		$17,905.50 1
<20124 LR066194
DOOR - FRONT
LH / From: EA000001 		$17,905.50 1
<27204 LR066199
CHECK - DOOR
RH / From: EA000001 / To: HA999999 		$841.21 1
<27204 LR066200
CHECK - DOOR
LH / From: EA000001 / To: HA999999 		$908.50 1
<27204 LR176312
Check - Door
RH / From: JA000001 		$2,096.46 1
<27204 LR176337
Check - Door
LH / From: JA000001 		$2,096.46 1
HN1 FY108046
NUT M8 FLANGED HEX HEAD
M8 / From: EA000001
IN STOCK 		$1.12 2
HN2 FX106046
NUT - FLANGED
A/B Post Bracket, Hexagonal Head, M6 / From: EA000001
IN STOCK 		$0.60 2
HS1 RYP501050
SCREW - PAN - TORX
M6 X 25MM, Torx / From: EA000001 		$1.46 2
HS2 JYP500110
SCREW
M8 x 30MM / From: EA000001 		$1.13 2
HS3 LR176309
Screw
M10 X 60MM / From: EA000001 		$70.46 2
HW1 RYF000021
RESTRICTOR
M12 / From: EA000001
IN STOCK 		$0.96 2
