Side Panels - Inner (Wheelarch, Middle - Rear, Inner - Rear)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Side Panels - Inner (Wheelarch, Middle - Rear, Inner - Rear)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
ANR2224 HARDWARE - MISCELLANEOUS $2.67 To Order
Photo Part No Description Price (each) Stock
RYH500840 NUT $1.06 To Order
Photo Part No Description Price (each) Stock
AYB500080 PLUG - BLANKING $7.98 To Order
Photo Part No Description Price (each) Stock
LR000066 PLUG - BLANKING $0.56 To Order
Photo Part No Description Price (each) Stock
LR000807 PLUG - BODY SEALING $0.61 To Order
Photo Part No Description Price (each) Stock
LR003553 PLUG $3.36 To Order
Photo Part No Description Price (each) Stock
AZP500060 PLUG - BLANKING $1.88 To Order
Photo Part No Description Price (each) Stock
LR005590 PLUG $3.66 To Order
Photo Part No Description Price (each) Stock
LR038137 PLUG - BODY SEALING $6.05 To Order
Photo Part No Description Price (each) Stock
LR002204 PLUG $0.66 To Order
Photo Part No Description Price (each) Stock
LR046116 PLUG - BLANKING $8.65 To Order
Photo Part No Description Price (each) Stock
LR106494 SCREW $2.24 IN STOCK
Photo Part No Description Price (each) Stock
LR043516 INSULATOR - REAR FLOOR PAN $35.03 To Order
Photo Part No Description Price (each) Stock
LR042691 INSULATOR - FOAM PAD $25.57 To Order
Photo Part No Description Price (each) Stock
LR033053 SHIELD - SPLASH - WHEELHOUSE $195.68 To Order
LR033054 SHIELD - SPLASH - WHEELHOUSE $195.68 To Order
LR050799 SHIELD - SPLASH - WHEELHOUSE $184.16 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR044500 INSULATOR - QUARTER PANEL $27.97 To Order
LR044499 INSULATOR - QUARTER PANEL $27.97 To Order
LR049978 INSULATOR - QUARTER PANEL $27.97 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR038404 INSULATOR - QUARTER PANEL $32.94 To Order
LR038405 INSULATOR - QUARTER PANEL $32.94 To Order
Photo Part No Description Price (each) Stock
LR038398 INSULATOR - QUARTER PANEL $30.31 To Order
LR038399 INSULATOR - QUARTER PANEL $28.97 To Order
LR049980 INSULATOR - QUARTER PANEL $20.81 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR038402 INSULATOR - QUARTER PANEL $36.88 To Order
LR038403 INSULATOR - QUARTER PANEL $182.49 To Order
Photo Part No Description Price (each) Stock
LR044505 INSULATOR - QUARTER PANEL $35.52 To Order
LR044506 INSULATOR - QUARTER PANEL $42.81 To Order
LR048171 INSULATOR - QUARTER PANEL $37.93 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR054934 INSULATOR - QUARTER PANEL $12.43 To Order
View All

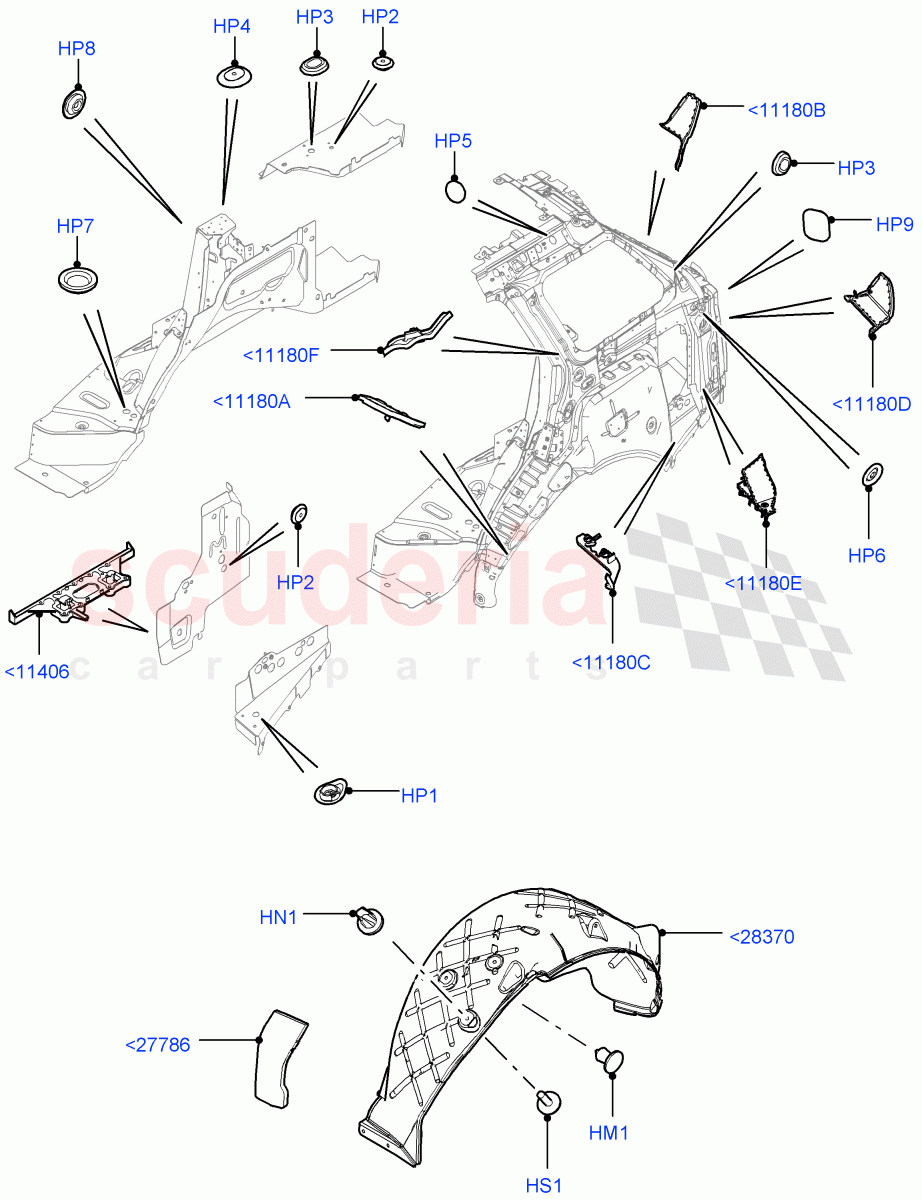

Side Panels - Inner (Wheelarch, Middle - Rear, Inner - Rear) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<11180A LR044500
INSULATOR - QUARTER PANEL
LH / To: EA129551 		$27.97 1
<11180A LR044499
INSULATOR - QUARTER PANEL
RH / To: EA129551 		$27.97 1
<11180A LR049978
INSULATOR - QUARTER PANEL
RH / From: EA129552 		$27.97 1
<11180A LR049979
INSULATOR - QUARTER PANEL
LH / From: EA129552 		$27.97 1
<11180B LR038404
INSULATOR - QUARTER PANEL
RH 		$32.94 1
<11180B LR038405
INSULATOR - QUARTER PANEL
LH 		$32.94 1
<11180C LR038398
INSULATOR - QUARTER PANEL
RH / To: EA129551 		$30.31 1
<11180C LR038399
INSULATOR - QUARTER PANEL
LH / To: EA129551 		$28.97 1
<11180C LR049980
INSULATOR - QUARTER PANEL
RH / From: EA129552 / To: GA290341 		$20.81 1
<11180C LR049981
INSULATOR - QUARTER PANEL
LH / From: EA129552 / To: GA290341 		$20.81 1
<11180C LR086397
INSULATOR - QUARTER PANEL
RH / From: GA290342 		$25.96 1
<11180C LR086396
INSULATOR - QUARTER PANEL
LH / From: GA290342 		$26.65 1
<11180D LR038402
INSULATOR - QUARTER PANEL
RH 		$36.88 1
<11180D LR038403
INSULATOR - QUARTER PANEL
LH 		$182.49 1
<11180E LR044505
INSULATOR - QUARTER PANEL
RH / To: DA117234 		$35.52 1
<11180E LR044506
INSULATOR - QUARTER PANEL
LH / To: DA117234 		$42.81 1
<11180E LR048171
INSULATOR - QUARTER PANEL
RH / From: DA117235 		$37.93 1
<11180E LR048173
INSULATOR - QUARTER PANEL
LH / From: DA117235 		$43.82 1
<11180F LR054934
INSULATOR - QUARTER PANEL
RH/LH 		$12.43 2
<11406 LR043516
INSULATOR - REAR FLOOR PAN
RH Side Only 		$35.03 1
<27786 LR042691
INSULATOR - FOAM PAD
RH/LH 		$25.57 2
<28370 LR033053
SHIELD - SPLASH - WHEELHOUSE
RH / To: DA121749 		$195.68 1
<28370 LR033054
SHIELD - SPLASH - WHEELHOUSE
LH / To: DA121749 		$195.68 1
<28370 LR050799
SHIELD - SPLASH - WHEELHOUSE
RH / From: DA121750 / To: EA138561 		$184.16 1
<28370 LR050800
SHIELD - SPLASH - WHEELHOUSE
LH / From: DA121750 / To: EA138561 		$184.16 1
<28370 LR055864
SHIELD - SPLASH - WHEELHOUSE
RH / From: EA138562 / To: EA150088 		$193.28 1
<28370 LR055867
SHIELD - SPLASH - WHEELHOUSE
LH / From: EA138562 / To: EA150088 		$193.28 1
<28370 LR060014
SHIELD - SPLASH - WHEELHOUSE
RH / From: EA150089 / To: KA545125 		$187.47 1
<28370 LR060015
SHIELD - SPLASH - WHEELHOUSE
LH / From: EA150089 / To: KA545125 		$195.51 1
<28370 LR127997
SHIELD - SPLASH - WHEELHOUSE
RH / From: KA545126 / To: MA421595 		$222.98 1
<28370 LR128010
SHIELD - SPLASH - WHEELHOUSE
LH / From: KA545126 / To: MA421595 		$206.79 1
<28370 LR148257
SHIELD - SPLASH - WHEELHOUSE
RH / From: MA421596 		$212.73 1
<28370 LR148258
SHIELD - SPLASH - WHEELHOUSE
LH / From: MA421596 		$212.73 1
HM1 ANR2224
HARDWARE - MISCELLANEOUS
8 X 20MM, Pin 		$2.67 6
HN1 RYH500840
NUT
M4, Plastic Nut 		$1.06 10
HP1 AYB500080
PLUG - BLANKING
Approx. 30 x 36 x 9, Drain Plug, Extension 		$7.98 2
HP2 LR000066
PLUG - BLANKING
16 X 0.6MM, Side Member 		$0.56 4
HP3 LR000807
PLUG - BODY SEALING
16 X 22.5 X 0.5MM, Panel, Rear Quarter 		$0.61 4
HP4 LR003553
PLUG
19.5 X 24.5MM, Panel, Rear Quarter 		$3.36 2
HP5 AZP500060
PLUG - BLANKING
Aluminium Finish, 		$1.88 10
HP6 LR005590
PLUG
19 x 0.7MM, Panel, Rear Quarter 		$3.66 2
HP7 LR038137
PLUG - BODY SEALING
30MM X 2MM, Panel, Rear Quarter 		$6.05 2
HP8 LR002204
PLUG
2 x 20MM, Drain Plug 		$0.66 2
HP9 LR046116
PLUG - BLANKING
Panel, Rear Quarter 		$8.65 4
HS1 LR106494
SCREW
M5 x 20MM, Self Tapping
IN STOCK 		$2.24 16
