Engine Harness (1.5L Aj20P3 Petrol High, Halewood (Uk)) ((V) Frommh000001)

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Engine Harness (1.5L AJ20P3 Petrol High, Halewood (UK)) ((V) FROMMH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108256 BOLT $3.57 IN STOCK
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.60 IN STOCK
Photo Part No Description Price (each) Stock
RYG500470 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
LR133624 LINK - CAN $138.29 To Order
Photo Part No Description Price (each) Stock
LR147835 WIRE $1,300.81 To Order
LR161682 WIRE $1,300.81 To Order
LR167907 WIRE $1,300.64 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR128792 BRACKET - WIRING $32.76 To Order
LR169552 BRACKET - WIRING $30.79 To Order
Photo Part No Description Price (each) Stock
LR173653 Bracket $20.34 To Order
View All

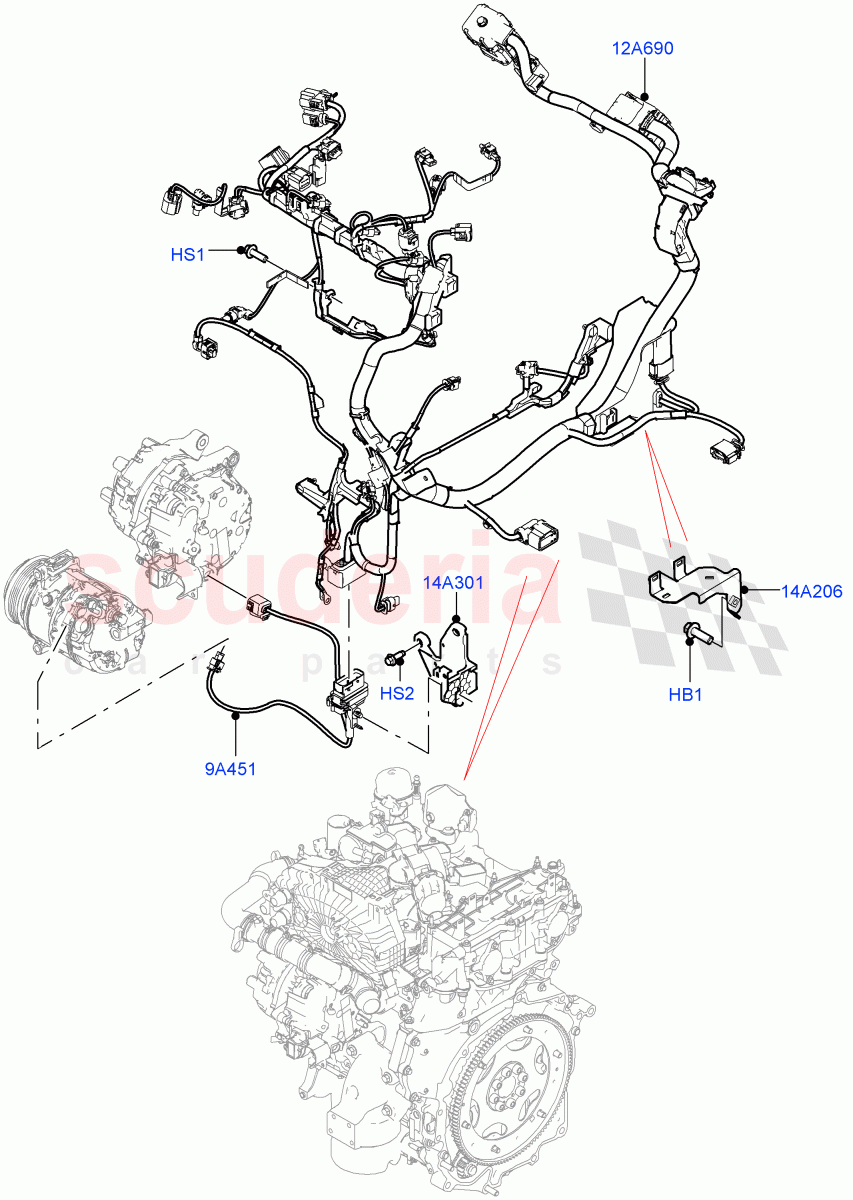

Engine Harness (1.5L AJ20P3 Petrol High, Halewood (UK)) ((V) FROMMH000001) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108256
BOLT
Harness Bracket, Hexagonal Head, M8 X 25MM / From: MH000001
IN STOCK 		$3.57 1
HS1 LR073655
SCREW
Hexagonal Head, M6 X 20MM / From: MH000001
IN STOCK 		$1.60 2
HS2 RYG500470
SCREW
Electric Engine Battery-MHEV / Can Link, Hexagonal Head, M10 X 25MM / From: MH000001 		$0.61 2
9A451 LR133624
LINK - CAN
Electric Engine Battery-MHEV / Can Link / From: MH000001 		$138.29 1
12A690 LR147835
WIRE
From: MH000001 / To: MH152786 		$1,300.81 1
12A690 LR161682
WIRE
From: MH152787 / To: NH164607 		$1,300.81 1
12A690 LR167907
WIRE
From: NH164608 / To: NH999999 		$1,300.64 1
12A690 LR171383
WIRE
From: PH000001 		$696.68 1
14A206 LR128792
BRACKET - WIRING
From: MH000001 / To: NH173132 		$32.76 1
14A206 LR169552
BRACKET - WIRING
From: NH173133 		$30.79 1
14A301 LR173653
Bracket
Electric Engine Battery-MHEV / Can Link / From: MH000001 		$20.34 1
