Rear Lamps (Changsu (China))

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Rear Lamps (Changsu (China))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN105042 NUT - HEX. - FLANGED $0.52 IN STOCK
Photo Part No Description Price (each) Stock
LR006025 BOLT $1.38 IN STOCK
Photo Part No Description Price (each) Stock
LR117453 SCREW - SPECIAL $4.05 To Order
Photo Part No Description Price (each) Stock
LR089442 LAMP - LICENCE PLATE $35.70 To Order
Photo Part No Description Price (each) Stock
LR116040 LAMP - FOG - REAR $176.86 To Order
LR116041 LAMP - FOG - REAR $177.11 To Order
Photo Part No Description Price (each) Stock
LR128384 LAMP - REAR $203.26 To Order
LR128386 LAMP - REAR $203.26 To Order
LR155850 LAMP - REAR $210.37 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR128379 LAMP - REAR- STOP AND FLASHER $371.82 To Order
LR128382 LAMP - REAR- STOP AND FLASHER $371.82 To Order
LR155979 LAMP - REAR- STOP AND FLASHER $427.77 To Order
...and 1 more part variants. See table on right for more details.
View All

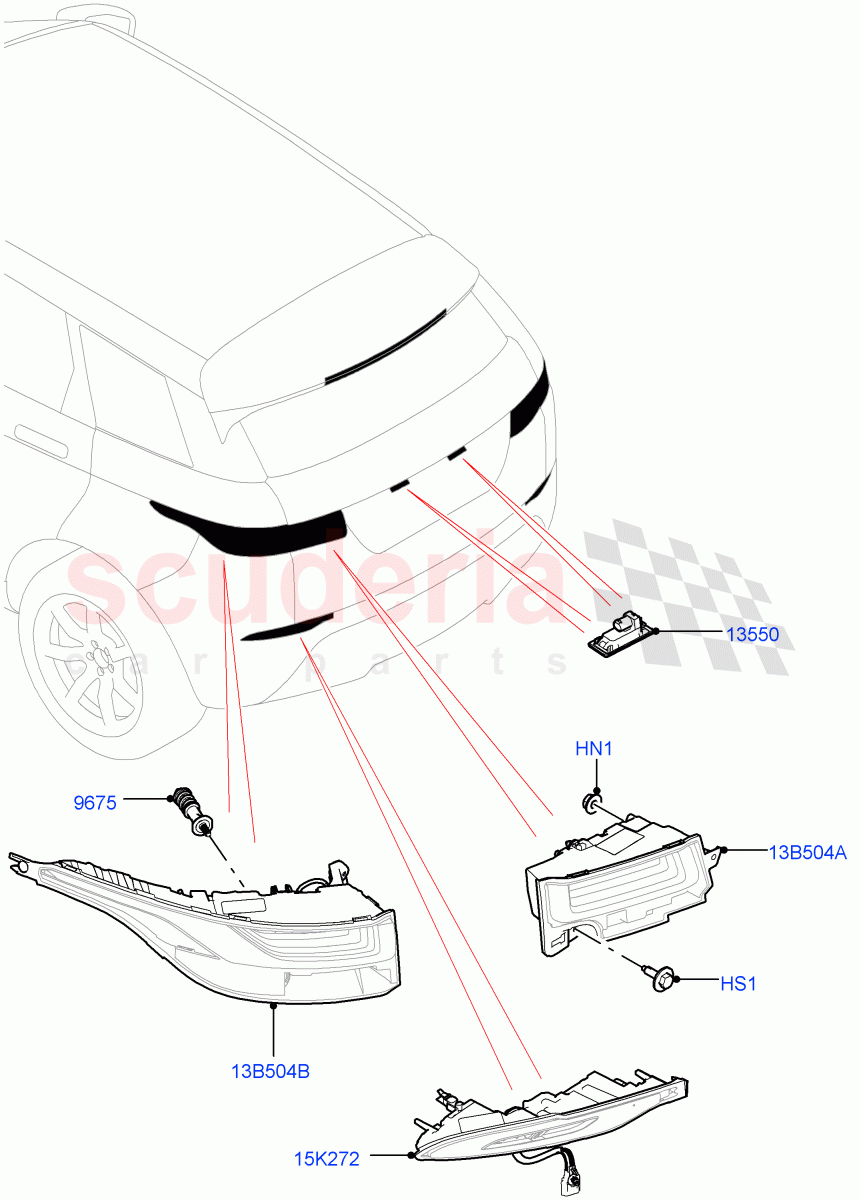

Rear Lamps (Changsu (China)) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FN105042
NUT - HEX. - FLANGED
M5, Tail Lamp
IN STOCK 		$0.52 4
HS1 LR006025
BOLT
Bolt And Washer, M6 X 15 Hex, Tail Lamp
IN STOCK 		$1.38 2
13B504A LR128384
LAMP - REAR
RH, Tailgate / To: MG575834 		$203.26 1
13B504A LR128386
LAMP - REAR
LH, Tailgate / To: MG575834 		$203.26 1
13B504A LR155850
LAMP - REAR
LH, Tailgate / From: MG575835 		$210.37 1
13B504A LR155851
LAMP - REAR
RH, Tailgate / From: MG575835 		$210.37 1
13B504B LR128379
LAMP - REAR- STOP AND FLASHER
H/Lamp Operation LHD-Right Justify, Headlamps - LED Matrix / RH, Bodyside / To: MG575834 		$371.82 1
13B504B LR128382
LAMP - REAR- STOP AND FLASHER
H/Lamp Operation LHD-Right Justify, Headlamps - LED Premium / LH, Bodyside / To: MG575834 		$371.82 1
13B504B LR155979
LAMP - REAR- STOP AND FLASHER
RH, Bodyside / From: MG575835 		$427.77 1
13B504B LR155980
LAMP
LH, Bodyside / From: MG575835 		$427.77 1
15K272 LR116040
LAMP - FOG - REAR
RH 		$176.86 1
15K272 LR116041
LAMP - FOG - REAR
LH 		$177.11 1
9675 LR117453
SCREW - SPECIAL
Bodyside, Lamps 		$4.05 2
13550 LR089442
LAMP - LICENCE PLATE 		$35.70 2
