View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR091314 BOLT AND WASHER - TORX HEAD $0.89 To Order
Photo Part No Description Price (each) Stock
LR135835 BOLT $1.23 To Order
Photo Part No Description Price (each) Stock
LR028253 BOLT $1.49 To Order
Photo Part No Description Price (each) Stock
LR114221 BOLT AND WASHER - TORX HEAD $0.79 To Order
Photo Part No Description Price (each) Stock
LR123719 BOLT $1.23 To Order
Photo Part No Description Price (each) Stock
LR135224 SCREW $0.97 To Order
Photo Part No Description Price (each) Stock
LR113563 STUD $2.25 To Order
Photo Part No Description Price (each) Stock
LR121130 ACTUATOR $152.23 To Order
LR121131 ACTUATOR $166.66 To Order
LR121132 ACTUATOR $139.37 To Order
Photo Part No Description Price (each) Stock
LR140301 MOUNTING - BRACKET $33.53 To Order
LR140302 MOUNTING - BRACKET $33.53 To Order
LR140303 MOUNTING - BRACKET $33.53 To Order
Photo Part No Description Price (each) Stock
LR135301 CABLE $107.44 To Order
Photo Part No Description Price (each) Stock
LR135318 CABLE $5,402.65 To Order
LR135305 CABLE $1,269.01 To Order
LR135313 CABLE $895.23 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR135207 CABLE $255.86 To Order
Photo Part No Description Price (each) Stock
LR137696 CABLE $351.01 To Order
LR135208 CABLE $214.22 To Order
LR144449 CABLE $358.87 To Order
Photo Part No Description Price (each) Stock
LR135303 CABLE $1,980.98 To Order
LR143464 CABLE $1,021.89 To Order
Photo Part No Description Price (each) Stock
LR137827 LINK HARNESS - PHEV SUBFRAME $379.41 To Order
LR148283 LINK HARNESS - PHEV SUBFRAME $273.09 To Order
Photo Part No Description Price (each) Stock
LR173652 Bracket $29.22 To Order
Photo Part No Description Price (each) Stock
LR137819 LINK LEAD $56.87 To Order
Photo Part No Description Price (each) Stock
LR135231 BRACKET - MODULE $115.81 To Order
LR135232 BRACKET - MODULE $153.14 To Order
LR143539 BRACKET - MODULE $153.14 To Order
Photo Part No Description Price (each) Stock
LR140251 CAP - PROTECTIVE $9.84 To Order
LR140252 CAP - PROTECTIVE $9.84 To Order
Photo Part No Description Price (each) Stock
LR101813 HEATER $160.80 To Order
Photo Part No Description Price (each) Stock
LR138369 FLAP - BATTERY CHARGER INLET $96.02 To Order
LR135836 FLAP - BATTERY CHARGER INLET $110.49 To Order
LR147520 FLAP - BATTERY CHARGER INLET $110.49 To Order
Photo Part No Description Price (each) Stock
LR140158 CHARGING CABLE EMERGENCY RELEASE $46.10 To Order
LR140159 CHARGING CABLE EMERGENCY RELEASE $46.46 To Order
Photo Part No Description Price (each) Stock
LR135601 BRACKET - HEATER MOUNTING $35.13 To Order
Photo Part No Description Price (each) Stock
LR140504 BRACKET - WIRING $39.02 To Order
Photo Part No Description Price (each) Stock
LR135184 BRACKET - WIRING $48.77 To Order
Photo Part No Description Price (each) Stock
LR135185 BRACKET - WIRING $32.51 To Order
Photo Part No Description Price (each) Stock
LR156279 BRACKET - WIRING $28.53 To Order
View All

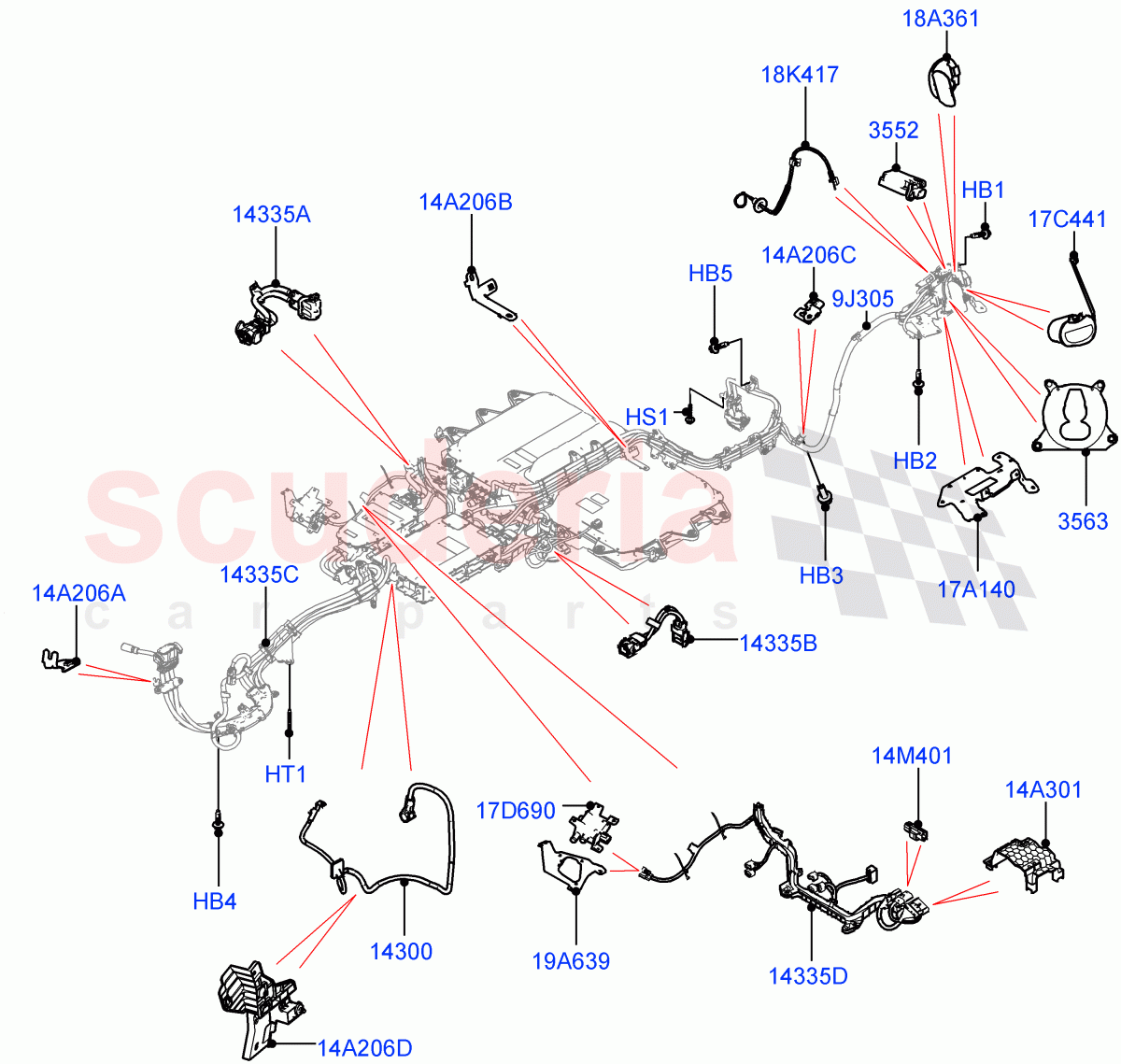

Hybrid Electrical Modules (PHEV Charging Cables And Fixings) (Electric Engine Battery-PHEV) ((V) FROMLH000001) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR091314
BOLT AND WASHER - TORX HEAD
M6 x 19MM / From: LH000001 		$0.89 4
HB2 LR135835
BOLT
M8x24 / From: LH000001 		$1.23 1
HB3 LR028253
BOLT
M6 X 16MM / From: LH000001 		$1.49 1
HB4 LR114221
BOLT AND WASHER - TORX HEAD
M8 X 20MM(TORX) / From: LH000001 		$0.79 4
HB5 LR123719
BOLT
M6 X 20MM / From: LH000001 		$1.23 8
HS1 LR135224
SCREW
M6x30 / From: LH000001 		$0.97 1
HT1 LR113563
STUD
From: LH000001 		$2.25 2
9J305 LR135318
CABLE
Charge Socket GB/T AC + GB/T DC / From: LH000001 / To: LH080978 		$5,402.65 1
9J305 LR135305
CABLE
Double Charge Sckt AC/DC Type 1 Cmb / From: LH000001 / To: LH103023 		$1,269.01 1
9J305 LR135313
CABLE
Double Charge Sckt AC/DC Type 2 Cmb / From: LH000001 / To: LH099780 		$895.23 1
9J305 LR144450
CABLE
Charge Socket GB/T AC + GB/T DC / From: LH080979 / To: MH125787 		$1,269.01 1
9J305 LR140502
WIRING - TRACTION BATTERY
Charge Socket AC + Chademo DC / From: LH000001 		$1,168.48 1
9J305 LR146417
CABLE
Double Charge Sckt AC/DC Type 1 Cmb / From: LH103024 		$1,980.98 1
9J305 LR146042
CABLE
Double Charge Sckt AC/DC Type 2 Cmb / From: LH099781 		$1,140.54 1
9J305 LR156915
CABLE
Charge Socket GB/T AC + GB/T DC / From: MH125788 		$1,228.48 1
14A206A LR140504
BRACKET - WIRING
Compressor Bracket / From: LH000001 		$39.02 1
14A206B LR135184
BRACKET - WIRING
Battery Bracket / From: LH000001 		$48.77 1
14A206C LR135185
BRACKET - WIRING
Charger Inlet Bracket / From: LH000001 		$32.51 1
14A206D LR156279
BRACKET - WIRING
EPAS Bracket / From: LH011085 		$28.53 1
14A301 LR173652
Bracket
Subframe Inline Bracket / From: LH000001 		$29.22 1
14M401 LR137819
LINK LEAD
Bridging Link / From: LH000001 		$56.87 1
17A140 LR135231
BRACKET - MODULE
Charging Equipment-Var 3 (Basic) / Battery Charger Inlet, Mounting Bracket / From: LH000001 		$115.81 1
17A140 LR135232
BRACKET - MODULE
Charging Equipment-Var 4 (Basic) / Battery Charger Inlet, Mounting Bracket / From: LH000001 / To: LH104248 		$153.14 1
17A140 LR143539
BRACKET - MODULE
Charging Equipment-Var 1 (Basic) / Battery Charger Inlet, Mounting Bracket / From: LH104249 		$153.14 1
17C441 LR140251
CAP - PROTECTIVE
Double Charge Sckt AC/DC Type 1 Cmb / From: LH000001 		$9.84 1
17C441 LR140252
CAP - PROTECTIVE
Double Charge Sckt AC/DC Type 2 Cmb / From: LH000001 		$9.84 1
17D690 LR101813
HEATER
From: LH000001 		$160.80 1
18A361 LR138369
FLAP - BATTERY CHARGER INLET
Double Charge Sckt AC/DC Type 1 Cmb / From: LH000001 		$96.02 1
18A361 LR135836
FLAP - BATTERY CHARGER INLET
Charge Socket GB/T AC + GB/T DC / From: LH000001 / To: LH999999 		$110.49 1
18A361 LR147520
FLAP - BATTERY CHARGER INLET
Charge Socket GB/T AC + GB/T DC / From: MH000001 		$110.49 1
18K417 LR140158
CHARGING CABLE EMERGENCY RELEASE
Double Charge Sckt AC/DC Type 2 Cmb / From: LH000001 		$46.10 1
18K417 LR140159
CHARGING CABLE EMERGENCY RELEASE
Charge Socket GB/T AC + GB/T DC / From: LH000001 		$46.46 1
19A639 LR135601
BRACKET - HEATER MOUNTING
Heater 		$35.13 1
3552 LR121130
ACTUATOR
Double Charge Sckt AC/DC Type 1 Cmb / From: LH000001 		$152.23 1
3552 LR121131
ACTUATOR
Double Charge Sckt AC/DC Type 2 Cmb / From: LH000001 		$166.66 1
3552 LR121132
ACTUATOR
Charge Socket GB/T AC + GB/T DC / From: LH000001 		$139.37 1
3563 LR140301
MOUNTING - BRACKET
Double Charge Sckt AC/DC Type 1 Cmb / From: LH000001 		$33.53 1
3563 LR140302
MOUNTING - BRACKET
Double Charge Sckt AC/DC Type 2 Cmb / From: LH000001 		$33.53 1
3563 LR140303
MOUNTING - BRACKET
Charge Socket GB/T AC + GB/T DC / From: LH000001 		$33.53 1
14300 LR135301
CABLE
Battery To Battery Charger, Positive / From: LH000001 		$107.44 1
14335A LR135207
CABLE
Battery To Inverter / From: LH000001 		$255.86 1
14335B LR137696
CABLE
Charge Socket GB/T AC + GB/T DC / Battery To Battery Charger / From: LH000001 / To: LH072139 		$351.01 1
14335B LR135208
CABLE
Double Charge Sckt AC/DC Type 1 Cmb / Battery To Battery Charger / From: LH000001 		$214.22 1
14335B LR144449
CABLE
Charge Socket GB/T AC + GB/T DC / Battery To Battery Charger / From: LH072140 		$358.87 1
14335C LR135303
CABLE
Inverter To Alternator / From: LH000001 / To: LH080978 		$1,980.98 1
14335C LR143464
CABLE
Inverter To Alternator / From: LH080979 		$1,021.89 1
14335D LR137827
LINK HARNESS - PHEV SUBFRAME
Subframe - Link Harness / From: LH000001 / To: LH999999 		$379.41 1
14335D LR148283
LINK HARNESS - PHEV SUBFRAME
Subframe - Link Harness / From: MH000001 		$273.09 1
