Hybrid Electrical Modules (Mhev Battery, Converter, Harness And Mountings) (Halewood (Uk), Electric...

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Hybrid Electrical Modules (MHEV Battery, Converter, Harness and Mountings) (Halewood (UK), Electric...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.47 IN STOCK
Photo Part No Description Price (each) Stock
LR115327 LITHIUM ION BATTERY $1,316.41 To Order
LR137929 LITHIUM ION BATTERY $1,231.15 To Order
LR139593 LITHIUM ION BATTERY $1,118.45 To Order
Photo Part No Description Price (each) Stock
LR115643 LINK LEAD - COOLING $93.16 To Order
LR162459 LINK LEAD - COOLING $105.10 To Order
Photo Part No Description Price (each) Stock
LR118014 CABLE - TRUNK $235.49 To Order
Photo Part No Description Price (each) Stock
LR128988 CONNECTOR - CABLE $9.80 To Order
Photo Part No Description Price (each) Stock
LR128992 CONNECTOR - CABLE $26.66 To Order
Photo Part No Description Price (each) Stock
LR115502 CONVERTER - VOLTAGE $906.60 To Order
LR135617 CONVERTER - VOLTAGE $827.32 To Order
LR148937 CONVERTER - VOLTAGE $837.94 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR115506 CLAMP - BATTERY $19.89 To Order
Photo Part No Description Price (each) Stock
LR115507 CLAMP - BATTERY $19.69 To Order
Photo Part No Description Price (each) Stock
LR117838 COVER - WIRING $6.89 To Order
Photo Part No Description Price (each) Stock
LR118777 COVER - PWR SUPPLY DISTRIBUTION BOX $15.25 To Order
View All

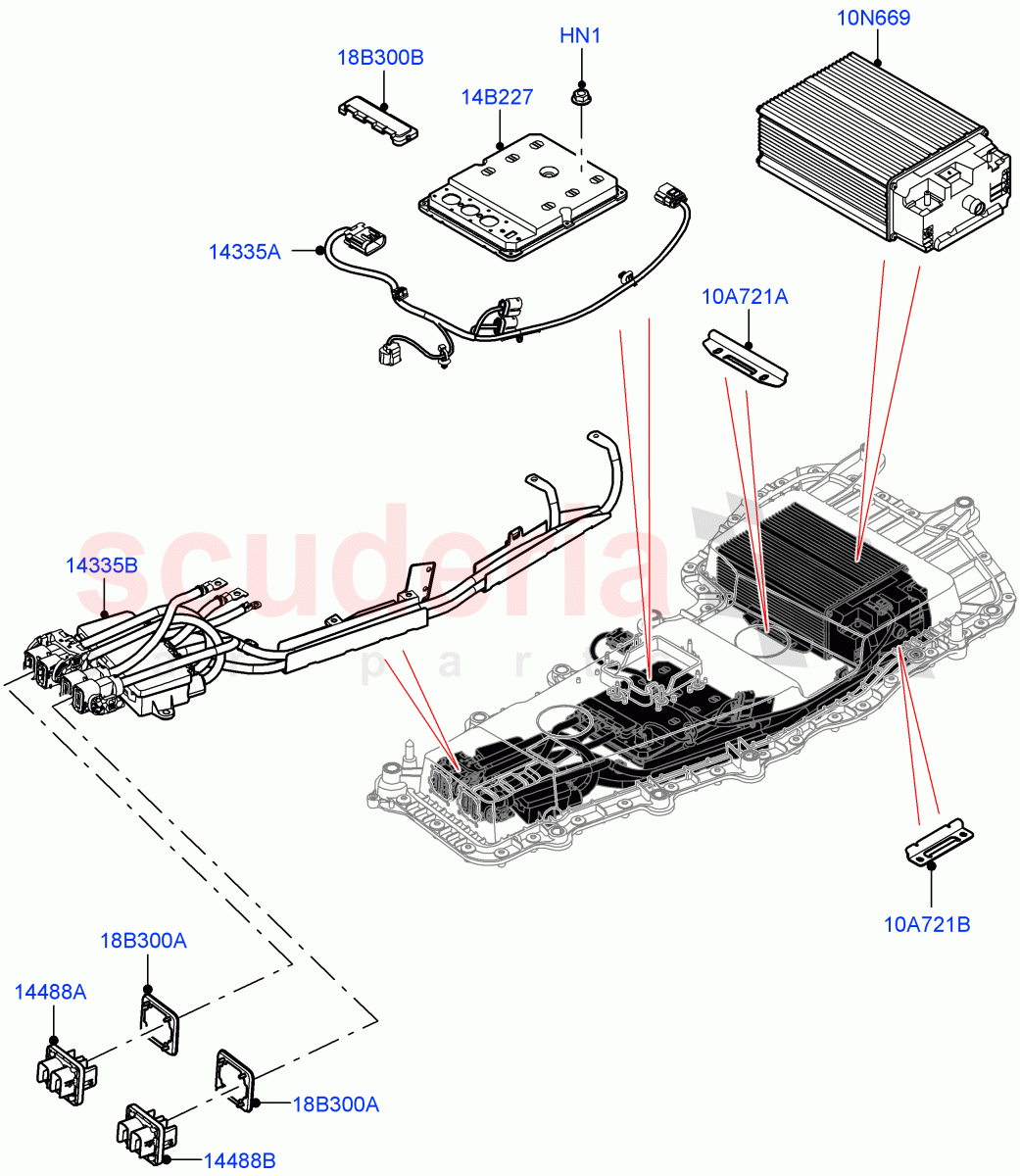

Hybrid Electrical Modules (MHEV Battery, Converter, Harness and Mountings) (Halewood (UK), Electric Engine Battery-MHEV) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.47 3
10A721A LR115506
CLAMP - BATTERY
Front 		$19.89 1
10A721B LR115507
CLAMP - BATTERY
Side 		$19.69 1
10N669 LR115327
LITHIUM ION BATTERY
To: LH063106 		$1,316.41 1
10N669 LR137929
LITHIUM ION BATTERY
From: MH000001 		$1,231.15 1
10N669 LR139593
LITHIUM ION BATTERY
From: LH063107 / To: LH999999 		$1,118.45 1
14B227 LR115502
CONVERTER - VOLTAGE
To: LH026217 		$906.60 1
14B227 LR135617
CONVERTER - VOLTAGE
From: LH026218 / To: LH981246 		$827.32 1
14B227 LR148937
CONVERTER - VOLTAGE
From: LH981247 / To: LH999999 		$837.94 1
14B227 LR131043
CONVERTER - VOLTAGE
From: MH000001 		$824.42 1
18B300A LR117838
COVER - WIRING
Inner, Outer 		$6.89 2
18B300B LR118777
COVER - PWR SUPPLY DISTRIBUTION BOX
Terminal Cover 		$15.25 1
14335A LR115643
LINK LEAD - COOLING
Cooling Fan Link Lead / To: MH999999 		$93.16 1
14335A LR162459
LINK LEAD - COOLING
Cooling Fan Link Lead / From: NH000001 		$105.10 1
14335B LR118014
CABLE - TRUNK
Harnes - Battery to Converter 		$235.49 1
14488A LR128988
CONNECTOR - CABLE
Code A 		$9.80 1
14488B LR128992
CONNECTOR - CABLE
Code B 		$26.66 1
