Name: Air Conditioning And Heater Sensors (Itatiaia (Brazil))
Rating: 4.4 (1 reviews)

Air Conditioning And Heater Sensors (Itatiaia (Brazil)) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Air Conditioning And Heater Sensors (Itatiaia (Brazil))

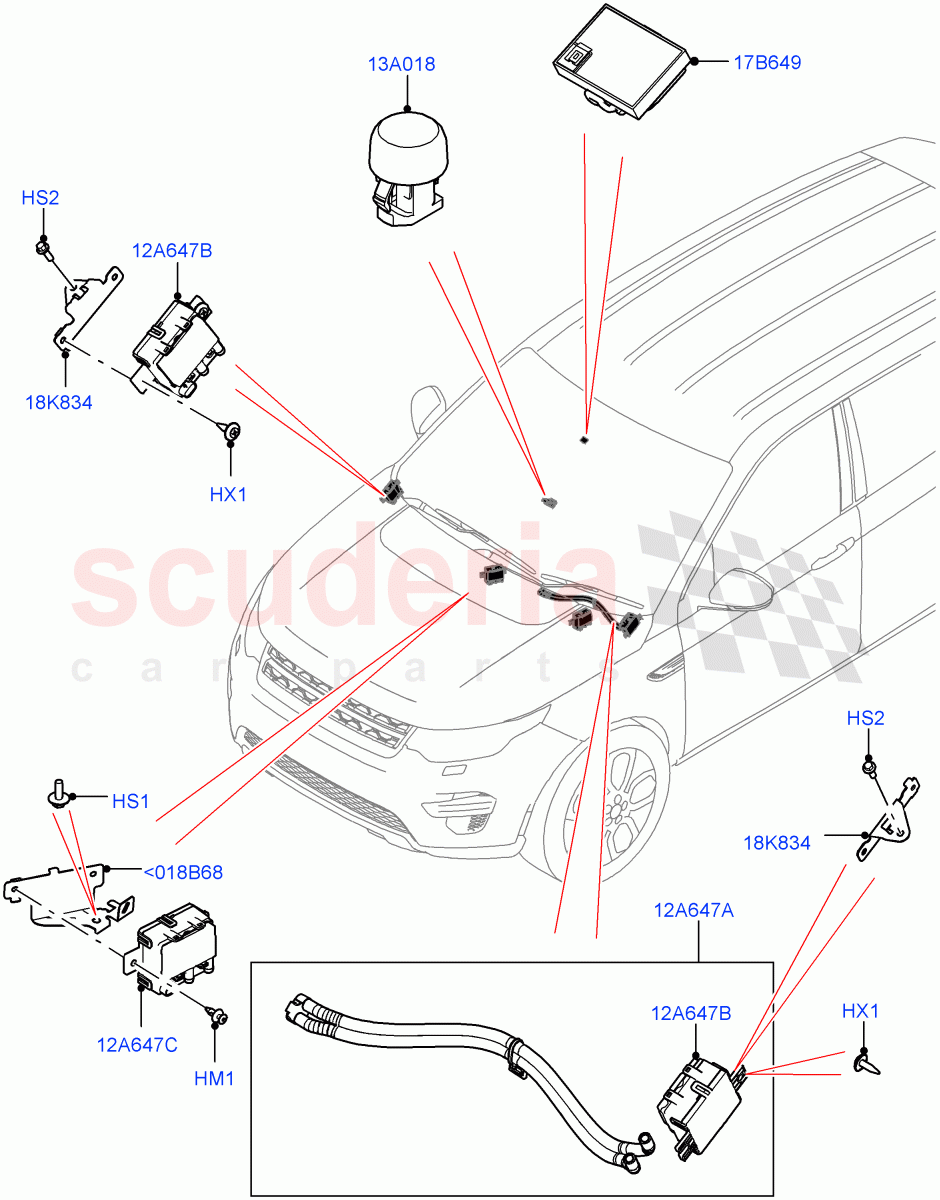

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYQ500040	FASTENER	$0.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500630	SCREW AND WASHER	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	VYP500080	BOLT AND WASHER - HEX.HEAD	$0.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYQ500070	PIN - RETAINING 6.3 X 22MM	$1.51	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR086370	SENSOR - AIR CONDITIONER SUN LOAD	$72.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR058011	SENSOR - CLIMATE CONTROL SYSTEM	$144.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140152	BRACKET - FLOOR TUNNEL	$13.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR147550	BRACKET - SENSOR MOUNTING	$11.56	To Order
	LR147551	BRACKET - SENSOR MOUNTING	$11.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140640	SENSOR - AIR COND. AMBIENT AIR	$130.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140734	SENSOR - AIR COND. AMBIENT AIR	$47.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140735	SENSOR - AIR COND. AMBIENT AIR	$113.86	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<018B68	LR147550	BRACKET - SENSOR MOUNTING	LR147550 BRACKET - SENSOR MOUNTING Air Purge Ionisation / PM2.5, RHD	$11.56	1
<018B68	LR147551	BRACKET - SENSOR MOUNTING	LR147551 BRACKET - SENSOR MOUNTING Air Purge Ionisation / PM2.5, LHD	$11.56	1
HM1	RYQ500040	FASTENER IN STOCK	RYQ500040 FASTENER Air Purge Ionisation / PM2.5 / 6.25 x 1.6/6MM IN STOCK	$0.61	2
HS1	RYG500630	SCREW AND WASHER	RYG500630 SCREW AND WASHER Bolt And Washer, M6X16, Torx	$0.67	1
HS2	VYP500080	BOLT AND WASHER - HEX.HEAD IN STOCK	VYP500080 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M6 X 20MM IN STOCK	$0.69	1
HX1	RYQ500070	PIN - RETAINING 6.3 X 22MM IN STOCK	RYQ500070 PIN - RETAINING 6.3 X 22MM Air Purge Ionisation / PM2.5 / 6.3 X 22MM, Push Pin IN STOCK	$1.51	2
12A647A	LR140640	SENSOR - AIR COND. AMBIENT AIR	LR140640 SENSOR - AIR COND. AMBIENT AIR Air Purge Ionisation / PM2.5, RHD / LH	$130.05	1
12A647B	LR140734	SENSOR - AIR COND. AMBIENT AIR	LR140734 SENSOR - AIR COND. AMBIENT AIR Air Purge Ionisation / PM2.5, LHD / RH	$47.26	1
12A647C	LR140735	SENSOR - AIR COND. AMBIENT AIR	LR140735 SENSOR - AIR COND. AMBIENT AIR Air Purge Ionisation / PM2.5 / Centre	$113.86	1
13A018	LR086370	SENSOR - AIR CONDITIONER SUN LOAD	LR086370 SENSOR - AIR CONDITIONER SUN LOAD Air Conditioner Sunload	$72.18	1
17B649	LR058011	SENSOR - CLIMATE CONTROL SYSTEM	LR058011 SENSOR - CLIMATE CONTROL SYSTEM Humidity Sensor, Located Near Rear View Mirror	$144.62	1
18K834	LR140152	BRACKET - FLOOR TUNNEL	LR140152 BRACKET - FLOOR TUNNEL Air Purge Ionisation / PM2.5	$13.77	1

Air Conditioning And Heater Sensors (Itatiaia (Brazil))

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Air Conditioning And Heater Sensors (Itatiaia (Brazil))

Add to Shopping Cart
