Engine Harness (2.0L Aj20D4 Diesel Lf Pta, 9 Speed Auto Trans 9Hp50, Halewood (Uk), 2.0L Aj20D4...

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Engine Harness (2.0L AJ20D4 Diesel LF PTA, 9 Speed Auto Trans 9HP50, Halewood (UK), 2.0L AJ20D4...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108166 BOLT $0.68 IN STOCK
Photo Part No Description Price (each) Stock
RYH500570 NUT - ADJUSTING $2.86 To Order
Photo Part No Description Price (each) Stock
RYH500300 NUT - HEX. $0.61 To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
LR003450 SCREW $0.52 IN STOCK
Photo Part No Description Price (each) Stock
LR089197 STUD $4.01 To Order
Photo Part No Description Price (each) Stock
LR118097 WIRING - ENGINE $1,117.59 To Order
LR118096 WIRE $1,173.43 To Order
LR128801 WIRE $2,322.11 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR123052 CLIP - WIRING $91.52 To Order
Photo Part No Description Price (each) Stock
LR124794 CABLE - BATTERY TO STARTER MOTOR $62.11 To Order
Photo Part No Description Price (each) Stock
LR124795 CABLE - BATTERY TO STARTER MOTOR $59.17 To Order
Photo Part No Description Price (each) Stock
LR115641 LINK - CAN $137.77 To Order
LR115200 LINK LEAD $67.31 To Order
Photo Part No Description Price (each) Stock
LR123784 PLUG - BLANKING $6.25 To Order
Photo Part No Description Price (each) Stock
LR135261 PLUG - BLANKING $4.73 To Order
Photo Part No Description Price (each) Stock
LR118100 SHIELD $11.68 To Order
Photo Part No Description Price (each) Stock
LR118099 SHIELD $11.68 To Order
View All

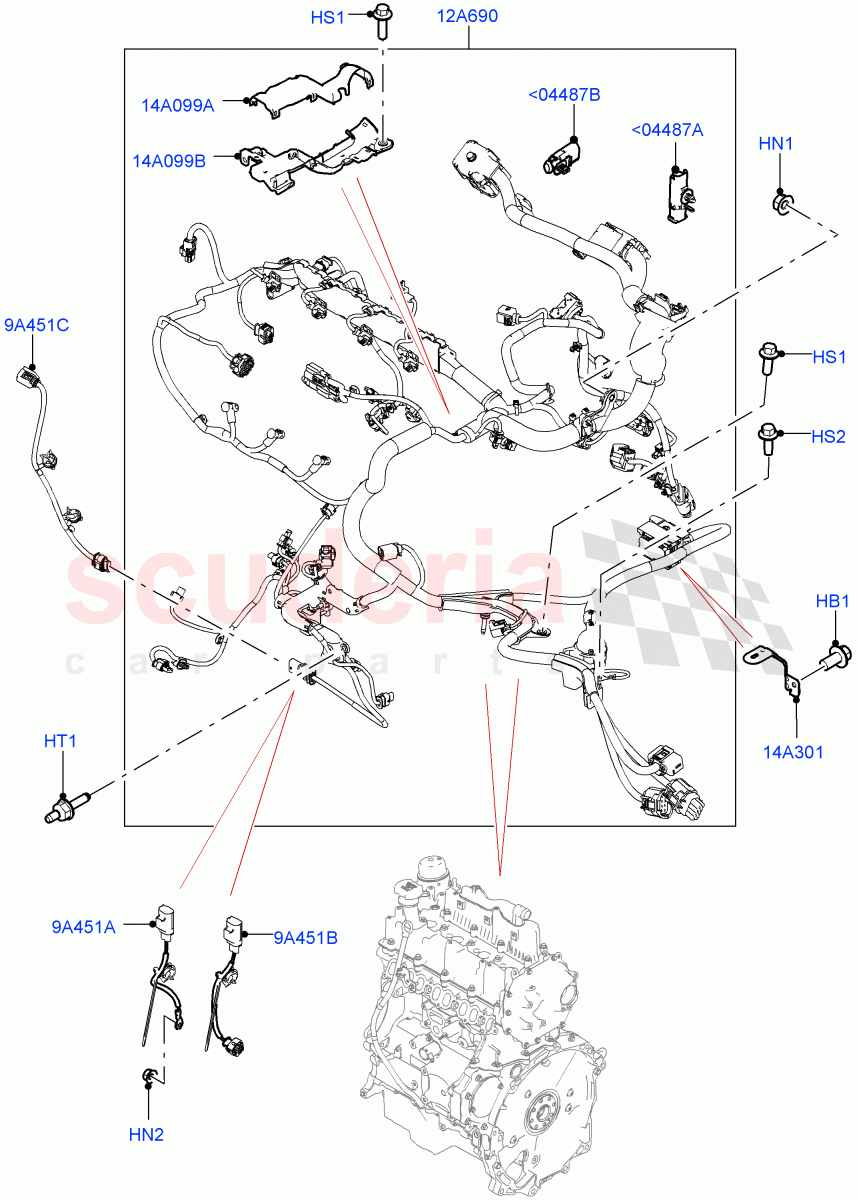

Engine Harness (2.0L AJ20D4 Diesel LF PTA, 9 Speed Auto Trans 9HP50, Halewood (UK), 2.0L AJ20D4 Diesel High PTA, 2.0L AJ20D4 Diesel Mid PTA) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<04487A LR123784
PLUG - BLANKING
Euro Stage 4 Emissions / DPF Inlet 		$6.25 1
<04487B LR135261
PLUG - BLANKING
Euro Stage 4 Emissions / To DPF 		$4.73 1
HB1 FS108166
BOLT
Hexagonal Head, M8 X 16MM
IN STOCK 		$0.68 1
HN1 RYH500570
NUT - ADJUSTING
M6 		$2.86 1
HN2 RYH500300
NUT - HEX.
Electric Engine Battery-MHEV / Hexagonal Head, M6 		$0.61 1
HS1 FS106166
SCREW
Hexagonal Head, M6 X 16MM
IN STOCK 		$1.24 2
HS2 LR003450
SCREW
M6 X 16MM
IN STOCK 		$0.52 1
HT1 LR089197
STUD
M6 x 22 mm + M6 x 12 mm 		$4.01 2
9A451A LR124794
CABLE - BATTERY TO STARTER MOTOR
Electric Engine Battery-MHEV / Link, Starter Motor 		$62.11 1
9A451B LR124795
CABLE - BATTERY TO STARTER MOTOR
Less Electric Engine Battery / Link, Starter Motor 		$59.17 1
9A451C LR115641
LINK - CAN
Electric Engine Battery-MHEV / Belt Integrated Starter Generator, Link 		$137.77 1
9A451C LR115200
LINK LEAD
Less Electric Engine Battery / Alternator, Link 		$67.31 1
12A690 LR118097
WIRING - ENGINE
2.0L AJ20D4 Diesel LF PTA / Engine Harness / To: LH000850 		$1,117.59 1
12A690 LR118096
WIRE
2.0L AJ20D4 Diesel High PTA / Engine Harness / To: LH000850 		$1,173.43 1
12A690 LR128801
WIRE
2.0L AJ20D4 Diesel High PTA / Engine Harness / From: LH000851 		$2,322.11 1
12A690 LR128695
WIRING - ENGINE
2.0L AJ20D4 Diesel Mid PTA / Engine Harness / From: LH000851 		$1,595.01 1
14A099A LR118100
SHIELD
Upper 		$11.68 1
14A099B LR118099
SHIELD
Lower 		$11.68 1
14A301 LR123052
CLIP - WIRING 		$91.52 1
