Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Splash And Heat Shields (Undertray) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
ANR2224 HARDWARE - MISCELLANEOUS $2.68 To Order
Photo Part No Description Price (each) Stock
AYH100790 NUT - SPECIAL $1.24 To Order
AYH100790 NUT - SPECIAL $1.24 To Order
LR027995 NUT $1.01 IN STOCK
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
KYG500380 SCREW AND WASHER - HEX HEAD $0.36 IN STOCK
KYG500380 SCREW AND WASHER - HEX HEAD $0.36 IN STOCK
Photo Part No Description Price (each) Stock
FS110206 BOLT - HEX.HEAD $0.79 To Order
Photo Part No Description Price (each) Stock
KRN500042 SHIELD - ENGINE LOWER $44.73 To Order
Photo Part No Description Price (each) Stock
KRN500052 SHIELD - ENGINE LOWER $44.73 To Order
KRN500062 SHIELD - ENGINE LOWER $44.73 To Order
Photo Part No Description Price (each) Stock
KRB000122 SHIELD $42.84 IN STOCK
Photo Part No Description Price (each) Stock
KRB500290 SHIELD - ENGINE COMPARTMENT SPLASH $164.25 To Order
LR014105 SHIELD - ENGINE COMPARTMENT SPLASH $191.82 To Order
LR031643 SHIELD - ENGINE COMPARTMENT SPLASH $197.72 To Order
...and 2 more part variants. See table on right for more details.
View All

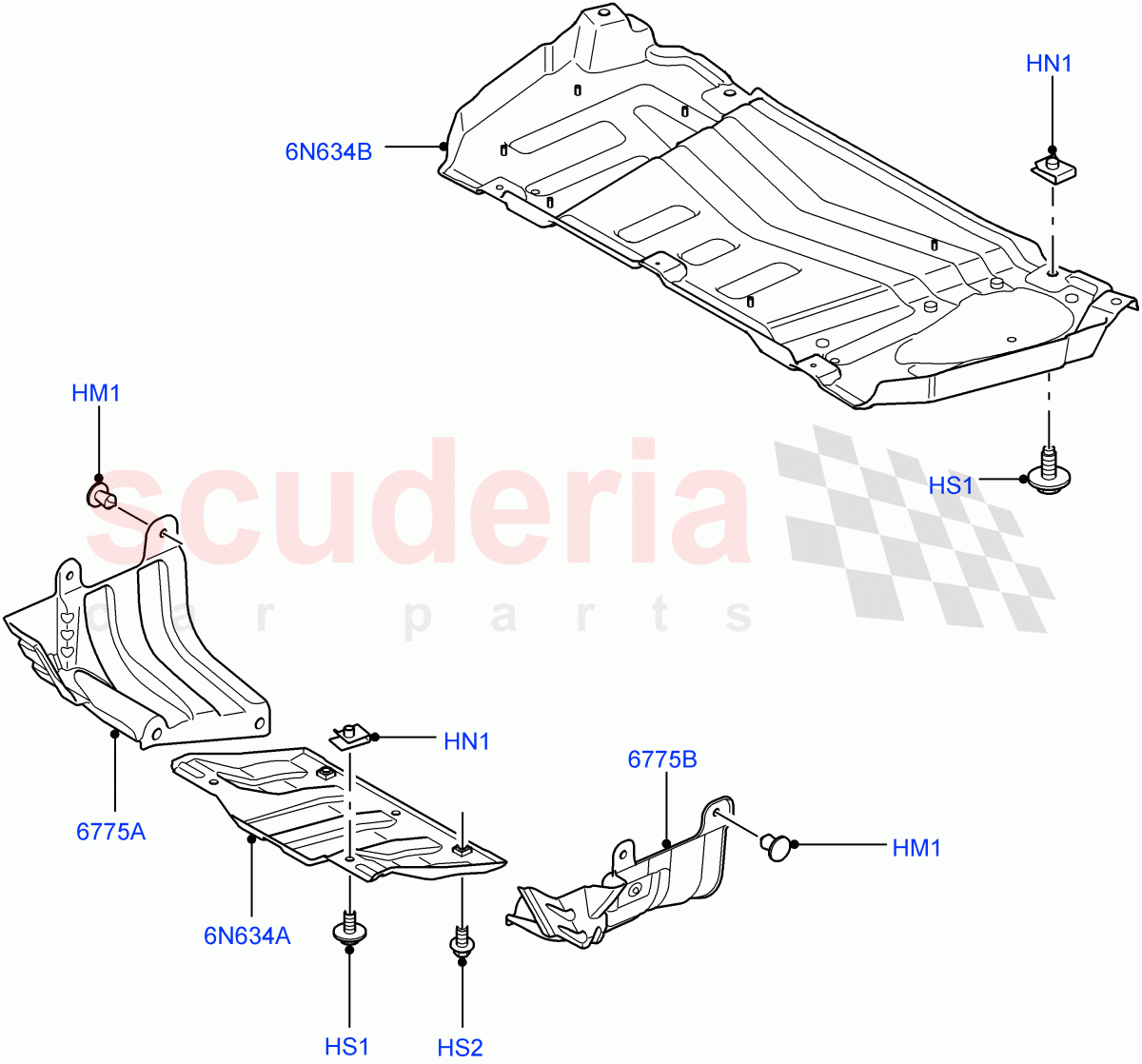

Splash And Heat Shields (Undertray) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HM1 ANR2224
HARDWARE - MISCELLANEOUS
8 X 20MM, Pin, Shield, Side, Undertray / From: AA000001 		$2.68 8
HN1 AYH100790
NUT - SPECIAL
M6 X 0.5-4, Nut "U" Spring, Radiator, Shield / From: AA000001 / To: BA584099 		$1.24 2
HN1 AYH100790
NUT - SPECIAL
M6 X 0.5-4, Nut "U" Spring, Shield, Transmission / From: AA000001 / To: BA584099 		$1.24 3
HN1 LR027995
NUT
M6 X 0.7 - 4, Nut "U" Spring, Radiator, Shield / From: BA584100
IN STOCK 		$1.01 2
HN1 LR027995
NUT
M6 X 0.7 - 4, Nut "U" Spring, Shield, Transmission / From: BA584100
IN STOCK 		$1.01 3
HS1 KYG500380
SCREW AND WASHER - HEX HEAD
Hexagonal Head, M6 X 13.5MM, Radiator, Shield / From: AA000001
IN STOCK 		$0.36 2
HS1 KYG500380
SCREW AND WASHER - HEX HEAD
Hexagonal Head, M6 X 13.5MM, Shield, Transmission / From: AA000001
IN STOCK 		$0.36 5
HS2 FS110206
BOLT - HEX.HEAD
Hexagonal Head, M10 X 20MM, Radiator, Shield / From: AA000001 		$0.79 2
6N634A KRB000122
SHIELD
Radiator / From: AA000001
IN STOCK 		$42.84 1
6N634B KRB500290
SHIELD - ENGINE COMPARTMENT SPLASH
Lion Diesel 2.7 V6 (140KW) / Transmission / From: AA000001 / To: BA584092 		$164.25 1
6N634B LR014105
SHIELD - ENGINE COMPARTMENT SPLASH
3.0 V6 Diesel / Transmission / From: AA000001 / To: BA584265 		$191.82 1
6N634B LR031643
SHIELD - ENGINE COMPARTMENT SPLASH
Lion Diesel 2.7 V6 (140KW) / Transmission / From: BA584093 		$197.72 1
6N634B LR031644
SHIELD - ENGINE COMPARTMENT SPLASH
3.0 V6 Diesel / Transmission / From: BA584266 / To: FA999999 		$300.37 1
6N634B LR069243
SHIELD - ENGINE COMPARTMENT SPLASH
3.0 V6 D Gen2 Twin Turbo / Transmission / From: GA000001 		$276.48 1
6775A KRN500042
SHIELD - ENGINE LOWER
RH, Side, Undertray / From: AA000001 		$44.73 1
6775B KRN500052
SHIELD - ENGINE LOWER
With Fresh Air Heater / LH, Side, Undertray / From: AA000001 		$44.73 1
6775B KRN500062
SHIELD - ENGINE LOWER
With Fuel Fired Heater / LH, Side, Undertray / From: AA000001 		$44.73 1
