Dash Panel And Front Fenders ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Dash Panel And Front Fenders ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
ANR2224 HARDWARE - MISCELLANEOUS $2.68 To Order
Photo Part No Description Price (each) Stock
ESR1560 NUT - FLANGED $2.77 To Order
Photo Part No Description Price (each) Stock
AYP500010 SCREW AND WASHER $1.07 To Order
Photo Part No Description Price (each) Stock
BYP000051 SCREW AND WASHER $1.07 To Order
Photo Part No Description Price (each) Stock
RYG500980 SCREW AND WASHER $1.39 To Order
Photo Part No Description Price (each) Stock
LR013931 FENDER - FRONT $697.45 To Order
LR013932 FENDER - FRONT $697.45 To Order
LR056239 FENDER - FRONT $431.74 IN STOCK
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
EUH500341 COVER - INSULATOR $15.47 To Order
LR013218 COVER - INSULATOR $6.46 To Order
LR019638 COVER - INSULATOR $6.46 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
ASU780200 BRACKET - FENDER MOUNTING $6.69 IN STOCK
Photo Part No Description Price (each) Stock
ASU780120 BRACKET - FENDER MOUNTING $10.81 IN STOCK
ASU780130 BRACKET - FENDER MOUNTING $10.21 IN STOCK
Photo Part No Description Price (each) Stock
LR013181 GRILLE - FENDER - FRONT $103.06 To Order
LR013194 GRILLE - FENDER - FRONT $75.49 To Order
LR013193 SCREEN ASSY $45.26 To Order
...and 24 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
ASG780022 BAFFLE $125.13 IN STOCK
ASG780032 BAFFLE $128.82 IN STOCK
Photo Part No Description Price (each) Stock
LR013214 BAFFLE $95.30 IN STOCK
View All

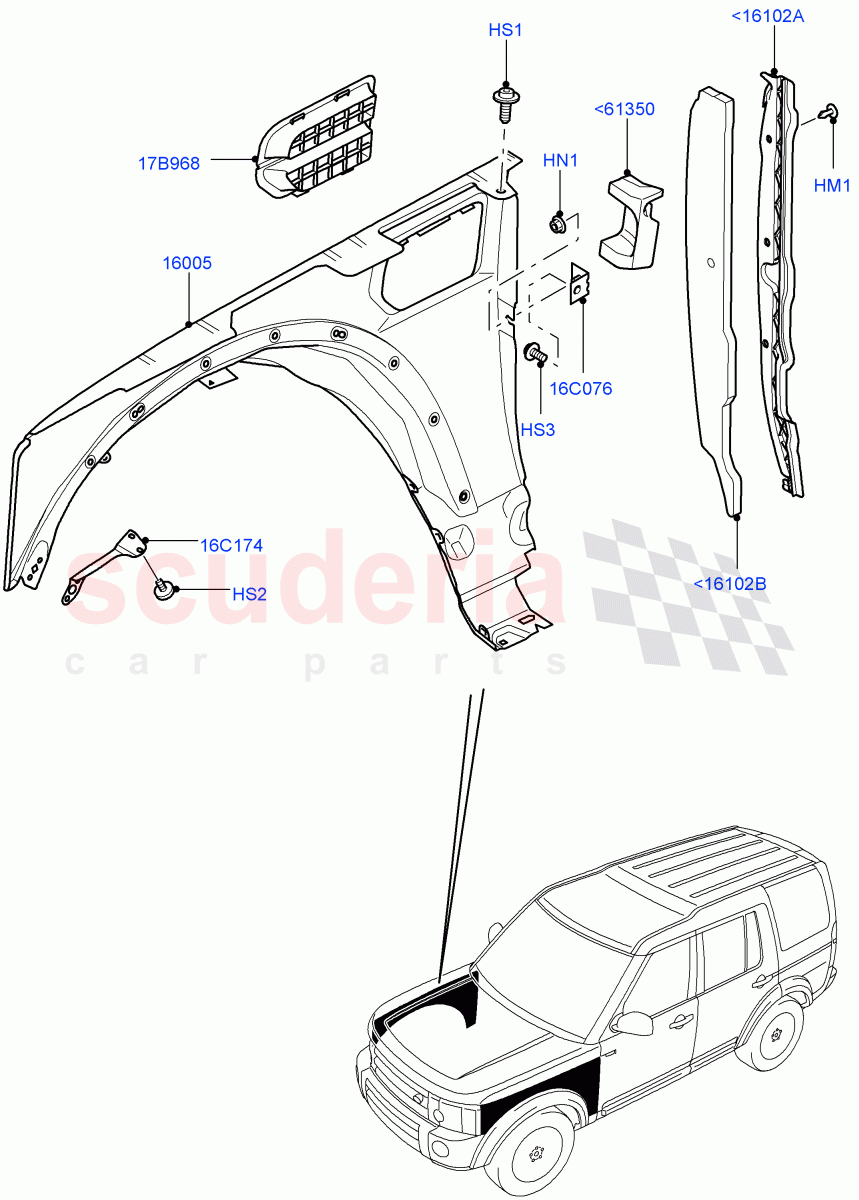

Dash Panel And Front Fenders ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<16102A ASG780022
BAFFLE
RH, Front Fender / From: AA000001
IN STOCK 		$125.13 1
<16102A ASG780032
BAFFLE
LH, Front Fender / From: AA000001
IN STOCK 		$128.82 1
<16102B LR013214
BAFFLE
Front Fender, RH/LH / From: AA000001
IN STOCK 		$95.30 2
<61350 EUH500341
COVER - INSULATOR
RH, Insulator-Duct Air Cooling Inlet / From: AA000001 / To: AA520261 		$15.47 1
<61350 LR013218
COVER - INSULATOR
5.0L OHC SGDI NA V8 Petrol - AJ133 / LH, Insulator-Duct Air Cooling Inlet / From: AA000001 / To: AA520261 		$6.46 1
<61350 LR019638
COVER - INSULATOR
5.0L OHC SGDI NA V8 Petrol - AJ133 / LH, Insulator-Duct Air Cooling Inlet / From: AA520262 		$6.46 1
<61350 LR019639
COVER - INSULATOR
RH, Insulator-Duct Air Cooling Inlet / From: AA520262 		$16.41 1
<61350 LR019638
COVER - INSULATOR
3.0L DOHC GDI SC V6 PETROL / LH, Insulator-Duct Air Cooling Inlet / From: EA000001 		$6.46 1
HM1 ANR2224
HARDWARE - MISCELLANEOUS
8 X 20MM, Pin / From: AA000001 		$2.68 4
HN1 ESR1560
NUT - FLANGED
Bracket - A Pillar, M6 / From: AA000001 		$2.77 1
HS1 AYP500010
SCREW AND WASHER
Front Fender, M6 X 20MM / From: AA000001 		$1.07 5
HS2 BYP000051
SCREW AND WASHER
Bracket, M6 x 14MM / From: AA000001 		$1.07 2
HS3 RYG500980
SCREW AND WASHER
Bracket - A Pillar, M8 x 24MM / From: AA000001 		$1.39 1
16C076 ASU780200
BRACKET - FENDER MOUNTING
"A" Pillar, RH/LH / From: AA000001
IN STOCK 		$6.69 2
16C174 ASU780120
BRACKET - FENDER MOUNTING
RH / From: AA000001
IN STOCK 		$10.81 1
16C174 ASU780130
BRACKET - FENDER MOUNTING
LH / From: AA000001
IN STOCK 		$10.21 1
17B968 LR013181
GRILLE - FENDER - FRONT
RH, Titan Silver / From: AA000001 / To: AA524233 		$103.06 1
17B968 LR013194
GRILLE - FENDER - FRONT
5.0L OHC SGDI NA V8 Petrol - AJ133 / LH, Titan Silver / From: AA000001 / To: AA524233 		$75.49 1
17B968 LR013193
SCREEN ASSY
Lion Diesel 2.7 V6 (140KW) / LH, Titan Silver / From: AA000001 / To: AA524233 		$45.26 1
17B968 LR020785
GRILLE - AIR INLET
RH, Titan Silver / From: AA524234 / To: BA567174 		$141.40 1
17B968 LR020799
GRILLE - FENDER - FRONT
5.0L OHC SGDI NA V8 Petrol - AJ133 / LH, Titan Silver / From: AA524234 / To: BA567174 		$141.40 1
17B968 LR020800
GRILLE - FENDER - FRONT
Lion Diesel 2.7 V6 (140KW) / LH, Titan Silver / From: AA524234 / To: BA567174 		$113.29 1
17B968 LR024950
GRILLE - FENDER - FRONT
RH, Zermatt Silver / From: BA567175 / To: CA610276 		$84.85 1
17B968 LR024951
GRILLE - FENDER - FRONT
5.0L OHC SGDI NA V8 Petrol - AJ133 / LH, Zermatt Silver / From: BA567175 / To: CA610276 		$84.85 1
17B968 LR024952
GRILLE - FENDER - FRONT
Lion Diesel 2.7 V6 (140KW) / LH, Zermatt Silver / From: BA567175 / To: CA610276 		$105.28 1
17B968 LR033193
GRILLE - FENDER - FRONT
3.0L 24V V6 Turbo Diesel Std Flow / RH, Rhodium/Indus Silver / From: CA610277 / To: DA999999 		$169.58 1
17B968 LR033196
GRILLE - FENDER - FRONT
5.0L OHC SGDI NA V8 Petrol - AJ133 / LH, Rhodium/Indus Silver / From: CA610277 / To: DA999999 		$169.58 1
17B968 LR033198
GRILLE - FENDER - FRONT
3.0L 24V V6 Turbo Diesel Std Flow / LH, Rhodium/Indus Silver / From: CA610277 / To: DA999999 		$169.58 1
17B968 LR041346
GRILLE - FENDER - FRONT
Frt Fender Gill-Gloss Black / RH / From: DA000001 / To: DA999999 		$169.58 1
17B968 LR041347
GRILLE - FENDER - FRONT
5.0L OHC SGDI NA V8 Petrol - AJ133, Frt Fender Gill-Gloss Black / LH / From: DA000001 / To: DA999999 		$140.34 1
17B968 LR041348
GRILLE - FENDER - FRONT
3.0L 24V DOHC V6 TC Diesel, Frt Fender Gill-Gloss Black / LH / From: DA000001 / To: DA999999 		$169.58 1
17B968 LR052698
GRILLE - FENDER - FRONT
3.0L 24V V6 Turbo Diesel Std Flow, With Brunel Grille / LH / From: EA000001 		$140.34 1
17B968 LR052699
GRILLE - FENDER - FRONT
3.0L 24V DOHC V6 TC Diesel, Grille - Atlas / LH / From: EA000001 		$155.61 1
17B968 LR052700
GRILLE - FENDER - FRONT
3.0L 24V V6 Turbo Diesel Std Flow, With Black Gloss Grille / LH / From: EA000001 		$140.34 1
17B968 LR051290
GRILLE - AIR INLET
3.0L 24V V6 Turbo Diesel Std Flow, With Brunel Grille / RH / From: EA000001 		$173.62 1
17B968 LR051291
GRILLE - AIR INLET
3.0L 24V DOHC V6 TC Diesel, Grille - Atlas / RH / From: EA000001 		$173.62 1
17B968 LR051292
GRILLE - AIR INLET
3.0L 24V V6 Turbo Diesel Std Flow, With Black Gloss Grille / RH / From: EA000001 		$213.70 1
17B968 LR051295
GRILLE - AIR INLET
3.0L DOHC GDI SC V6 PETROL, With Brunel Grille / LH / From: EA000001 		$173.62 1
17B968 LR051296
GRILLE - AIR INLET
3.0L DOHC GDI SC V6 PETROL, Grille - Atlas / LH / From: EA000001 		$173.62 1
17B968 LR051297
GRILLE - AIR INLET
3.0L DOHC GDI SC V6 PETROL, With Black Gloss Grille / LH / From: EA000001 		$213.70 1
17B968 LR069257
GRILLE - AIR INLET
3.0L DOHC GDI SC V6 PETROL, Grille - Dark Atlas / LH / From: GA000001 		$153.58 1
17B968 LR069255
GRILLE - AIR INLET
3.0L DOHC GDI SC V6 PETROL, Grille - Dark Atlas / RH / From: GA000001 		$151.11 1
17B968 LR069259
GRILLE - FENDER - FRONT
3.0 V6 D Gen2 Twin Turbo, Grille - Dark Atlas / LH / From: GA000001 		$153.60 1
16005 LR013931
FENDER - FRONT
RH / From: AA000001 / To: EA690152 		$697.45 1
16005 LR013932
FENDER - FRONT
LH / From: AA000001 / To: EA690152 		$697.45 1
16005 LR056239
FENDER - FRONT
RH / From: EA690153
IN STOCK 		$431.74 1
16005 LR056240
FENDER - FRONT
LH / From: EA690153
IN STOCK 		$431.74 1
