Luggage Compartment Door (Finisher And Seals) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Luggage Compartment Door (Finisher And Seals) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
DYC101420 CLIP - DOOR CLADDING $2.20 IN STOCK
Photo Part No Description Price (each) Stock
DYH000140 NUT - BLIND ANCHOR $1.36 To Order
Photo Part No Description Price (each) Stock
FN106047 Nut $0.33 To Order
Photo Part No Description Price (each) Stock
DYP000120 SCREW - SELF-TAPPING $4.84 To Order
Photo Part No Description Price (each) Stock
FYP106392 SCREW $2.18 To Order
Photo Part No Description Price (each) Stock
DYF000070 WASHER $0.80 To Order
Photo Part No Description Price (each) Stock
DYF500330 WASHER $3.02 To Order
Photo Part No Description Price (each) Stock
LR002147 WASHER $0.59 To Order
Photo Part No Description Price (each) Stock
LR010616 FOAM PAD - ENERGY ABSORBING $3.41 To Order
Photo Part No Description Price (each) Stock
LR017173 SEAL - TAILGATE $63.37 To Order
LR024949 SEAL - TAILGATE $168.60 To Order
Photo Part No Description Price (each) Stock
DRK100041 GASKET $4.28 To Order
LR077208 GASKET - HOUSING $4.14 To Order
Photo Part No Description Price (each) Stock
LR015459 SOCKET AND WIRE - LAMP $121.54 To Order
LR043266 SOCKET AND WIRE - LAMP $131.92 To Order
LR015458 SOCKET AND WIRE - LAMP $129.15 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR010617 FOAM PAD - ENERGY ABSORBING $3.22 To Order
Photo Part No Description Price (each) Stock
LR002145 BRACKET - LICENSE PLATE $29.88 To Order
LR019326 BRACKET - LICENSE PLATE $44.96 To Order
LR019327 BRACKET - LICENSE PLATE $33.09 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
CKE500120 WEATHERSTRIP - TAILGATE UPPER $30.93 To Order
LR044313 WEATHERSTRIP - TAILGATE UPPER $44.81 To Order
Photo Part No Description Price (each) Stock
DGP000184PCL MOULDING - TAILGATE OUTSIDE $200.96 IN STOCK
Photo Part No Description Price (each) Stock
LR010640 MOULDING $190.62 To Order
Photo Part No Description Price (each) Stock
LR016718 HANDLE - TAILGATE $743.75 To Order
LR016719 HANDLE - TAILGATE $739.26 To Order
LR016720 HANDLE - TAILGATE $423.49 To Order
...and 8 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR051406 HANDLE - TAILGATE $234.58 IN STOCK
Photo Part No Description Price (each) Stock
LR052249 MOULDING - TAILGATE OUTSIDE $89.50 To Order
LR052251 MOULDING - TAILGATE OUTSIDE $89.50 To Order
LR077206 MOULDING - TAILGATE OUTSIDE $89.50 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR052252 MOULDING - TAILGATE OUTSIDE $41.45 To Order
LR055959 MOULDING - TAILGATE $34.27 To Order
Photo Part No Description Price (each) Stock
LR016354 MOULDING - TAILGATE $16.10 To Order
View All

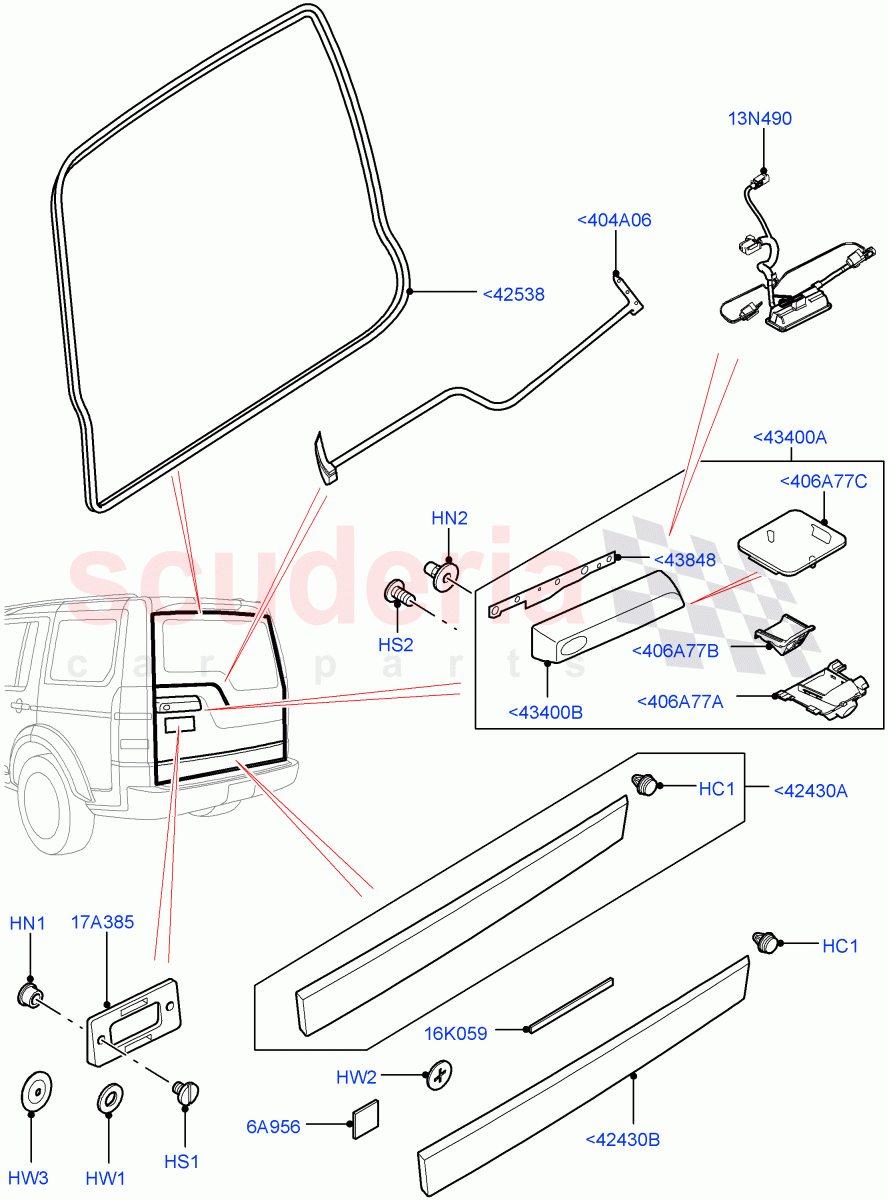

Luggage Compartment Door (Finisher And Seals) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<404A06 CKE500120
WEATHERSTRIP - TAILGATE UPPER
Tailgate Waist / From: AA000001 / To: CA626783 		$30.93 1
<404A06 LR044313
WEATHERSTRIP - TAILGATE UPPER
Tailgate Waist / From: CA626784 		$44.81 1
<406A77A LR052249
MOULDING - TAILGATE OUTSIDE
Rear View Camera-Fixed / From: EA000001 / To: FA745563 		$89.50 1
<406A77A LR052251
MOULDING - TAILGATE OUTSIDE
Surround Camera System / From: EA000001 / To: FA745563 		$89.50 1
<406A77A LR077206
MOULDING - TAILGATE OUTSIDE
Rear View Camera-Fixed / From: FA745564 		$89.50 1
<406A77A LR077204
MOULDING - TAILGATE OUTSIDE
Surround Camera System / From: FA745564 		$89.50 1
<406A77B LR052252
MOULDING - TAILGATE OUTSIDE
Rear View Camera-Fixed / From: EA000001 		$41.45 1
<406A77B LR055959
MOULDING - TAILGATE
Surround Camera System / From: EA000001 		$34.27 1
<406A77C LR016354
MOULDING - TAILGATE
Less Camera System / Plug / From: AA000001 		$16.10 1
<42430A DGP000184PCL
MOULDING - TAILGATE OUTSIDE
Rear Bumper - Plastic Unpainted / Anthracite, Lower Tailgate / From: AA000001
IN STOCK 		$200.96 1
<42430B LR010640
MOULDING
Rr Bumper Plastic Partially Painted / Lower Tailgate, Primed / From: AA000001 		$190.62 1
<42538 LR017173
SEAL - TAILGATE
Tailgate Aperture / From: AA000001 / To: AA520260 		$63.37 1
<42538 LR024949
SEAL - TAILGATE
Tailgate Aperture / From: AA520261 		$168.60 1
<43400A LR016718
HANDLE - TAILGATE
Less Camera System / Contains Green Land Rover Badge, Less Microswitch Tailgate Release, Primed / From: AA000001 / To: AA551483 		$743.75 1
<43400A LR016719
HANDLE - TAILGATE
Rear View Camera-Fixed / Contains Green Land Rover Badge, Less Microswitch Tailgate Release, Primed / From: AA000001 / To: AA551483 		$739.26 1
<43400A LR016720
HANDLE - TAILGATE
Surround Camera System / Contains Green Land Rover Badge, Less Microswitch Tailgate Release, Primed / From: AA000001 / To: AA551483 		$423.49 1
<43400A LR023299
HANDLE - TAILGATE
Surround Camera System / Contains Green Land Rover Badge, Less Microswitch Tailgate Release, Primed / From: AA551484 / To: DA999999 		$733.13 1
<43400A LR023298
HANDLE - TAILGATE
Rear View Camera-Fixed / Contains Green Land Rover Badge, Less Microswitch Tailgate Release, Primed / From: AA551484 / To: DA999999 		$734.13 1
<43400A LR023297
HANDLE - TAILGATE
Less Camera System / Contains Green Land Rover Badge, Less Microswitch Tailgate Release, Primed / From: AA551484 / To: DA999999 		$259.64 1
<43400A LR051403
HANDLE - TAILGATE
Less Camera System / Less Microswitch Tailgate Release, Primed / From: EA000001 		$851.37 1
<43400A LR051404
HANDLE - TAILGATE
Rear View Camera-Fixed / Less Microswitch Tailgate Release, Primed / From: EA000001 / To: FA745563 		$259.64 1
<43400A LR051405
HANDLE - TAILGATE
Surround Camera System / Less Microswitch Tailgate Release, Primed / From: EA000001 / To: FA745563 		$259.64 1
<43400A LR069280
HANDLE - TAILGATE
Rear View Camera-Fixed / Less Microswitch Tailgate Release, Primed / From: FA745564 		$724.65 1
<43400A LR069282
HANDLE - TAILGATE
Surround Camera System / Less Microswitch Tailgate Release, Primed / From: FA745564 		$724.65 1
<43400B LR051406
HANDLE - TAILGATE
Primed / From: EA000001
IN STOCK 		$234.58 1
<43848 DRK100041
GASKET
Handle / From: AA000001 / To: FA777392 		$4.28 1
<43848 LR077208
GASKET - HOUSING
Handle / From: FA777393 		$4.14 1
HC1 DYC101420
CLIP - DOOR CLADDING
Moulding Tailgate / From: AA000001
IN STOCK 		$2.20 14
HN1 DYH000140
NUT - BLIND ANCHOR
(+)"CDN/MEX/USA" / For Licence Plate, M5, Plastic / From: AA000001 		$1.36 2
HN2 FN106047
Nut
Handle, M6 / From: AA000001 		$0.33 3
HS1 DYP000120
SCREW - SELF-TAPPING
(-)"Europe" / For License Plate, Self Tapping / From: AA000001 		$4.84 2
HS2 FYP106392
SCREW
Handle, M6 / From: AA000001 		$2.18 4
HW1 DYF000070
WASHER
(+)"J" / For License Plate / From: AA000001 / To: EA704935 		$0.80 2
HW2 DYF500330
WASHER
Foam, Lower Tailgate / From: AA000001 		$3.02 3
HW3 LR002147
WASHER
(+)"J" / 5.3 X 32, For License Plate / From: EA704936 		$0.59 2
6A956 LR010616
FOAM PAD - ENERGY ABSORBING
Lower Tailgate / From: AA000001 		$3.41 2
13N490 LR015459
SOCKET AND WIRE - LAMP
Surround Camera System / For Tailgate, Handle, With Microswitch / From: AA000001 / To: CA634120 		$121.54 1
13N490 LR043266
SOCKET AND WIRE - LAMP
Surround Camera System / For Tailgate, Handle, With Microswitch / From: CA634121 / To: DA999999 		$131.92 1
13N490 LR015458
SOCKET AND WIRE - LAMP
Rear View Camera-Fixed / For Tailgate, Handle, With Microswitch / From: AA000001 / To: DA999999 		$129.15 1
13N490 LR015457
SOCKET AND WIRE - LAMP
Less Camera System / For Tailgate, Handle, With Microswitch / From: AA000001 / To: DA999999 		$107.24 1
13N490 LR053163
SOCKET AND WIRE - LAMP
Rear View Camera-Fixed / For Tailgate, Handle, With Microswitch / From: EA000001 		$373.14 1
13N490 LR053164
SOCKET AND WIRE - LAMP
Surround Camera System / For Tailgate, Handle, With Microswitch / From: EA000001 		$444.13 1
13N490 LR053165
SOCKET AND WIRE - LAMP
Less Camera System / For Tailgate, Handle, With Microswitch / From: EA000001 		$187.42 1
16K059 LR010617
FOAM PAD - ENERGY ABSORBING
Lower Tailgate / From: AA000001 		$3.22 2
17A385 LR002145
BRACKET - LICENSE PLATE
Rear Number Plate Plinth - Japan / Anthracite / From: AA000001 / To: AA520261 		$29.88 1
17A385 LR019326
BRACKET - LICENSE PLATE
Rr Number Plate Plinth - Australia / Anthracite / From: AA000001 / To: BA582599 		$44.96 1
17A385 LR019327
BRACKET - LICENSE PLATE
Rear Number Plate Plinth - NAS / Anthracite / From: AA000001 		$33.09 1
17A385 LR021920
BRACKET - LICENSE PLATE
Rear Number Plate Plinth - Japan / Anthracite / From: AA520262 / To: EA709939 		$30.81 1
17A385 LR019328
BRACKET - LICENSE PLATE
Rr Number Plate Plinth - Australia / Anthracite / From: BA582600
IN STOCK 		$38.60 1
17A385 LR048409
BRACKET - LICENSE PLATE
Rear Number Plate Plinth - China / Anthracite / From: DA669951 		$43.76 1
17A385 LR055151
BRACKET - LICENSE PLATE
Rear Number Plate Plinth - Japan / Anthracite / From: EA709940 		$26.18 1
