Chassis Frame ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Chassis Frame ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
KYG500190 BOLT $5.07 To Order
Photo Part No Description Price (each) Stock
FC112267 BOLT $8.02 To Order
Photo Part No Description Price (each) Stock
KYG500015 BOLT $5.63 To Order
Photo Part No Description Price (each) Stock
KYG500250 BOLT $4.02 To Order
Photo Part No Description Price (each) Stock
KYG500500 BOLT $5.63 To Order
Photo Part No Description Price (each) Stock
LR007778 BOLT $3.65 To Order
Photo Part No Description Price (each) Stock
LR014236 SPACER $6.94 To Order
Photo Part No Description Price (each) Stock
FX112057L NUT - FLANGED $2.99 To Order
Photo Part No Description Price (each) Stock
LR007779 NUT $3.60 To Order
Photo Part No Description Price (each) Stock
FY110056 NUT $4.23 IN STOCK
Photo Part No Description Price (each) Stock
FY114056 NUT - HEX. $1.24 IN STOCK
Photo Part No Description Price (each) Stock
FT114356P SCREW $22.63 To Order
Photo Part No Description Price (each) Stock
FT112407 BOLT $8.27 To Order
Photo Part No Description Price (each) Stock
KVX500010 WASHER - FIBRE $0.66 IN STOCK
Photo Part No Description Price (each) Stock
KVX500030 WASHER $7.83 To Order
Photo Part No Description Price (each) Stock
KYH500100 NUT - SPRING $1.63 To Order
Photo Part No Description Price (each) Stock
LR014466 FRAME $7,840.90 To Order
LR023709 FRAME - CHASSIS $7,840.90 To Order
LR032579 FRAME - CHASSIS $6,979.87 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
KVU500140 BRACKET - HOUSING MOUNTING $25.29 To Order
KVU500150 BRACKET - HOUSING MOUNTING $25.29 To Order
Photo Part No Description Price (each) Stock
KVY500031 STIFFENER $72.47 To Order
Photo Part No Description Price (each) Stock
KVB500101 CROSSMEMBER - REAR CLOSING $448.52 To Order
Photo Part No Description Price (each) Stock
KVB500110 CROSSMEMBER $126.46 IN STOCK
Photo Part No Description Price (each) Stock
KVS500030 CROSSMEMBER $82.64 To Order
Photo Part No Description Price (each) Stock
KQD500123 CROSSMEMBER $210.84 To Order
KQD500133 CROSSMEMBER $210.84 To Order
Photo Part No Description Price (each) Stock
KVF500161 BRACKET - BODY MOUNTING $65.00 To Order
KVF500161 BRACKET - BODY MOUNTING $65.00 To Order
KVF500161 BRACKET - BODY MOUNTING $65.00 To Order
Photo Part No Description Price (each) Stock
KVF500120 BRACKET - BODY MOUNTING $53.54 To Order
Photo Part No Description Price (each) Stock
KVF500190 ISOLATOR $27.01 To Order
Photo Part No Description Price (each) Stock
KVF500180 BRACKET - BODY MOUNTING $86.90 To Order
KVF500180 BRACKET - BODY MOUNTING $86.90 To Order
Photo Part No Description Price (each) Stock
LR014235 SHIELD - FRONT CROSSMEMBER $297.89 To Order
Photo Part No Description Price (each) Stock
LR017424 BUSH $227.86 To Order
Photo Part No Description Price (each) Stock
LR062211 BRACKET - SUPPORT $27.98 To Order
Photo Part No Description Price (each) Stock
RQU500361 BRACKET - FRAME MOUNTING $186.21 To Order
RQU500371 BRACKET $143.22 To Order
Photo Part No Description Price (each) Stock
RQU500391 BRACKET $23.17 To Order
RQU500381 BRACKET $23.17 To Order
Photo Part No Description Price (each) Stock
LR015545 BRACKET $23.49 To Order
View All

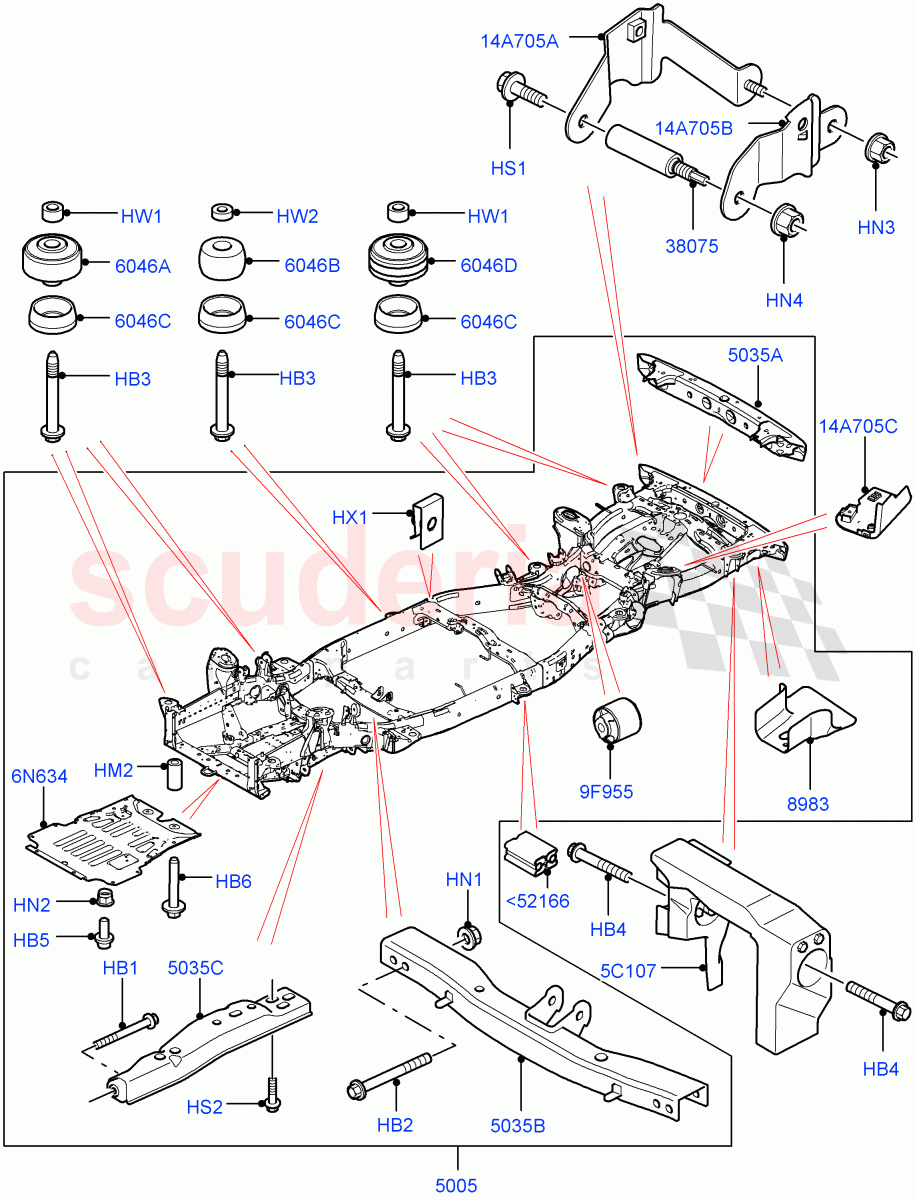

Chassis Frame ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<52166 LR062211
BRACKET - SUPPORT
From: FA000001 		$27.98 5
HB1 KYG500190
BOLT
M12 x 130MM / From: AA000001 		$5.07 1
HB2 FC112267
BOLT
M12 x 130MM / From: AA000001 		$8.02 4
HB3 KYG500015
BOLT
Hexagonal Head, M13 X 104MM / From: AA000001 		$5.63 10
HB4 KYG500250
BOLT
Absorber Assy, M10 x 63MM / From: AA000001 		$4.02 4
HB5 KYG500500
BOLT
M10 X 25MM, Shield / From: AA000001 		$5.63 8
HB6 LR007778
BOLT
Engine, M10 X 65MM, Shield / From: AA000001 		$3.65 2
HM2 LR014236
SPACER
Engine, Shield / From: AA000001 		$6.94 2
HN1 FX112057L
NUT - FLANGED
M12 / From: AA000001 		$2.99 4
HN2 LR007779
NUT
Engine, M10, Shield / From: AA000001 		$3.60 2
HN3 FY110056
NUT
M10, Service Only / From: AA000001
IN STOCK 		$4.23 2
HN4 FY114056
NUT - HEX.
Hexagonal Head, M14, Service Only / From: AA000001
IN STOCK 		$1.24 2
HS1 FT114356P
SCREW
M14 X 35MM, Service Only / From: AA000001 		$22.63 2
HS2 FT112407
BOLT
M12 x 40MM / From: AA000001 		$8.27 3
HW1 KVX500010
WASHER - FIBRE
Isolator / From: AA000001
IN STOCK 		$0.66 8
HW2 KVX500030
WASHER
Isolator / From: AA000001 		$7.83 2
HX1 KYH500100
NUT - SPRING
M10, Nut "U" Spring / From: AA000001 		$1.63 6
5C107 KQD500123
CROSSMEMBER
RH, Absorber Assy / From: AA000001 		$210.84 1
5C107 KQD500133
CROSSMEMBER
LH, Absorber Assy / From: AA000001 		$210.84 1
6N634 LR014235
SHIELD - FRONT CROSSMEMBER
Engine / From: AA000001 		$297.89 1
9F955 LR017424
BUSH
Differential, Rear / From: AA000001 		$227.86 2
14A705A RQU500361
BRACKET - FRAME MOUNTING
RH, Inner, Service Only / From: AA000001 / To: AA999999 		$186.21 1
14A705A RQU500371
BRACKET
LH, Inner, Service Only / From: AA000001 / To: AA999999 		$143.22 1
14A705B RQU500391
BRACKET
LH, Outer, Service Only / From: AA000001 		$23.17 1
14A705B RQU500381
BRACKET
RH, Outer, Service Only / From: AA000001 		$23.17 1
14A705C LR015545
BRACKET
Plastic, Wiring Connector / From: AA000001 		$23.49 1
5005 LR014466
FRAME
Requires VIN To Order, VIN Stamped / From: AA000001 / To: AA539607 		$7,840.90 1
5005 LR023709
FRAME - CHASSIS
Requires VIN To Order, VIN Stamped / From: AA539608 / To: CA605104 		$7,840.90 1
5005 LR032579
FRAME - CHASSIS
Requires VIN To Order, VIN Stamped / From: CA605105 / To: EA999999 		$6,979.87 1
5005 LR062162
FRAME - CHASSIS
Requires VIN To Order, VIN Stamped / From: FA000001 / To: FA999999 		$7,307.52 1
5005 LR071907
FRAME - CHASSIS
3.0 V6 D Gen2 Twin Turbo / Requires VIN To Order, VIN Stamped / From: GA000001 		$8,026.20 1
5005 LR071908
FRAME - CHASSIS
3.0L DOHC GDI SC V6 PETROL / Requires VIN To Order, VIN Stamped / From: GA000001 		$8,026.20 1
5035A KVB500101
CROSSMEMBER - REAR CLOSING
Rear / From: AA000001 		$448.52 1
5035B KVB500110
CROSSMEMBER
Transfer Box / From: AA000001
IN STOCK 		$126.46 1
5035C KVS500030
CROSSMEMBER
From: AA000001 		$82.64 1
6046A KVF500161
BRACKET - BODY MOUNTING
Lion Diesel 2.7 V6 (140KW) / Isolator / From: AA000001 		$65.00 8
6046A KVF500161
BRACKET - BODY MOUNTING
5.0L OHC SGDI NA V8 Petrol - AJ133 / Isolator / From: AA000001 / To: DA999999 		$65.00 4
6046A KVF500161
BRACKET - BODY MOUNTING
3.0L DOHC GDI SC V6 PETROL / Isolator / From: EA000001 		$65.00 4
6046B KVF500120
BRACKET - BODY MOUNTING
Isolator / From: AA000001 		$53.54 2
6046C KVF500190
ISOLATOR
Isolator / From: AA000001 		$27.01 10
6046D KVF500180
BRACKET - BODY MOUNTING
5.0L OHC SGDI NA V8 Petrol - AJ133 / Isolator / From: AA000001 / To: DA999999 		$86.90 4
6046D KVF500180
BRACKET - BODY MOUNTING
3.0L DOHC GDI SC V6 PETROL / Isolator / From: EA000001 		$86.90 4
8983 KVU500140
BRACKET - HOUSING MOUNTING
RH, Crossmember, Rear / From: AA000001 		$25.29 1
8983 KVU500150
BRACKET - HOUSING MOUNTING
LH, Crossmember, Rear / From: AA000001 		$25.29 1
38075 KVY500031
STIFFENER
Service Only / From: AA000001 / To: AA999999 		$72.47 2
