Luggage Compartment Door (Door And Fixings) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Luggage Compartment Door (Door And Fixings) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AYG000012 BOLT $2.05 To Order
Photo Part No Description Price (each) Stock
BHZ780010 BOLT - SHOULDER $4.00 To Order
Photo Part No Description Price (each) Stock
FS108161 Bolt $0.57 To Order
Photo Part No Description Price (each) Stock
FT110356 SCREW $2.41 To Order
Photo Part No Description Price (each) Stock
RYG500620 SCREW AND WASHER $1.16 To Order
Photo Part No Description Price (each) Stock
BYG500050 SCREW $0.67 IN STOCK
Photo Part No Description Price (each) Stock
RYG500980 SCREW AND WASHER $1.39 To Order
Photo Part No Description Price (each) Stock
KVX100011 WASHER $1.29 To Order
Photo Part No Description Price (each) Stock
BHF780040 STAY $82.59 To Order
BHF780050 STAY $82.59 To Order
Photo Part No Description Price (each) Stock
ALR780770 REINFORCEMENT $21.88 To Order
Photo Part No Description Price (each) Stock
BHR780243 REINFORCEMENT $111.18 To Order
Photo Part No Description Price (each) Stock
BZU500010 NUT $1.88 To Order
Photo Part No Description Price (each) Stock
BHR780220 PLATE - MOUNTING $90.37 To Order
BHR780230 PLATE - MOUNTING $9.91 To Order
Photo Part No Description Price (each) Stock
BHA780070 DOOR - REAR - LESS HINGES $876.21 To Order
LR045549 DOOR - REAR - LESS HINGES $3,034.27 To Order
Photo Part No Description Price (each) Stock
BHA780080 DOOR - REAR $1,363.99 To Order
LR045550 DOOR - REAR - LESS HINGES $1,363.99 To Order
Photo Part No Description Price (each) Stock
BHE780060 LIFT - GAS $52.56 To Order
LR086368 LIFT - GAS $49.13 To Order
Photo Part No Description Price (each) Stock
BHB780040 HINGE - LUGGAGE COMPARTMENT DOOR $62.90 To Order
LR031763 HINGE - LUGGAGE COMPARTMENT DOOR $42.03 To Order
LR083492 HINGE - LUGGAGE COMPARTMENT DOOR $57.71 To Order
Photo Part No Description Price (each) Stock
BHB780012 HINGE $33.68 To Order
LR031767 HINGE - TAILGATE $25.11 To Order
LR083493 HINGE - TAILGATE $63.32 To Order
Photo Part No Description Price (each) Stock
CKT500080 WEDGE $19.60 To Order
Photo Part No Description Price (each) Stock
CKT500090 WEDGE $6.91 To Order
Photo Part No Description Price (each) Stock
BIL780041 PIVOT $5.72 To Order
Photo Part No Description Price (each) Stock
BKF780030 PIVOT $2.90 IN STOCK
Photo Part No Description Price (each) Stock
BKF780020 PIVOT $3.28 To Order
View All

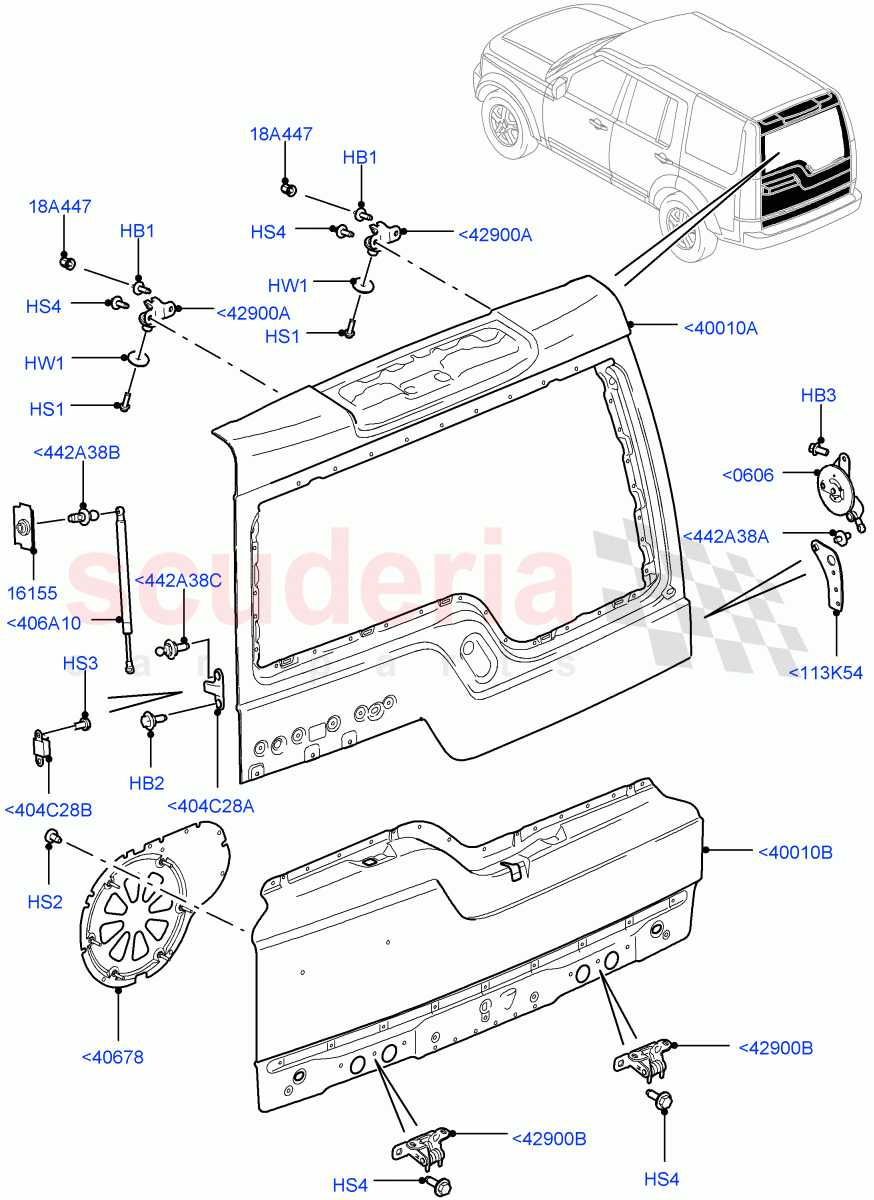

Luggage Compartment Door (Door And Fixings) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<113K54 BHR780220
PLATE - MOUNTING
RH, Stay Mounting Lower Door / From: AA000001 		$90.37 1
<113K54 BHR780230
PLATE - MOUNTING
LH, Stay Mounting Lower Door / From: AA000001 		$9.91 1
<404C28A CKT500080
WEDGE
Upper Tailgate / From: AA000001 		$19.60 2
<404C28B CKT500090
WEDGE
Body / From: AA000001 		$6.91 2
<406A10 BHE780060
LIFT - GAS
Upper Tailgate / From: AA000001 / To: GA824298 		$52.56 2
<406A10 LR086368
LIFT - GAS
Upper Tailgate / From: GA824299 		$49.13 2
<442A38A BIL780041
PIVOT
Door Lower / From: AA000001 		$5.72 2
<442A38B BKF780030
PIVOT
Door Upper / From: AA000001
IN STOCK 		$2.90 2
<442A38C BKF780020
PIVOT
Door Upper / From: AA000001 		$3.28 2
<0606 BHF780040
STAY
RH, Lower Tailgate / From: AA000001 		$82.59 1
<0606 BHF780050
STAY
LH, Lower Tailgate / From: AA000001 		$82.59 1
<40010A BHA780070
DOOR - REAR - LESS HINGES
Upper / From: AA000001 / To: CA711221 		$876.21 1
<40010A LR045549
DOOR - REAR - LESS HINGES
Upper / From: CA711222 		$3,034.27 1
<40010B BHA780080
DOOR - REAR
Lower / From: AA000001 / To: CA711221 		$1,363.99 1
<40010B LR045550
DOOR - REAR - LESS HINGES
Lower / From: CA711222 		$1,363.99 1
<40678 BHR780243
REINFORCEMENT
Lower Tailgate / From: AA000001 		$111.18 1
<42900A BHB780040
HINGE - LUGGAGE COMPARTMENT DOOR
Upper / From: AA000001 / To: BA588499 		$62.90 2
<42900A LR031763
HINGE - LUGGAGE COMPARTMENT DOOR
Upper / From: BA588500 / To: GA793428 		$42.03 2
<42900A LR083492
HINGE - LUGGAGE COMPARTMENT DOOR
Upper / From: GA793429 		$57.71 2
<42900B BHB780012
HINGE
Lower / From: AA000001 / To: BA577799 		$33.68 2
<42900B LR031767
HINGE - TAILGATE
Lower / From: BA577800 / To: GA793428 		$25.11 2
<42900B LR083493
HINGE - TAILGATE
Lower / From: GA793429 		$63.32 2
HB1 AYG000012
BOLT
Hinge, M8, Upper Tailgate / From: AA000001 		$2.05 2
HB2 BHZ780010
BOLT - SHOULDER
M8, Upper Tailgate, Wedge Assy / From: AA000001 		$4.00 2
HB3 FS108161
Bolt
M8, Upper Tailgate, Wedge Assy / From: AA000001 		$0.57 2
HS1 FT110356
SCREW
Hexagonal Head, Hinge, M10 x 35MM, Upper / From: AA000001 		$2.41 2
HS2 RYG500620
SCREW AND WASHER
M6 x 12MM, Reinforcement / From: AA000001 		$1.16 10
HS3 BYG500050
SCREW
Body, M8 X 16MM, Wedge Assy / From: AA000001
IN STOCK 		$0.67 4
HS4 RYG500980
SCREW AND WASHER
Hinge, M8 x 24MM / From: AA000001 		$1.39 6
HW1 KVX100011
WASHER
Hinge, M10 / From: AA000001 		$1.29 2
18A447 BZU500010
NUT
Bolt / From: AA000001 		$1.88 2
16155 ALR780770
REINFORCEMENT
Rear Strut Mounting, Upper / From: AA000001 		$21.88 2
