Name: Floor Pan - Centre And Rear ((V) FROMAA000001)
Rating: 4.5 (1 reviews)

Floor Pan - Centre And Rear ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Floor Pan - Centre And Rear ((V) FROMAA000001)

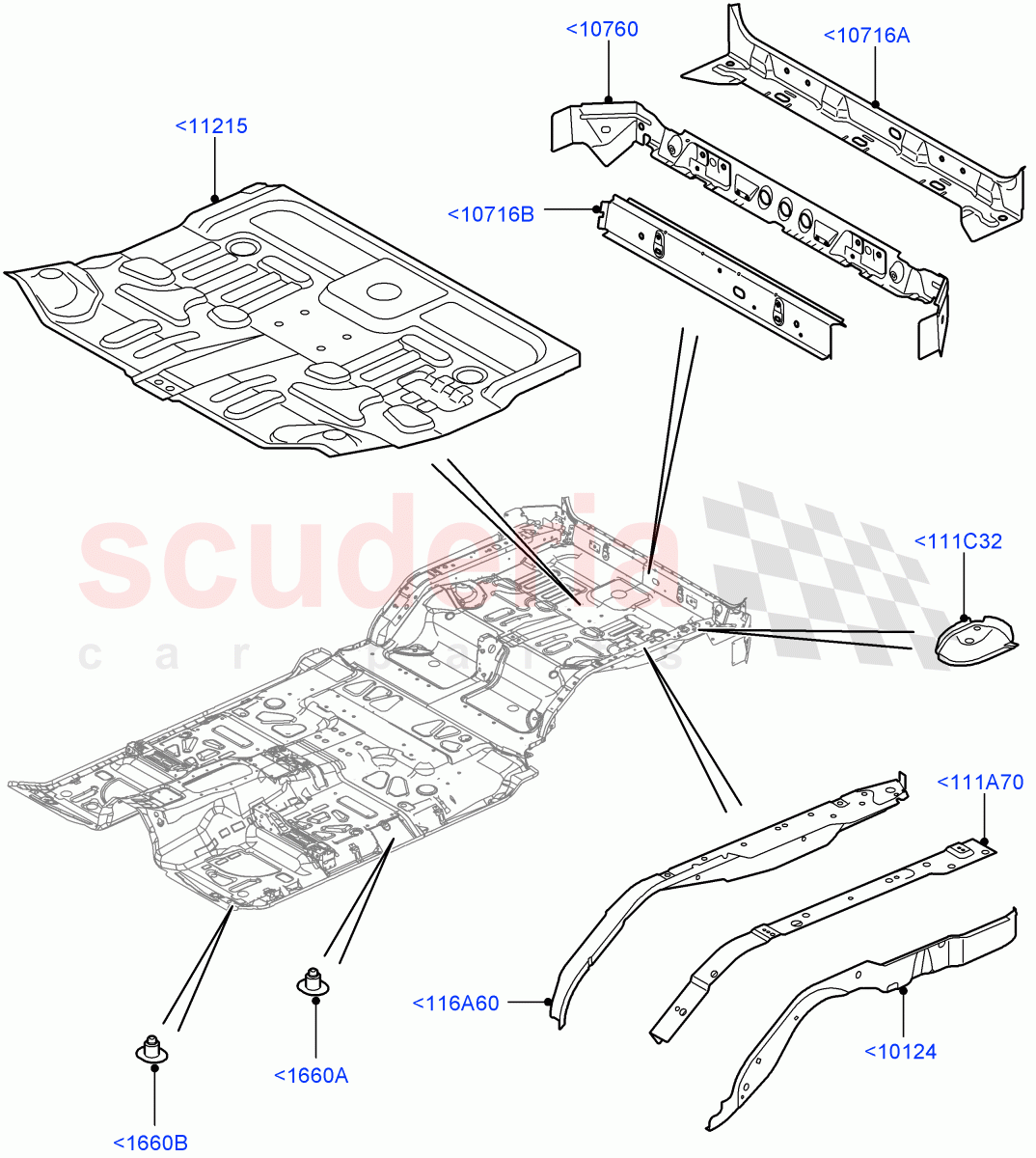

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AGA780021	MEMBER - FLOOR CROSS - REAR	$96.81	To Order
	AGA780031	MEMBER - FLOOR CROSS - REAR	$92.59	To Order

Photo	Part No	Description	Price (each)	Stock
	AQR780080	REINFORCEMENT - REAR CROSSMEMBER	$483.31	To Order

Photo	Part No	Description	Price (each)	Stock
	AFD780011	PAN - FLOOR - REAR	$161.24	To Order

Photo	Part No	Description	Price (each)	Stock
	AFS780031	SPACER	$6.88	To Order

Photo	Part No	Description	Price (each)	Stock
	AFS780041	SPACER	$6.08	To Order
	LR025049	SPACER	$5.54	To Order

Photo	Part No	Description	Price (each)	Stock
	AQA780030	CROSSMEMBER	$592.48	To Order

Photo	Part No	Description	Price (each)	Stock
	AQA780050	CROSSMEMBER	$162.93	To Order

Photo	Part No	Description	Price (each)	Stock
	AFR780502	REINFORCEMENT - FLOOR PAN	$66.12	To Order
	AFR780512	REINFORCEMENT - FLOOR PAN	$66.12	To Order

Photo	Part No	Description	Price (each)	Stock
	AFR780040	REINFORCEMENT - REAR FLOOR PAN	$7.69	To Order
	AFR780050	REINFORCEMENT - REAR FLOOR PAN	$8.58	To Order

Photo	Part No	Description	Price (each)	Stock
	AFD780080	PAN - FLOOR SIDE	$40.25	To Order
	AFD780090	PAN - FLOOR SIDE	$40.66	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<111A70	AFR780502	REINFORCEMENT - FLOOR PAN	AFR780502 REINFORCEMENT - FLOOR PAN RH, 3rd Row Seat Mounting / From: AA000001	$66.12	1
<111A70	AFR780512	REINFORCEMENT - FLOOR PAN	AFR780512 REINFORCEMENT - FLOOR PAN LH, 3rd Row Seat Mounting / From: AA000001	$66.12	1
<111C32	AFR780040	REINFORCEMENT - REAR FLOOR PAN	AFR780040 REINFORCEMENT - REAR FLOOR PAN RH / From: AA000001	$7.69	1
<111C32	AFR780050	REINFORCEMENT - REAR FLOOR PAN	AFR780050 REINFORCEMENT - REAR FLOOR PAN LH / From: AA000001	$8.58	1
<116A60	AFD780080	PAN - FLOOR SIDE	AFD780080 PAN - FLOOR SIDE RH / From: AA000001	$40.25	1
<116A60	AFD780090	PAN - FLOOR SIDE	AFD780090 PAN - FLOOR SIDE LH / From: AA000001	$40.66	1
<1660A	AFS780031	SPACER	AFS780031 SPACER M12 / From: AA000001	$6.88	2
<1660B	AFS780041	SPACER	AFS780041 SPACER M10 / From: AA000001 / To: AA557667	$6.08	6
<1660B	LR025049	SPACER	LR025049 SPACER M10 / From: AA557668	$5.54	6
<10124	AGA780021	MEMBER - FLOOR CROSS - REAR	AGA780021 MEMBER - FLOOR CROSS - REAR RH / From: AA000001	$96.81	1
<10124	AGA780031	MEMBER - FLOOR CROSS - REAR	AGA780031 MEMBER - FLOOR CROSS - REAR LH / From: AA000001	$92.59	1
<10716A	AQA780030	CROSSMEMBER	AQA780030 CROSSMEMBER Lower Rear / From: AA000001	$592.48	1
<10716B	AQA780050	CROSSMEMBER	AQA780050 CROSSMEMBER Inner / From: AA000001	$162.93	1
<10760	AQR780080	REINFORCEMENT - REAR CROSSMEMBER	AQR780080 REINFORCEMENT - REAR CROSSMEMBER Lower / From: AA000001	$483.31	1
<11215	AFD780011	PAN - FLOOR - REAR	AFD780011 PAN - FLOOR - REAR From: AA000001	$161.24	1

Floor Pan - Centre And Rear ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Floor Pan - Centre And Rear ((V) FROMAA000001)

Add to Shopping Cart
